Unleash the Power of Compatibility with the All-in-One PTZ Camera Controller System

*Keyboard Controller and Junction Box Included*

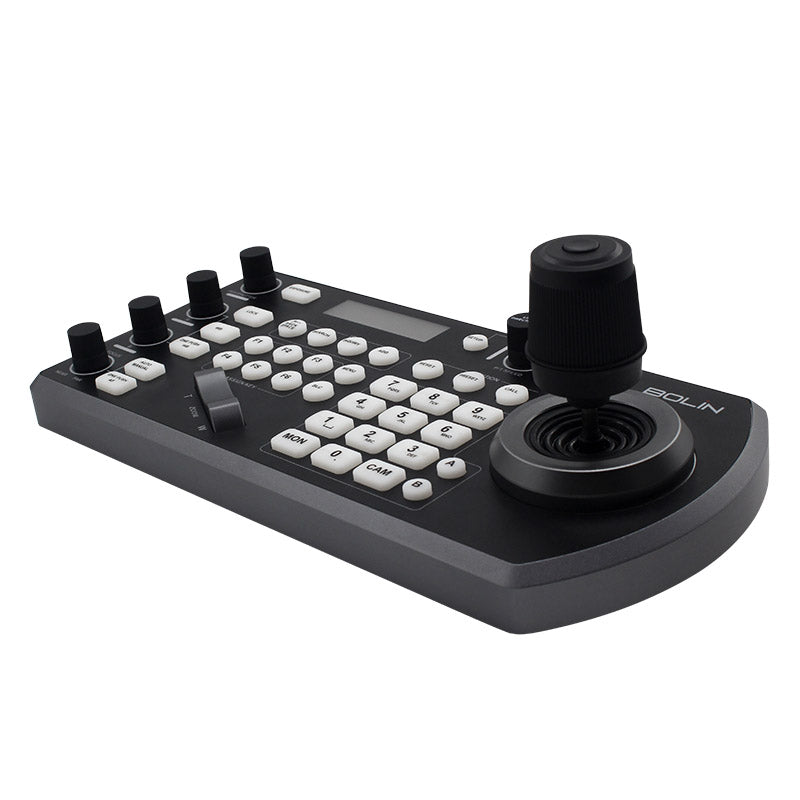

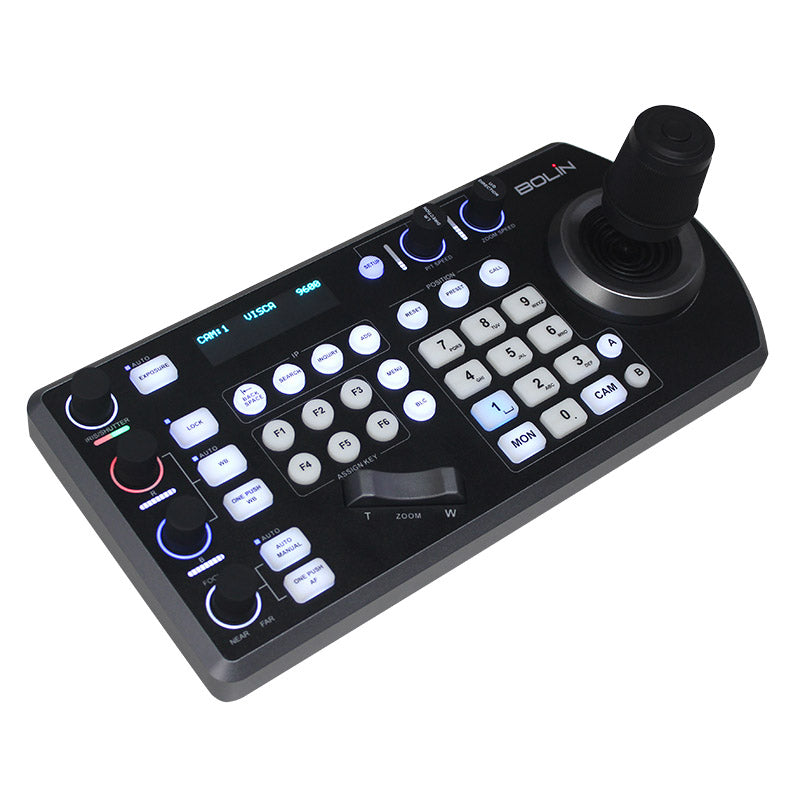

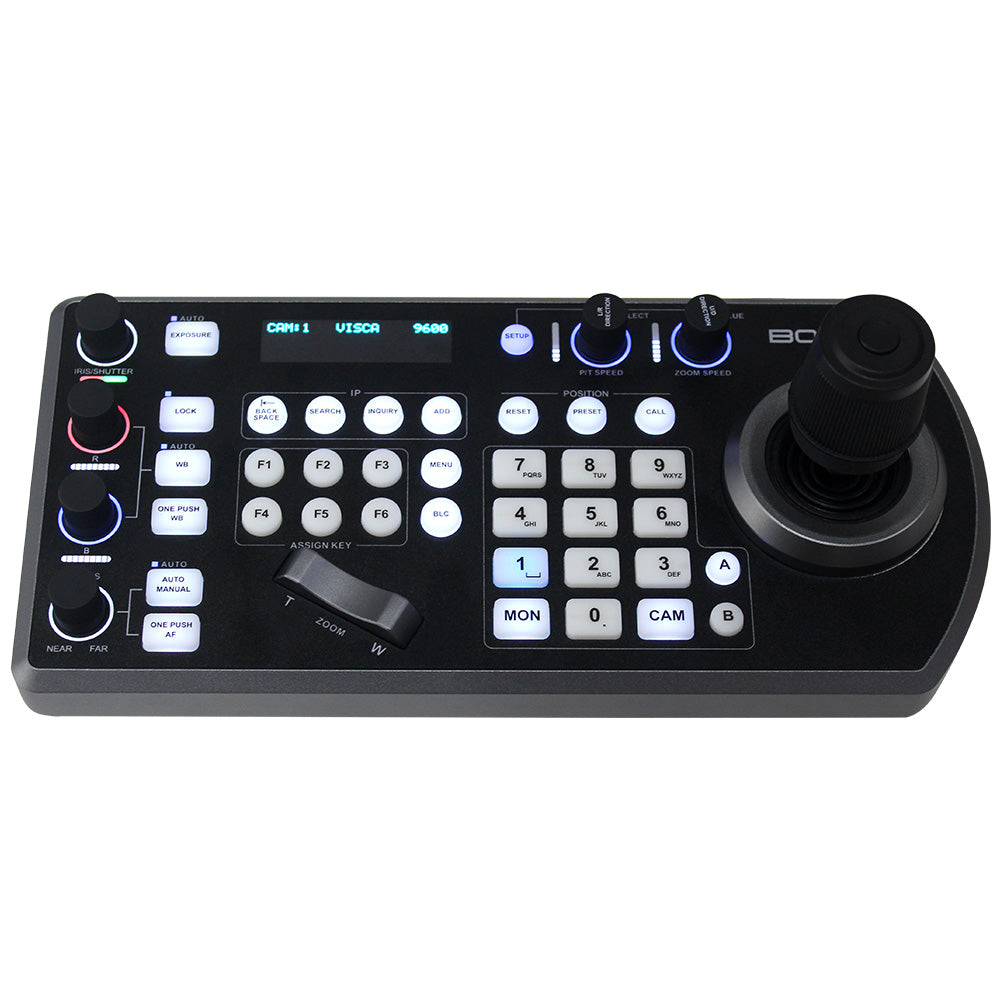

The KBD-1010 controller is designed with ergonomics in mind. It features a direct-access panel interface that allows for easy access to camera functions. With full preset store and recall capabilities, users can quickly find their desired camera settings. The controller also includes dedicated knobs for PTZ variable speed control and fine control with an auto/manual toggle. Additionally, the illuminated push buttons make camera selection effortless, while the three-axis joystick enables smooth and precise camera movements.

The KBD-1010 PTZ camera controller is designed to meet the needs of even the most demanding camera operation environments by combining traditional serial control and IP network control. With its precision controls, it offers an ideal solution for multi-PTZ-camera producers, enabling them to create baseband video and complete IP streaming for various content production applications. Whether it's for remote studios, education, state-of-the-art broadcast systems, video conferencing, or houses of worship, the KBD-1010 is the perfect partner.

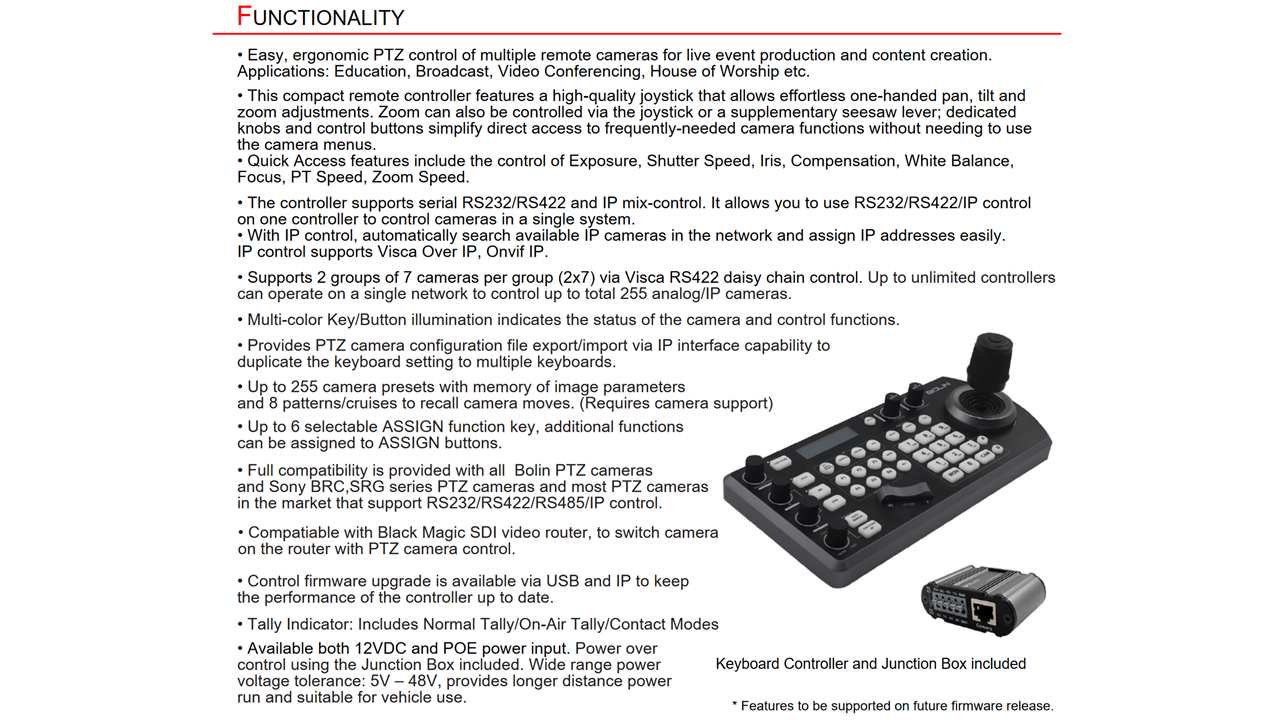

Features:

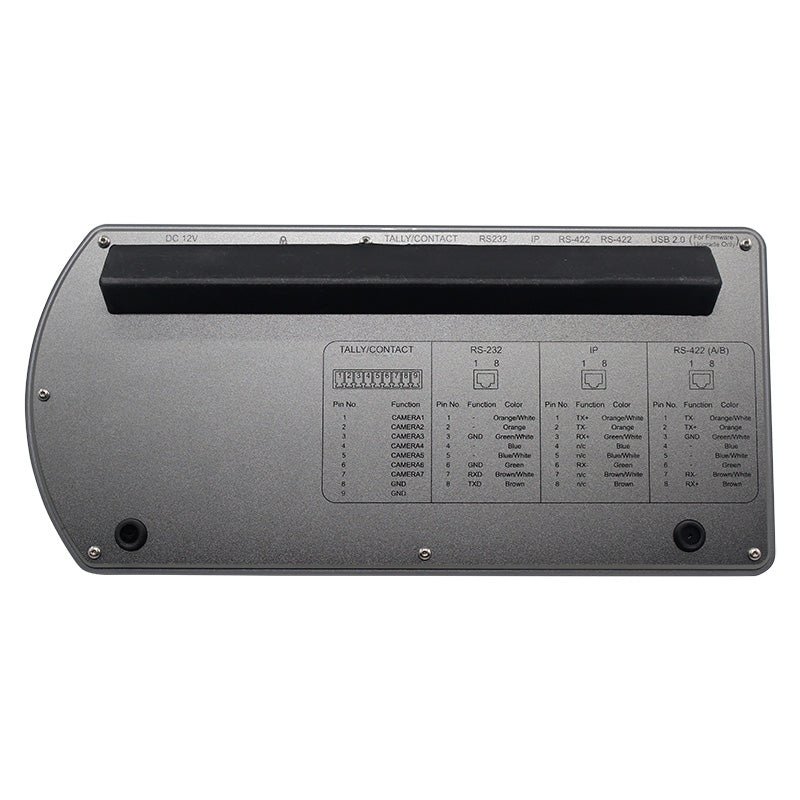

• Serial RS232/422/485 control and IP network control.
• Cross Protocol Mix-control, Visca, Visca-Over-IP, Pelco P/D, Onvif IP.

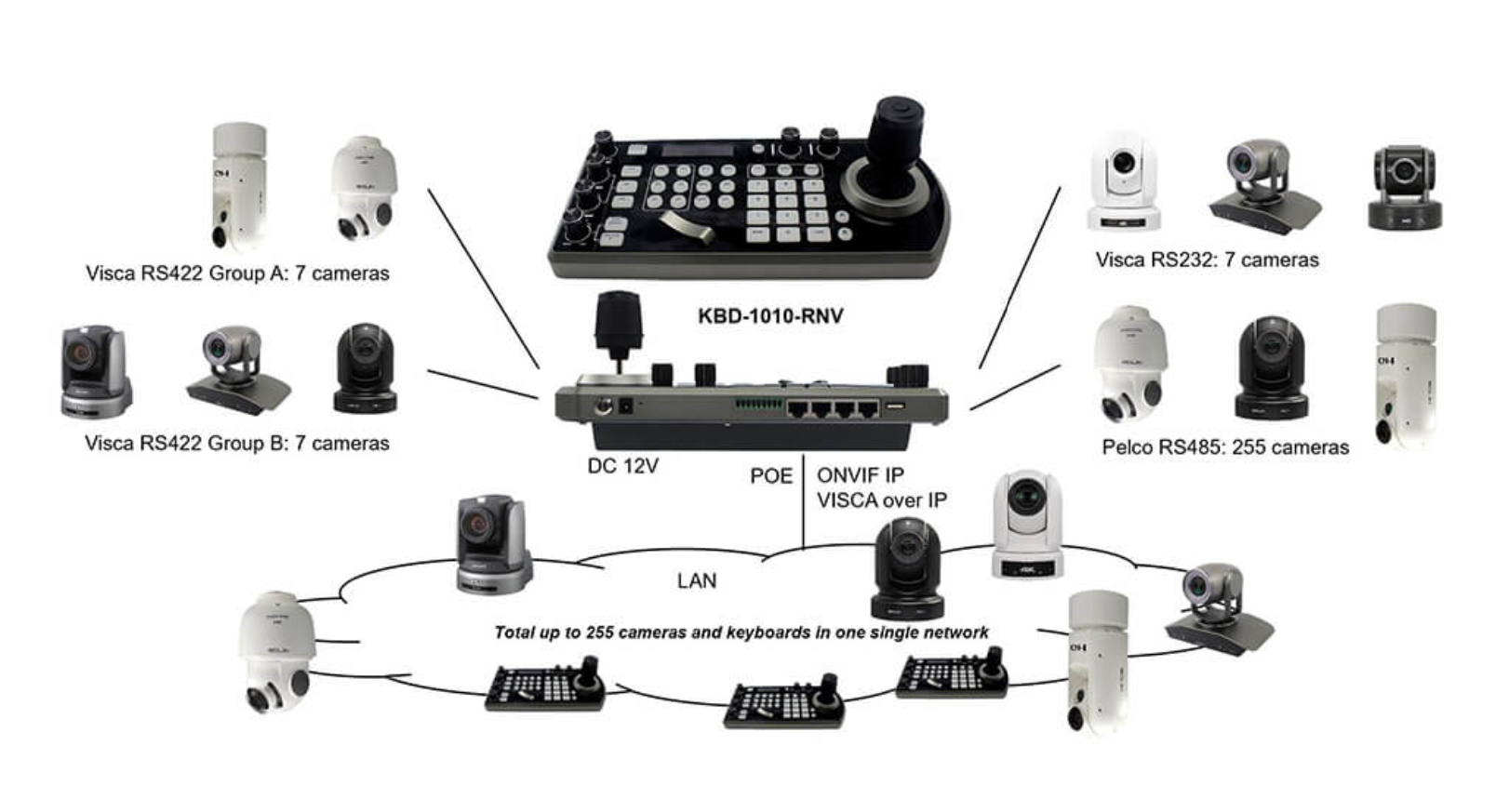

• 14 cameras over Visca, total 255 devices including camera and keyboard over one system that has combined traditional serial control system and over IP network.
• It supports all Bolin PTZ cameras and all PTZ cameras in the market that are controlled using Visca/ VISCAoIP/Pelco/Onvif.
• Supports any brand of Visca Over IP cameras in one system.

Item Includes:

• 1x Keyboard/Controller
• 1x Power Supply & Cord
• 1x RJ-45 to Phoenix Breakout
• 1x RJ-45 Coupler

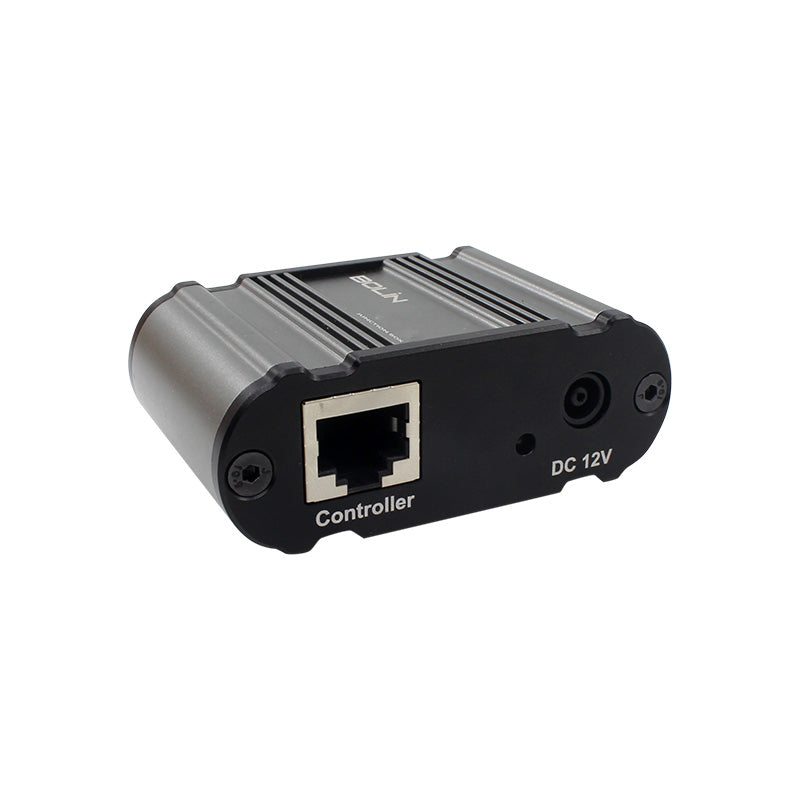

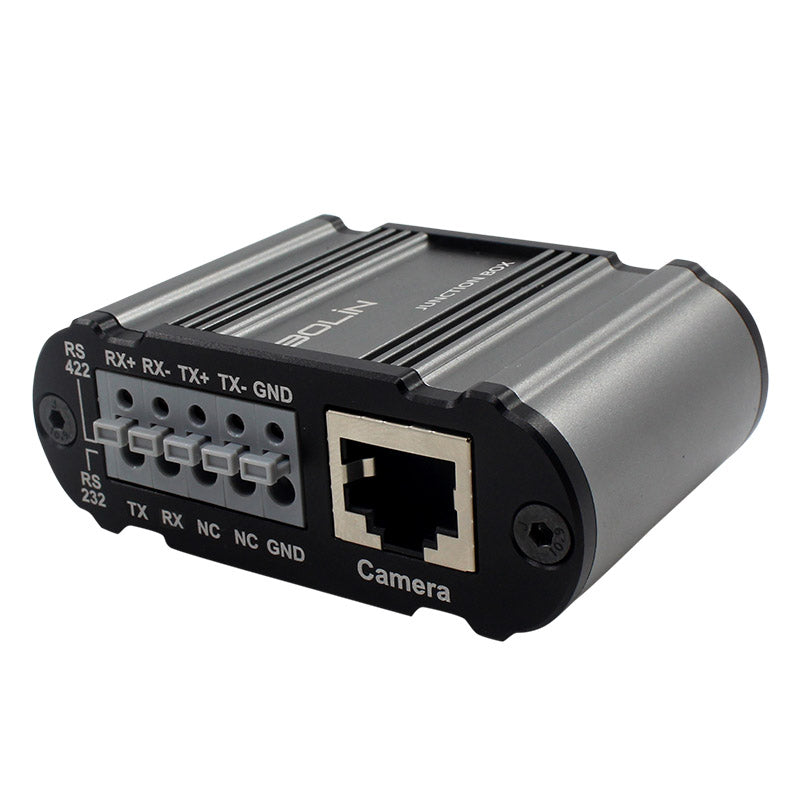

• 1x Junction Box
• 1x Tally Light Terminal Contact
• 1x Key Assign Label Sheet
• 1x Manual
