The First and the Pinnacle for Dante AV Enabled PTZ Cameras

*Will Require Dante Encoder/Decoder and 1GB PoE++ Network Switch

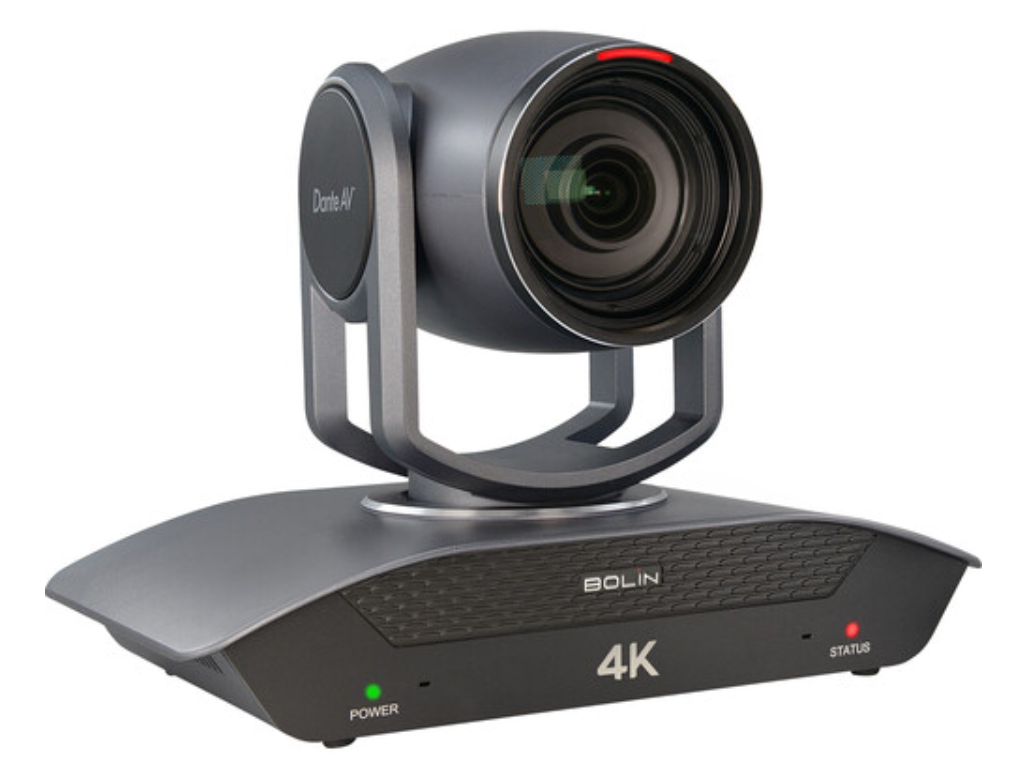

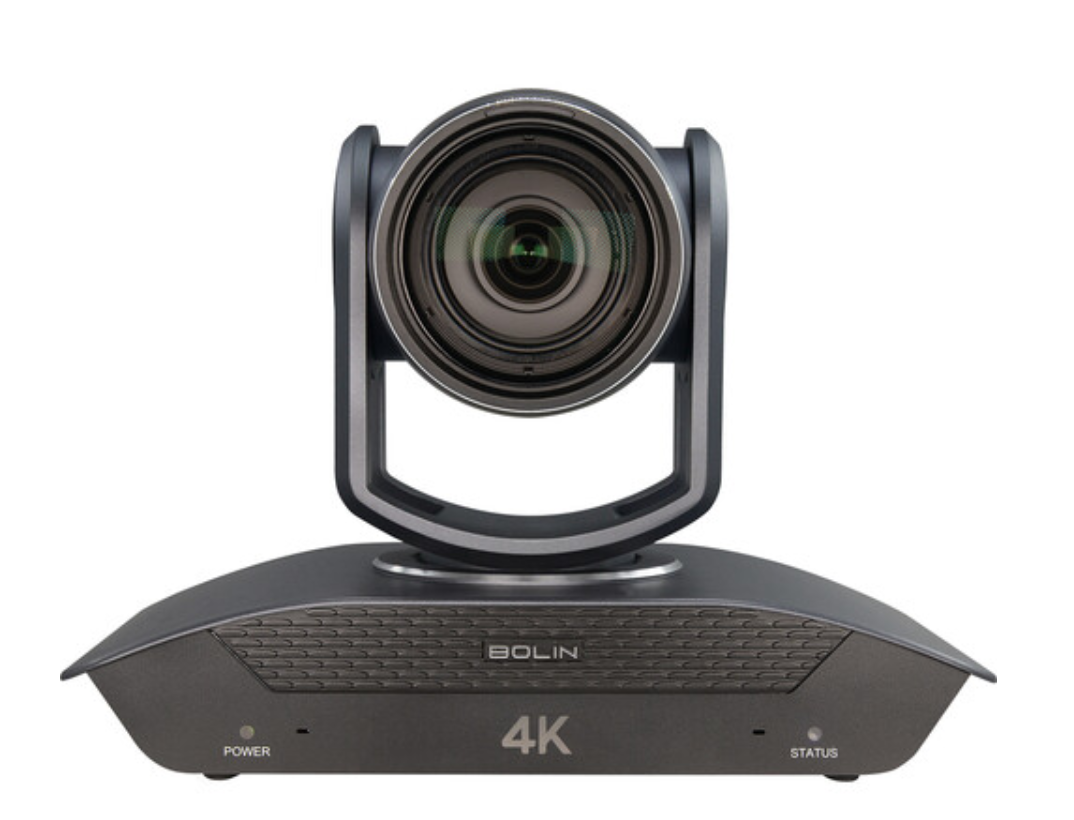

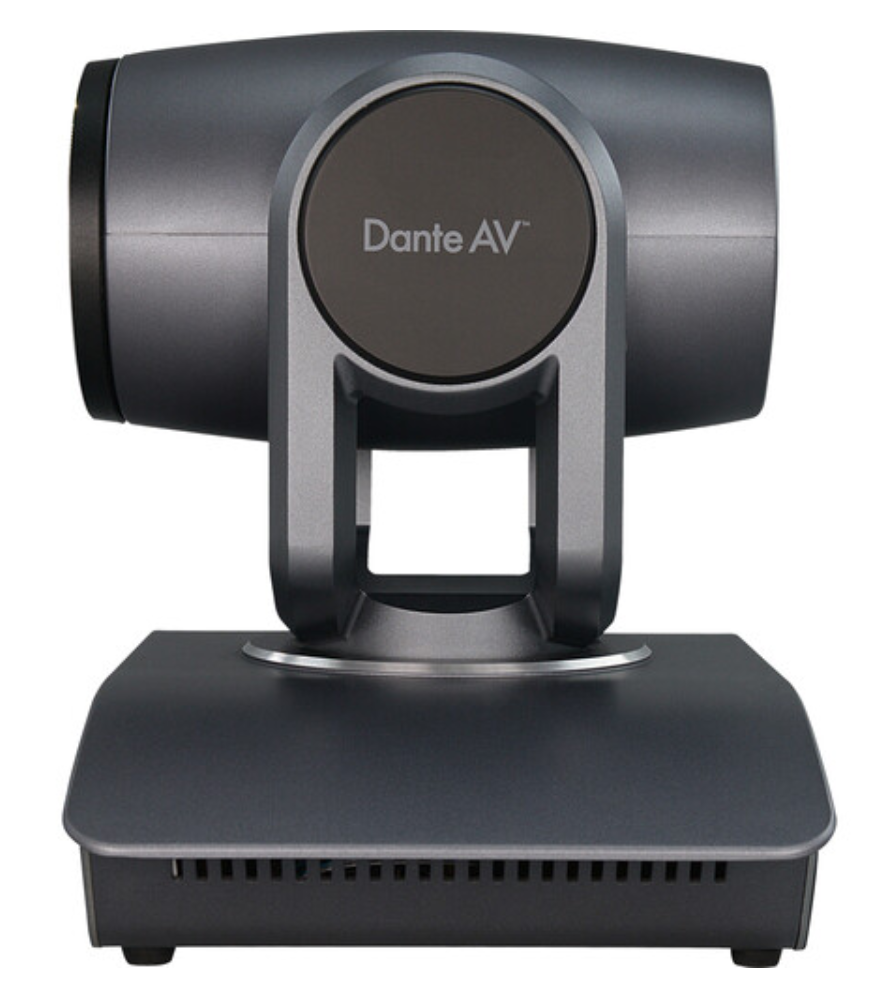

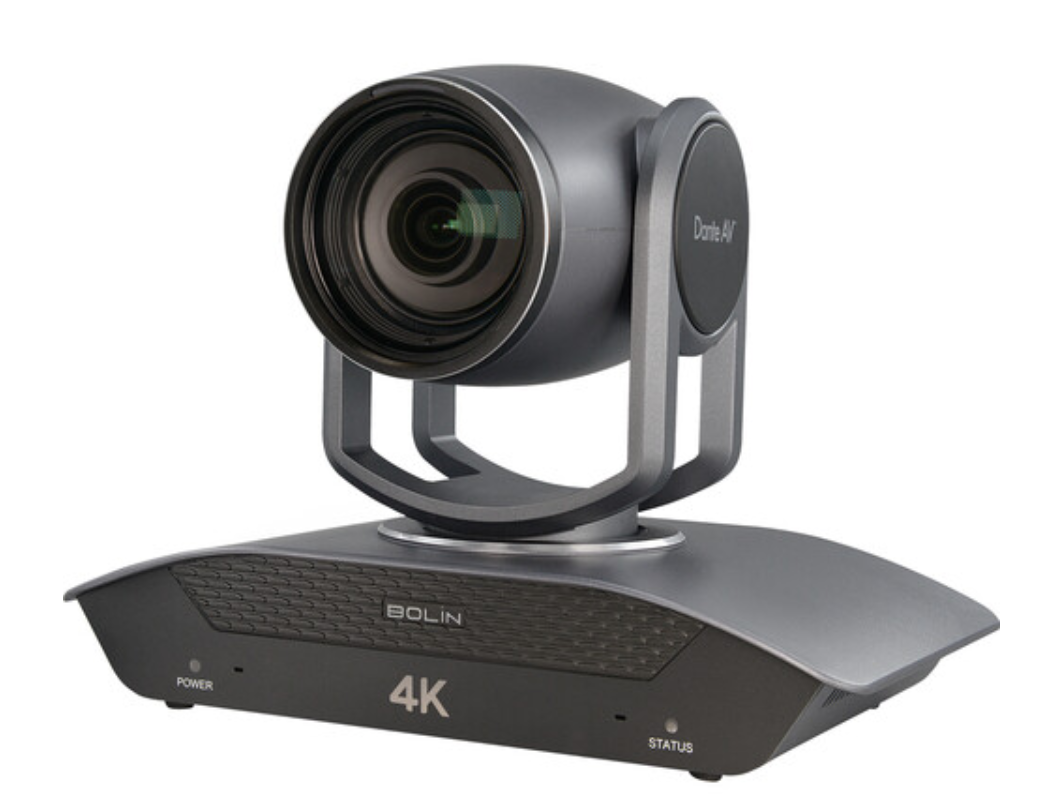

The Bolin Dante AV PTZ camera D412 represents the first Dante AV Ultra hardware-enabled pan, tilt, and zoom camera globally. It interfaces video and audio over a standard 1 Gbps network, delivering exceptional video quality with minimal latency and precise audio-visual synchronization.

The Dante AV Ultra camera delivers superior color image quality up to 4K60 / Full HD, featuring silent and seamless Pan, Tilt, and Zoom functions. This exceptional video device seamlessly integrates with the current Dante system, allowing Dante audio devices to operate flawlessly.

• Dante AV-Enabled PTZ IP Camera
• HDMI & IP Video Output up to UHD 4K60
• VISCA, DanteAV, VISCA-over-IP, Pelco-P/D
• Sony IMX 415 1/2.8" Exmor R CMOS Sensor
• 12x Optical & 16x Digital Zoom
• PoE++ Support, 128 Presets, IR Remote
• Supports Optional Serial/IP Controllers


Unicast and Multicast for Video Display Routing

Point to Multipoint and Point to Point Distribution – supports both unicast and multicast video distribution. Paired with Dante AV Ultra decoder, using familiar Dante Controller software, the decoder can quickly and easily switch between multiple DanteAV camera endpoints on the network, with no need for breakouts or matrix switches to unicast or multicast display the video on any number of screens and video router system to use.

Dante Controller Supported

Full setup and control and monitoring of the device is enabled through Dante Controller that delivers standard Dante features such as automatic device discovery and system configuration, making network setup a simple plug and play experience.

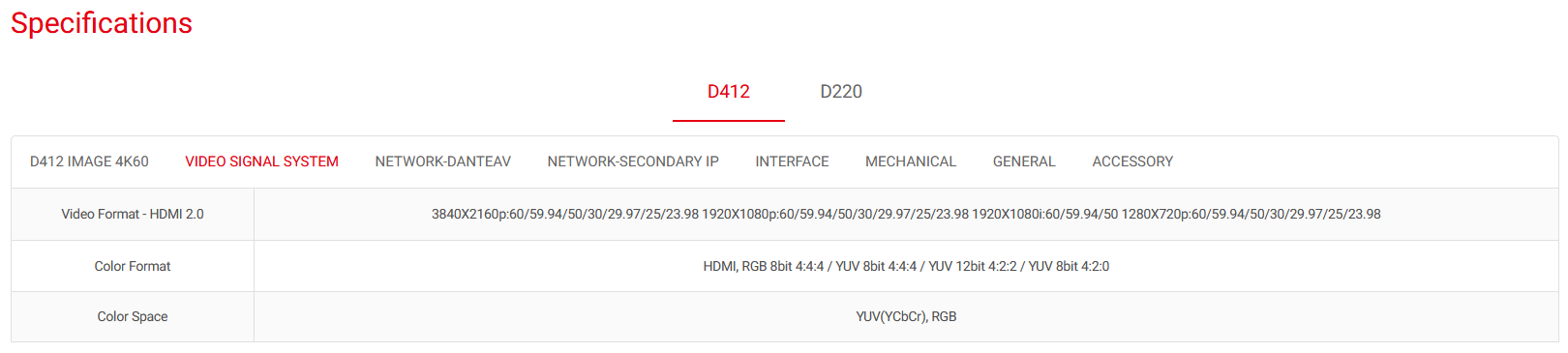

Video Output

Deliver IP streaming video to Dante network and local HDMI 2.0 video output to conventional workflow in 4K60 or FHD.

Video Settings

Image parameter adjustments includes exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, image stabilizer, flip/mirror and more with configurable video settings.

Audio

HDMI embedded high-quality audio and DanteAV video streaming embedded audio with support for mic and line-in audio input.

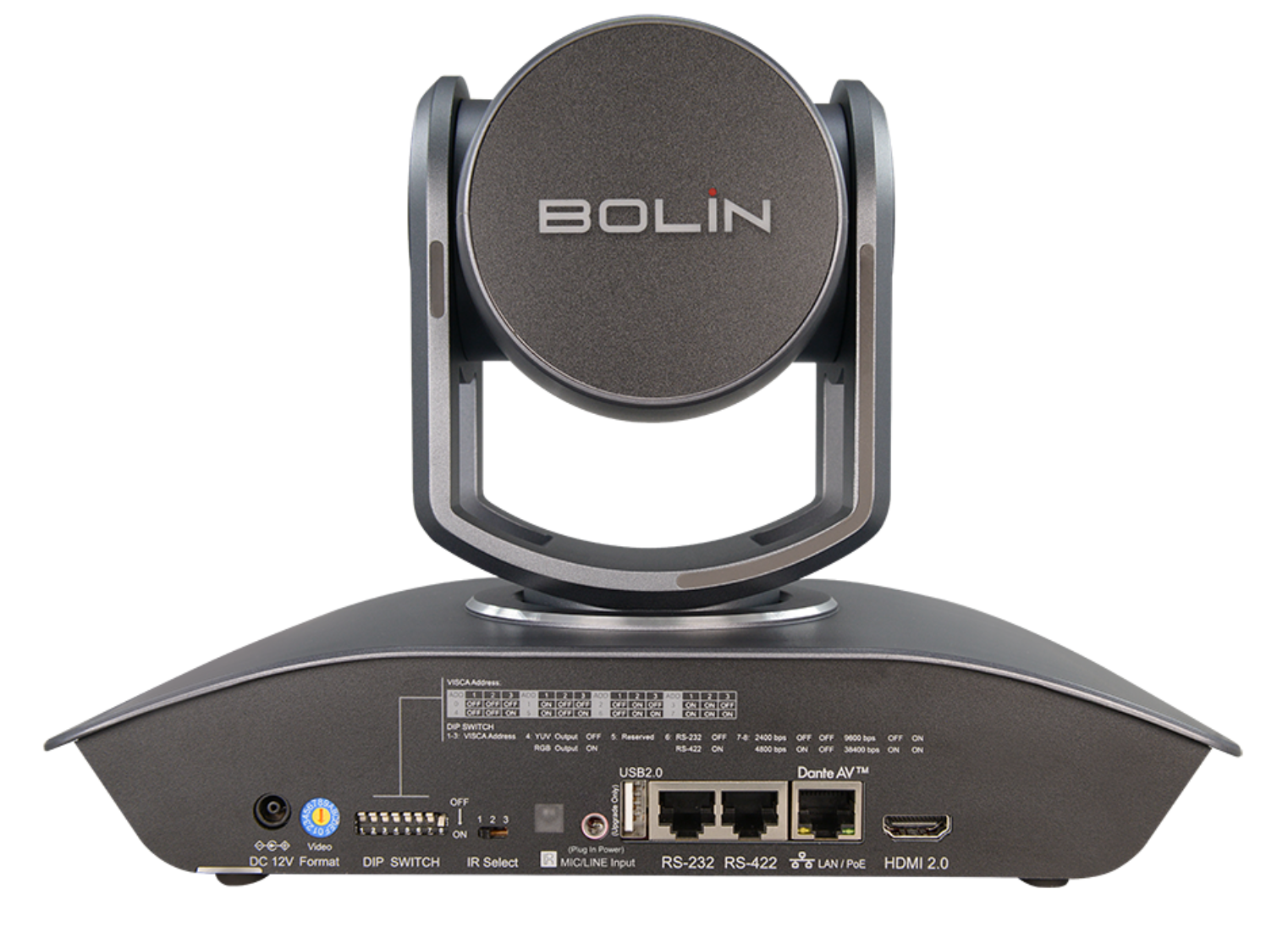

Two Ethernet Ports and POE

The D412/D220 Dante AV Ultra PTZ camera includes two RJ-45 1000BASE-T ports can be used to transport video over a Gigabit Ethernet network. Ports 1 for Dante network primary connection and Port 2 can be used to daisy-chain other endpoints. Port 1 is also capable of receiving power via POE++.

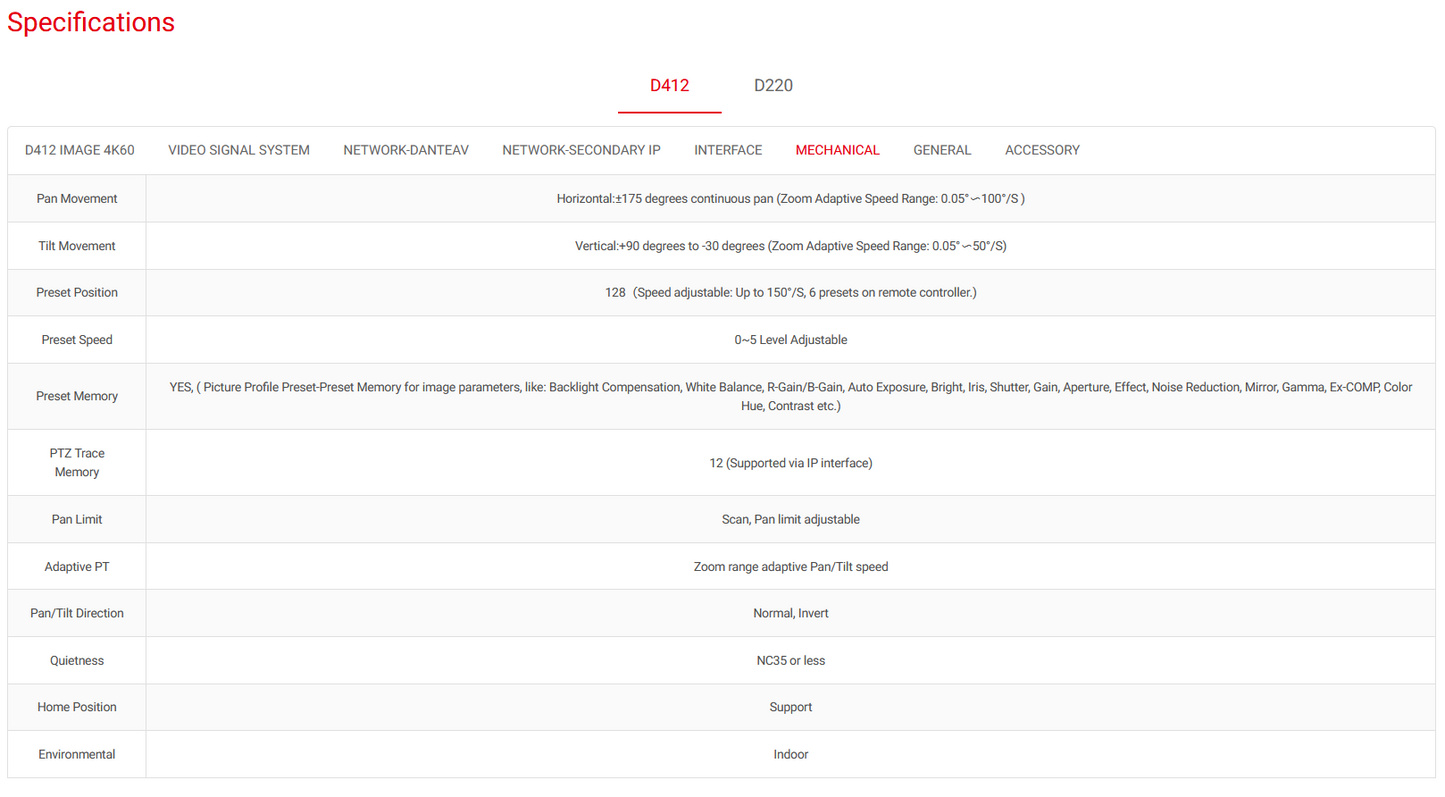

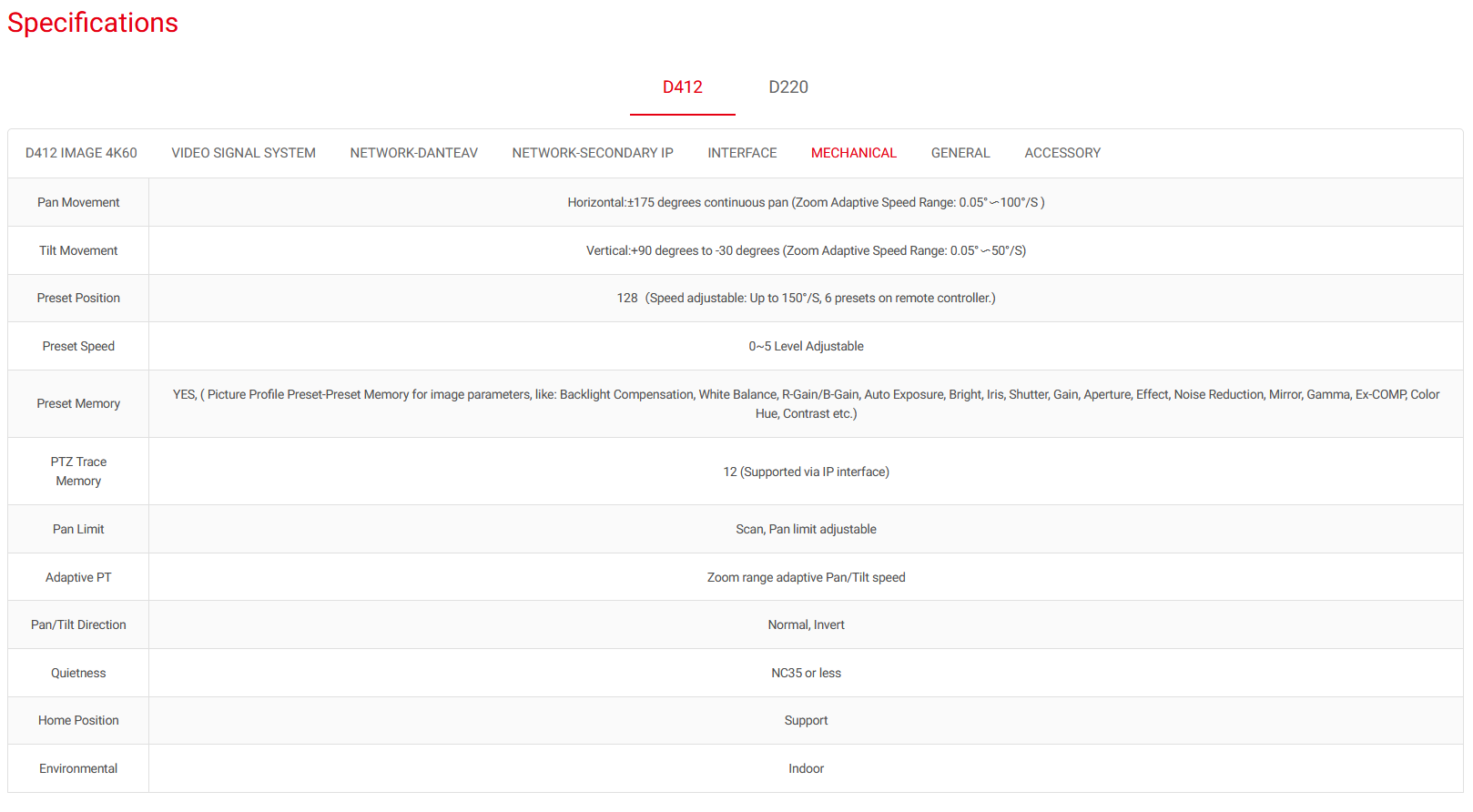

PTZ Movement

Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset- Image parameter setting restore with presets and quick access operation.

Ease of Installation and Use

Simply connect one network cable from camera to any 1GB Ethernet network/POE device to access to existing Dante Audio-Over-IP system.

Always Up To Date

Firmware updates, upgrade via Bolin Dante AV software IP interface to keep the decoder features and performance up to date.
