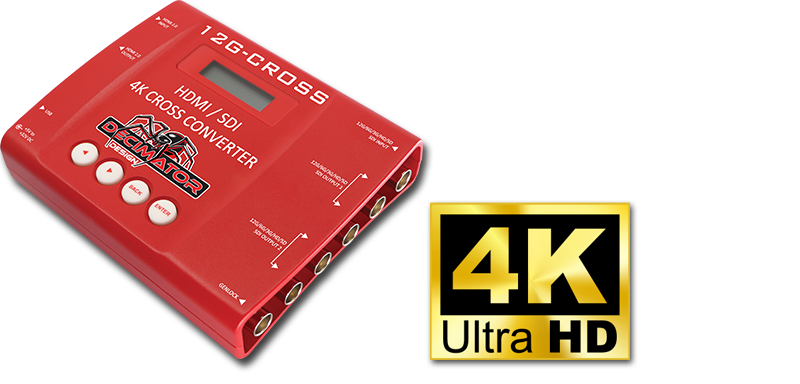

Decimator 12G-CROSS 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion

Manufacturer: store.ear.net
SKU: DEC-DEC12GCROSS
$666.00 CAD
$873.00 CAD $666.00 CAD
Sale Sold out
Shipping calculated at checkout.


  • The 12G-CROSS is a small (4.2" x 5.1" x 1.2") low power portable converter in a robust aluminium case, without a noisy fan, suitable for almost any environment.


  • Allows HDMI or SDI outputs to be sourced from either the HDMI or SDI input or the new 4K scaling engine.
  • Supports 294 VESA formats via HDMI input.
  • The 4K scaling engine can be driven by SDI or HDMI input, supports horizontal/vertical flipping, and can be locked to SDI, HDMI, or Genlock input.
  • The 4K scaling engine can scale and frame rate convert between 351 input formats and 57 output formats.
    • 294 VESA formats in via HDMI input
    • (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
    • (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
    • (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
    • 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
    • (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
    • (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
    • 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
    • 1280 x 720p24/23.98 via HD-SDI
    • 720 x 480p59.94 or 720 x 576p50 via HDMI
    • 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
  • Offers 20,007 possible format conversions!
  • The audio pairs in the SDI and HDMI outputs can be rearranged as required.
  • Includes 4 x (12G/6G/3G/HD/SD)-SDI outputs, usable as a 1 to 4 distribution amplifier.
  • Truly portable with an easy-to-use LCD screen and button control system.
  • Additional features:
    • USB port for control and firmware updates
    • Metal Thread Locking DC Power Socket
    • Power Supply and USB Cable
