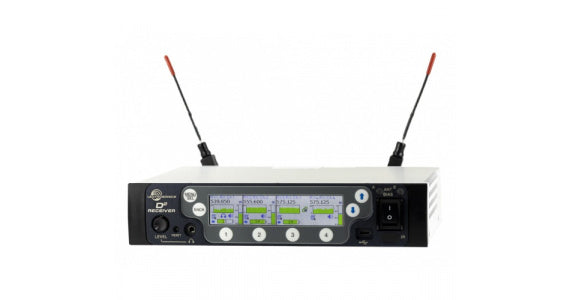

The DSQD Half Rack Receiver with analog and digital audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless® systems with continuously tunable tracking filters covering 470.100 - 614.375 MHz. Antenna ports on the rear panel accept input from remote antennas, with a “loop-thru” output to another mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors) on the front panel.

Four-channel, half-rack design Continuously tunable tracking filters covering 470.100 - 614.375 MHz Compatible with D2, DSW, Duet and Digital Hybrid Wireless® transmitters Built-in wideband antenna multicoupler with loop-thru for additional receivers Antenna bias power enabled from the front panel (fused and over-temperature protected) IR bi-directional port for transmitter setup Analog and Digital audio outputs with TalkBack (in applicable RX modes) Ethernet and USB interface
