JVC GY-HC500SPCN NDI/HX Connected Cam Mini Studio Package with Score Overlay-Game Clock Graphics

Manufacturer: JVC Pro
SKU: EAR-JVC500SPCNKIT (EAR Package)
Regular price $13,969.00 CAD
Regular price $14,810.00 CAD Sale price $13,969.00 CAD
Sale Sold out
Shipping calculated at checkout.

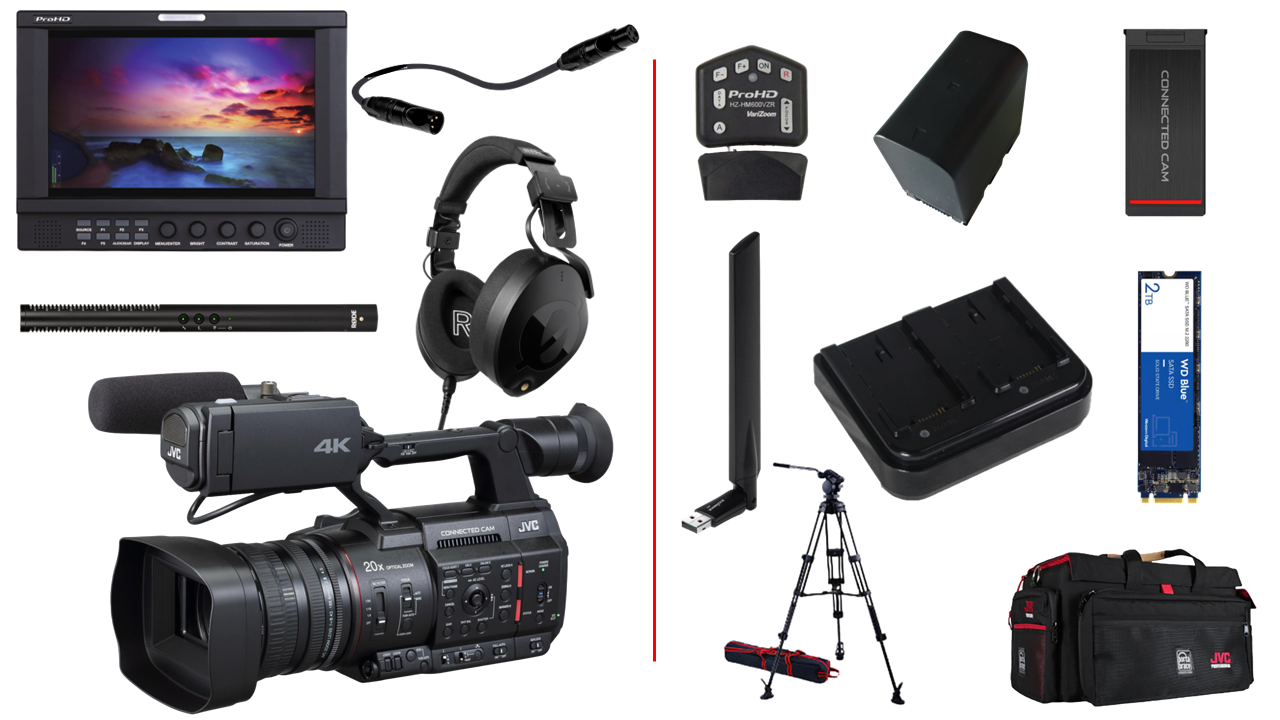

EAR Professional Audio Video is delighted to present to you this exceptional high-quality award winning JVC Connected Cam Mini Studio Package, which comprises of the following top-notch products and is ideal for applications such as Education/Schools, Broadcast, Government, and many more:

- QTY (1) JVC GY-HC500SPCN NDI/HX Handheld 4K 1-inch Sports Production Camcorder

- QTY (1) JVC DT-X93H 9" on-camera monitor with power supply

- QTY (1) JVC HZ-HM600VZR camera remote

- QTY (1) JVC P-22MX two stage tripod with carrying case

- QTY (1) JVC CTC500BSR Soft Carry Case for GY-HC500 with custom fitted rain slicker

- QTY (1) JVC KA-MC100G SSD Memory Caddy

- QTY (1) JVC EW-7811UAC WiFi USB Antenna

- QTY (1) JVC BN-VC296G extra camcorder battery

- QTY (1) JVC AA-VC20U dual battery charger

- QTY (1) RODE NTG4+ Dual-powered Professional Shotgun Microphone

- QTY (1) RODE NTH-100 Professional Over-Ear Headphones

- QTY (1) Western Digital WDS200T2B0B 2TB SATA SSD M.2 2280

- QTY (1) 6" XLR male to female patch cable

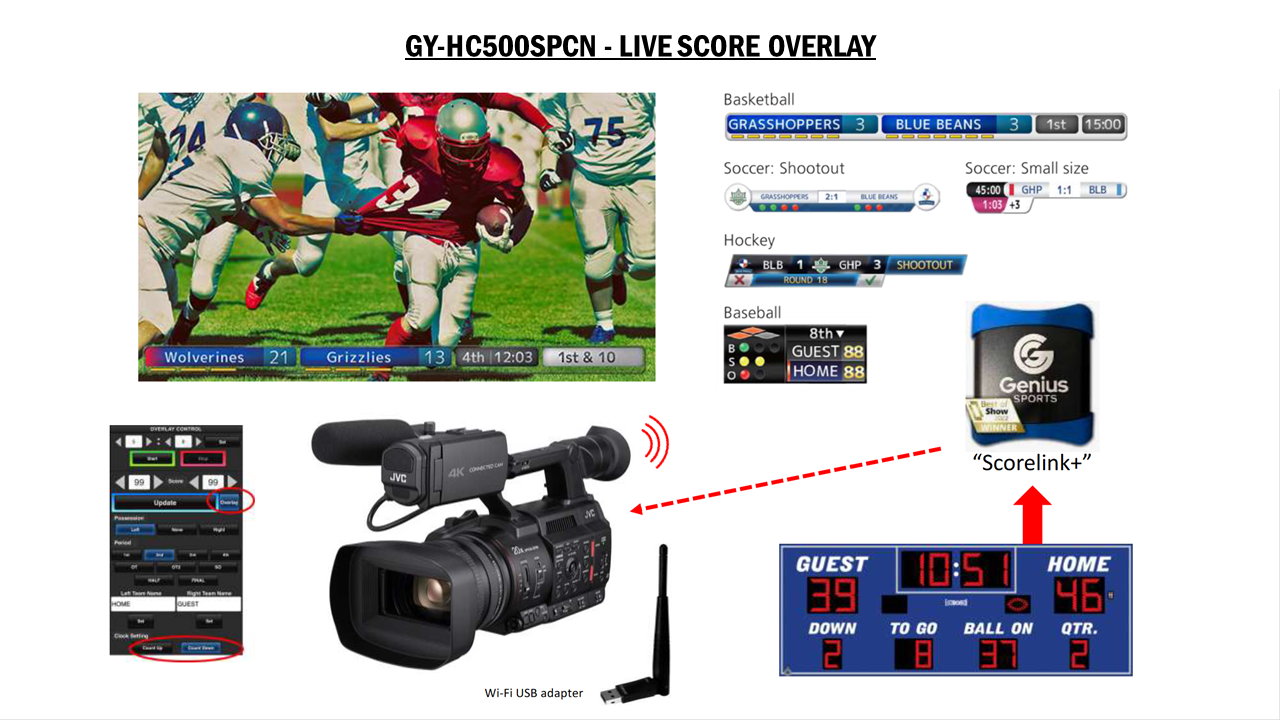

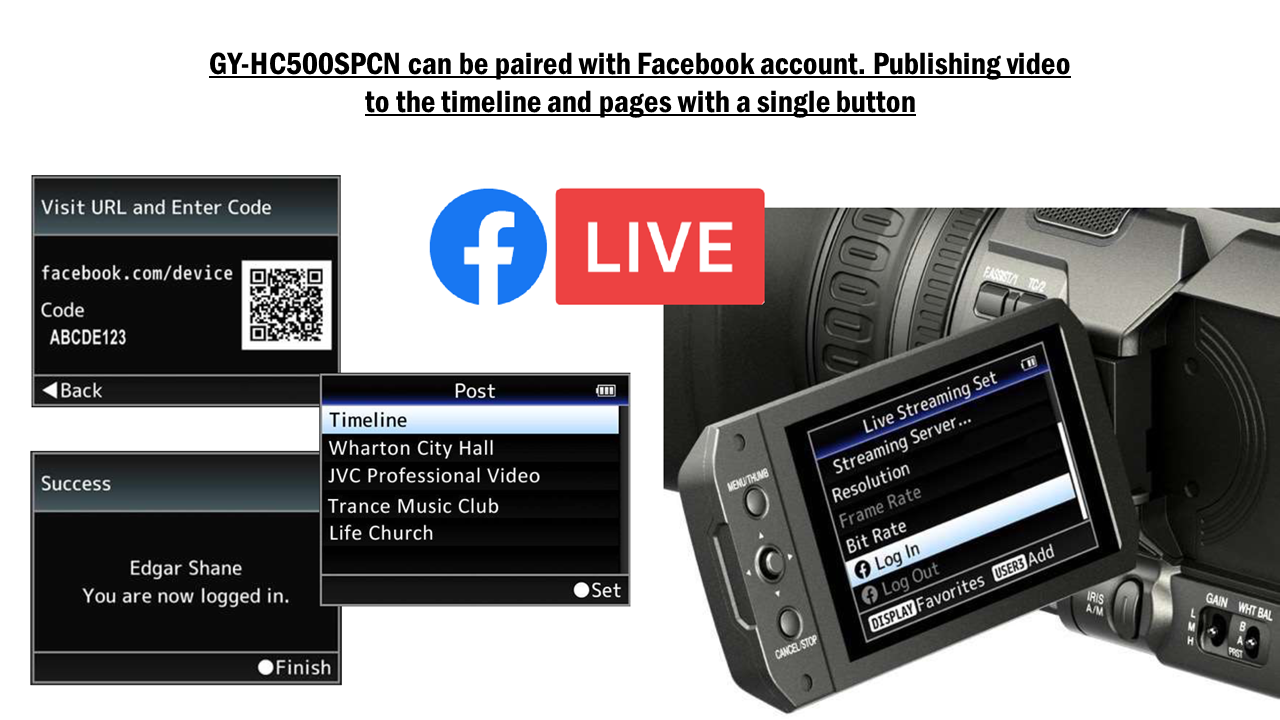

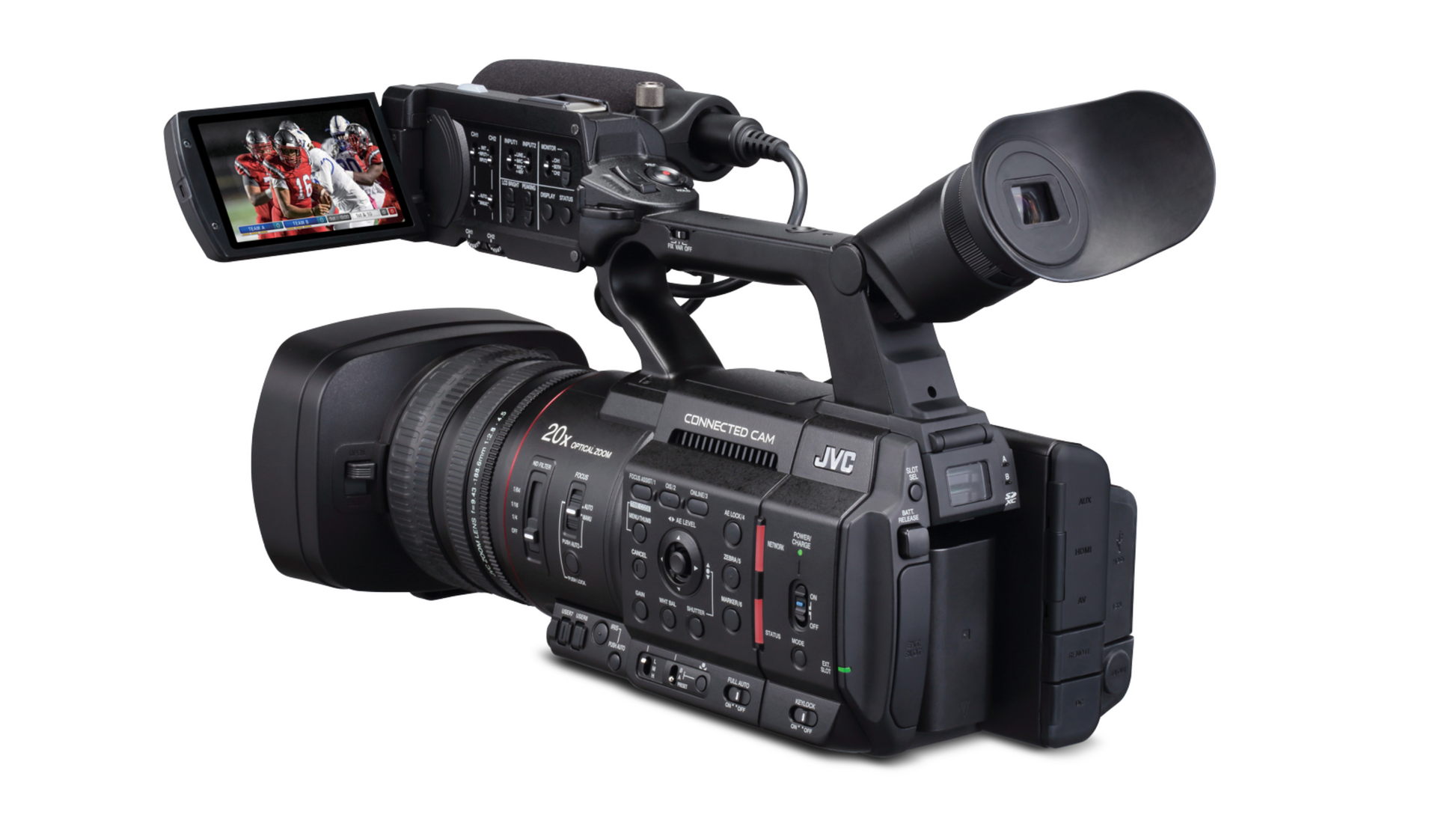

The JVC GY-HC500SPCN CONNECTED CAM™ 1-INCH CAMCORDER is a top-of-the-line professional camcorder designed for sports production and coaching. It comes equipped with advanced features like Score Overlay and Metadata Tagging capability, making it ideal for capturing and analyzing sports events. With NDI HX / Score overlay, Game clock, 1"CMOS 4K sensor, 20x Zoom, ProRes 422 10-bit, 4K50p60p recording, SRT, HDR via HLG J-log1, High-Speed Recording, Easy Setup for YouTube Live, and Easy Setup for Facebook Live, this camcorder is perfect for all your production needs. Further details, please click here: https://www.jvc.com/usa/pro/professional-video/handheld-cameras/gy-hc500spcn/#Related%20Information



Features:

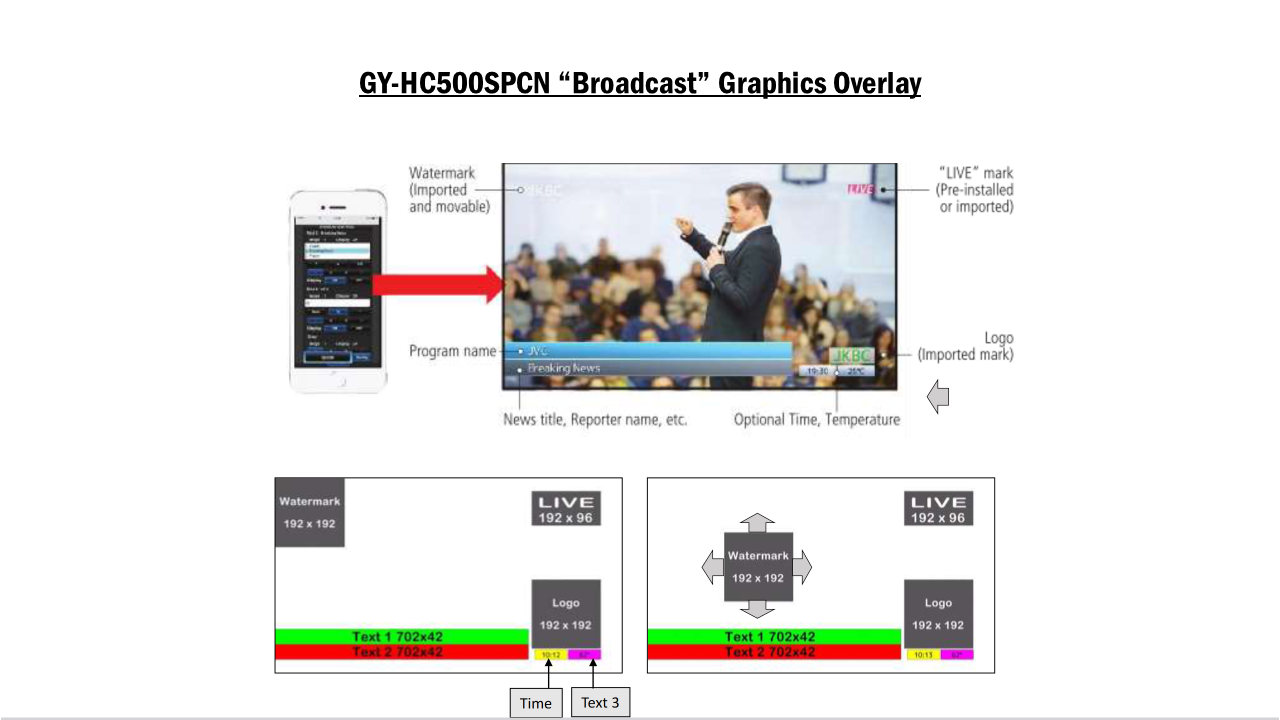

  • NDI®|HX mode live output capability with customizable graphic overlays (Note: Camera does not record in NDI|HX mode)
  • 10-bit ProRes 422/422HQ/422LT at 4K resolution and 50/60p frame rates recording to M.2 SSD** ** SSD media requires optional KA-MC100G media adapter.
  • 4K UHD 30p/25p/24p 4:2:2 10-bit / 4:2:0 8-bit (150Mbps) and various HD recording to SDHC/SDXC card* * Recording media not included
  • HDR recording, HLG or J-Log1 (10-bit)
  • 1-inch (effective) CMOS sensor with high picture quality
  • Clip Continuous Mode: This mode allows you to consolidate several rounds of start/stop recording into one clip.
  • F11 Sensitivity
  • Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
  • 40x lossless dynamic zoom
  • 4-inch high resolution LCD monitor
  • LCOS Quad VGA viewfinder
  • XLR audio connectors
  • High performance 1080 60p/50p live streaming (4K Rec + HD streaming + 4K HDMI output)
  • Low latency and high-quality streaming up to 20Mbps
  • SRT (Secure Reliable Transport> and Zixi QoS Technology
  • HEVC/H.265 encoding for streaming with 50% reduction in bit rate—or—contribution quality 4:2:2 10-bit streaming at up to 24Mbps (via optonal KA-EN200G)
  • LAN terminal (Streaming/IFB/Remote) in addition to USB host
  • Return over IP (Return video and IFB)
  • Auto FTP to upload native video clips automatically
  • Network Time Protocol (NTP)for precise time code synchronization

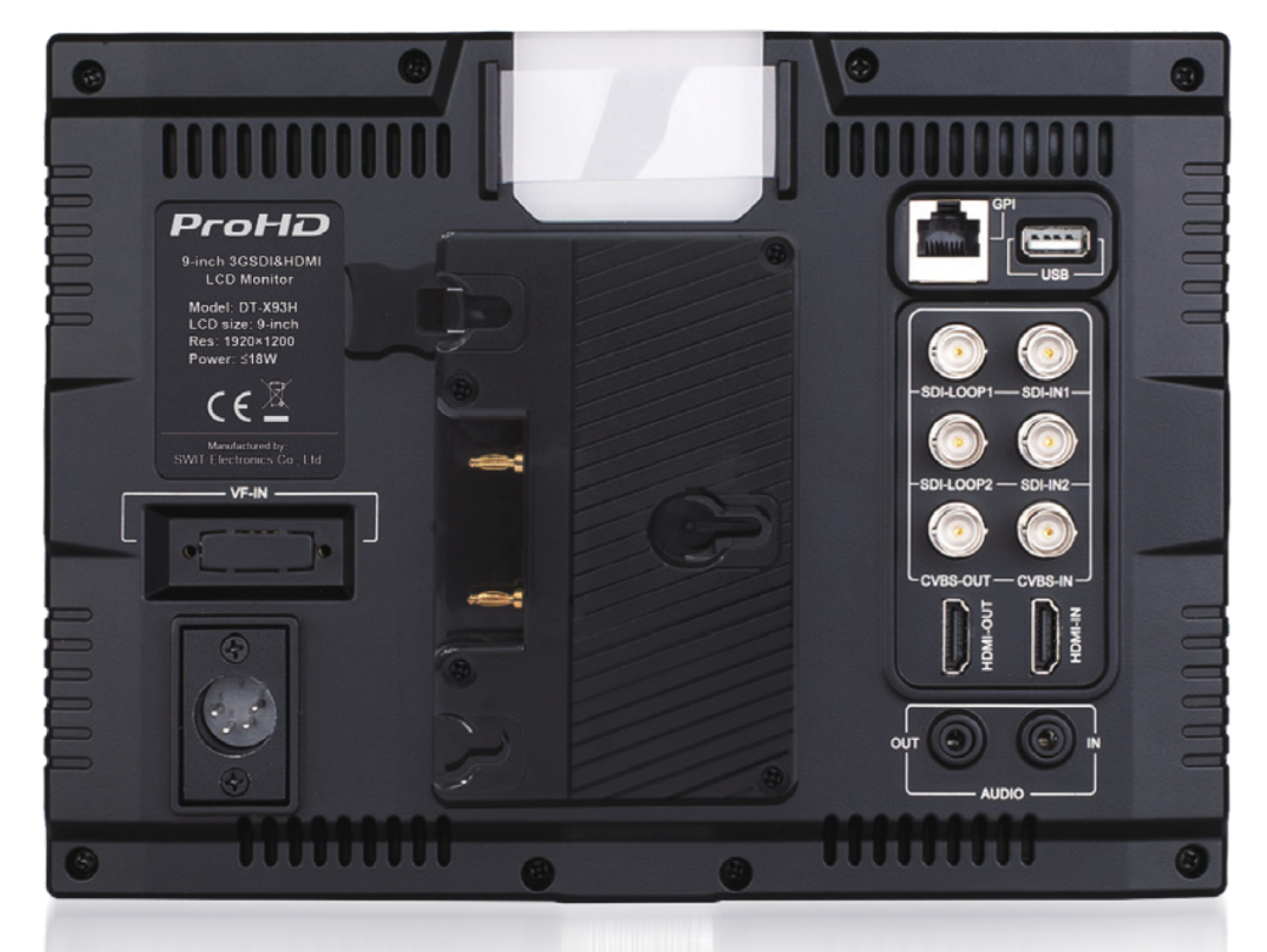

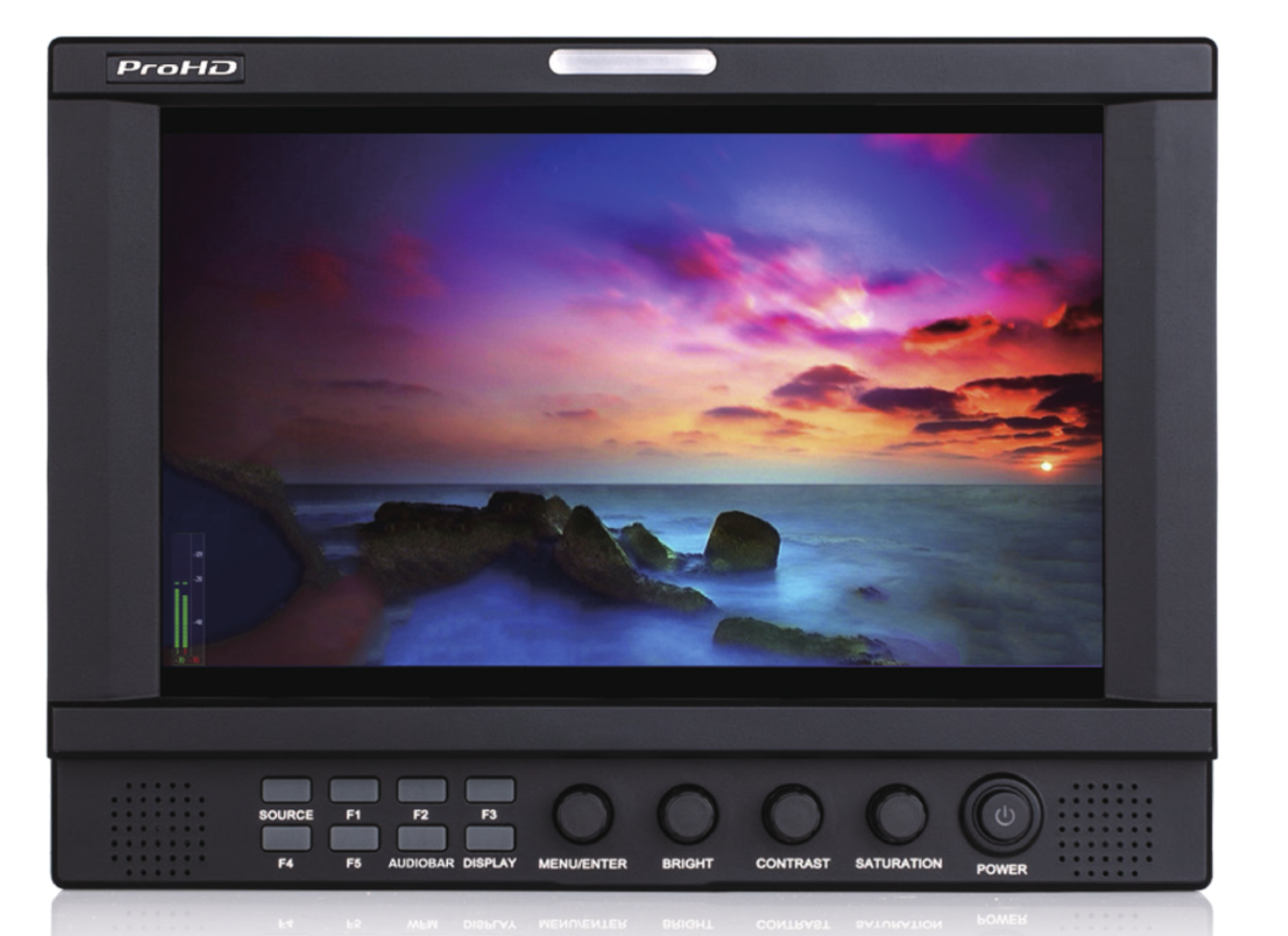

The ProHD DT-X93H monitor has been enhanced to provide a 9-inch LCD display with a high resolution of 1920 x 1200 and a wide viewing angle of 170° both horizontally and vertically. It is equipped to support 2K/3G/HD/SD-SDI, HDMI, and CVBS input, along with features such as embedded audio meters display, peaking focus assist, various scale markers, and a GPI control interface tailored for professional HD video production monitoring. The DT-X93H can be powered through a 4-pin XLR 6.5-24V DC input or V-mount / Gold mounts.

The RODE NTG4+ is an extremely versatile professional shotgun microphone that offers a wide range of features. It is exceptionally lightweight, making it perfect for use on a boom or attached to a camera. Its advanced circuitry ensures minimal noise and delivers a clear and crisp sound, making it an excellent choice for voice-over work and livestreaming applications. With its highly directional supercardioid polar pattern, it captures sound from a specific direction while minimizing background noise. Additionally, it includes a high-pass filter, a -10dB pad for recording loud sounds, and a high-frequency boost to compensate for the muffled effect caused by using a fluffy windshield. The NTG4+ can be powered by P48 phantom power or its internal rechargeable lithium-ion battery, which provides over 150 hours of operation on a single charge.

The RODE NTH-100 professional over-ear headphones provide outstanding sonic performance and unmatched comfort to stimulate creativity. Equipped with custom-matched drivers for precise frequency response and minimal distortion, along with a meticulously engineered acoustic design for exceptional detail and clarity, these headphones are perfect for various content creation tasks such as music production, mixing, podcasting, streaming, and location recording. The luxurious Alcantara® cushions with CoolTech™ gel guarantee optimal comfort, especially during long content creation sessions, while the fully adjustable headband with FitLok™ locking system ensures a perfect fit every time. Your quest for the ultimate headphones ends here.





EAR Professional Audio Video is delighted to present to you this exceptional high-quality award winning JVC Connected Cam Mini Studio Package, which comprises of the following top-notch products and is ideal for applications such as Education/Schools, Broadcast, Government, and many more



JVC GY-HC500SPCN Specs:

Camera Front-End Specifications

  • Image Sensor (inch): 1" (effective) CMOS,
  • Number of Sensors: 1
  • Mega Pixels: 9.35
  • Sensitivity in F at 2000 Lux: F 11
  • Shutter speed: 1/6 to 1/10000
  • White Balance modes: FAW, AWA, 3200K, 5600K, Manual
  • Color Matrix adjustment: Yes
  • Wide Dynamic Range Mode (WDR): Yes
  • HDR (High Dynamic Range): Yes, HLG/JLOG 1
  • LOG Mode: Yes, J-LOG HLR
  • User selected function buttons: Yes
  • User Customizes Menu: Yes

Optical Specifications

  • Lens mount: Internal
  • Optical Zoom x times: 20
  • Dynamic Zoom x times: 40
  • Lens F Number: 2.8 to 4.5
  • Lens ratio from / to: 9.43mm to 188.6mm
  • Lens ratio equivalent to 35mm: 28mm to 560mm
  • Auto Focus: Yes
  • Optical Image stabilization: Yes
  • Filter Diameter in mm: 82mm
  • Built-in ND Filters: Off, 1/4, 1/16, 1/64

Recording Formats

  • Media: SDHC/SDXC memory card x 2 and SD x 1 (SSD (M.2) with optional media case by JVC)
  • SSD recording option: Yes
  • Media Class: 4K/70 Mbps,HD and below Class 10 4K/150Mbps UHS1-U3 (no UHS-2)
  • Recording slots: 3
  • Encoder: Apple ProRes 422, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)*
  • ProRes Recording: Yes
  • File Format MOV: Yes
  • File Format MP4: Yes
  • Video Codec MPEG4 AVC/H264 4K/HD: Yes
  • Video Codec H264 (SD): Yes
  • Video Codec others: 4K UHD ProRes / Proxy H264
  • Resolution 3840 x 2160: Yes, 4K UHD 60p/50p (Apple ProRes) 422HQ/422/422LT 10-bit
    4K UHD 30p/25p/24p (H.264) 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps
  • Resolution 1920 x 1080: Yes, HD (H.264) 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps – 8Mbps
  • Resolution 1280 x720: Yes, HD (H.264) 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps – 8Mbps
  • Resolution 720 x 480: Yes, , 8Mbps
  • Resolution 960 x 540: Yes
  • Resolution 480 x 270: Yes
  • SD Recording: Yes
  • Audio Channels: 2
  • Audio Recording modes: LPCM 2ch, 48kHz/16-bit, µ-Law 2ch (Proxy), AAC 2ch (MP4)
  • Audio Filters: Yes

IP Section of the Product

  • IP Main Connection: USB A Host, Ethernet LAN RJ45 1000Base-T
  • IP Connection supports: Ethernet, WIFI - and LTE USB Adapters
  • IP Features Live-Streaming: Yes
  • IP Features Remote: Yes, via RM-LP100 or Web-Browser no apps needed
  • IP Features FTP: Yes, Different protocols
  • IP Features Auto FTP Upload: Yes
  • IP Features Meta-Data: Yes, Local and Remote editing and data exchange
  • IP Features IFB (Audio-Return via IP): Yes, with optional Audio encoder AAC Format
  • IP Video Return stream: Yes
  • Live-Streaming Bitrates: 1920 x 1080 (59.94p/50p) 20 – 8Mbps, (29.97p/25p) 20 – 3Mbps, 1920 x 1080 (59.94i/50i) 20 – 3Mbps, 1280 x 720 (59.94p/50p) 20 – 3Mbps, 1280 x 720 (29.97p/25p) 8 – 1.5Mbps, 640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 – 0.3Mbps
  • Live-Streaming Protocols: RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP
  • SRT Protocol: Yes
  • NDI|HX Protocol: Yes
  • Live-Streaming Single cast: Yes
  • Live-Streaming Multicast: Yes
  • Live-Streaming reconnect: Yes
  • Live-Streaming and simultaneous REC: Yes
  • Live-Streaming Pre-sets of destinations: 4
  • FTP Protocol formats: FTP / SFTP / FTPS
  • FTP upload during REC: Yes
  • FTP servers presets: 4
  • Meta-Data presets of servers: 3

Input / Output Connections

  • OUT HDSDI: Yes, 3G HDSDI (BNC x 1)
  • OUT HDSDI Format max.: 1080/60p,50p 10 Bit 4:2:2 EE
  • OUT HDMI: Yes
  • OUT HDMI Format max.: UHD
  • OUT AV: Yes, 3.5mm mini jack x 1
  • OUT Audio Headphone: Yes, 3.5mm mini jack x 1
  • IN Audio XLR MIC/LINE: Yes, 2 CH with +48 V Mic and Line support
  • Time code IN/OUT: Yes, RCA
  • Wired remote IN: Yes, serial LANC 2.5mm mini jack x 1
  • USB HOST: Yes
  • Operation Panel Type: LCD
  • Operation Panel Resolution: WVGA (800 x 480), 800 x 450 at 16:9
  • Operation Panel Size diagonal in inches: 3.97

Power and Enviroment Spec´s

  • Power AC: Yes, DC12V (AC Adapter)
  • Power DC: Yes, 7.2V (Battery)
  • Power consumption: Approx. 24W

Physical Information

  • Weight in lbs: 9.2 lbs
  • Moisture protection
  • Weather resistant

Included Accessories

  • Battery: Yes, BN-VC296
  • AC/DC adapter: Yes, AC Adapter
  • Cable 1: Yes, Power cord
  • Additional: Yes, Lens Hood
