The Ultimate in Low Latency Video Over IP PTZ Cameras

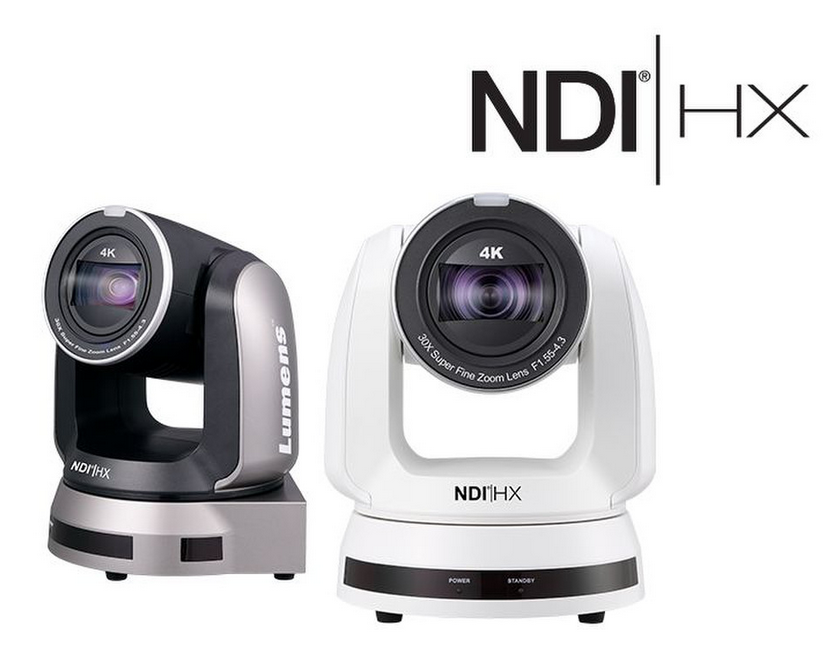

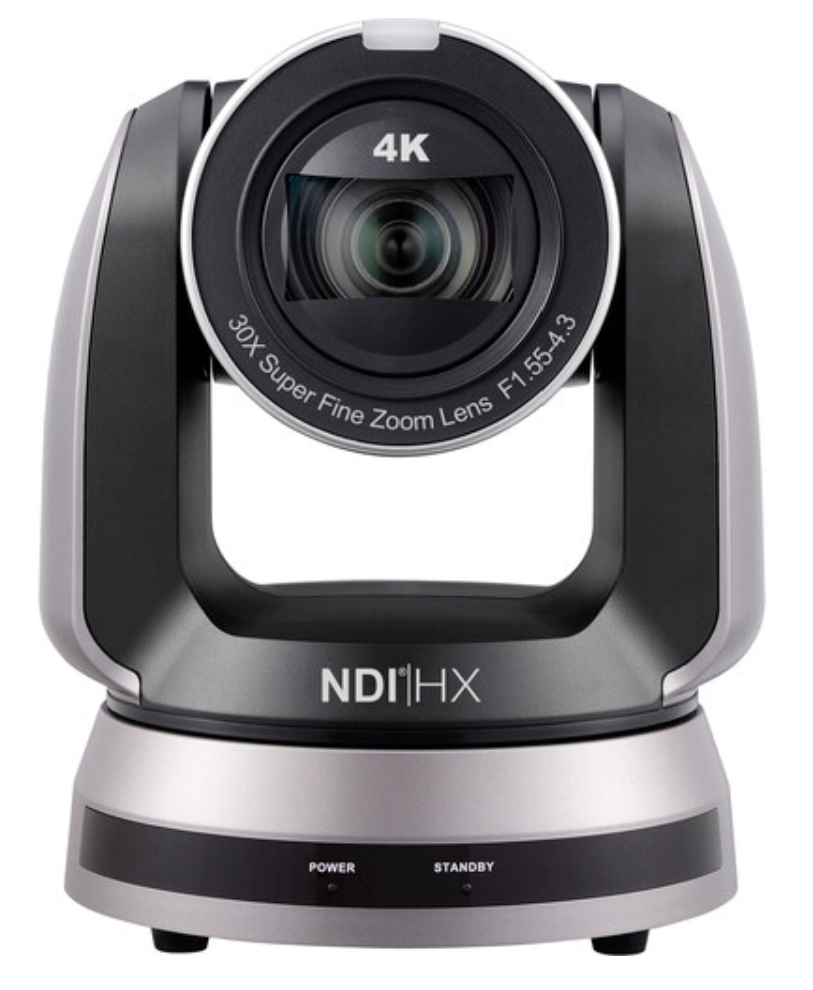

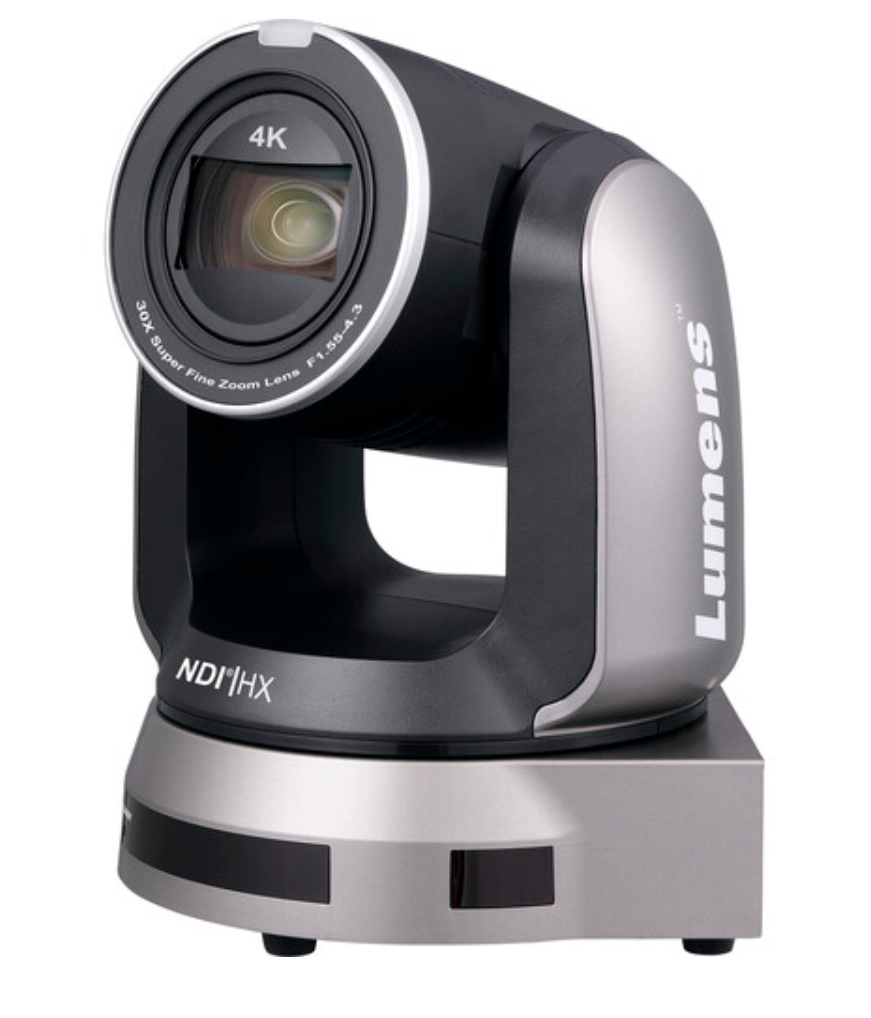

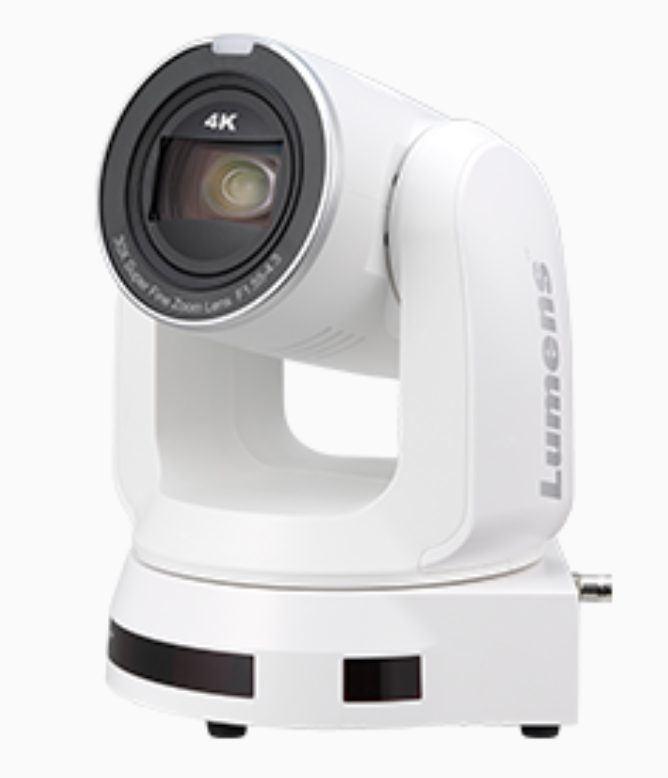

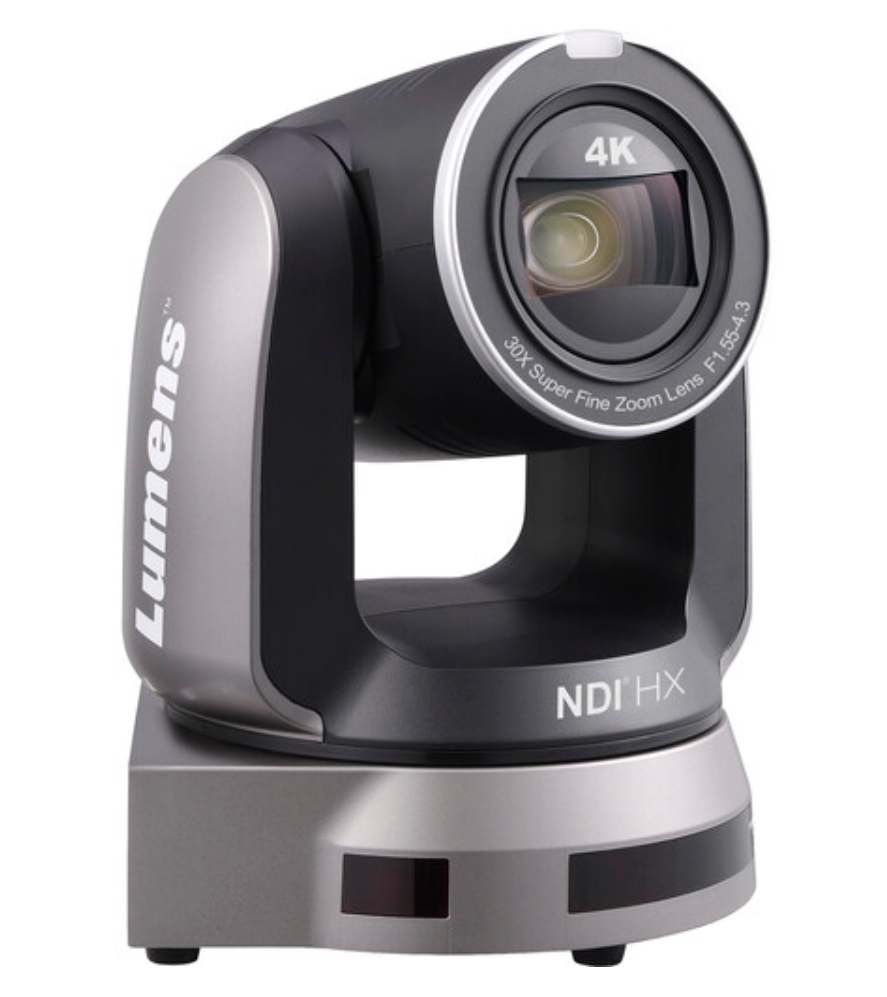

The Lumens VC-A71PN is an advanced NDI/HX ready UltraHD pan tilt zoom camera with IP and HDMI outputs.

Ultra-low Latency Video over IP - VC-A71PN supports NDI/HX, the popular video networking format. Once connected to the local area network, it is available to the production desk as an NDI video source, controlled by software or a dedicated hardware device. The bandwidth requirement for an NDI/HX UltraHD 60fps video stream with audio and control data is minimal (around 20 Mb/s). Using this highly efficient format, multiple 4K cameras can distribute high-quality, low latency video without overwhelming the IP network.

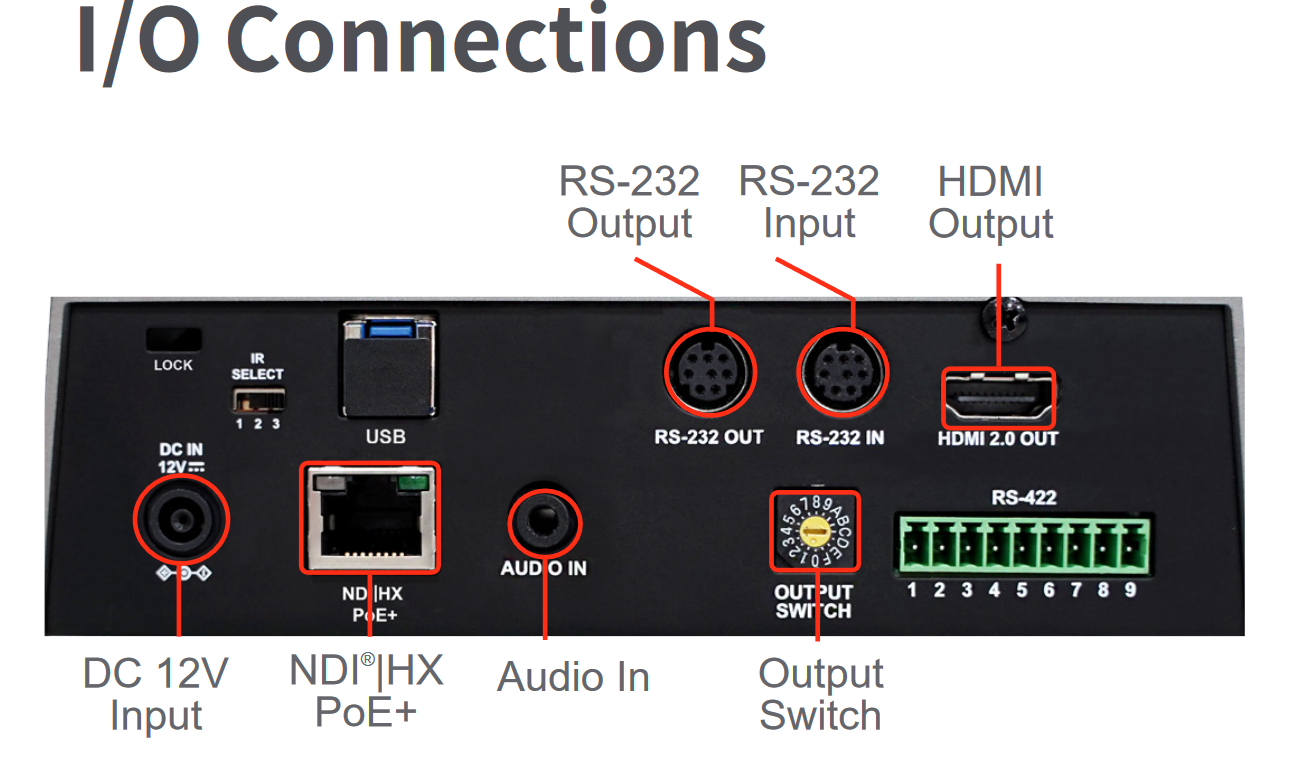

Video Workflow Flexibility - Featuring HDMI and Ethernet outputs, the VC-A71PN can be integrated with almost any AV, broadcast, or IP workflow. While all models deliver simultaneous H.264 and HEVC streaming, the inclusion of NDI/HX adds support for fast integration with NDIr infrastructures. Such a wide range of video outputs means that the camera is ready to fulfill a wide variety of roles - as a PTZ camera source for lecture capture and live event production.

Broadcast Quality UltraHD Video - Paired with a low distortion professional zoom lens, the camera's large (1/1.8") CMOS sensor produces great 4K and HD results. Operating in lighting conditions, the smooth video output makes it an ideal camera for producing sports, theaters, and live events. Its excellent color reproduction means it's a great choice for productions where image quality is of the highest importance.

Semi-Autonomous Production - Each camera supports up to 256 presets, allowing users to switch angles and zoom positions, and engage tracking movements at the touch of a button. The advanced Auto Focus, Auto Exposure, and Auto White Balance algorithms automatically deliver consistent images while zooming and panning, or under changing lighting conditions. Together, these advanced functions allow a single operator to manage multiple cameras and to produce multi-camera productions without the need for a large crew.

Features:

• 4K UHD 60fps and 1080P 60fps output
• 30x optical zoom, 63° maximum horizontal field of view
• Supports Newtek's NDI/HX for video networking and low latency IP production
• Built-in tally light
• Maximum horizontal/vertical speed of rotation: 300deg;/sec
• Wide Pan/Tilt/Zoom mechanism:
• Horizontal viewing angle: -170° to +170°
• Tilting angle up to 90°, and down to -30°
• Supports Power Over Ethernet (PoE+)
