MRMC Pan Bars

Manufacturer: Mark Roberts Motion Control (MRMC)
SKU: MRMC-1512-01
$17,457.00 CAD
$17,457.00 CAD
Sale Sold out
Shipping calculated at checkout.

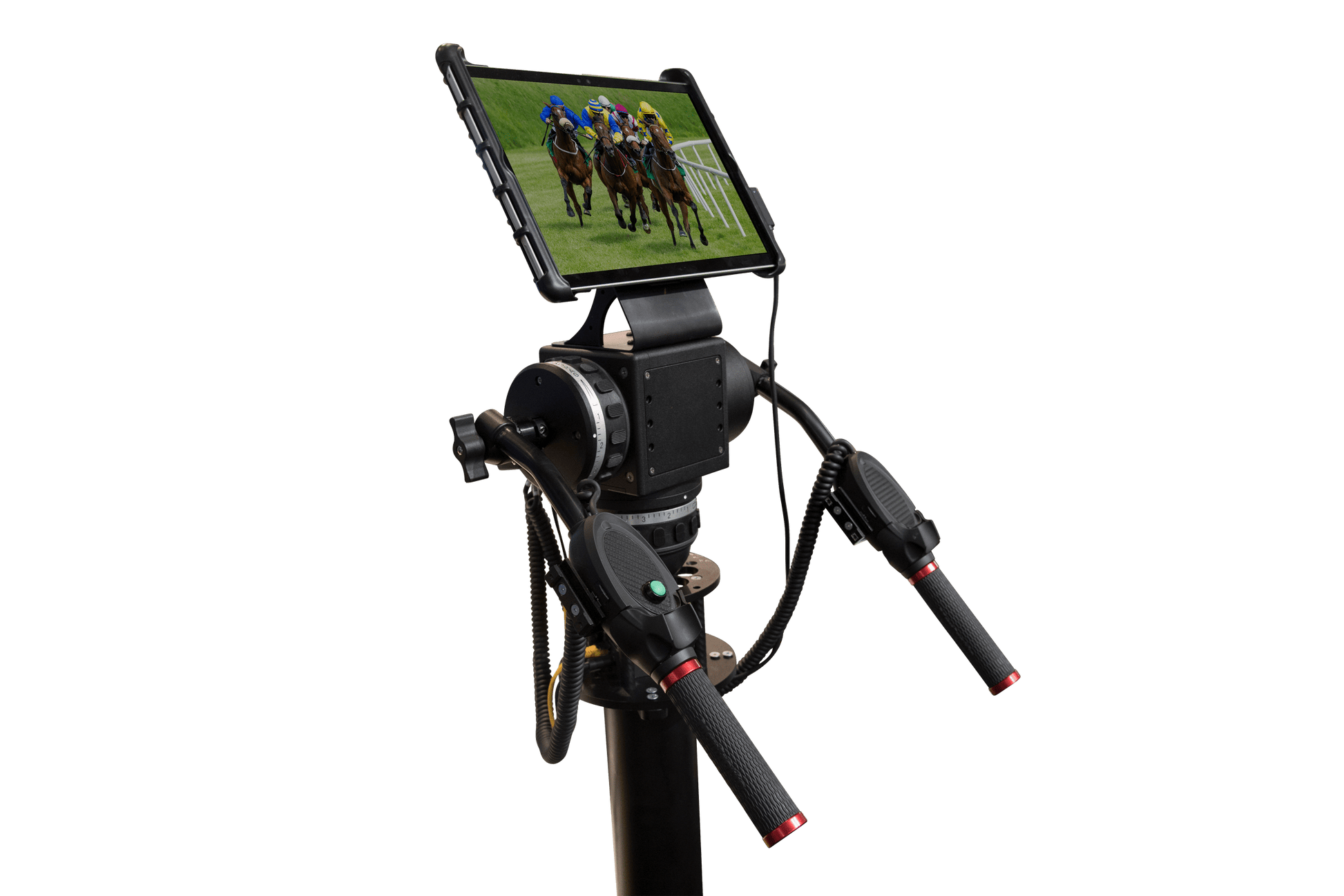

Mark Roberts Motion Control Pan Bars are designed to allow a remote operator to have the natural feel of controlling a camera in a traditional way.

Pan Bars with focus and zoom controllers, interface box & trigger button IP Pan bar controller that allows a head to mirror the pan par movements allowing traditional camera style operation of a P/T



PRECISE MIRRORED MOVEMENTS
MRMC pan bars allows direct degree- by-degree mirrored movement of the camera head, ideal for remote production. It gives you smooth, real-time control over your choice of camera axes (pan and tilt) and camera control (zoom and focus), with correlating angular/velocity controls with Robots.

KEY FEATURES
Correlating angular/velocity controls with Robot
Smooth, precise real-time control
Versatile robot connectivity
Adjustable resistance



PAYLOAD AND SIZE
MAX. PAYLOAD
25kg

WEIGHT
4.1kg

BOWL DIAMETER
100mm

RANGE
PAN RANGE
360° without end stop

TILT RANGE
360° without end stop

FLUID DRAG
Continuous

TEMPERATURE RANGE
-25°/+60°

ENCODER TRANSMISSION
Direct, no gears

CONNECTIVITY & POWER
CONNECTION
Ethernet

POWER
24v DC
