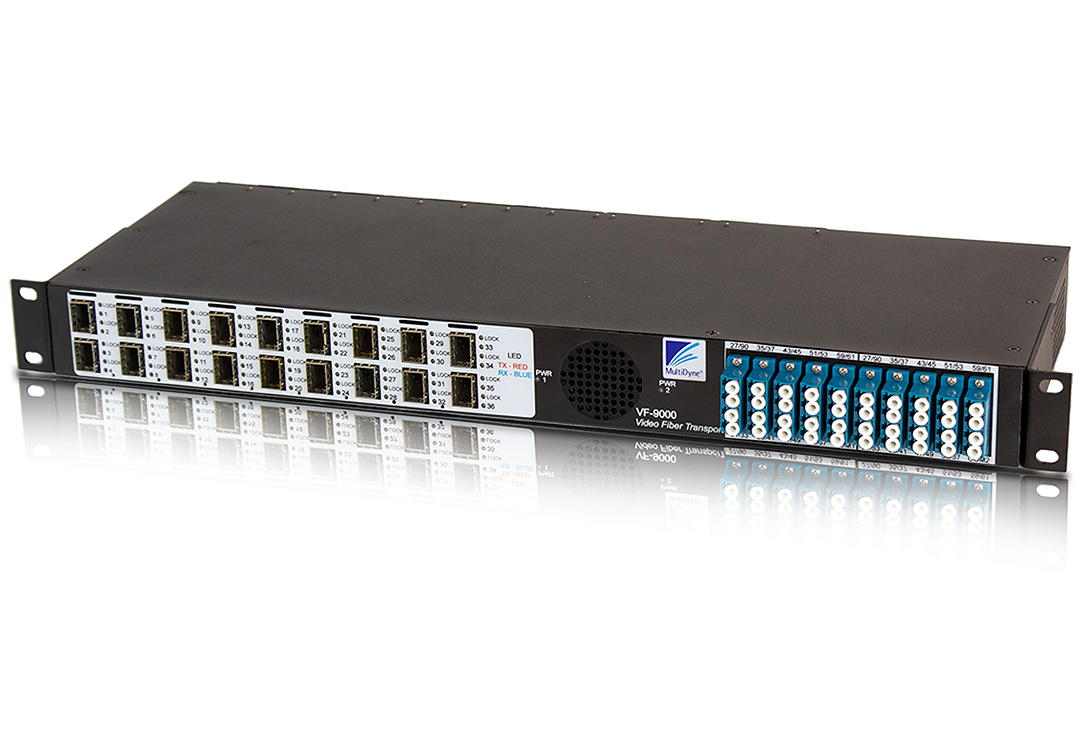

MultiDyne VF-9000 Series 1RU, high density video fiber optic transport platform
Manufacturer: MultiDyneSKU: VF-9000-2M-RP-S QUICK QUOTE
Couldn't load pickup availability
High Density – Up To 9 1GbE RJ-45, 18 BNCs or Up To 36 HD-BNCs w All I/Versatile Video Fiber Transport Frame, 1RU, 36 Ch, Two 18 Ch Muxes, dual power redundancy
& SNMP - Configured Automatically Based On VFC/ SFP Selection w SFP Modules Can Be Hot- swapped Without De-cabling Coaxial Connections w Redundant AC Power Supplies w Optional Single or Dual Integrated CWDM Muxes/De- Muxes w Condense Signals Up To 36 Signals on Two SM Fibers w Can Be Used For Video Transport, Signal Regeneration or Wavelength Shifting. APPLICATIONS w Sports Broadcast w ENG, EFP w Military w Live Stage Events w Intra & Inter-Facility Connection w Campus & Metro Transport The VF-9000 is a 1RU, high density video fiber optic transport platform with 18 optical I/O (9 or 18 SFP Ports), it can be configured with up to 18 full size BNCs or 36 HD-BNCs. The system also supports up to 9 1GbE optical extensions, and provides the user with the option to handle SDI and LAN signals in one frame.
VF-9000 Series
Versatile Data & Video Fiber Optic Transport Platform
1GbE RJ-45 & BNC or HD-BNC Coaxial I/O up to 12G-SDI
Features:
- High Density: Supports up to 9 1GbE RJ-45, 18 BNCs, or up to 36 HD-BNCs.
- Automatic Configuration: All I/O are configured automatically based on VFC/SFP selection.
- Hot-swappable SFP Modules: SFP modules can be hot-swapped without decabling coaxial connections.
- Redundant AC Power Supplies: Provides peace of mind with power redundancy.
- CWDM Muxes/De-Muxes: Optional single or dual integrated CWDM multiplexers/demultiplexers.
- Signal Condensation: Condenses signals up to 36 signals on two SM fibers.
- Versatile Usage: Can be used for video transport, signal regeneration, or wavelength shifting.
Applications:
- Sports Broadcast
- ENG, EFP
- Military
- Live Stage Events
- Intra & Inter-Facility Connection
- Campus & Metro Transport
Product Details:

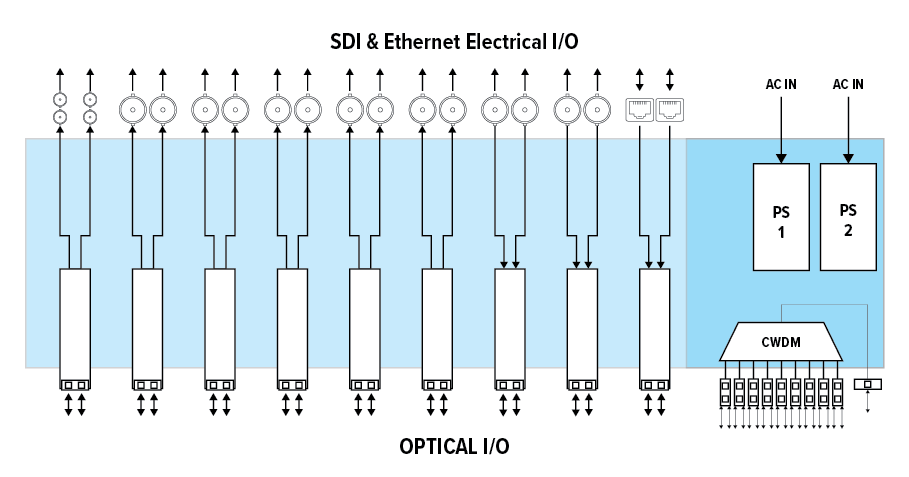

Optical I/O: The VF-9000 has 18 optical I/O (9 or 18 SFP ports) and can be configured with up to 18 full-size BNCs or 36 HD-BNCs.
Gigabit Extensions: Supports up to 9 1GbE optical extensions, handling SDI and LAN signals in one frame.
Automatic Configuration: Input vs. output configuration follows the I/O of the SFP installed, with no setups or configurations required.
Multiplexing/Demultiplexing: If populated with CWDM SFPs, all 18 signals can be multiplexed/demultiplexed over one SM fiber, using LC ports for easy patching.
Video Card Options: Each video card has 2 BNCs or 4 HD-BNCs on the back, one or two SFP cages in the front, and can be ordered with two channel SFPs and two BNCs, or with a single BNC input and loop output.
Power Supplies: Dual hot-swappable power supplies ensure reliability without the need for external power supplies.

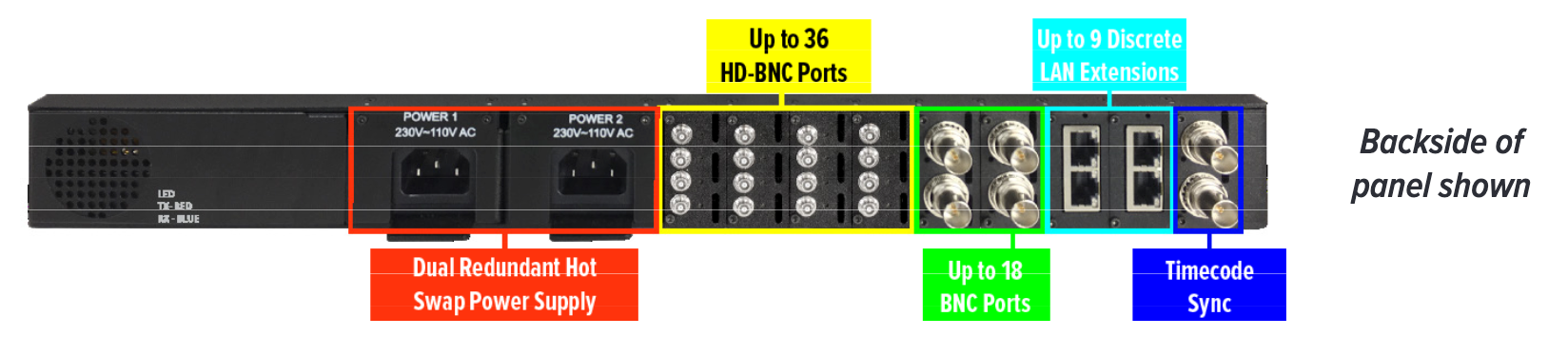

Rear Panel:
Power Inputs: Dual 100-240V AC inputs for redundancy.
Connections: Multiple BNC, HD-BNC, and SFP connections for flexible configurations.
For more details and custom configurations, visit Multidyne Configurator Tool.
