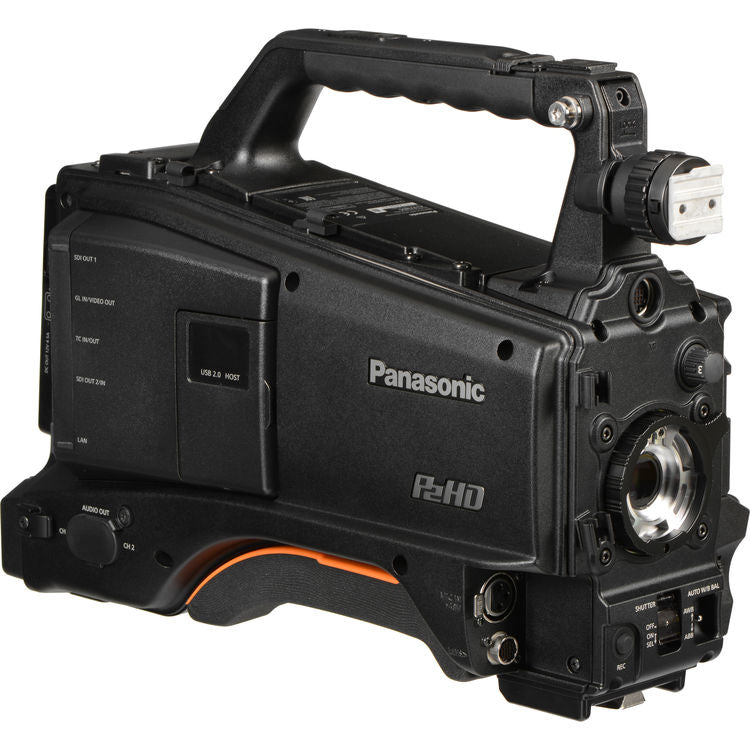

Panasonic AJ-PX380G Shoulder-Mount Camcorder Body

Manufacturer: Panasonic Broadcast
SKU: AJ-PX380G
$8,461.00 CAD
$8,461.00 CAD
Sale Sold out
Shipping calculated at checkout.

Panasonic AJ-PX380G

High-quality image transmission and efficient workflow are ensured with AVC-ULTRA, microP2 card slots, and network capabilities

The Panasonic AJ-PX380G Camera Recorder is designed to elevate broadcast picture quality and streamline network-based workflows, all while providing compact, lightweight mobility and cost-effective operation. Its 1/3-type 2.2-megapixel 3MOS sensor delivers high sensitivity and an excellent signal-to-noise ratio, ensuring top-tier image quality.

Key Features:

  1. High-Quality Imaging:

    • 2.2-megapixel 1/3-type 3MOS sensor for superior image quality.
    • High sensitivity with F11 (59.94 Hz)/F12 (50 Hz) performance.
    • Supports multiple formats including 1080/60p, 1080/60i, 24p, 30p, and 720p HD and SD recording.
    • Switchable between 59.94 Hz and 50 Hz for versatile broadcasting needs.

  2. Advanced AVC-ULTRA Codecs:

    • Includes AVC-Intra100/50, AVC-LongG50/25, and AVC-LongG12 codecs.
    • Dual-codec recording with low-bit-rate AVC-Proxy for enhanced network operations.
    • Offers high-quality 4:2:2 10-bit recording and low-rate HD streaming options.

  3. Versatile Network Functions:

    • Supports wired LAN, wireless LAN, and 4G/LTE connectivity for seamless data transfer and streaming.
    • New workflow features include Wireless Preview/Remote, Rec during Uploading, and On-Air Streaming.
    • FTP server uploading and streaming supported, with QoS mode for stable performance.

  4. Comprehensive Connectivity:

    • Equipped with P2 and microP2 card slots for cost-effective media management.
    • Includes SDI IN, 3G-SDI OUT, HDMI OUT, VIDEO OUT, GENLOCK IN, and TC IN/OUT.
    • UniSlot compatible wireless receiver slot for versatile audio input options.

  5. Additional Functionalities:

    • High-quality 24 bit/48 kHz/4 channel audio recording.
    • Supports various lens options with its 1/3-type interchangeable lens mount system.
    • Lightweight design at approximately 6.2 lbs (main unit) and 10.7 lbs (with lens and viewfinder).

Panasonic AJ-PX380G Variations:

  • Available as a standalone camera recorder.
  • Bundled option with FUJINON 17x Zoom Lens and AG-CVF15G Color HD Viewfinder.

The AJ-PX380G is ideal for broadcasters looking for a high-performance, versatile, and network-friendly camera recorder that can adapt to various production environments and requirements. Its robust feature set ensures it meets the demands of modern broadcasting, from high-quality image capture to efficient network integration.



Panasonic AJ-PX380G Specifications

Panasonic AJ-PX380G Specifications

Camera

  • Pickup Device: 1/3 type 2.2 million pixels, 3x MOS
  • Lens Mount: 1/3 type bayonet
  • ND Filter:
    • 1: CLEAR
    • 2: 1/4ND
    • 3: 1/16ND
    • 4: 1/64ND
  • Gain Setting:
    • NORMAL mode: 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB
    • HIGH SENS mode: -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB
  • Super Gain (S.GAIN): Selectable from 24 dB, 30 dB, 36 dB
  • Shutter Speed:
    • 60i/60p mode: 1/60 (OFF) sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
    • 30p mode: 1/30 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
    • 24p mode: 1/24 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
    • 50i/50p mode: 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
    • 25p mode: 1/25 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
  • Synchro Scan Shutter:
    • 60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
    • 30p mode: 1/30.0 sec. to 1/249.8 sec.
    • 24p mode: 1/24.0 sec. to 1/249.8 sec.
    • 50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
    • 25p mode: 1/25.0 sec. to 1/250.0 sec.
  • Slow Shutter Speed:
    • 60i/60p mode: 1/15 sec., 1/30 sec.
    • 30p mode: 1/15 sec.
    • 24p mode: 1/12 sec.
    • 50i/50p mode: 1/12.5, 1/12.5 sec.
    • 25p mode: 1/12.5 sec.
  • Shutter Open Angle: 3.0 deg. to 360.0 deg. (in 0.5 deg. steps, angle display)
  • Sensitivity:
    • NORMAL mode: F8 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i), F9 (2000 lx, 3200 K, 89.9% reflection, 1080/50i)
    • HIGH SENS mode: F11 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i), F12 (2000 lx, 3200 K, 89.9% reflection, 1080/50i)
  • Horizontal Resolution: 1000 TV or higher (center)

Memory Card

  • Recording Media: 1x P2 card, 2x microP2 card
  • System Format: 1080/59.94p, 1080/59.94i, 1080/23.98psF, 720/59.94p, 480/59.94i, 1080/50p, 1080/50i, 720/50p, 576/50i
  • Recording Format: AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DVformats switchable
  • Recording Video Signal:
    • 1080/59.94p, 1080/59.94i, 1080/29.97pN, 1080/23.98pN, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 480/29.97p
    • 1080/50p, 1080/50i, 1080/25pN, 720/50p, 720/25pN, 576/50i, 576/25p
  • Recording/Playback Time:
    • AVC-Intra 100/DVCPRO HD: 30GB x1: Approx. 30 min., 32GB x1: Approx. 32 min., 60GB x1: Approx. 60 min., 64GB x1: Approx. 64 min.
    • AVC-Intra 50/AVC-LongG 50/DVCPRO50: 30GB x1: Approx. 60 min., 32GB x1: Approx. 64 min., 60GB x1: Approx. 120 min., 64GB x1: Approx. 128 min.
    • AVC-LongG 25/DVCPRO/DV: 30GB x1: Approx. 120 min., 32GB x1: Approx. 128 min., 60GB x1: Approx. 240 min., 64GB x1: Approx. 256 min.
    • AVC-LongG 12: 30GB x1: Approx. 225 min., 32GB x1: Approx. 240 min., 60GB x1: Approx. 450 min., 64GB x1: Approx. 480 min.

Digital Video

  • Sampling Frequency:
    • AVC-Intra100/AVC-LongG25/AVC-LongG12: Y: 148.3516 MHz, PB/PR: 74.1758 MHz (1080/59.94p), Y: 148.5000 MHz, PB/PR: 74.2500
