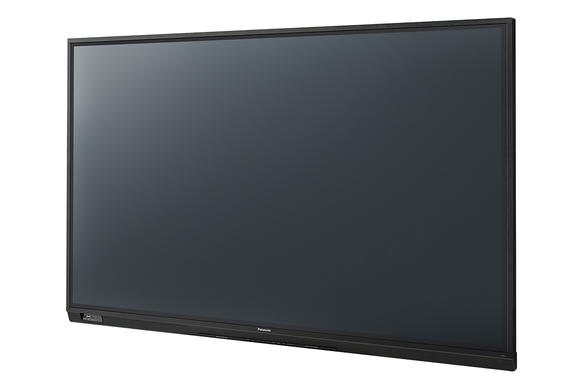

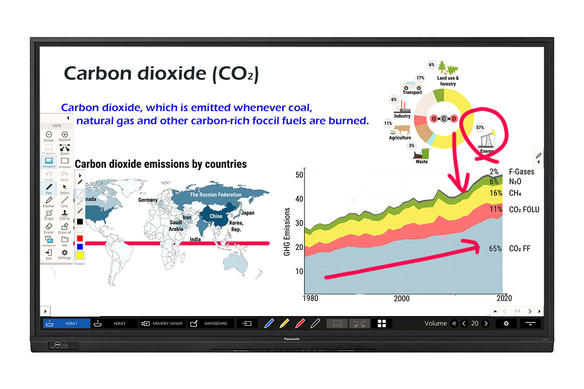

PRODUCT DETAILS Large, 75" class, 4K professional touch screen display equipped with advanced features offering a slim, lightweight, and scalable solution which simplifies any installations.

· Screen size (diagonal) (inch)

· 75-inch class

· Screen size (diagonal) (mm)

· 1892.7 mm

· Aspect Ratio

· 16:9

· Panel Type

· IPS / Direct-LED

· Effective display area (W x H) (mm)

· 1649.6 x 927.9

· Effective display area (W x H) (inch)

· 64.9" x 36.5"

· Resolution

· 3840 x 2160

· Brightness (typ.)

· 500 cd/m2 *1

· Contrast Ratio

· 1200:1

· Response Time

· 8.0 ms (G to G)

· Viewing angle [(T/B)/(L/R)]

· 178°/ 178° (CR≧10)

· Power Requirements

· 110-240 V AC, 50/60 Hz

· Terminals | HDMI IN

· Type A Connector x 3 (HDCP 2.2 supported)

· Terminals | DisplayPort IN

· DisplayPort x 1 (HDCP 2.2 supported)

· Terminals | USB

· USB Connecter (TYPE A) Back x 1 DC 5V/ max. 0.9A (USB3.0 is supported), Front x 2 DC 5V/ max. 0.5A (USB2.0 is supported)

· Terminal | LAN

· RJ45 x 1, 10BASE-T/100BASE-TX/1000BASE-T, compatible with PJLink™

· Terminals | Slot

· Intel® SDM specification, Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A

· Built-in Speaker

· 20 W (10 W + 10 W) 10 % THD

· Power consumption

· 363 W

· Power Off Condition

· Approx. 0.3 W

· Stand-by Condition

· Approx. 0.5 W

· Dimensions (W x H x D) (mm)

· 1716 x 1032 x 107 mm (with handles)

· Dimensions (W x H x D) (inch)

· 67.6" x 40.7" x 4.2" (with handles)

· Bezel width (mm)

· T/R/L 16.3 mm, B 54.3 mm (with speaker)

· Bezel width (inch)

· T/R/L 0.65" ,B 2.14"(with speaker)

· Weight (kg)

· 56.6 kg

· Weight (lbs.)

· 124.8 lbs.

· Wall-hanging pitch (mm)

· VESA Compliant 23.6" x 15.8" (600 x 400 mm)

· Tilting angle

· Landscape: 0 degrees forward, 0-45 degrees backward, Portrait: 0 degrees forward/backward

· Operating Time

· 18 h/day

· Operating environment | Temperature

· 32 °F to 104 °F (0 °C to 40 °C) [for up to 4593' (1400 m) altitude] / 32 °F to 95 °F (0 °C to 35 °C) [for between 4593' and 9186' (1400 m and 2800 m) altitude]

· Operating environment | Humidity

· 20 % to 80 % (Non-condensation)

· Speaker Out

· 30 W (15 W + 15 W) 10 % THD

· Terminals | DVI-D IN

· DVI-D 24-pin x 1

· Terminals | SERIAL IN

· D-Sub 9-pin x 1 (for external control, RS-232C compliant)

· Touch Panel | Detection method

· Infrared blocking detection method

· Touch Panel | Touch operation

· Up to 20-point multi-touch*2

· Touch Panel | OS

· Windows (8.1 / 10), Mac OS (10.12 / 10.13 / 10.14 / 10.15)

· Terminals | DIGITAL Out

· HDMI Type A Connector x 1

· Terminals | PC In

· Mini D-Sub 15-pin x1 (compatible with DDC2B)

· Terminals | USB(TOUCH)

· USB Connecter (TYPE B) x 1

· Terminals | Audio In/Out

· Stereo mini-jack (M3) x 2 (Shared with DCI-D IN and PC IN) / x 1
