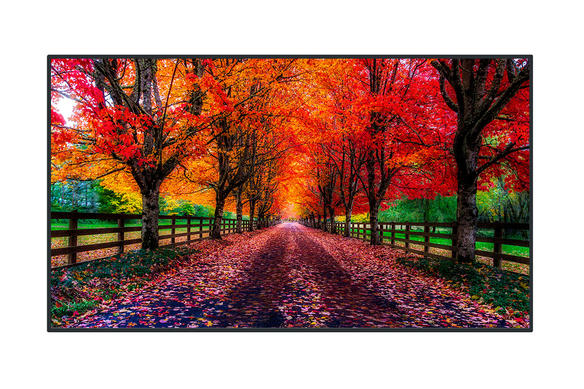

The SQ1H Series is a model that uses panels with a high brightness of over 1000cd/m², so it is compatible with installation in atriums exposed to glare and outdoor display windows. Compatible with the "12-axis Color Management Function" and "HDR". Thoroughly displays the rich colors of 4K images. With easy, vertical installation, various types of installation have become possible. Also offering energy efficiency and high environmental reliability, this model is capable of constant, 24/7 operation. The SQ1H Series is equipped with the Intel® SDM specification slot standard that supports 4K signals. Combined with the interface board, you can easily use a built-in PC and add various interfaces. DIGITAL LINK function enables simple Installation and low system costs. By connecting the DisplayPort input/output terminals in a daisy chain, 4K images can be simultaneously displayed.

​

· Screen size (diagonal) (inch) 75-inch class (1892.7mm)

· Panel Type D-LED

· Aspect Ratio 16:9

· Effective display area (W x H) (mm) 1649.6 x 927.9 mm

· Effective display area (W x H) (inch) 64.94" x 36.53"

· Resolution 3840 x 2160

· Brightness (typ.) 1500 cd/m²

· Contrast Ratio 1200:1

· Response Time 10.0 ms (G to G)

· Viewing angle [(T/B)/(L/R)] 178° / 178° (CR>10)

· Panel Surface Treatment Anti-glare type (Haze 1 %)

· Terminals | HDMI IN - HDMI TYPE-A Connector x 2 (Compatible with HDCP 2.2)

· Terminals | DisplayPort IN - DisplayPort x 1 (HDCP2.2)

· Terminals | DisplayPort OUT - DisplayPort x 1 (HDCP1.4)

· Terminals | IR IN / OUT Stereo Mini Jack (M3) x 1 / x 1

· Terminals | AUDIO IN Stereo Mini Jack (M3) x 1 0.5V [rms] (Shared each video input except USB and MEMORY VIEWER)

· Terminals | AUDIO OUT Stereo Mini Jack (M3) x 1, 0.5 V [rms], Variable (-∞ ~ 0 dB) (1 kHz 0 dB Input, 10 kΩ Load)

· Terminal | LAN RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™

· Terminals | Slot Intel® SDM specification Corresponding size SDM-S/SDM-L, Supply power 3.3 V/MAX 1.1 A, 12 V/MAX 5.5 A

· Terminals | USB - USB Connector (TYPE-A) x 2, DC 5 V/2 A, DC 5V/1A (USB 3.0 Supported)

· External Speaker 30 W [15 W + 15 W] (10% THD)

· Built-in Speaker 20 W [10 W + 10 W]

· Power Requirements 110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz

· Power consumption 720 W

· Power Off Condition Approx. 0.3 W

· Stand-by Condition Approx. 0.5 W

· Dimensions (W x H x D) (mm) 1684 x 962 x 96* mm

· Dimensions (W x H x D) (inch) 66.28" x 37.86" x 3.75"

· Weight (kg) Approx. 42.2 kg (93.0 lbs)

· Bezel width (mm) 14.9 mm(T/B/L/R)

· Bezel width (inch) 0.6" (T/B/L/R)

· Wall-hanging pitch (mm) VESA Compliant 600 x 400 mm (23.6" x 15.8") M8

· Orientation Landscape/Portrait*1

· Tilting angle Landscape : 0-20 degrees forward / backward Portrait : 0-20 degrees forward / backward

· Operating environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft)

· Terminals | DVI-D IN - DVI-D 24-pin x 1 (HDCP 1.1)

· Terminals | SERIAL IN D-sub 9-pin x 1, RS232C Compatible

· Terminals | DIGITAL LINK RJ45 x 1, 100 BASE-TX, Compatible with long reach mode and PJLink™

· Terminals | Sensor 4-pole sub-mini jack x 1

· Operating time*2 - 24 h/day

· Note:

*1: When installing the display vertically, be sure that the power indicator comes to the right side.
*2: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.

* The handlepart excluded, the thickness is 82mm (3.22")
