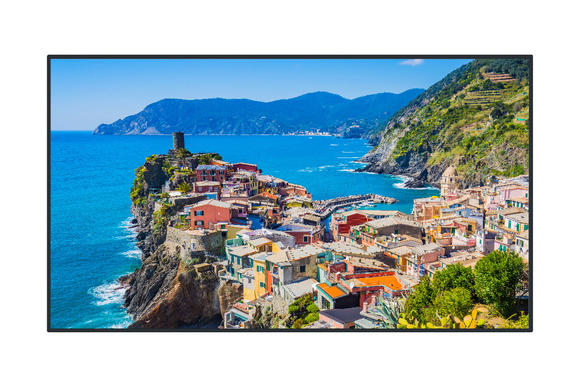

Large 86" 4K professional display featuring a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.

• Screen size (diagonal) (inch) 85.6-inch (2174.2 mm)
• Screen size (diagonal) (mm) 85.6-inch (2174.2 mm)
• Aspect Ratio 16:9
• Effective display area (W x H) (mm) 1895.0 x 1065.9 mm (74.60" x 41.96")
• Effective display area (W x H) (inch) 1895.0 x 1065.9 mm (74.60" x 41.96")
• Resolution 3840 x 2160
• Brightness (typ.) 500 cd/m2
• Contrast Ratio 1200 : 1
• Response Time 8.0 ms (G to G)
• Viewing angle [(T/B)/(L/R)] 178°/178° (CR>10)
• Panel Surface Treatment Anti-glare type (Haze 25%)
• Terminals | HDMI IN
• TYPE A Connector x 3 (HDCP2.2 supported)
• Terminals | PC IN/AUDIO IN (L/R)
• Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1
• Terminals | USB Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD)
• Terminals | AUDIO OUT Stereo Mini Jack (M3) x 1
• Terminals | Serial D-sub 9-pin x 1, RS232C Compatible
• Terminals | LAN RJ45 x 1, RJ45 10BASE-T/100BASE-TX
• Built-in Speaker 20W [10 W + 10 W]
• Power Requirements AC 110 - 240 V 50 Hz / 60 Hz
• Power consumption TBD
• Power Off Condition Approx. 0.3 W
• Standby Condition Approx. 0.5 W
• Dimensions (W x H x D) (mm) 1929 x 1100 x 70* mm(75.95" x 43.31" x 2.74"*) (TBD)
  *Not including handles.
• Dimensions (W x H x D) (inch)
• 1929 x 1100 x 70* mm(75.95" x 43.31" x 2.74"*) (TBD)
  *Not including handles.
• Bezel width (mm) 15.5 mm (0.61") (T/R/L/B)
• Bezel width (inch) 15.5 mm (0.61") (T/R/L/B)
• Weight (kg) 50 kg (109.8 lbs.) (TBD)
• Weight (lbs.) 50 kg (109.8 lbs.) (TBD)
• Wall-hanging pitch (mm) VESA Compliant 600 x 400 mm(23.6" x 15.8"), M8
• Wall-hanging pitch (inch) VESA Compliant 600 x 400 mm(23.6" x 15.8"), M8
• Orientation Landscape/Portrait
• Tilting angle 0 - 20 degrees forward/backward with landscape/portrait setting
• Operating Time 18 h/day
• Operating environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
• Terminals | Slot SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A
