Panasonic AW-RP60GJ Compact Remote PTZ Camera Controller & Power Supply Bundle

Manufacturer: Panasonic Broadcast
SKU: PAN-AWRP60GJ5
Regular price $4,506.00 CAD
Regular price Sale price $4,506.00 CAD
Sale Sold out
Shipping calculated at checkout.

PTZ Camera Controller & Power Supply Bundle

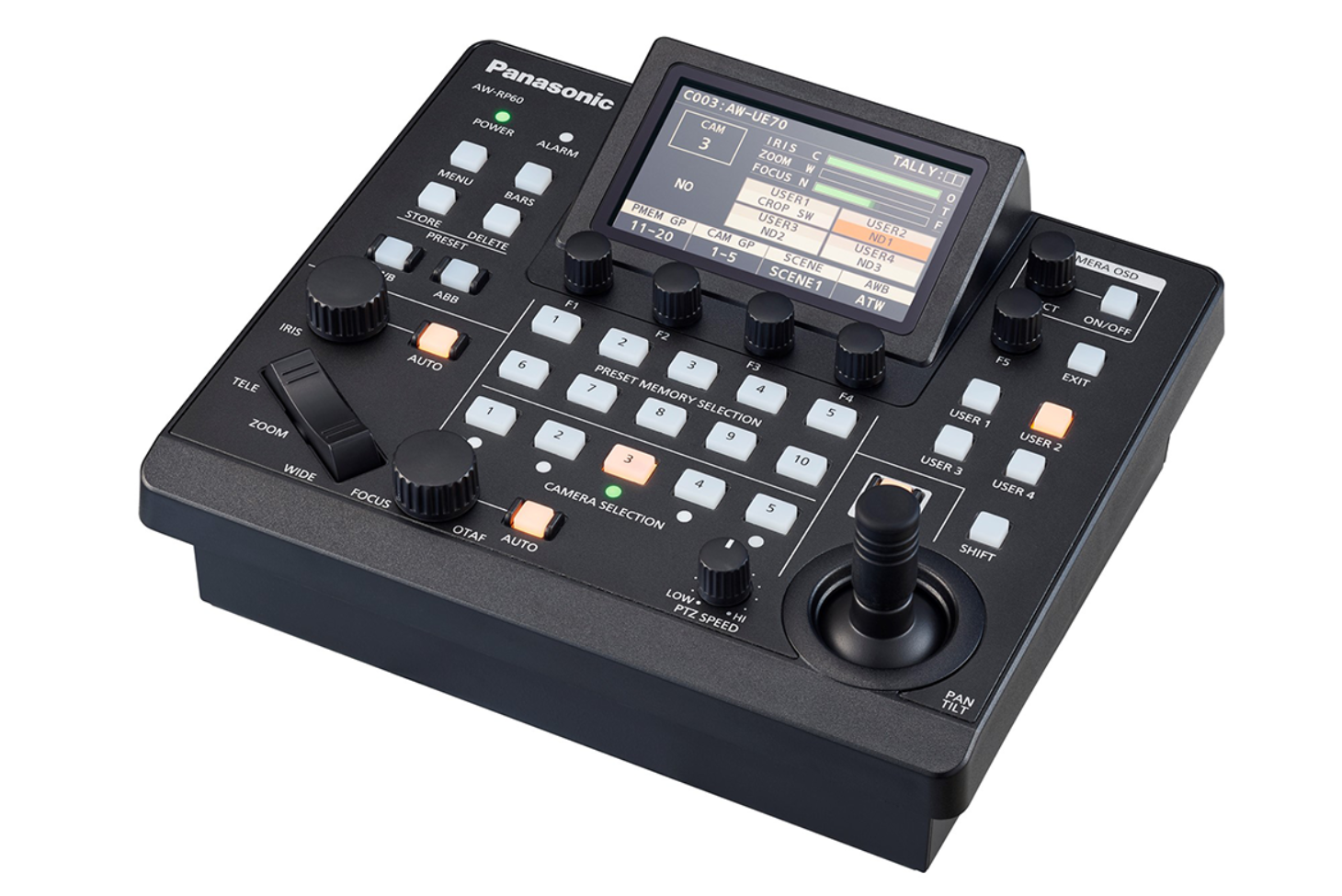

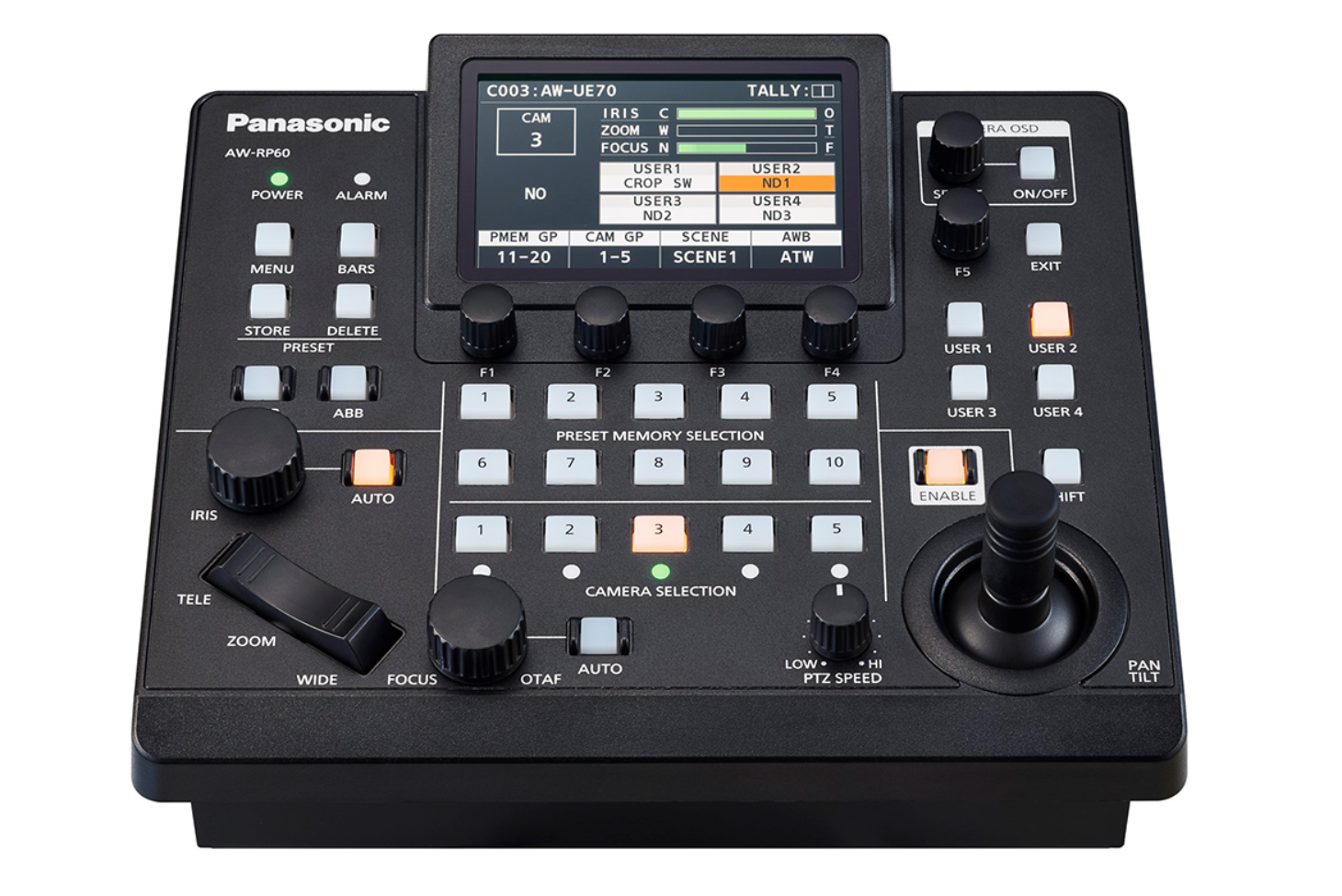

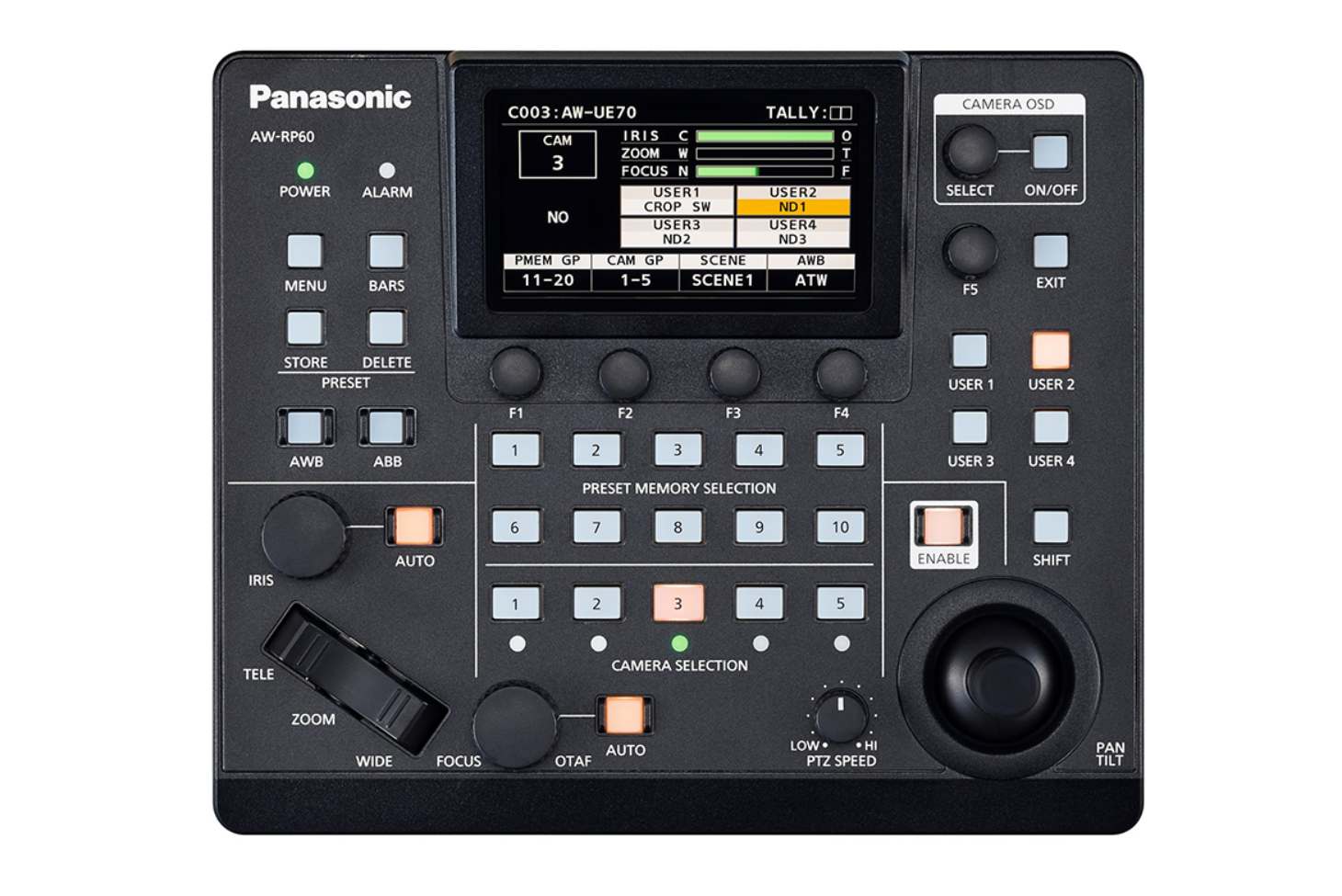

The AW-RP60GJ is a hardware-based controller designed specifically for Panasonic PRO PTZ remote cameras. This compact controller boasts an enhanced joystick that ensures seamless and precise camera control for up to 200 robotic cameras. Additionally, it offers effortless management of up to 100 camera presets, making it a versatile and user-friendly tool.

*Includes Panasonic AW-PS551 Power Supply*

Panasonic PTZ Camera Compatibility Chart:  https://pro-av.panasonic.net/en/products/compatibility_chart/

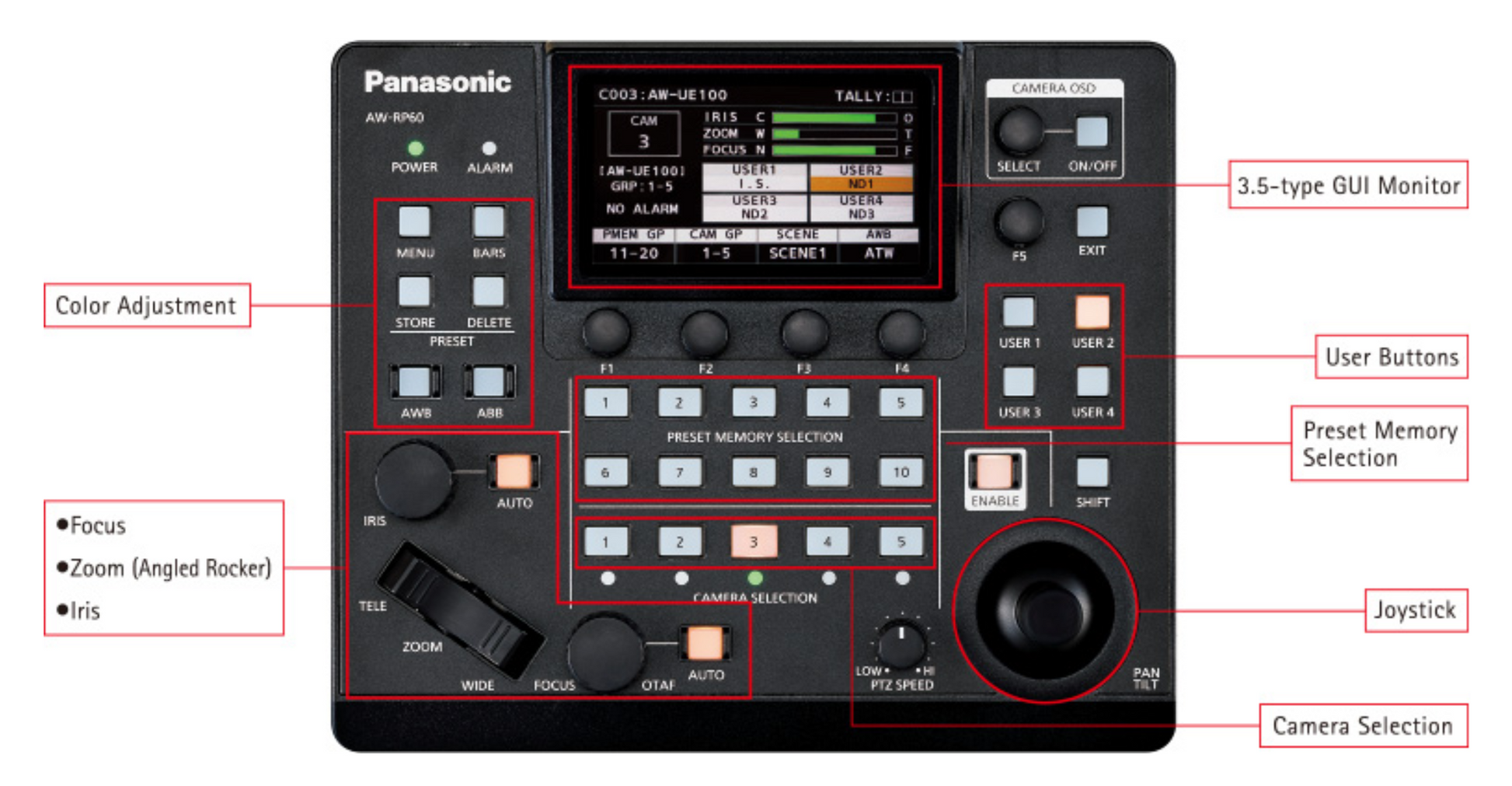

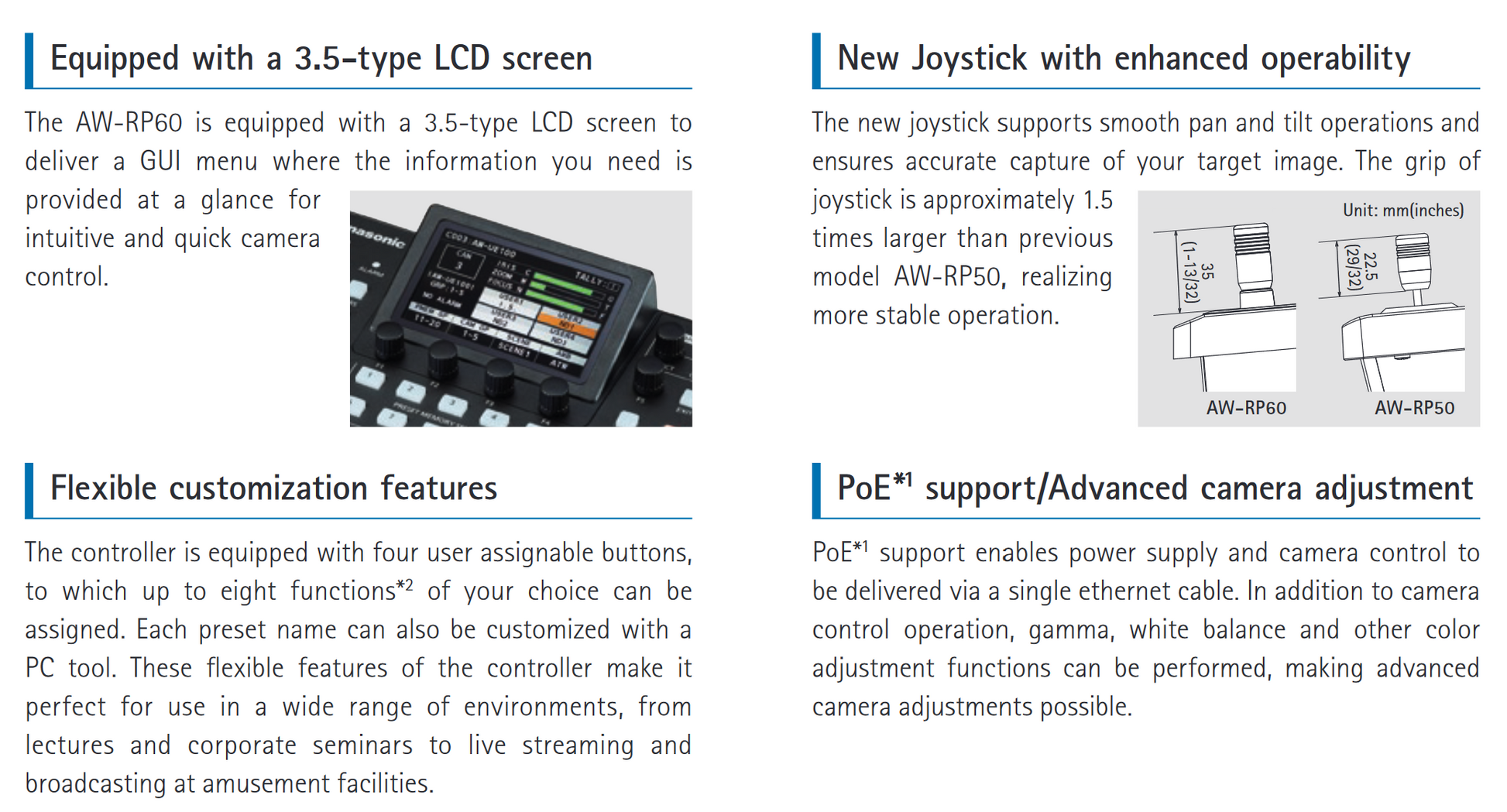

Key Features

  • Control of up to 200 remote robotic network cameras
  • Intuitive joystick for smooth and responsive PTZ camera control
  • 3.5" LCD screen displays menu and key camera information such as iris, zoom and focus
  • Easy management of up to 100 PTZ camera presets
  • Supports PoE power (Power Over Ethernet)



The AW-RP60GJ is a hardware-based controller designed specifically for Panasonic PRO PTZ remote cameras. This compact controller boasts an enhanced joystick that ensures seamless and precise camera control for up to 200 robotic cameras. Additionally, it offers effortless management of up to 100 camera presets, making it a versatile and user-friendly tool.



General
Power Requirements 12 V DC (10.8 V to 13.2 V), 42 V to 57 V DC (PoE power supply)
Current Consumption 0.9 A (XLR connector input), 0.3 A (PoE power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity Ranges 20 % to 90 % (no condensation)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Mass 1.5 kg (3.31 lbs)
Dimensions (W x H x D) W 210 mm x H 92 mm x D 177 mm (8-9/32 inches x 3-5/8 inches x 6-31/32 inches)
(excluding protrusions)

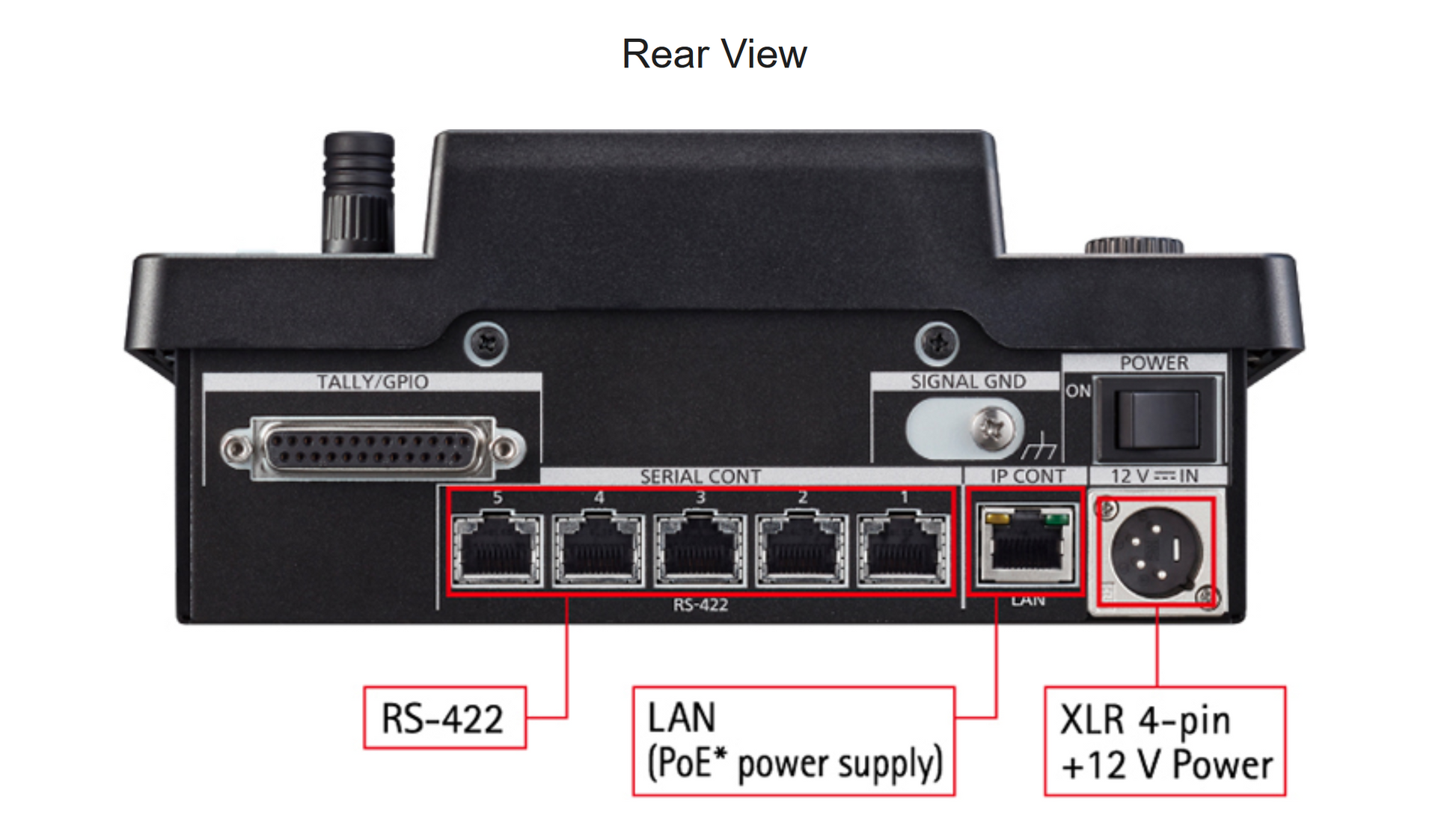

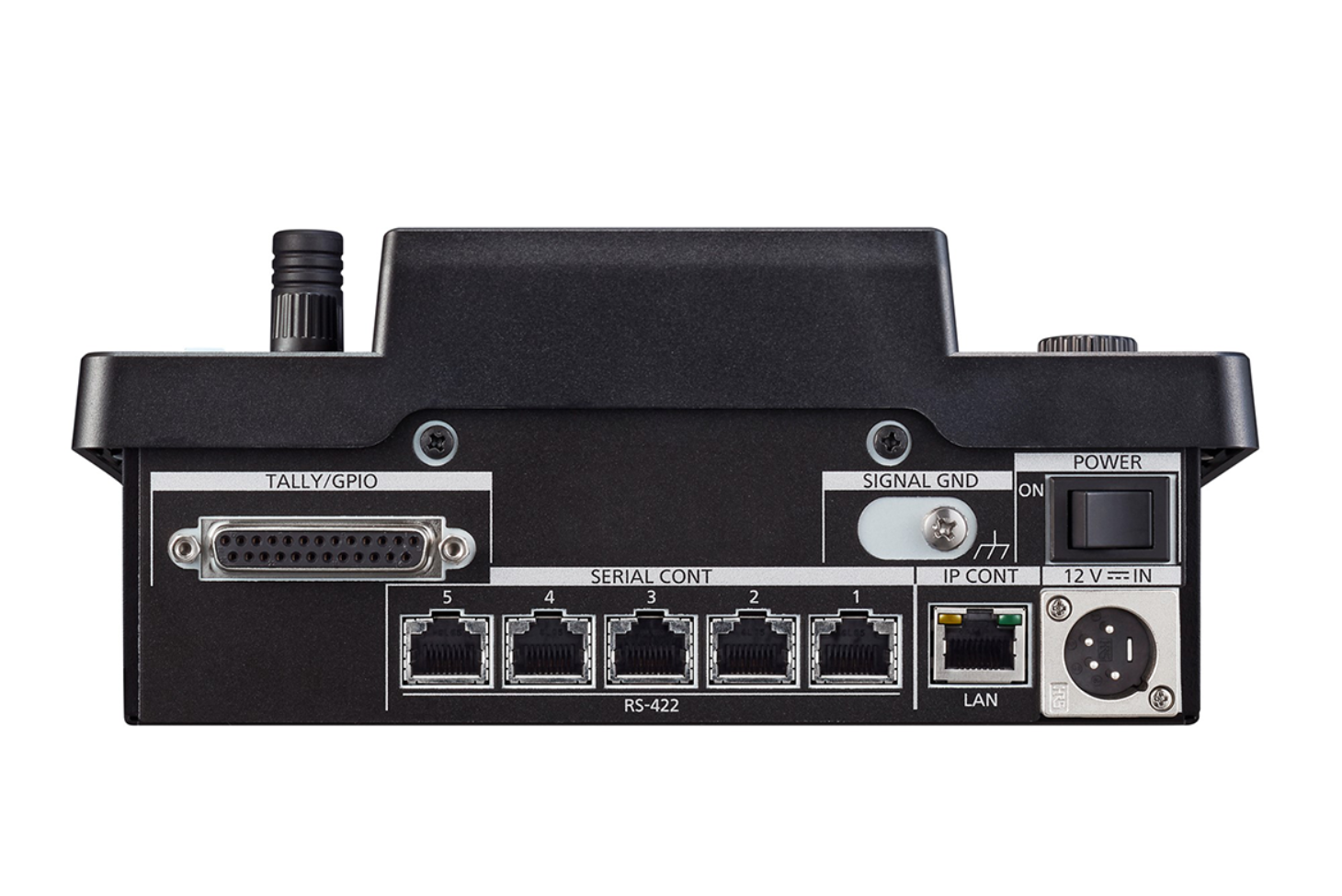

Input/Output Connectors
Input/Output DC 12 V IN XLR 4‑pin
LAN (RJ-45) (with LED) 10BASE‑T/100BASE-TX, PoE input
Connecting cable: LAN cable, max. 100 m (328 ft)
• When connecting the unit via a switching hub:
Straight cable (category 5e), STP (Shielded Twisted Pair) cable recommended
• When connecting the unit directly:
Crossover cable (category 5e), STP (Shielded Twisted Pair) cable recommended
• REMOTE:
Available only for LAN (RJ45) control
SERIAL CONT (RJ-45) RS‑422 (control signals for remote cameras), TALLY OUT
Connecting cable:
Straight cable (category 5e), max. 1000 m (3280 ft)
TALLY OUT:
Open collector output (negative logic)
Maximum voltage resistance DC 24 V, Maximum current 50 mA
TALLY/GPIO
(D-sub 25-pin, female,
inch thread)
TALLY IN: Contact input (Status operation)
GPIO IN: Contact input (Trigger operation)
GPIO OUT: Open collector output (negative logic)
Maximum voltage resistance DC 24 V, Maximum current 10 mA
LCD Display 3.5 inch LCD (QHD: 960 x 540)
Connection Specifications No. of Connectable Cameras 200 (IP), 5 (RS422)
Remote Camera Selection 5 (6 to 200 controlled from the LCD)
No. of Camera Groups 20 (10 units/group)
No. of Memory Presets 100
