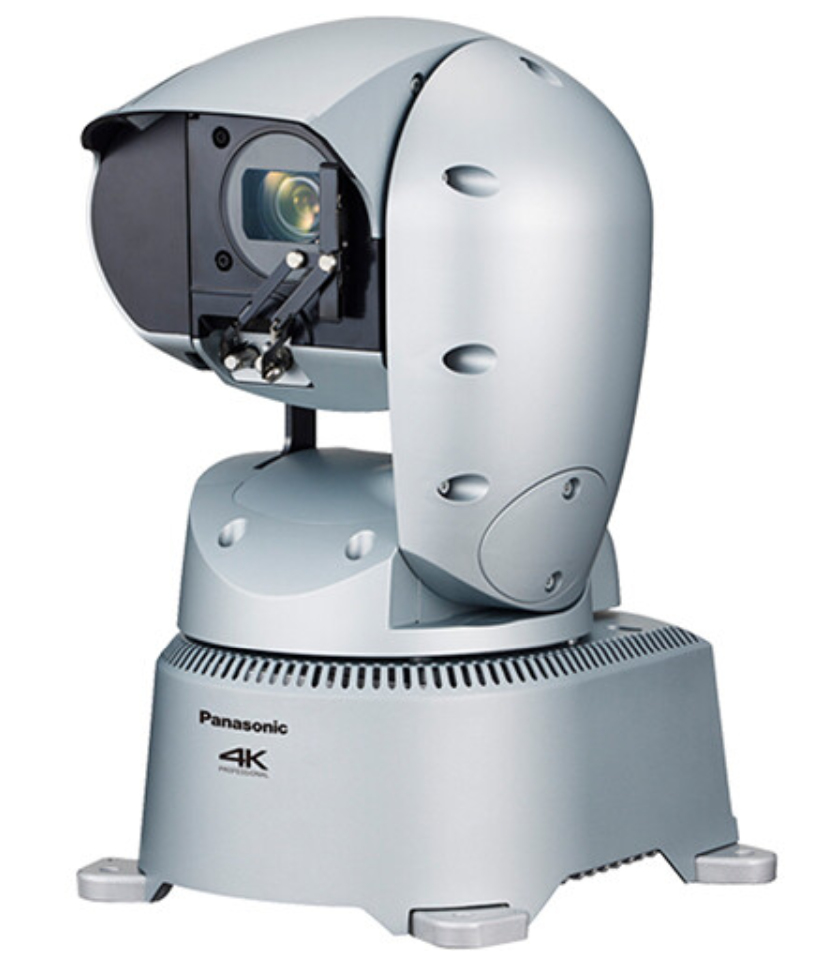

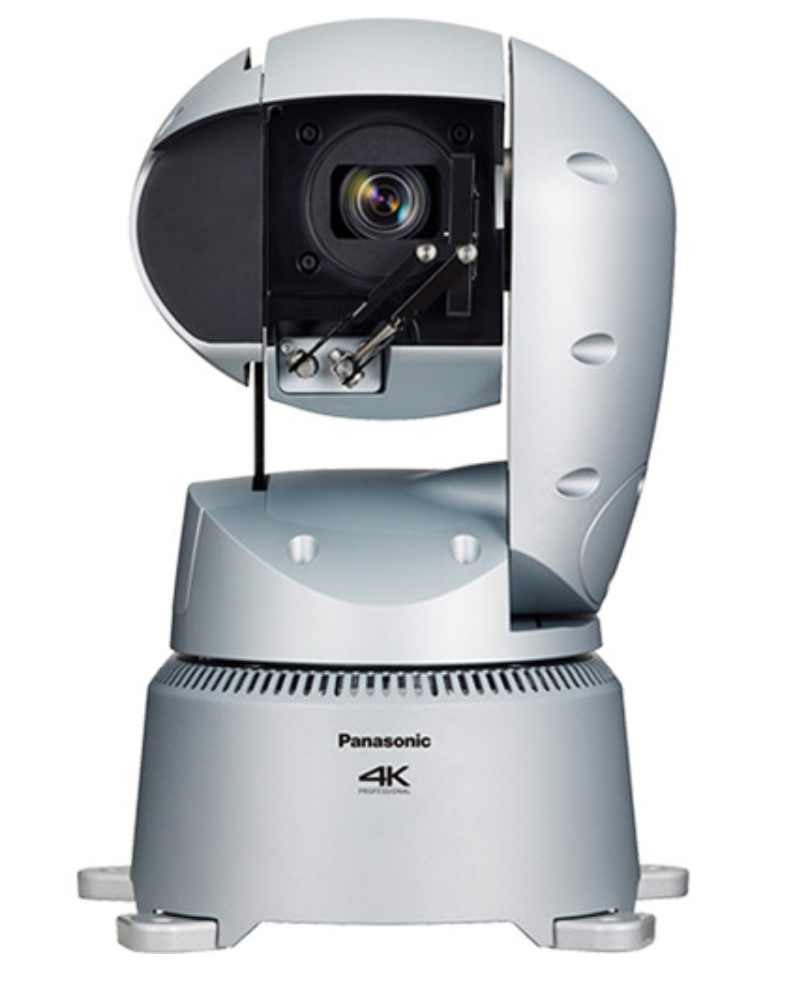

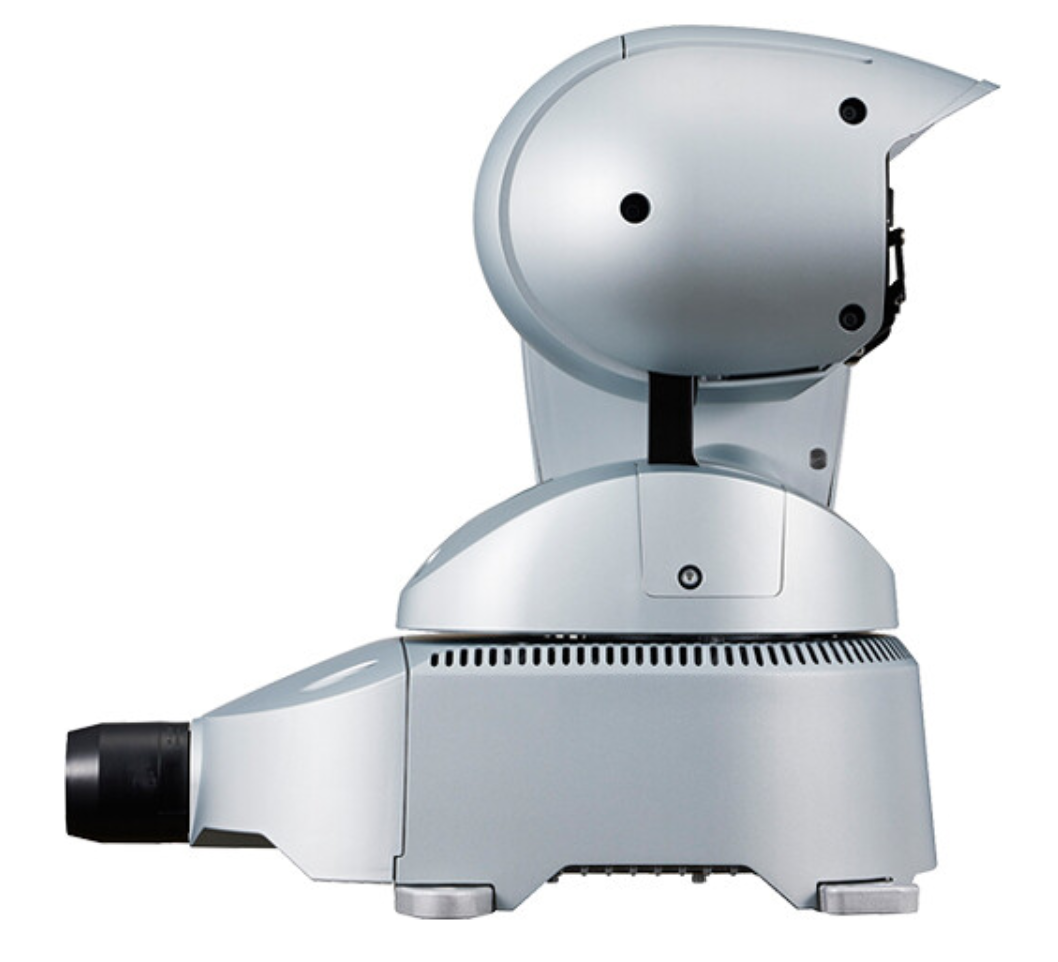

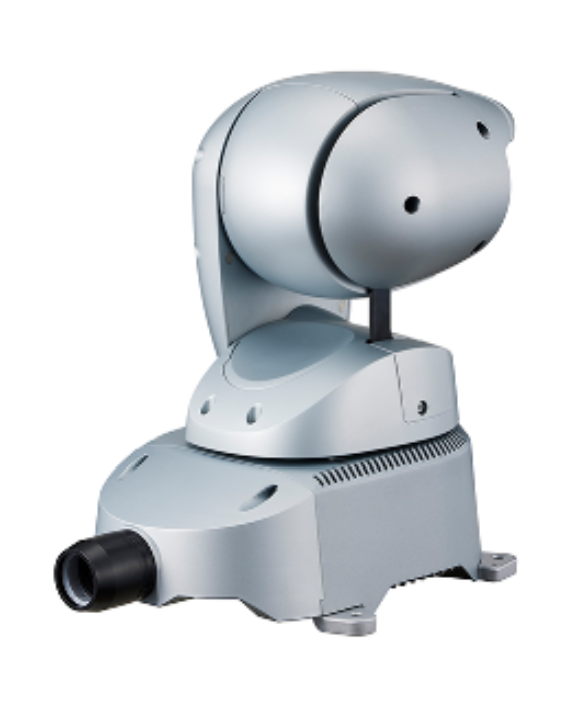

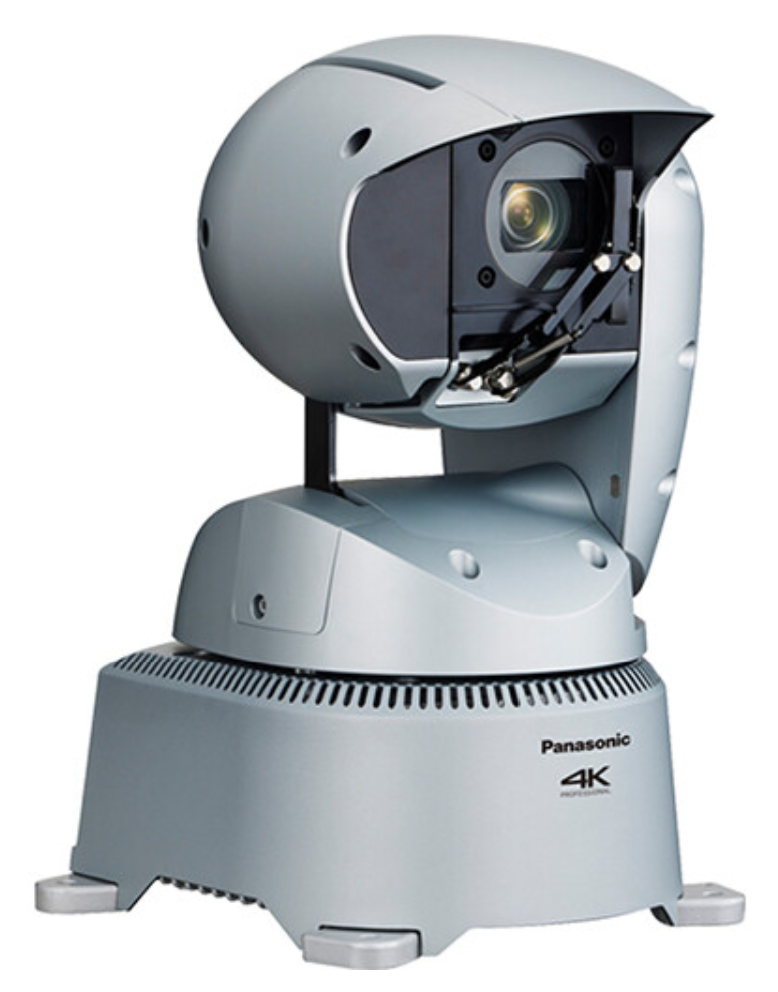

Panasonic AW-UR100 UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
Manufacturer: Panasonic BroadcastSKU: PAN-AWUR100GJ.S (MPN) AW-UR100 QUICK QUOTE
Couldn't load pickup availability
The Leader of Outdoor PTZ Cameras
This outdoor remote camera is the first to offer 4K60p support. It can capture natural smoothness and color in high definition and superior image quality, even in scenes with intense motion.

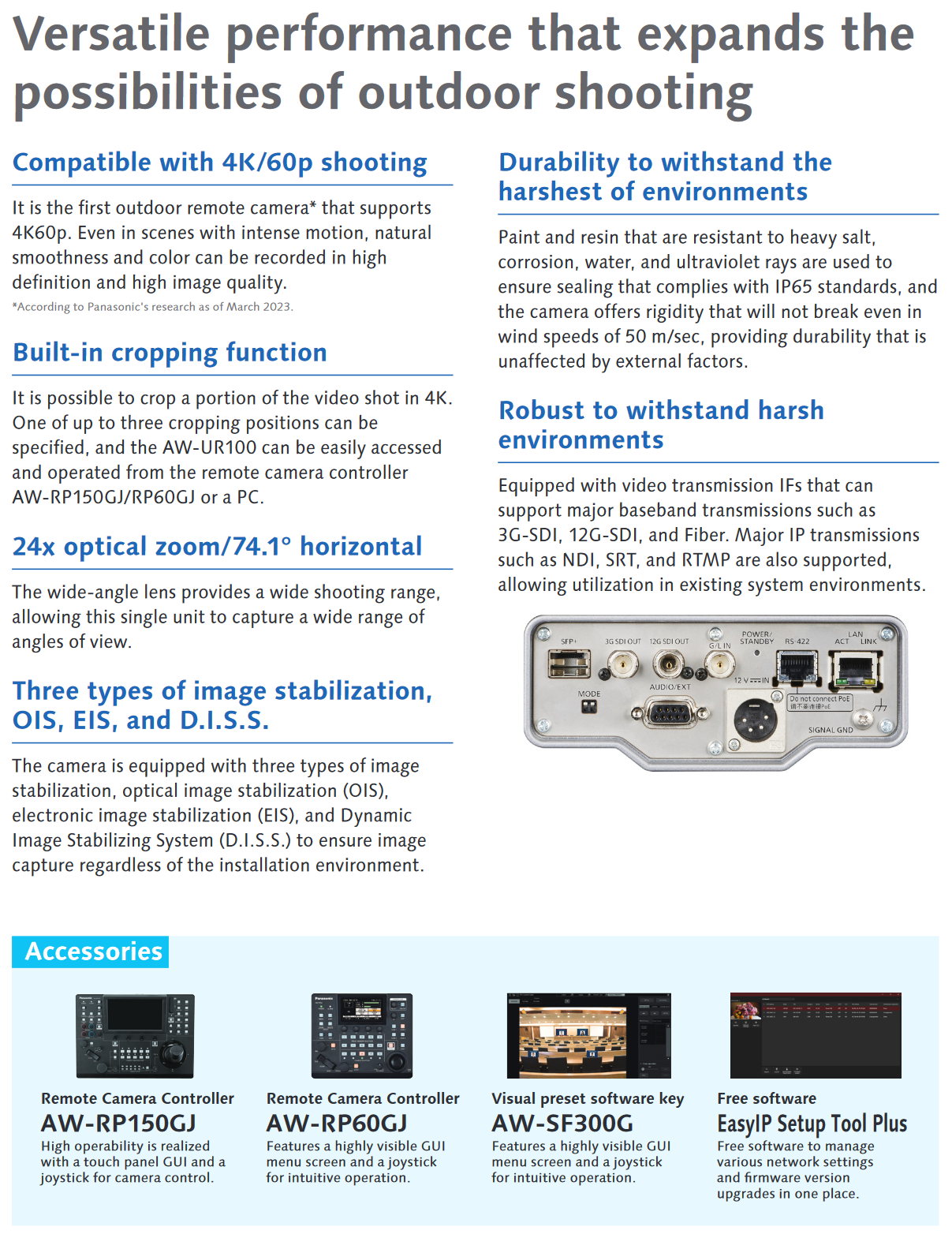

Key Features:
- Compatible with 4K/60p shooting
- Built-in cropping function
- 24x optical zoom/74.1° horizontal
- Three types of image stabilization, OIS, EIS, and D.I.S.S.
- Durability to withstand the harshest of environments
The camera is equipped with a wide-angle lens and supports 4K/60p, 24x optical zoom, and 10x digital zoom. It also features three types of image stabilization - OIS, EIS, and D.I.S.S. - which effectively suppress low-frequency large-amplitude shaking. This allows for high-precision video recording in any installation environment, making it possible to capture bird's-eye views of large stadiums and other venues while focusing on highlight scenes.
The camera is designed to endure harsh conditions, including salt damage, rain, wind, snow, and ultraviolet rays. It is also sealed to prevent yellow sand and flying sand, and durable enough to withstand seismic vibration. The HR140 has maintained its reliable durability while improving shooting performance, allowing for high-quality video recording in challenging environments where staff may find it difficult to shoot.
With the diversification of outdoor shooting in mind, the AW-UR100 now features a video transmission IF that supports major baseband transmissions like 3G-SDI, 12G-SDI, Fiber, and more. It is compatible with various IP protocols such as NDI and SRT, providing flexibility to adapt to different shooting environments and existing video production systems. This camera is suitable for recording, editing, streaming, and various other purposes, expanding the possibilities for outdoor video production.
Facilitates shooting and operation in various outdoor settings. A 4K integrated remote camera designed for capturing important moments outdoors

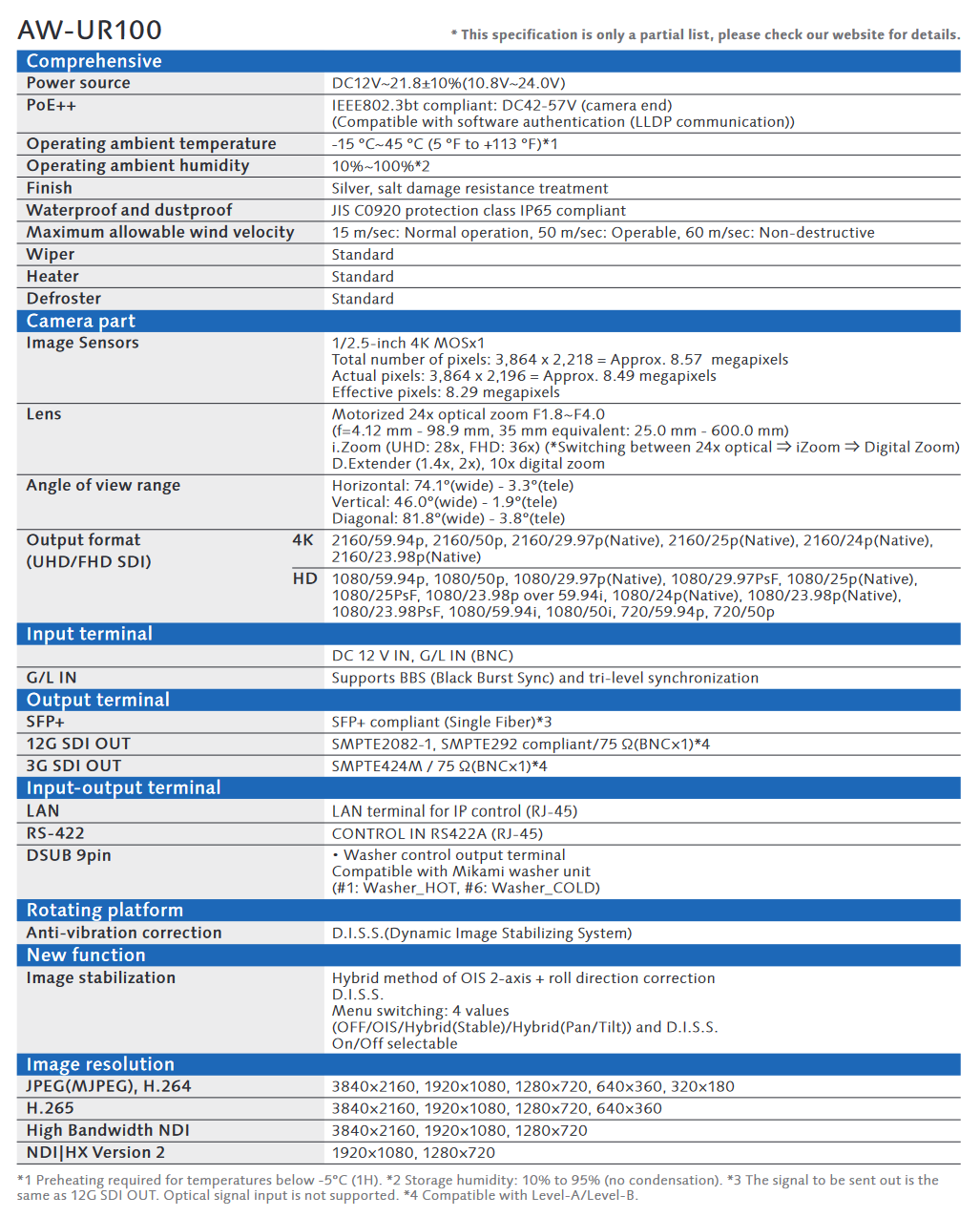

Featured Specs
| SKU | AW-UR100 |
|---|---|
| Power Requirements | DC12V~21.8±10%(10.8V~24.0V) |
| PoE++ | IEEE802.3bt compliant:DC42-57V (Software authentication (LLDP) is supported)) |
| Current Consumption | TBD |
| Ambient Operating Temperature | -15℃ to 45℃ (5 ℉ to +113 ℉) (preheating is required when -5 °C (23 °F) or less) |
| Ambient Operating Humidity | 10 % to 100 % (no condensation) |
| Storage Temperature | –20 °C to +55 °C (–4 °F to +113 °F) |
| Mass | TBD |
| Dimensions (W x H x D) | TBD |
| Finish | TBD |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1010, AK-HRP1015, AK-HRP1000, AK-HRP1005, AK-HRP250 |
| Imaging Sensors | 1/2.5-type (1/2.5") 4K MOS Effective Pixels :3,864×2,196= Approx. 8,490,000 pixels |
| Lens | Motorized Optical 24xZoom F1.8~F4.0 (f=4.12 mm ~ 98.9mm,35mm equivalent:25.0mm ~ 600.0mm) i.Zoom(UHD:28x,FHD:36x) D.Extender(1.4x,2x) Digital Zoom 10x |
| Conversion Lens | Not Supported |
| Angle of View Range | Horizontal:74.1°(wide) - 3.3°(tele) Vertical:46.0°(wide) - 1.9°(tele) Diagonal:81.8°(wide) - 3.8°(tele) |
| Optical Filter | Through､1/4,1/16,1/64 ,IR Through (IR Through is used as "night mode") |
| Focus Distance | Entire zooming range :1200 mm, Wide end :100 mm |
| Color Separation Optical Systems | 1MOS |
| Standard Sensitivity | F4/2,000lux(Non-public) *With full auto function * Although it is not described in manuals, catalogs, etc., the numerical value is described as a guideline for internal materials. |
| Minimum Illumination | 3lx(F1.8, 59.94p, 50IRE, +42dB, without accumulation) |
| Horizontal Resolution | 1,500 TV Typ(center area, UHD Mode, Wide) |
| Gain Selection | Auto､0dB ~ 36dB* Can be set in 1dB step increments. (Super Gain function equipped : 37 dB to 42 dB) |
| Frame Mix | Auto､0dB､6dB､12dB､18dB､24dB *If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p､1080/25p, it cannot be set. |
| Electronic Shutter Speed | 59.94p / 59.94i mode 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p mode 1/30,1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p / 24p mode 1/24,1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p / 50i mode 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p mode 1/25,1/50,1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p / 59.94i mode 60.0Hz~7200Hz 29.97p mode 30.0Hz~7200Hz 23.98p / 24p mode 24.0Hz~7200Hz 50p / 50i mode 50.0Hz~7200Hz 25p mode 25.0Hz~7200Hz |
| Gamma | HD/NORMAL/CINEMA1/CINEMA2/Still like *Black Gamma is not supported |
| White Balance | ATW, 3200K､5600K AWB-A, AWB-B VAR (selectable between 2000 K and 15000 K by designating a value) (ATW Speed 3-stage variables.) |
| Chroma Amount Variability | OFF, -99%~99% |
| Output Format (UHD/FHD SDI) | [4K Format] 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) [HD Format] 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/29.97PsF, 1080/25p(Native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p(Native), 1080/23.98p(Native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |

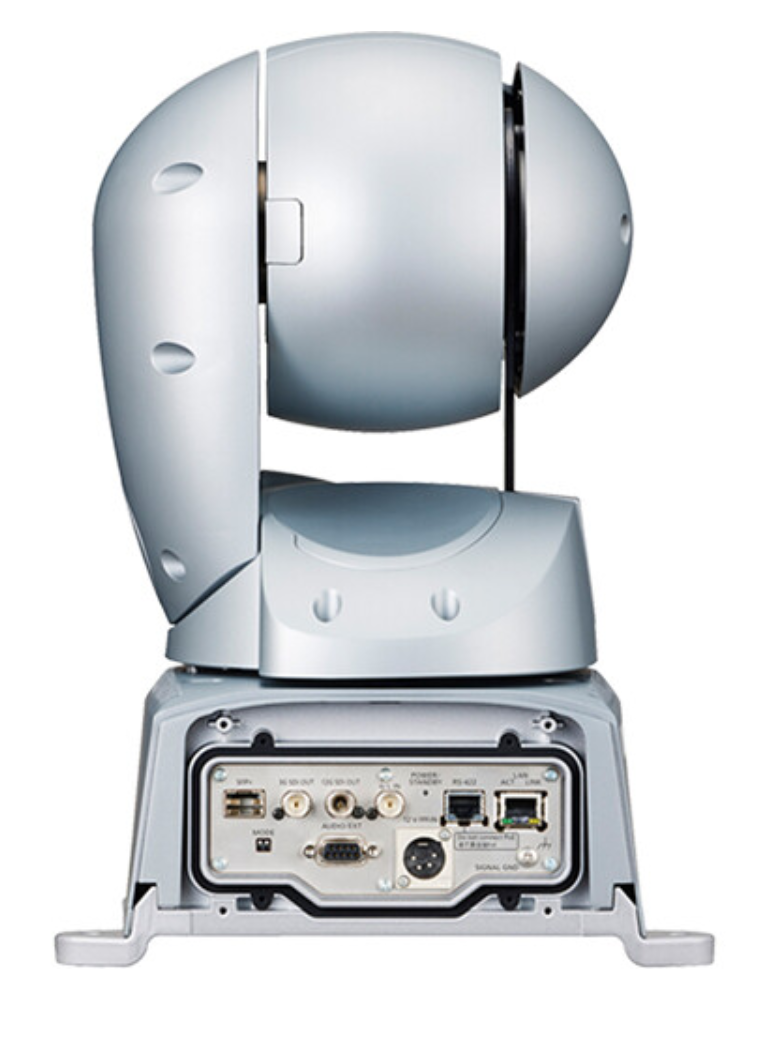

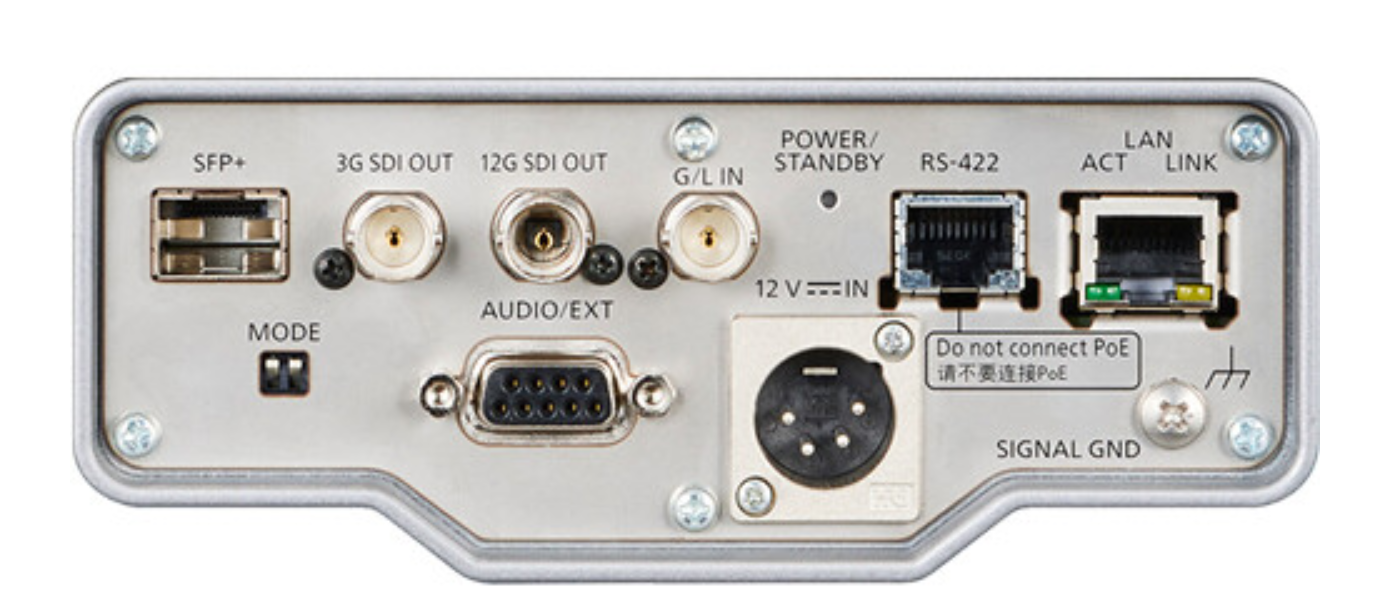

| Input | DC 12 V IN, G/L IN(BNC) |
| G/L IN | BBS (Black Burst Sync), tri-level sync supported) |
| SFP+ | SFP+ standard(Single Fiber) *This unit does not support input by optical signals |
| 12G SDI OUT | SMPTE2082-1, SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| 3G SDI OUT1 | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| LAN | LAN connector for IP control（RJ‑45） |
| RS-422 | CONTROL IN RS422A (RJ‑45) |
| IP connecting cable | if you have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable)Max100 m If you don't have PoE++ ethernet hub LAN cable*1( category 5e or above､straight cable)Max100 m *1 STP(Shielded Twisted Pair) is recommended *2 Category 6 or above is used for 4K video transmission. |
| AW protocol connecting cable | LAN cable*(category 5e or above, straight cable)Max1000 m *STP(Shielded Twisted Pair) is recommended |

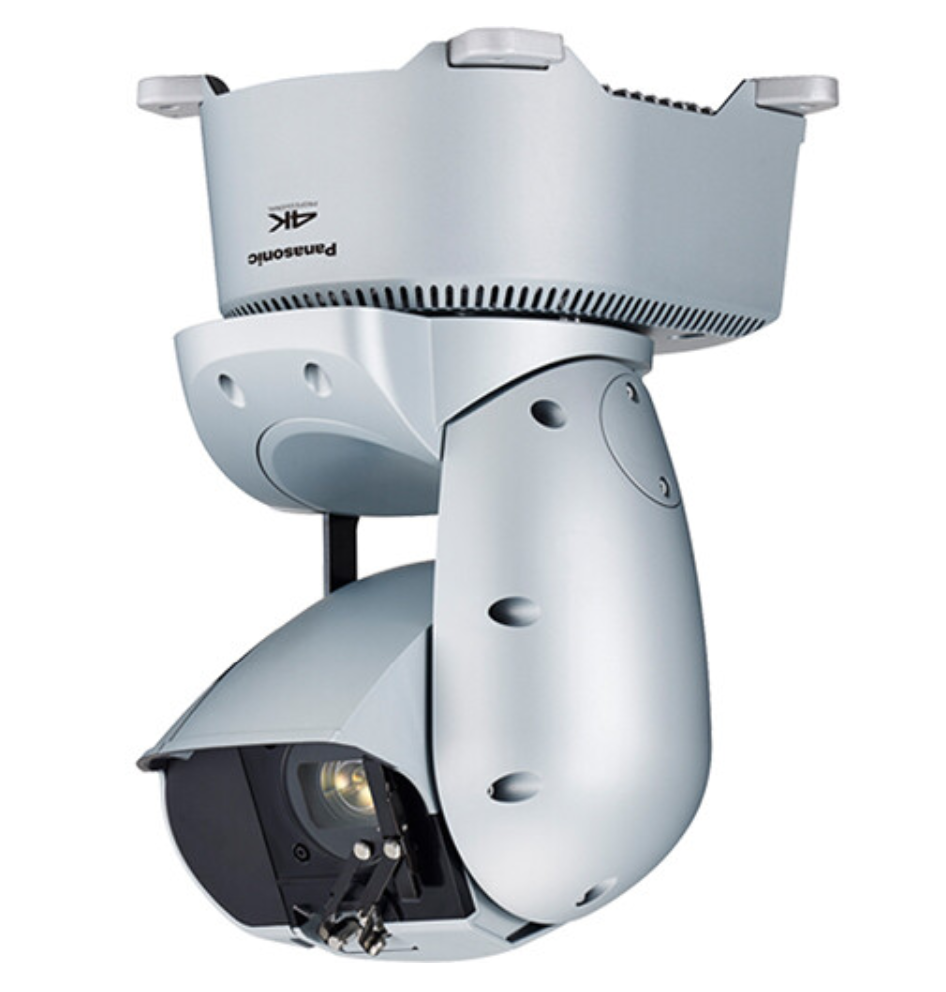

| Installation Method | Stand-alone (Desktop) or suspended (Hanging) |
| Pan/Tilt Operation Speed | Speed range:0.08 °/s ~60°/s( Normal mode) *3 speed modes installed Normal:60°/s,Fast1:90°/s, Fast2:180°/s |
| Panning Range | ±175° |
| Tilting Range | –30°~ 210 |
| Quietness | TBD |
| Vibration Correction | D.I.S.S.(Dynamic Image Stabilizing System) |
| Supported OS and Browser Combination | TBD |
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI/HX, High Bandwidth NDI |
| Image Resolution | 3840x2160, 1920x1080, 1280x720, 640x360, 320x180 |
| Image Transmission setting (JPEG) | Frame rate : Max 30fps *No bit rate specified *JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate Image quality(Fine/Normal) |
| Image Transmission Setting (H.264) | Transmission Type : Unicast port (AUTO) Unicast port (MANUAL) Multicast port Transmission mode: CBR, VBR Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD is only 30fps, 60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD is only 25fps, 50fps) Max to Min Bit Rate 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/ 20480kbps/24576kbps/51200kbps/76800kbps |
| Image Transmission Setting (H.265) | Transmission Type : Unicast port (AUTO) Unicast port (MANUAL) Multicast port Transmission Mode :CBR, VBR Frame Rate [60Hz] 30fps [50Hz] 25fps Max to Min Bit Rate 8192kbps/12288kbps/25600kbps/51200kbps/76800kbps |
| Audio Compression Type | AAC-LC, 48kHz/16bit/2ch |
| Supported Protocol | Network Protocol: ICMP, ARP, GARP, MLD Transmission Protocol: TCP/IP, UDP/IP Application Protocol: IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI|HX version 2, High bandwidth NDI External Device Cooperation Protocol:FreeD, TSL5.0, SNMP |
| Output Format (High bandwidth NDI) | [4K Format] 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p [HD Format] 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p､1080/24p, 1080/23.98p, 720/59.94p, 720/50p |
| Image Resolution (NDI|HX Ver.2) | 1920x1080, 1280x720 |
| Image Streaming Setting | High Bandwidth NDI Transmisiion Type : TCP/UDP Multicast Bit Rate : Max 250Mbps NDI/HX: Transmission Type :Unicast port (AUTO) Unicast port (MANUAL) Multicast port Frame Rate [60Hz] 5fps/15fps/30fps/60fps(UHD is 30fps, 60fps only) [50Hz] 5fps/12.5fps/25fps/50fps(UHD is 25fps, 50fps only) Max Bit Rate 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/ 4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/ 16384kbps/20480kbps/24576kbps |
| Audio Compression Type 2 | NDI:AAC, 48kHz, 2ch NDI/HX:AAC-LC, 48kHz/16bit/2ch |
| F Number Display | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
| NDI | High Bandwidth NDI,NDI|HX included as standard |
| IP menu display | supported *Non-synchronous with SDI-OUT |
| VR (FreeD) (IP/RS422) | supported |
| Image Stabilization | TBD |
| Privacy Mode | The lens surface faces backward when standing by (ON/OFF) |
