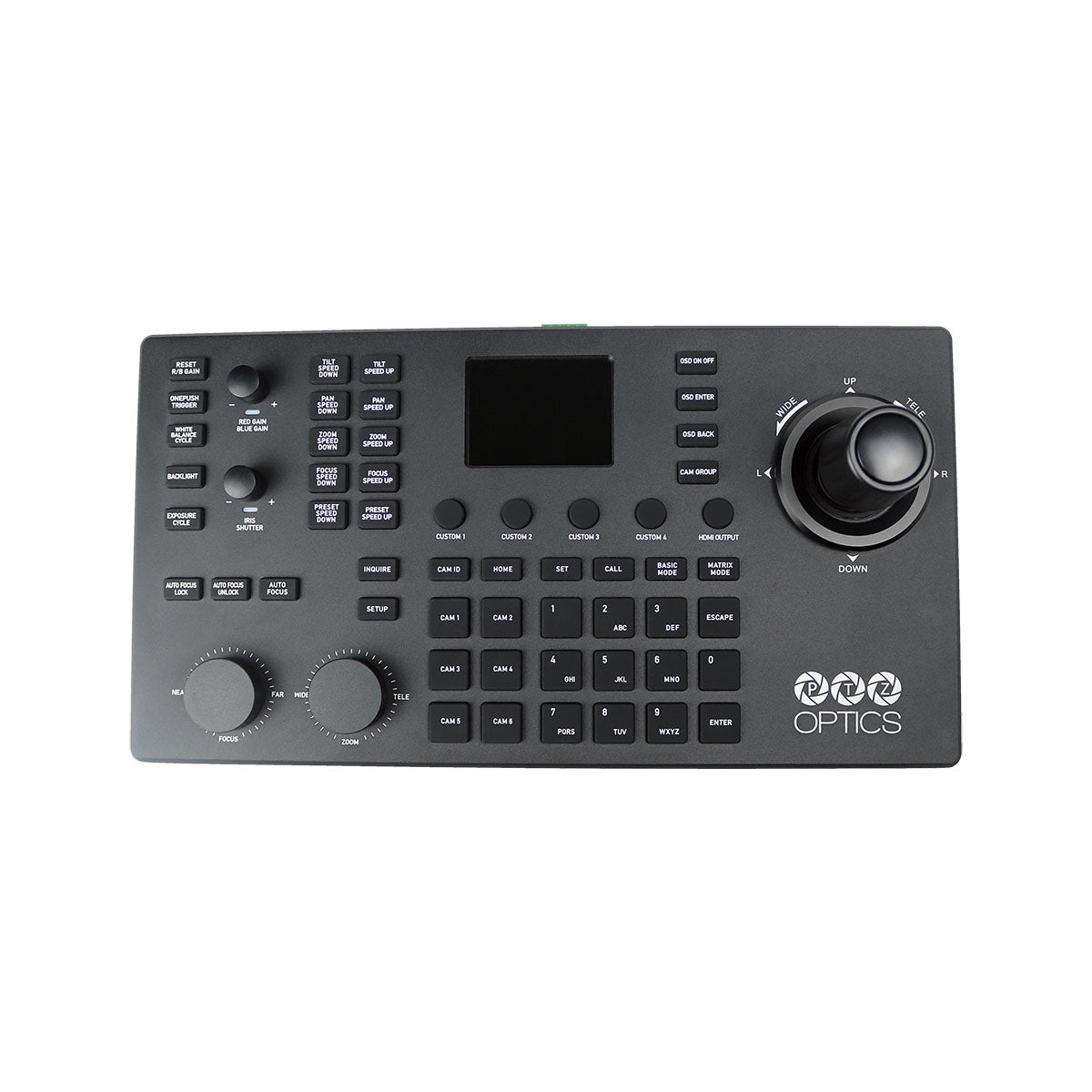

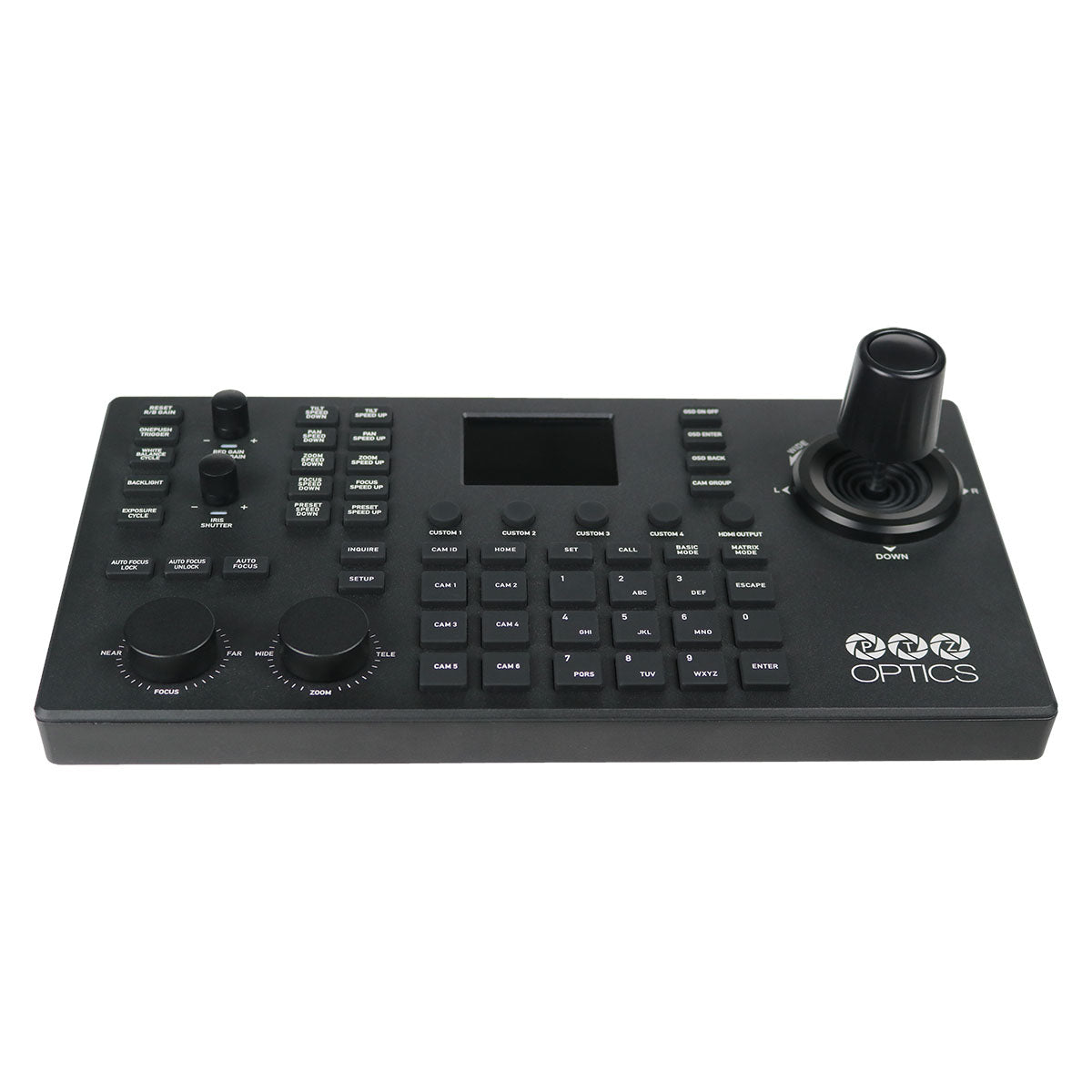

PTZOptics SuperJoy PTZ Camera Joystick Controller
Manufacturer: PTZOpticsSKU: PTZ-PTSUPERJOYG1 QUICK QUOTE
Couldn't load pickup availability
Craft an Exceptional, Accurate, and Flexible Production Journey

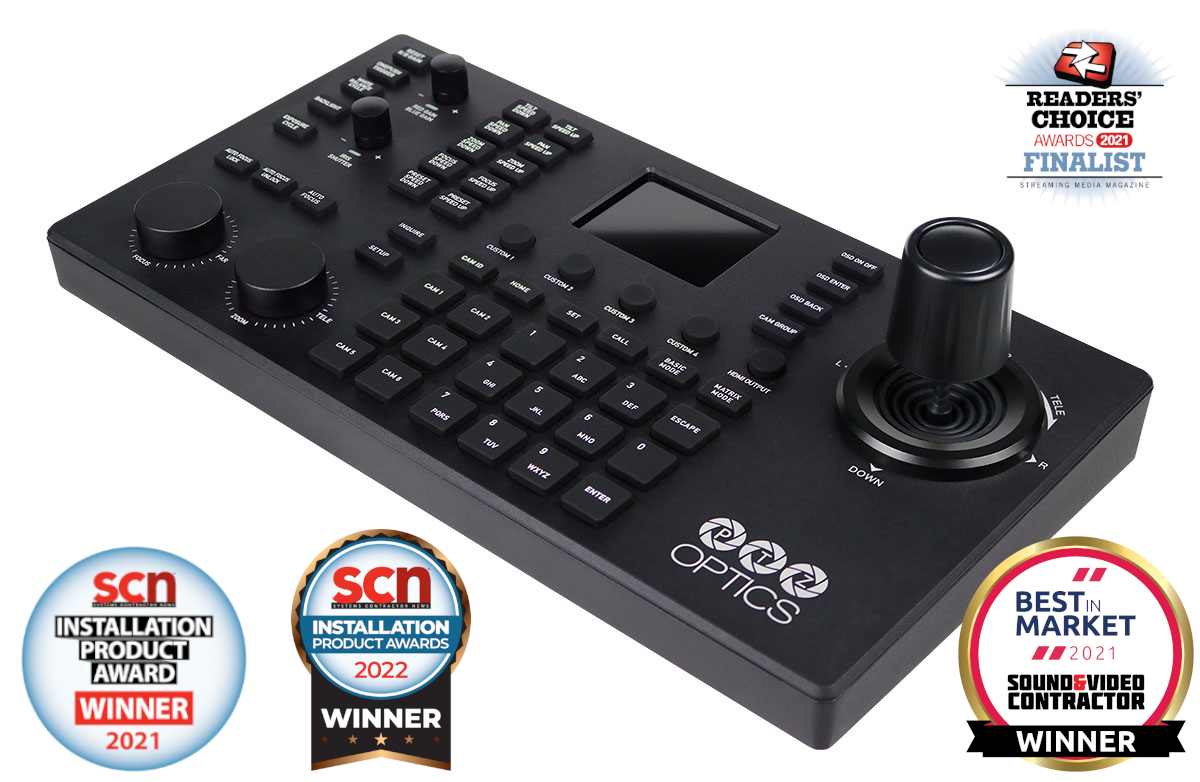

The award winning PTZOptics SuperJoy is a cutting-edge PTZ camera joystick controller that revolutionizes remote pan, tilt, and zoom camera operations. With its streamlined user interface and advanced controls, the SuperJoy enhances production workflows, providing a seamless and efficient experience for power users.
The SuperJoy boasts an instinctive, tactile interface, making even the most intricate production setups more straightforward and efficient.

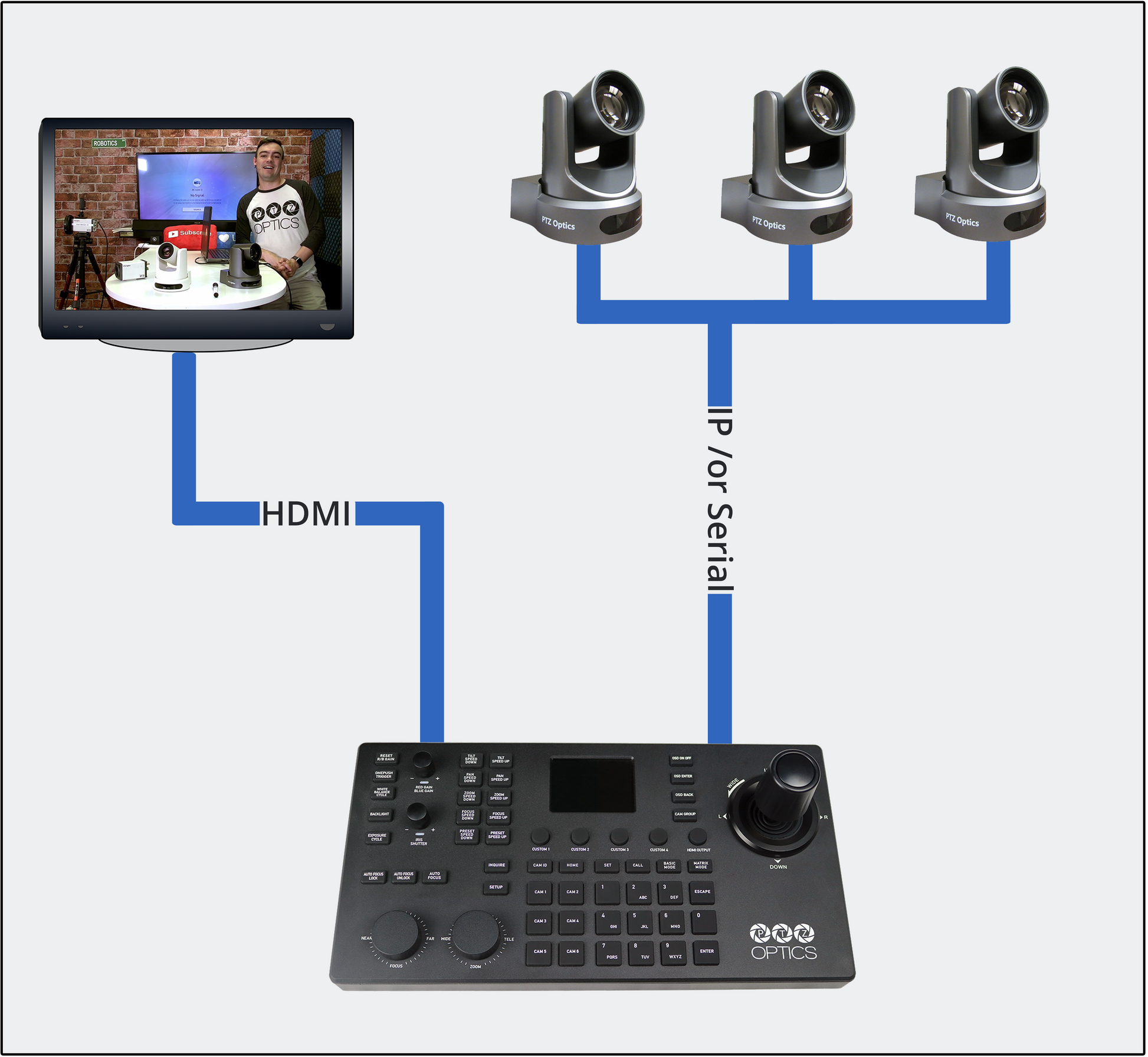

SuperJoy's HDMI video output offers a 1080p video preview for any camera connected to it that has an RTSP video feed accessible for use. This HDMI video output is perfect for observing cameras over a local area network. Consequently, a SuperJoy controller can be positioned anywhere on a network to obtain PTZ camera controls with a low-latency, live video preview.

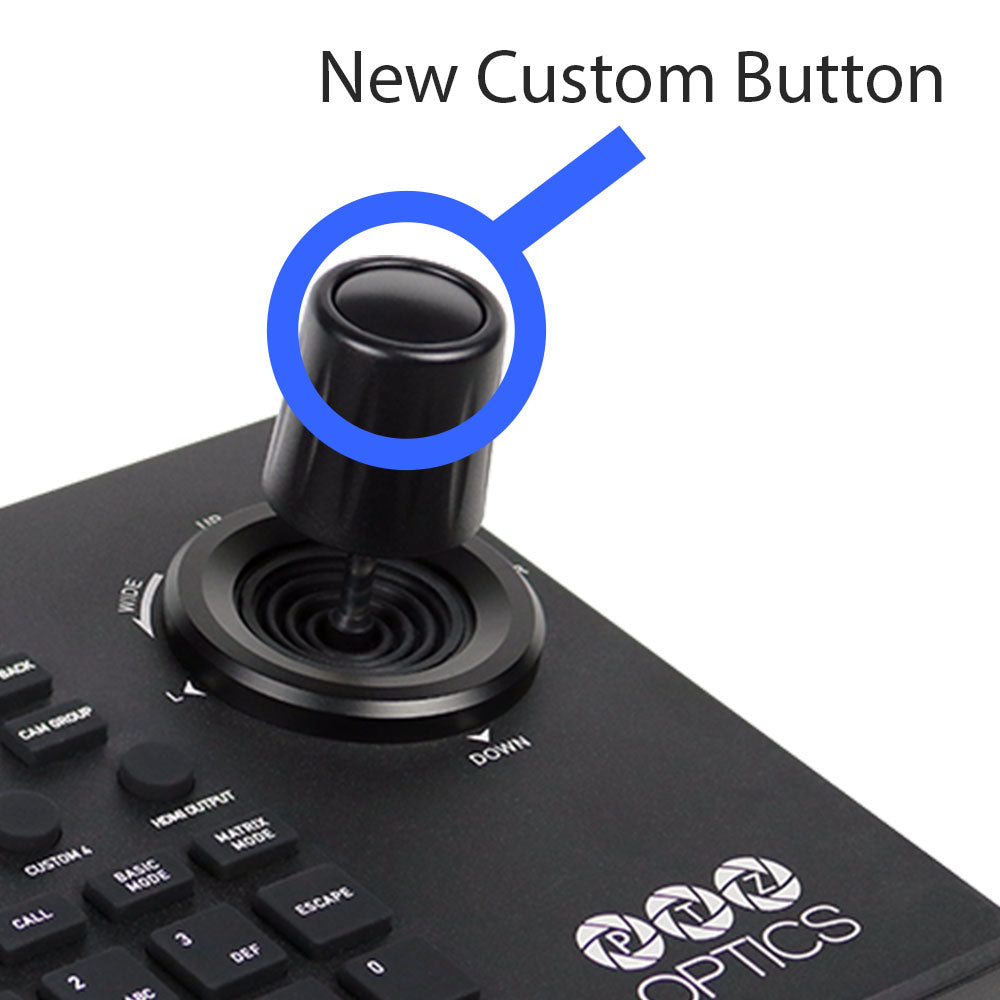

It features ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly tuning, eliminating the need for OSD adjustments. Additionally, the status-responsive backlit buttons and knobs indicate available camera modes, while the option for tablet/computer control allows for remote monitoring.
The PTZOptics SuperJoy Joystick Controller offers a complete solution that enables mix-and-match control for PTZ cameras of any generation, whether through serial or network-based means.
The award winning PTZOptics SuperJoy is a cutting-edge PTZ camera joystick controller that revolutionizes remote pan, tilt, and zoom camera operations. With its streamlined user interface and advanced controls, the SuperJoy enhances production workflows, providing a seamless and efficient experience for power users.
Features:
- Simultaneous NDI®, IP & Serial Control for a Range of PTZ Cameras
- Create 5 Camera Control Groups (Cam Groups 1-4: 7 channels, Cam Group 5: 225 channels)
- Multi-Brand Compatibility, including Sony, BirdDog, NewTek & More
- Large LCD Screen with Controller Status and built-in decoder with HDMI output
- Basic, Basic Plus & Matrix Modes for Users of All Skill Levels

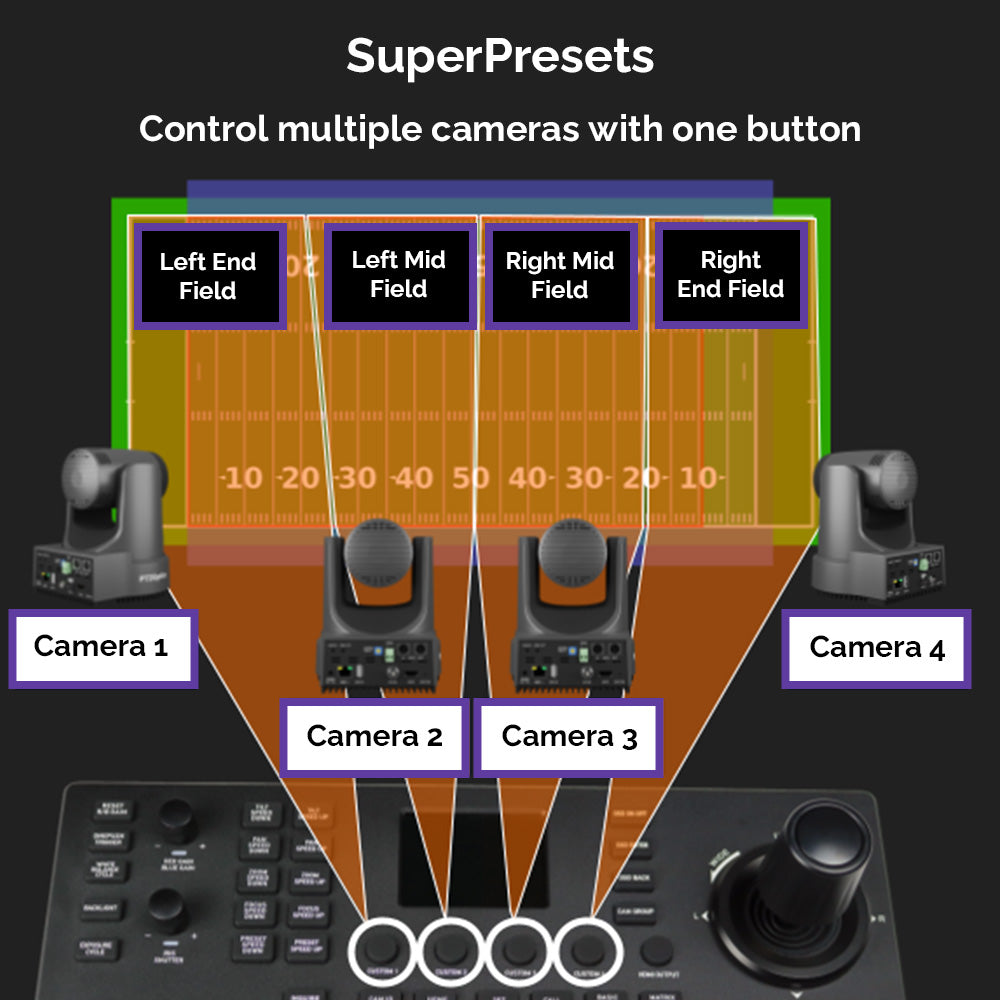

- Up to 255 PTZ Camera Presets, 9 Quick Presets, and 4 Super-Presets

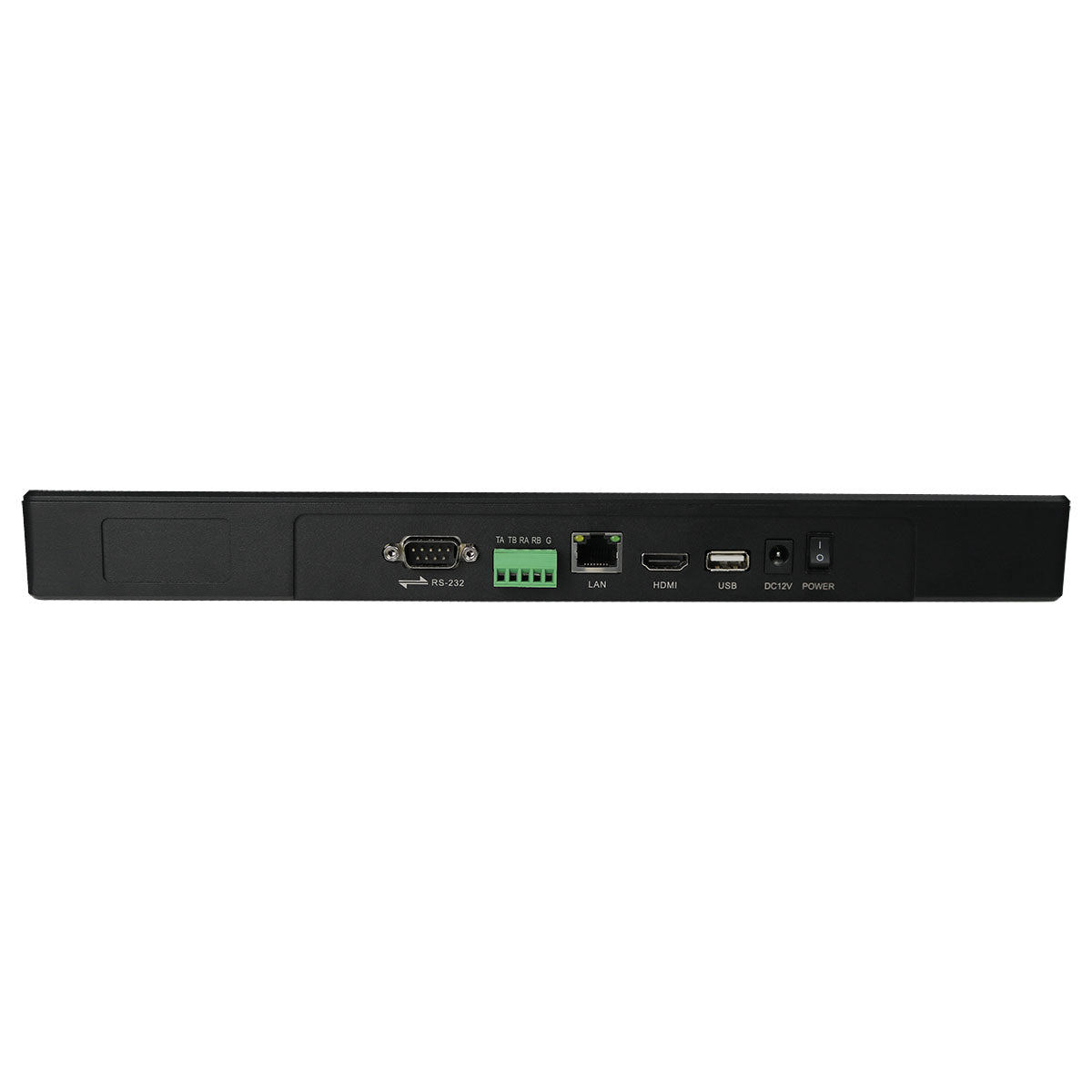

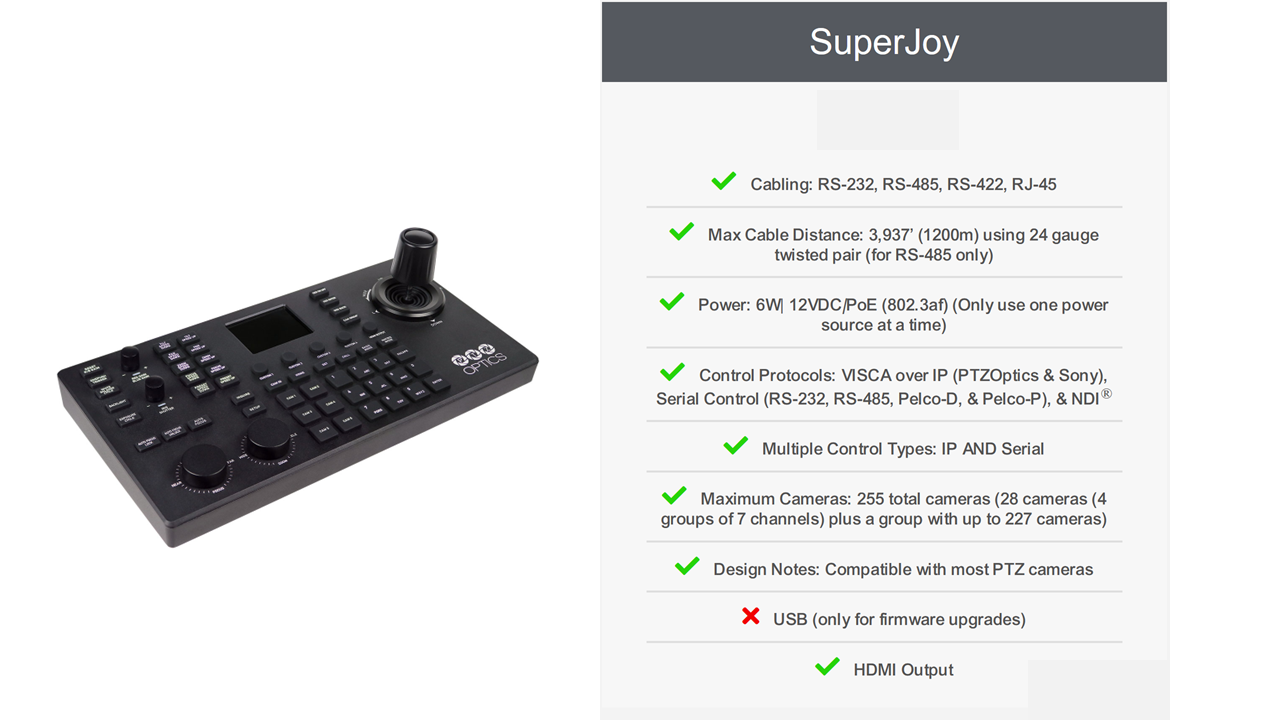

Connections | RS-232, RS-485, RS-422, RJ-45 |
Control Protocols | VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI® |
Max Cameras | 28 cameras total (5 groups of 7 channels) |
Recommended Max Distance | RS-232 / RS-422: 50 ft | 15m RS-485: 3,937 ft | 1200m Ethernet: 328 ft | 100m |
Baud rate | 1200 -19200 bps |
Power | 6W112VDC / PoE (802.3af) (Only use one (1) power source at a time.) |
Working Temp | 14° F -122° F | -10° C +50°C |
Working Humidity | 10% ~ 90% (non-condensation) |
Weight | 3.75 lbs | 1.70 kg |
Dimensions (in.) | 13.94 W x 7.05 D x 3.98 H |
Dimensions (mm.) | 370 W x 180 D x 101 H |
