Quicklink StudioRemote Multi Camera Studio-in-a-box 2U 4xHD-SDI, 4xXLR Audio Input, DMX512
Manufacturer: QuicklinkSKU: QLK-StudioRemote QUICK QUOTE
Couldn't load pickup availability

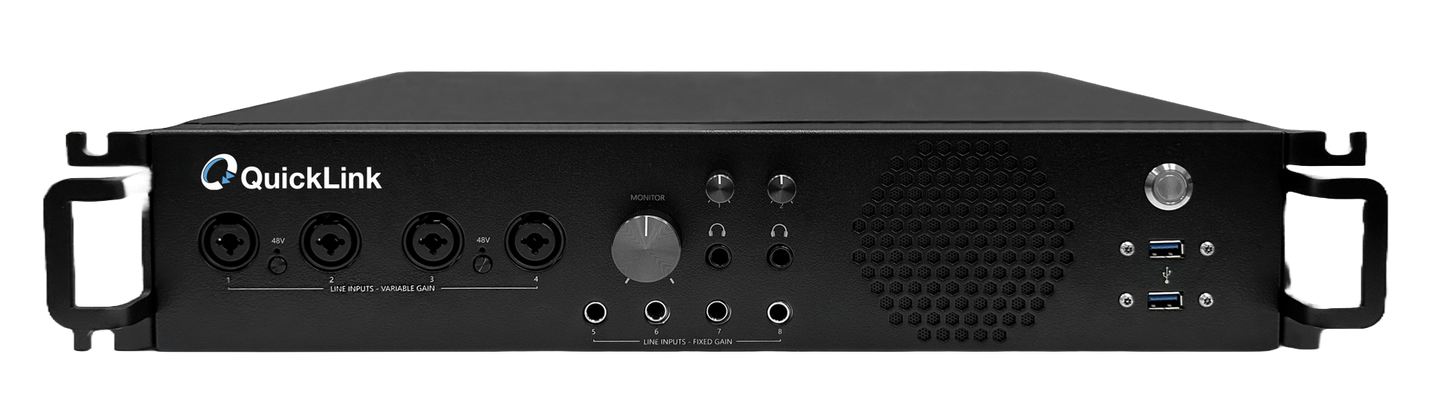

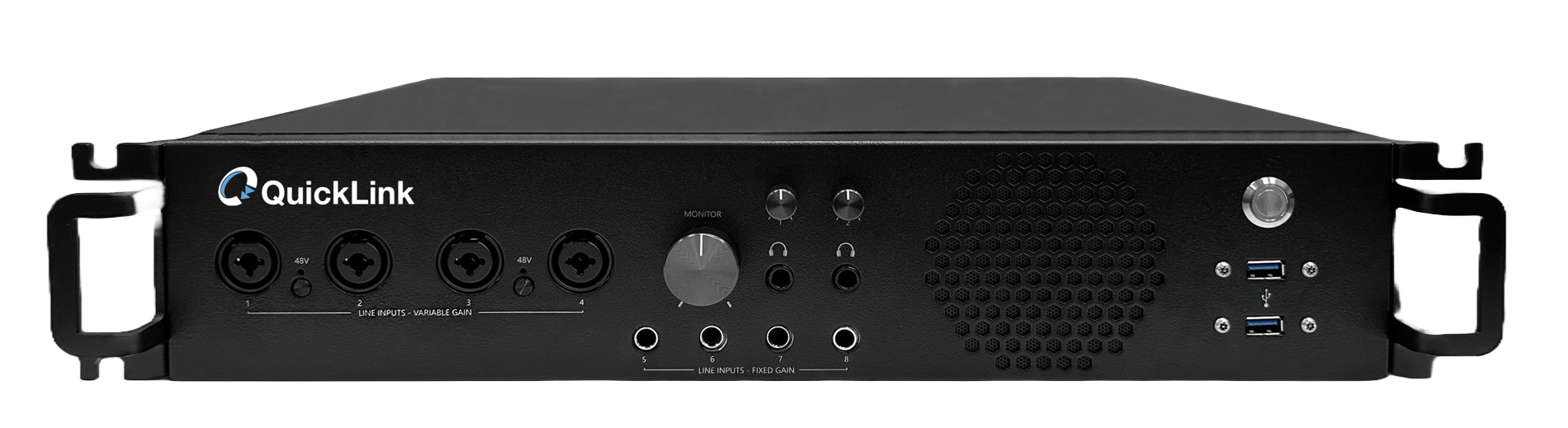

All-in-One Multi Camera Remote Studio
StudioRemote incorporates remote control of all the elements of your studio including multiple cameras, camera tally, camera pedestal, lighting, audio, confidence monitor, teleprompter, engineering talkback/IFB, backdrop monitor/display, chroma keying and more.
Control all elements completely remotely from a simple and intuitive interface: Remotely control over 400 devices, directly from an easy-to-use web interface or control panels utilising QuickLink Bridge technology. Control camera pan/tilt/zoom/pedestal with automatic tally for standby, preview and live on-air. Control the brightness and temperature of multiple DMX-512 lights.
Comprehensive user access control allows you to assign individual remote engineers to different studio operations, such as audio engineers, camera operators and directors, each within an easy-to-use, collaborative interface.
Full remote audio control of on-site devices: Remotely control your on-site, inbuilt pre-amp hardware audio settings, including mic gain control, 48v phantom power, line level inputs/outputs and more! High-performance converters enable you to record and mix at up to 24-bit/192kHz. Compatible with all NDI™, Dante/Livewire+ AES67 over IP devices, separate ethernet interface for isolation of IP audio.
Enhance your remote studio with the latest AI technology: Enhance your independent and switched feeds with AI technology powered by NVIDIA. Utilising NVIDIA AI, raise your production quality and increase your audience engagement. Eye Contact ensures your talent is always looking directly at the camera even when looking at monitors or reading notes. For studios with lighting challenges, automatically apply Artifact Reduction to reduce artifacts and preserve texture, and apply Video Noise Reduction to remove low-light camera noise while preserving detail.
Integrate into your workflow with professional broadcast outputs: Stream via RTMP, SRT, NDI, or QuickLink Studio to any destination, or output via SDI to integrate into video production suites such as Grass Valley Kula & Kahuna, NewTek TriCaster, Blackmagic Design ATEM, Ross Video Vision and more! Stream your studio to virtually any digital destination, including Facebook, YouTube, LinkedIn, Twitter, Twitch, Wowza, and more!
StudioRemote incorporates remote control of all the elements of your studio including multiple cameras, camera tally, camera pedestal, lighting, audio, confidence monitor, teleprompter, engineering talkback/IFB, backdrop monitor/display, chroma keying and more.
| StudioRemote | |
|---|---|
| Number of supported 4K cameras via SDI | 4 |
| Number of supported 4K cameras via NDI™ | 8 |
| Compatible with all PTZ cameras using VISCA over IP protocol | ✓ |
| 12G 10-bit SD/HD-SDI Video Input/Output | 4 |
| 6G 10-bit SD/HD-SDI Video Output | 1 |
| HDMI 2.0a Video Output | 1 |
| Supports the latest generation video codecs (AVI) | ✓ |
| Genlock/Sync Reference input | ✓ |
| Mic/Line Inputs 1-4 (Variable Gain) with 48v Phantom Power | 4 |
| Line Inputs 5-8 (Fixed Gain) | 4 |
| ¼” Line Input | 4 |
| Line Output | 4 |
| Headphone Output | 2 |
| NDI™ Video over IP. Dante/ Livewire+ AES67 Audio over IP Support* | ✓ |
| Full duplex audio, full audio metering and level control | ✓ |
| DMX-512 lighting support | ✓ |
| Camera tally support | ✓ |
| Camera Pedestal support | ✓ |
| Talkback - IFB from Studio | ✓ |
| Simultaneous record to any cloud storage | ✓ |
| Internal storage size | 250GB |
| Video or still Chroma Key | ✓ (Max 30fps) |
| Artificial intelligence | ✓ |
| Support for secondary monitor | 4 monitors via HDMI |
| USB 3.0 (Type A) / USB 2.0 (Type A) | 4 / 4 |
| Ethernet ports | 1 x 2.5 Gigabit NIC 1 x 1 Gigabit NIC |
| Support for satellite internet connectivity. Starlink, OneWeb, and more! | ✓ |
| Power supply | 100-240v |
| Size: 480mm (W) x 88mm (H) x 380mm (D) Size: 18.89" (W) x 3.46" (H) x 14.96" (D) |
✓ |
| Weight | 18.7 lbs (8.5 kg) |
