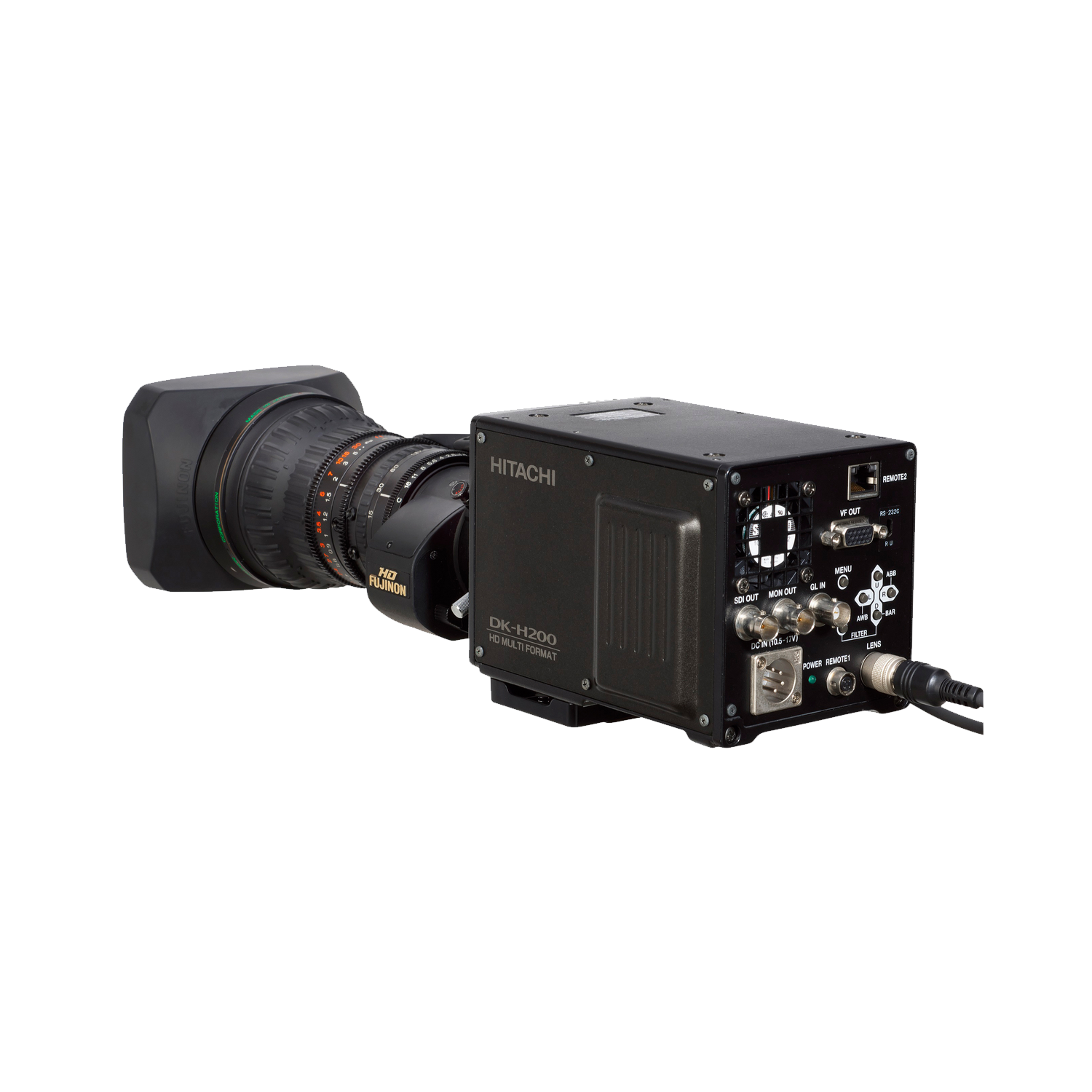

Hitachi’s DK-H200 compact box camera is our top-of-the-line multi-format progressive scan HDTV camera. Outstanding images are acquired by three 2/3” 2.6 megapixel MOS imagers. With High Dynamic Range, the DK-H200 is the functional and picture equivalent of the SK-HD1300. Hitachi’s implementation of the most advanced digital processing technology provides high sensitivity and low-noise pictures. The HD signal is generated by our newest UAIT (Ultra-Advanced) MOS imagers. The DK-H200 is progressive scan throughout the entire camera and outputs 720p, 1080p SDI.

• High Dynamic Range with selectable HDR profiles
• NEW 2/3-inch, 1080/60p, progressively scanned, (Ultra-Advanced) UAIT-MOS sensors.
• 1,100TVL standard resolution
• F12 sensitivity @2000 lx
• 60dB signal to noise ratio (1080/60p without noise reduction)
• 3Gbps progressive HD-SDI signal handling from end-to-end.
• Optional single-mode fiber interconnectivity available for long distance transmission.
• Network-ready w/ RJ45 & IP control
• HDTV SDI signal outputs.
• Monitor output (menu operation)
• Gen-lock input
• Switchable frame rate between 59.94Hz and 50Hz.
• Deliver different formats on each of the camera’s dual, 3Gbps-capable HD-SDI outputs.
• Remotely controlled optical filter wheel & 5-value ECC filters.
• Low power consumption (<17W)
• Lightweight <1.5Kg (w/o lens)
• Auto Exposure System, Auto Gain Control, Auto Iris, and full-time Auto White Balance.
• Advanced color correction, Ultra-Gamma response, focus assist
• Linear masking
• Manual and auto Skin tone detail & masking
• Knee saturation & Auto-knee
• Variable detail boost frequency
• Programmable video gain settings
• Gray scale auto setup
• Auto setup lens white shading
• Six preset electronic shutter speeds
• Lock scan mode allows flicker-free pickup of a screen display having a different scanning frequency than the Camera.
• AES – Automatic Electronic Shutter maintains exposure with fixed F-stop.
• Employs high-end RU-1500 series control panels from SK-HDTV camera series.
• Bi-directional data transfer
• Auxiliary connector for external control
• Pre-programmed files also allow the user to adjust Detail, Masking, knee, and more.
• SU-1000/ RU-1500 remote panels can control via the TCP/IP camera control network.
