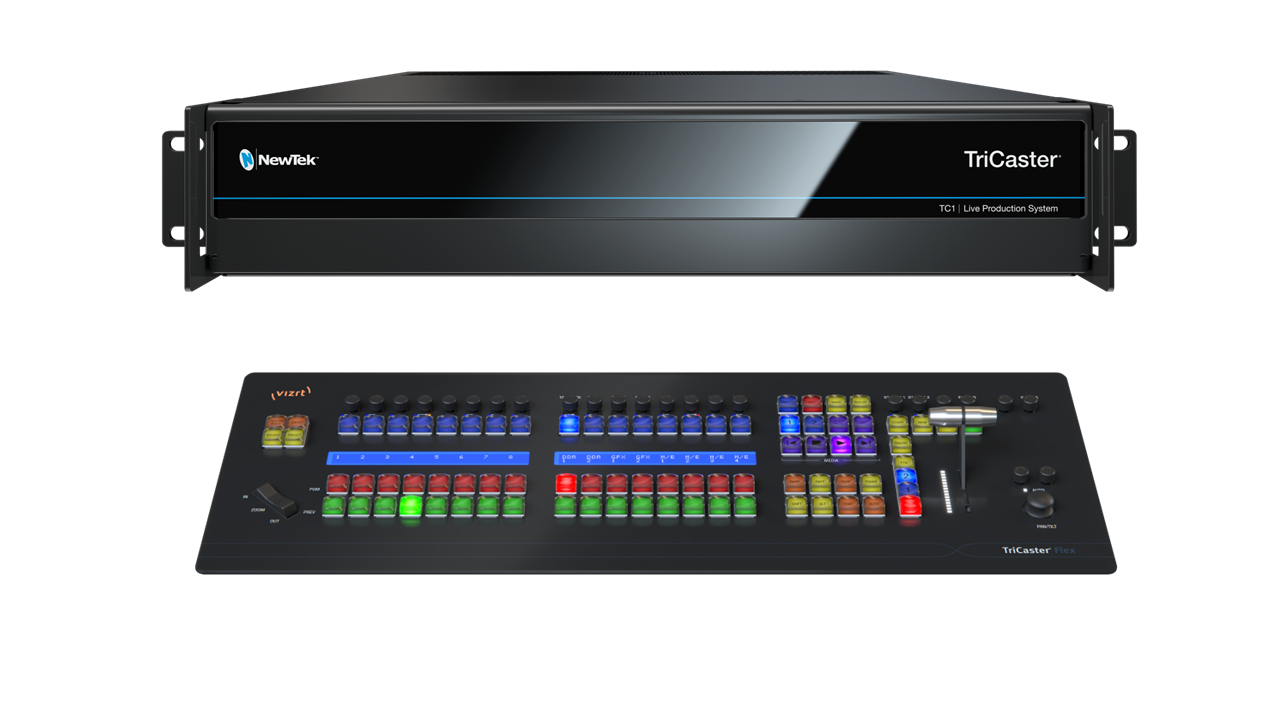

Vizrt TriCaster TC1 with Flex Control Panel Promotion

Manufacturer: Vizrt
SKU: VIZ-BDL000000033 (TC1FLEXPROMO)
Regular price $31,061.00 CAD
Regular price $33,706.00 CAD Sale price $31,061.00 CAD
Sale Sold out
Shipping calculated at checkout.

Discover the power of Vizrt's award-winning Control Panels & unleash your TriCaster muscle

If you're looking for the ultimate live production solution, there's no better partner than the TriCaster Flex. And now, it's even more within reach with this exclusive limited-time promotion.

*Cannot be combined with any other promotion or Trade-In credit offer

What's Included in this Promotion: (Valid thru 8/31/24)

If you purchase a TriCaster TC1 and complement it with Vizrt's revolutionary TriCaster Flex Control Panel, you have the opportunity to save $2000 on the overall price. The NDI-native TriCaster Flex is undoubtedly the best panel to pair with a TriCaster, and now it is more accessible in terms of affordability than ever before.

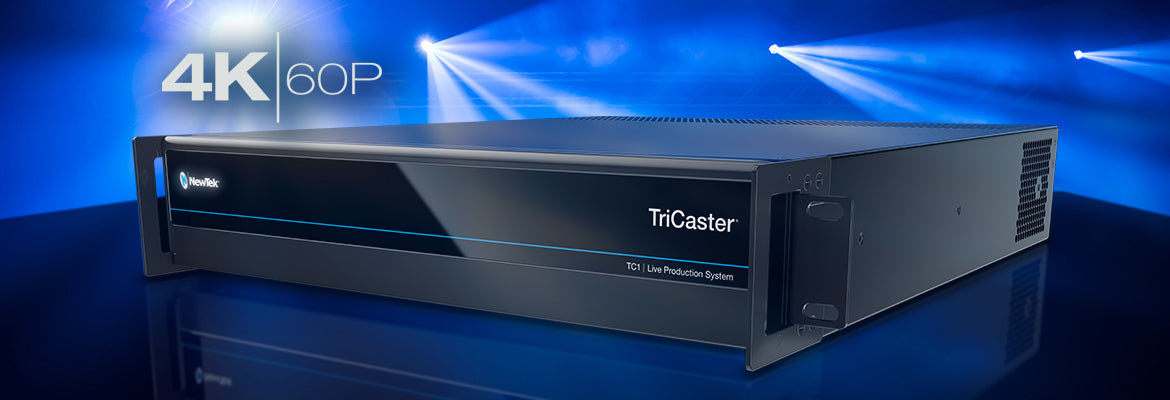

  • Tricaster TC1 (2RU)

 The Vizrt TriCaster® TC1 offers a complete 4K UHD digital media production solution. It stands out as the most advanced software-driven live production system currently on the market. With its cutting-edge production features and IP workflows, TC1 is designed to leverage modern networking and computing technologies, as well as a wide range of future-ready capabilities. This solution is unmatched in its ability to efficiently produce and deliver content that caters to the evolving viewing preferences of audiences. The agile software-driven IP native technology and functionality of TriCaster® TC1 equips users with the necessary capability, connectivity, and control to tackle any production task. Click here to access Vizrt Tricaster TC1 Details

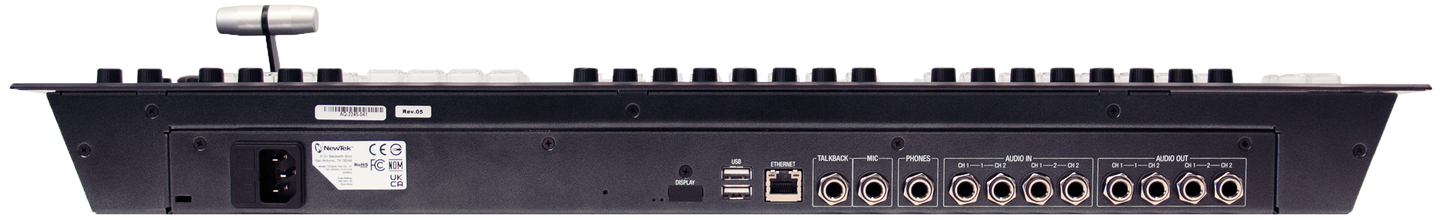

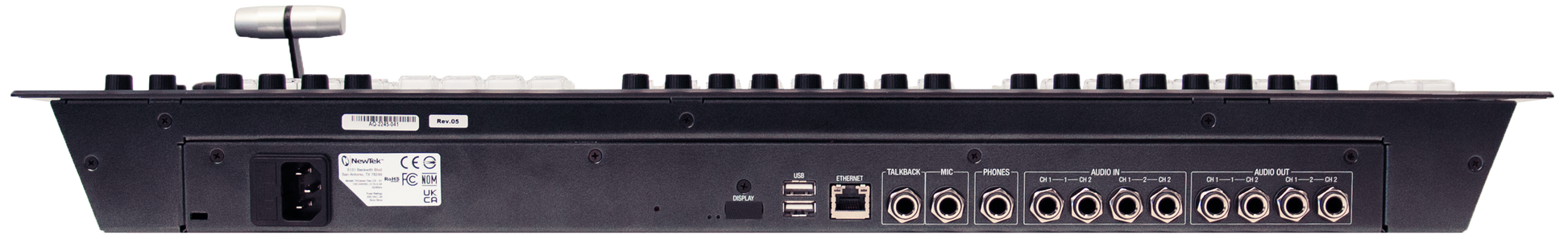

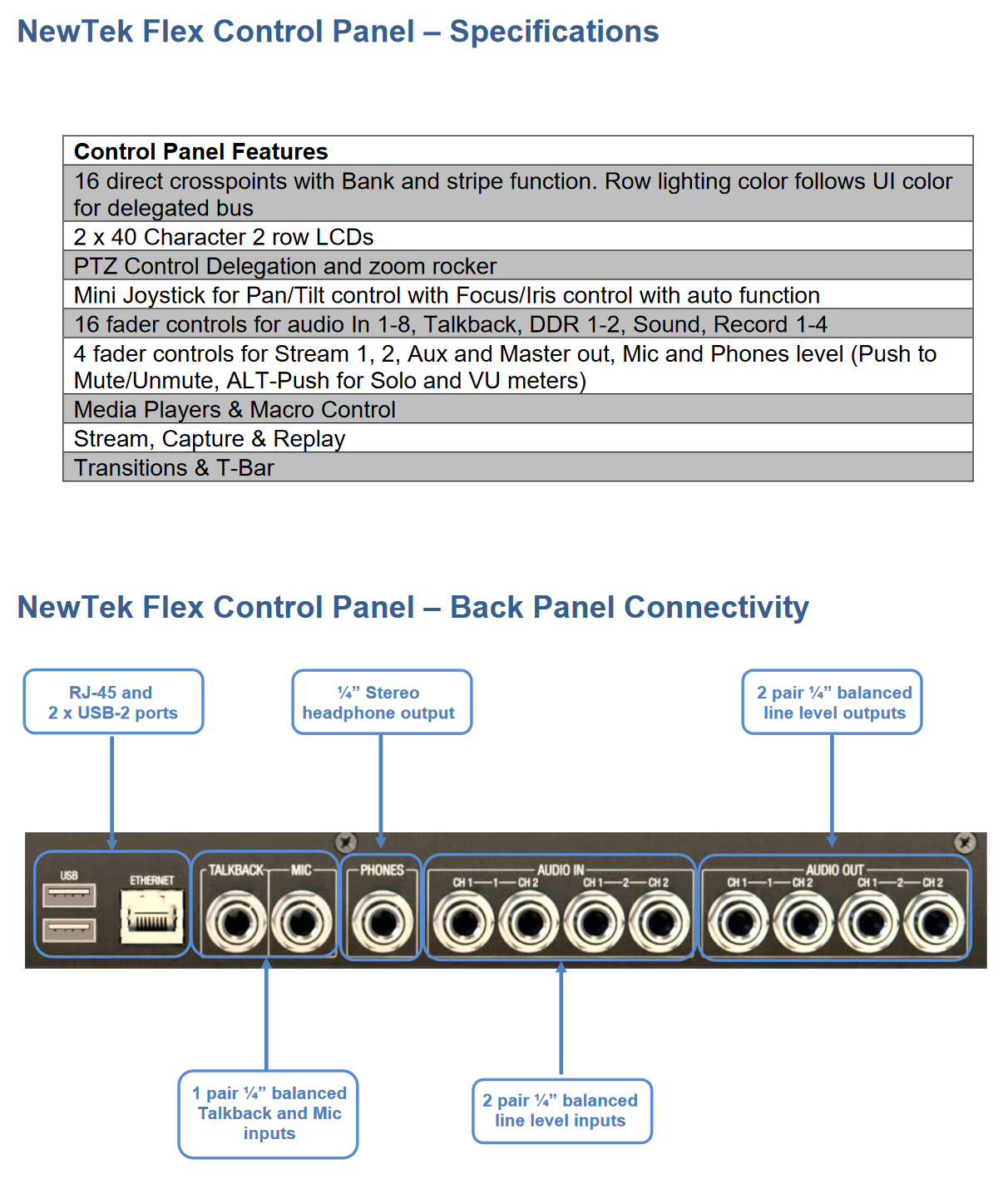

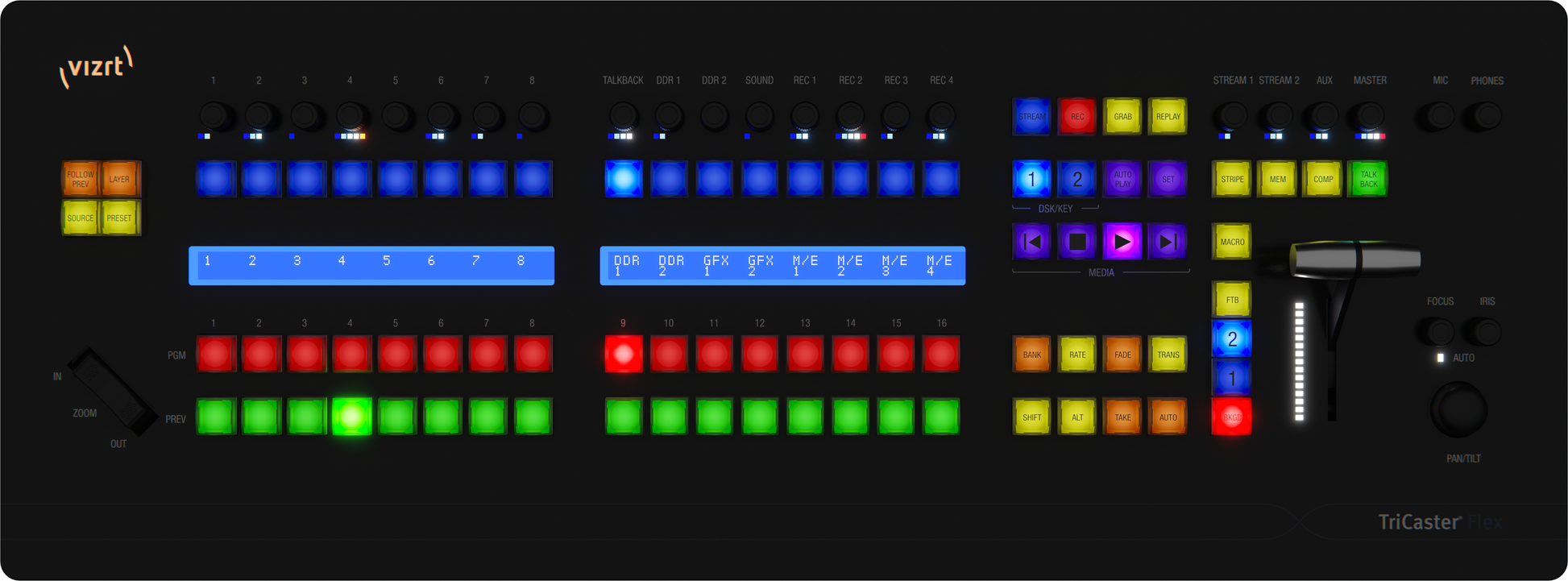

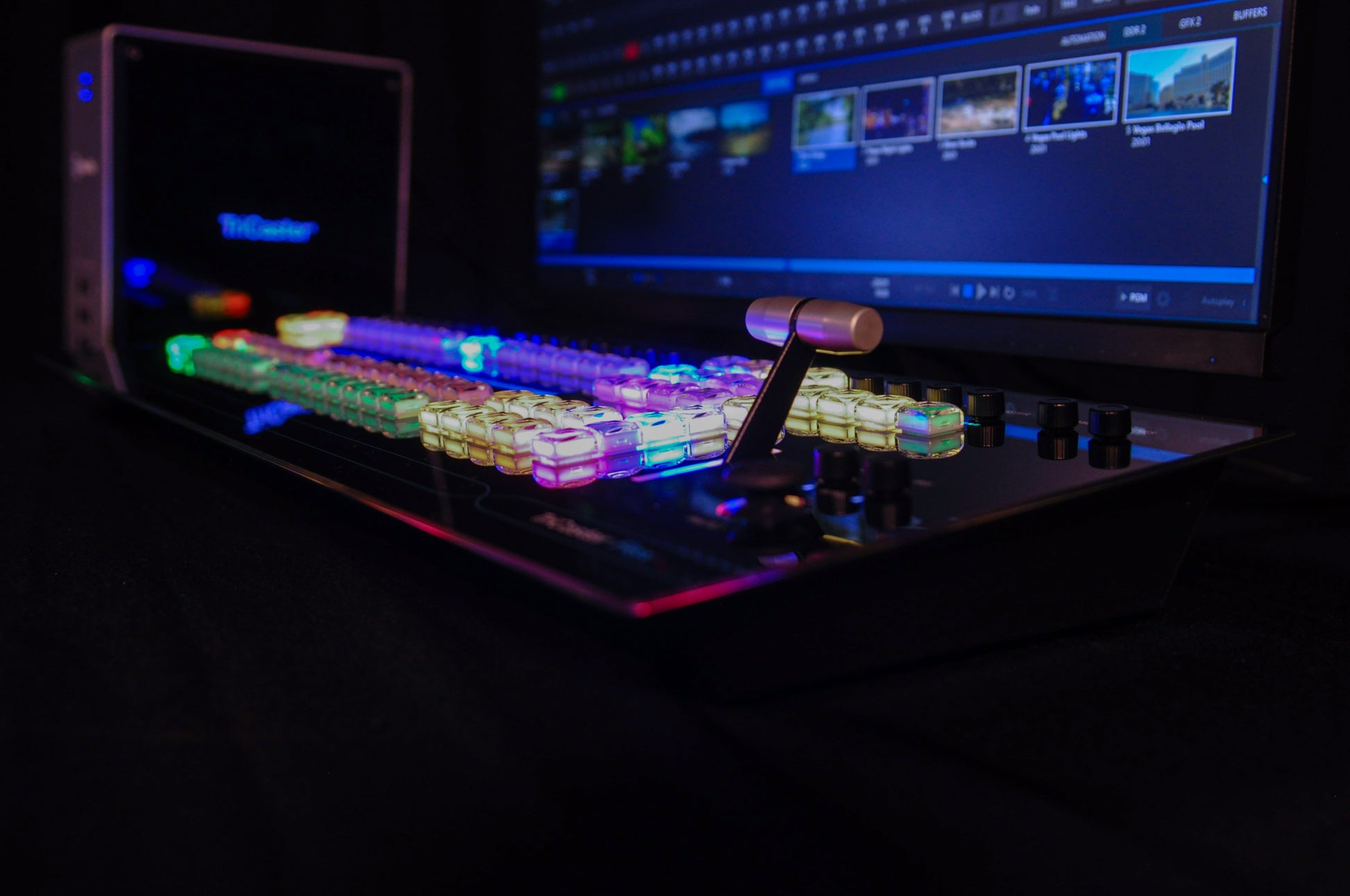

  • Flex Control Panel

The Vizrt Flex Control Panel provides enhanced control capabilities compared to previous versions. With improved connectivity and control features, all powered by the versatile NDI® technology. Vizrt Flex combines the capabilities of a comprehensive production system into a single control surface. This innovative Control Surface from Vizrt integrates video mixing, audio mixing, PTZ control, audio I/O, and talkback functionalities for the first time.



If you purchase a TriCaster TC1 and complement it with Vizrt's revolutionary TriCaster Flex Control Panel, you have the opportunity to save $2000 on the overall price. The NDI-native TriCaster Flex is undoubtedly the best panel to pair with a TriCaster, and now it is more accessible in terms of affordability than ever before.



Vizrt Tricaster TC1 Specs

Switcher
Inputs
Supports any combination of up to 16 simultaneous inputs of SDI or NDI at up to UHD 4K at 59.94 fps.

16 x NDI
4 x BNC, SD/HD/3G-SDI
1 x Stereo Balanced XLR Line Input
3 x Stereo Balanced TRS Line Input
Resolution Support
Built-In SD/HD/3G-SDI:
1080p 23.976/24/25/29.97/50/59.94
1080i 50/59.94
720p 23.976/24/25/29.97/50/59.94
NTSC
PAL

NDI: Up to UHD 4K at 59.94 fps

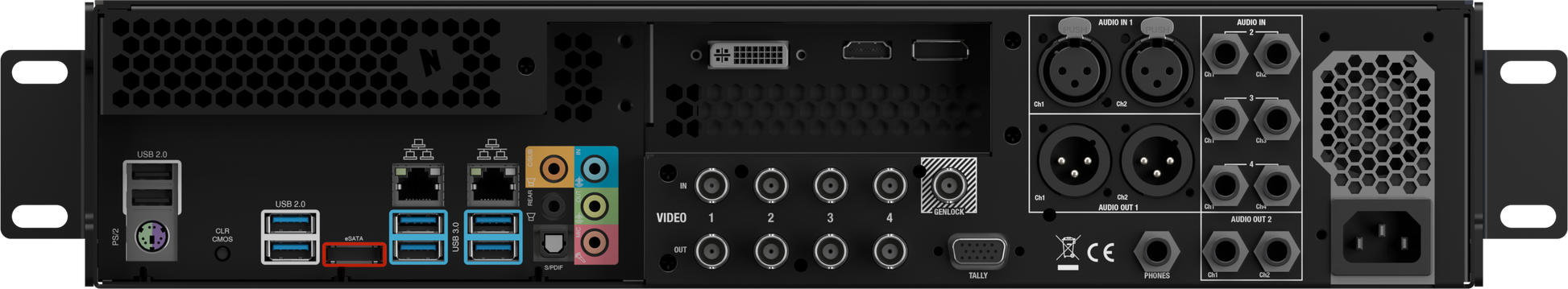

Outputs
NDI (Configurable for 4 mix outputs or 1 UHD 4K output)
4 x BNC, SD/HD/3G-SDI (configurable for 4 mix outputs, or 1 UHD 4K output via quad-link 3G-SDI)
1 x DVI (User Interface with Multiviewer)
1 x HDMI (Multiviewer)
1 x DisplayPort (Multiviewer)
1 x 1/4" TRS, Headphone
Other I/O
1 x BNC, Genlock
1 x HD15 GPI, Tally
2 x RJ-45, Gigabit Ethernet
6 x USB 3.0 Type-A
2 x USB 2.0 Type-A
1 x eSATA
1 x PS/2
Processing
Video: Floating Point, YCbCr +A, 4:4:4:4
Audio: Floating Point, 96 kHz
Standards
Video: SMPTE 2036, SMPTE 424M (level A), SMPTE 292M, SMPTE 259M, ITU-R BT.656
Audio: SMPTE RP-155
Latency
1-1.5 Frames
Mix / Effect Buses
4 x M/E Buses Supporting Video Re-Entry:
 •  1 x Mix/Effect channel per bus with support for up to 4 sources
 •  4 x Key layers per bus
 •  9 x Memory slots per bus

1 x Previz configuration and preview bus
DSK
4 x DSK Channels
Media
5 x Media Players:
 •  2 x DDR
 •  2 x GFX
 •  1 x Sound

15 x Media Buffers:
 •  10 x Animation buffers
 •  5 x Graphic buffers

30 x Clip players (available for use as transitions or media, depending on function)
Keyers
16 x Input Keyers
4 x Media Player Keyers
4 x M/E Keyers
1 x Previz Keyer
15 x Buffer Keyers
Recording
12 x Configurable Channels via IsoCorder Technology:
 •  4 x QuickTime Archival Video Recorders (XDCAM HD Compatible, 4:2:2 Encoding with 24-Bit Audio and Timecode)
 •  8 x H.264 Distribution Video Recorders (Multiple Profiles)
 •  1 x MP3 Audio Recorder
PTZ
Support for up to 8 simultaneous pan-tilt-zoom (PTZ) robotic cameras via serial and network protocols, including RS-232, RS-422, and IP, with integrated controls and preset system
Components
Storage
2 x 3 TB HDD
System Drive
120 GB SSD
Power Supply
400 W
General
Dimensions
19 x 3.5 x 19.6" / 48.3 x 8.9 x 49.7 cm (with rack ears attached)
Rackmount: 2 RU
Weight
Not Specified by Manufacturer
Packaging Info
Package Weight
40 lb
Box Dimensions (LxWxH)
28.2 x 25.3 x 12.7"
