Viz Connect Tetra – Technical Specifications |
Video In |
NDI®, Viz Flowics, HTML 5, SRT, SDI, RTMP, RTSP |
Video Out |
NDI®, SDI |
IO IP Channels |
Up to 4x IO channels as input or output configurable as follows: |
4K UHD and HD SDI I/O support |
Up to 4x via 12G-SDI HD-BNC configurable as up to 2x Key and Fill Pairs assignable to IO channels |
Flowics and HTML 5 support |
Up to 4x Viz Flowics HTML5 sources convertable to either NDI with key and Fill or 2x SDI key and fill pairs or 4x as SDI fill only assignable to IO channels. |
NDI and NDI HX support |
|
Remote Production and bandwidth control support |
NDI® Tools Bridge integration (supporting Join and Local modes only) to connect to NDI® Bridge hosts over public internet. Up to 4x channels supported as NDI High Bandwidth in 4K UHD and HD. 4x channels NDI|HX 2 in HD H.264 or HEVC codec or 1x channel 4K UHD as H.264 or HEVC codec. Please note multichannel and HEVC modes are not supported at this time for 4K UHD feeds. |
Media Playback Channels |
Up to 4x |
Recording Channels |
Up to 4x as NDI in .mov containers |
Supported Video Formats |
2160p: 59.94, 50, 29.97, 25, 24, 23.976
1080p: 59.94, 50, 29.97, 25, 24, 23.976
1080i: 59.94, 50
720p: 59.94, 29.97, 25, 24, 23.976
576i: 50
480i: 59.94
1080p: 60, 59.94, 50
1080p/PsF: 30, 29.97, 25, 24, 23.98
1080i: 30, 29.97, 25
720p: 60, 59.94, 50
576i: 25
480i: 29.97
|
Supported Media Formats |
Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more
|
Audio I/O |
Up to 4x SDI embedded, USB Audio Devices, IP feeds with embedded audio. |
Audio Channels and Routing |
Up to 16x audio channels per IO channel with repatching/routing on 16x16 matrix |
Audio Networking |
Native support for network audio input and output via NDI®. Embedded SDI audio supported for all NDI® input and output video signals. Support1 for Dante™, AES67, and ASIO protocols via compatible audio drivers |
Timecode |
LTC and VITC |
Signal Monitoring |
Integrated waveform and vectorscope full field rate with digital calibration color preview and support for ITU-R Rec. 709 |
A/V Standards |
12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10)
3G-SDI Level A (ST 425-1 Level A Mapping)
HD-SDI (ST 292)
SD-SDI (ST 259)
|
Genlock |
Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported |
Displays |
3x Display port 1.2, one utilised for GUI |
Front ports |
1x USB-A 3.2 Gen 2 (10Gbs), 2x Thunderbolt 4 (USB-C 40Gbs) |
Rear Ports |
4x USB-A 3.2 Gen 2 (10Gbs) |
Networking |
1x 2.5 Gigabit NIC (2.5GBASE-T over RJ45), 1x 1 Gigabit NIC (RJ45) |

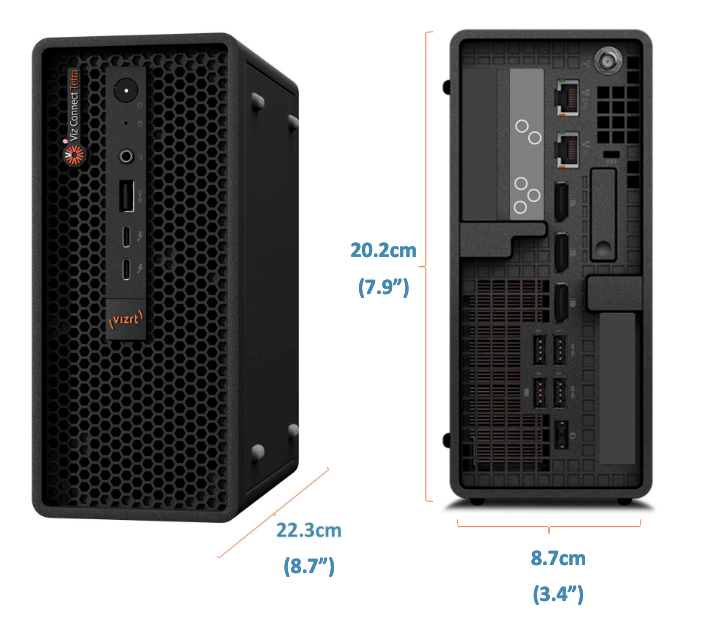

System Physical |
H 7.9in (20.2cm) x W 3.4in (8.7cm) x D 8.7 in (22.3cm) in vertical stance. H 3.4in x W 3.4in (20.2cm) x D 8.7in (22.3cm) in horizontal stance. Rack kit for up to two units available. 1.8Kg / 3.96lbs SUBJECT TO CHANGE. |
