AJA HDR-IMGYZR-12G HDR Image Analyzer 12G

Manufacturer: AJA
SKU: HDR-IMGYZR-12G
$21,599.00 USD
$21,599.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Discover in-depth information on the AJA HDR Image Analyzer 12G

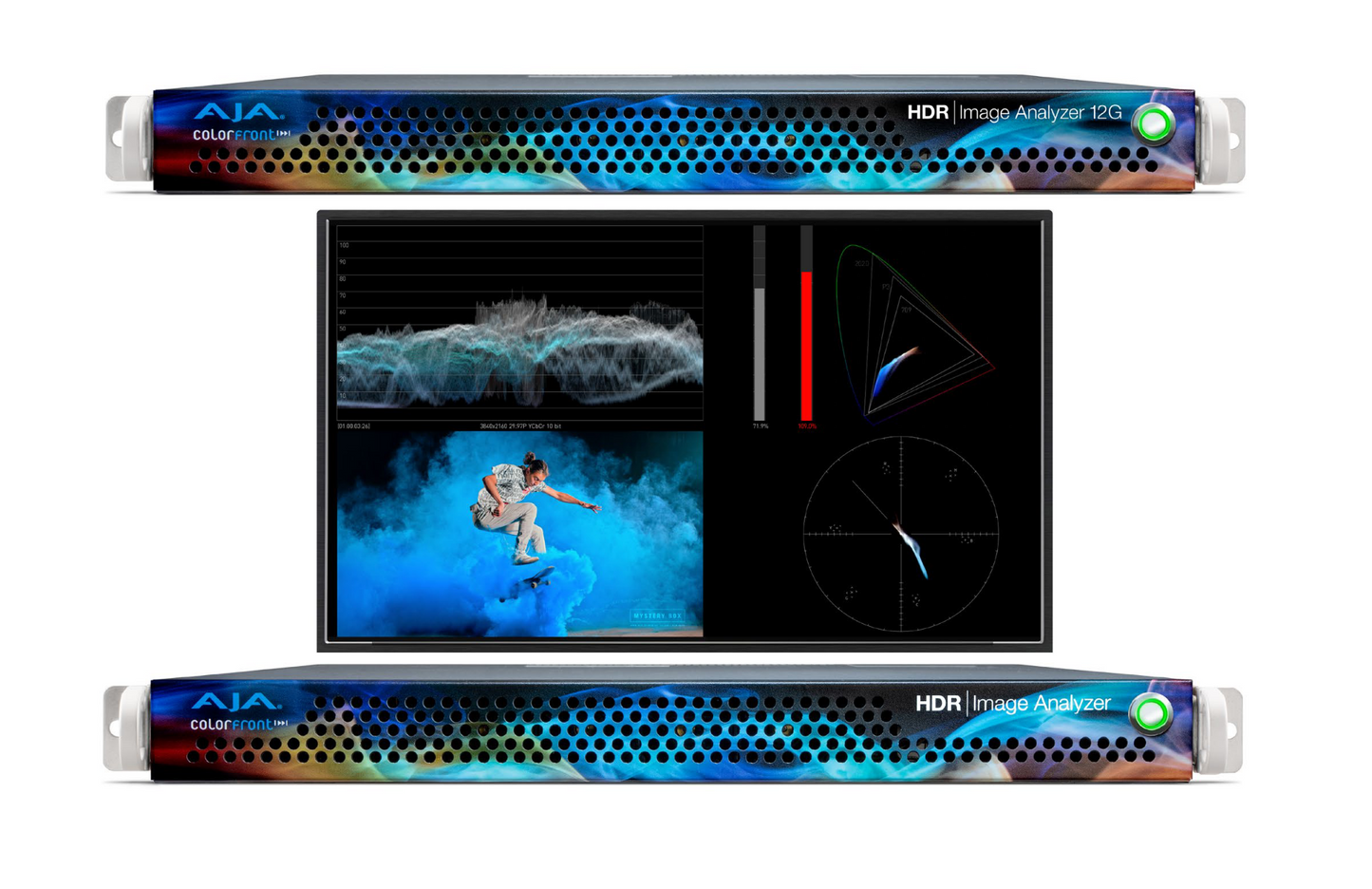

The HDR Image Analyzer 1RU 12G-SDI offers real time comprehensive monitoring capabilities for multi-channel HDR Waveform, Histogram, and Vectorscope analysis

Overview:

The HDR Image Analyzer 12G is a powerful tool that allows for the analysis of up to 4x 4K/UltraHD signals using 12G-SDI and NDI connectivity. It supports various color spaces such as HLG, PQ, Rec.2020, Rec.709, and native camera Log, making it suitable for analyzing content ranging from 8K/UltraHD2/4K/UltraHD/2K/HD. Developed in collaboration with Colorfront, this device offers a wide range of inputs and supports Dolby Vision® dynamic metadata inspection and analysis for advanced HDR mastering and QC applications. With its high reliability and performance, including 4x 12G-SDI inputs, dual 10 GigE, and DisplayPort connections, the HDR Image Analyzer 12G is designed to excel in environments where accurate color analysis is crucial for HDR production and mastering.

Features:

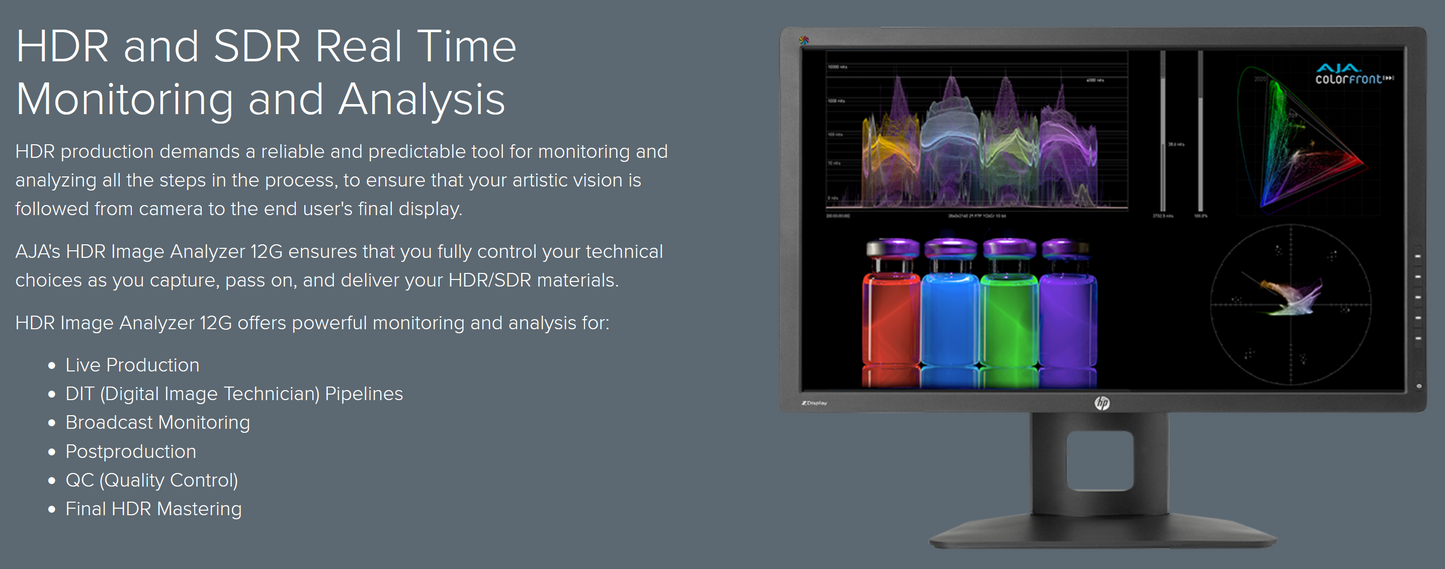

  1. Monitor and analyze HDR Waveform, Histogram, and Vectorscope

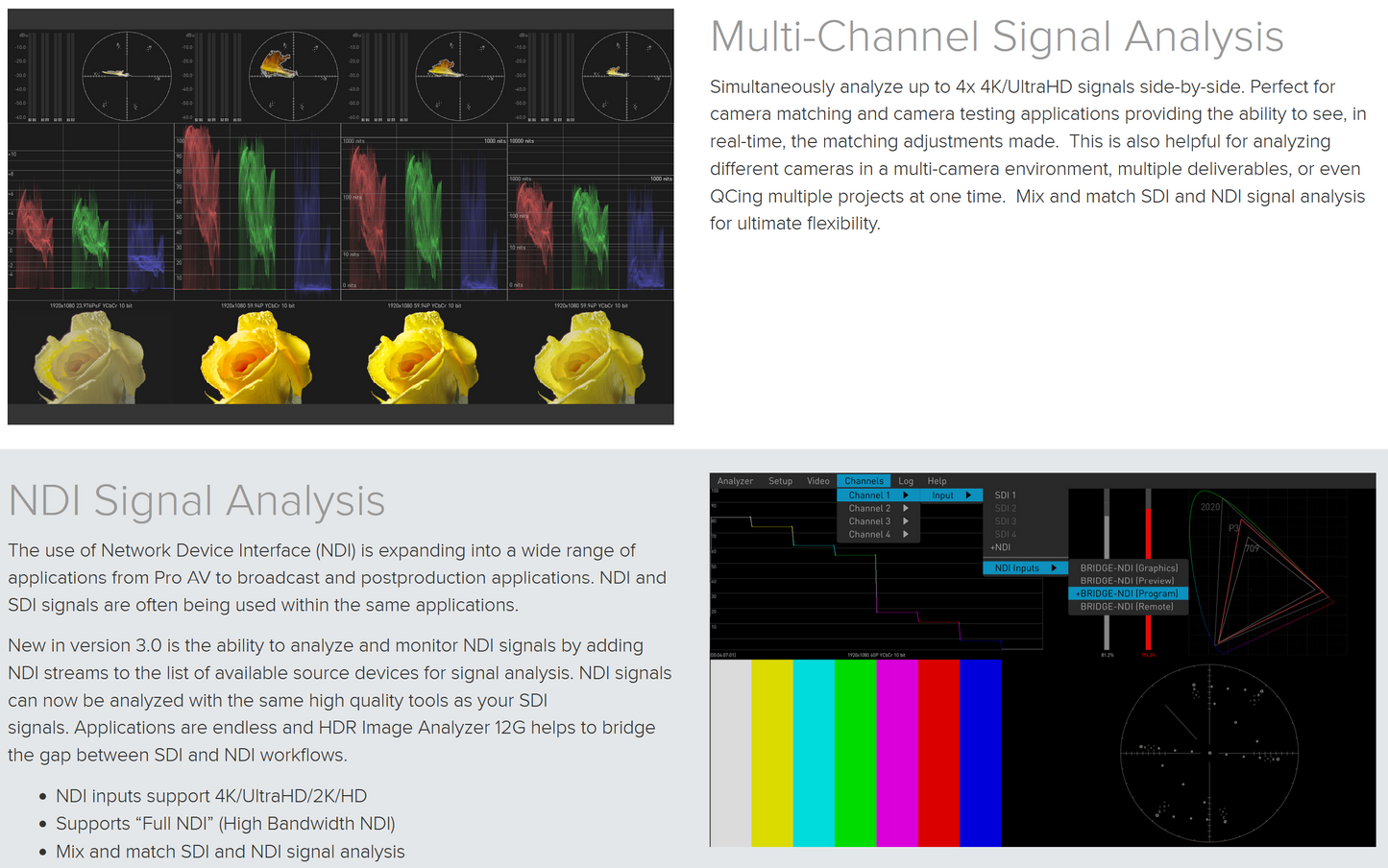

  2. Simultaneous multi-channel signal analysis of up to 4x 4K/UltraHD HDR/WCG through 4x 12G-SDI inputs

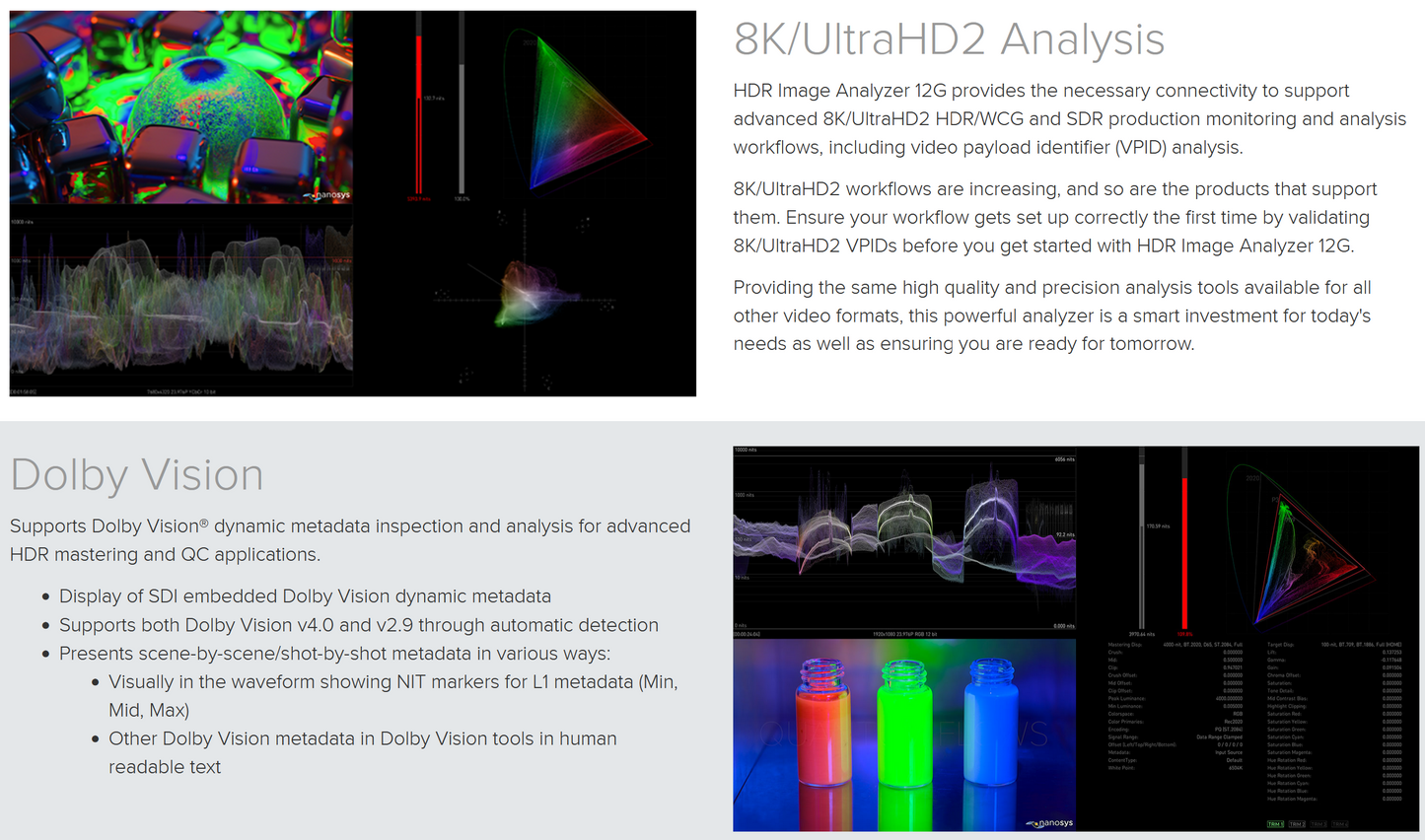

  3. Single channel signal analysis of 8K/UltraHD2 HDR/WCG

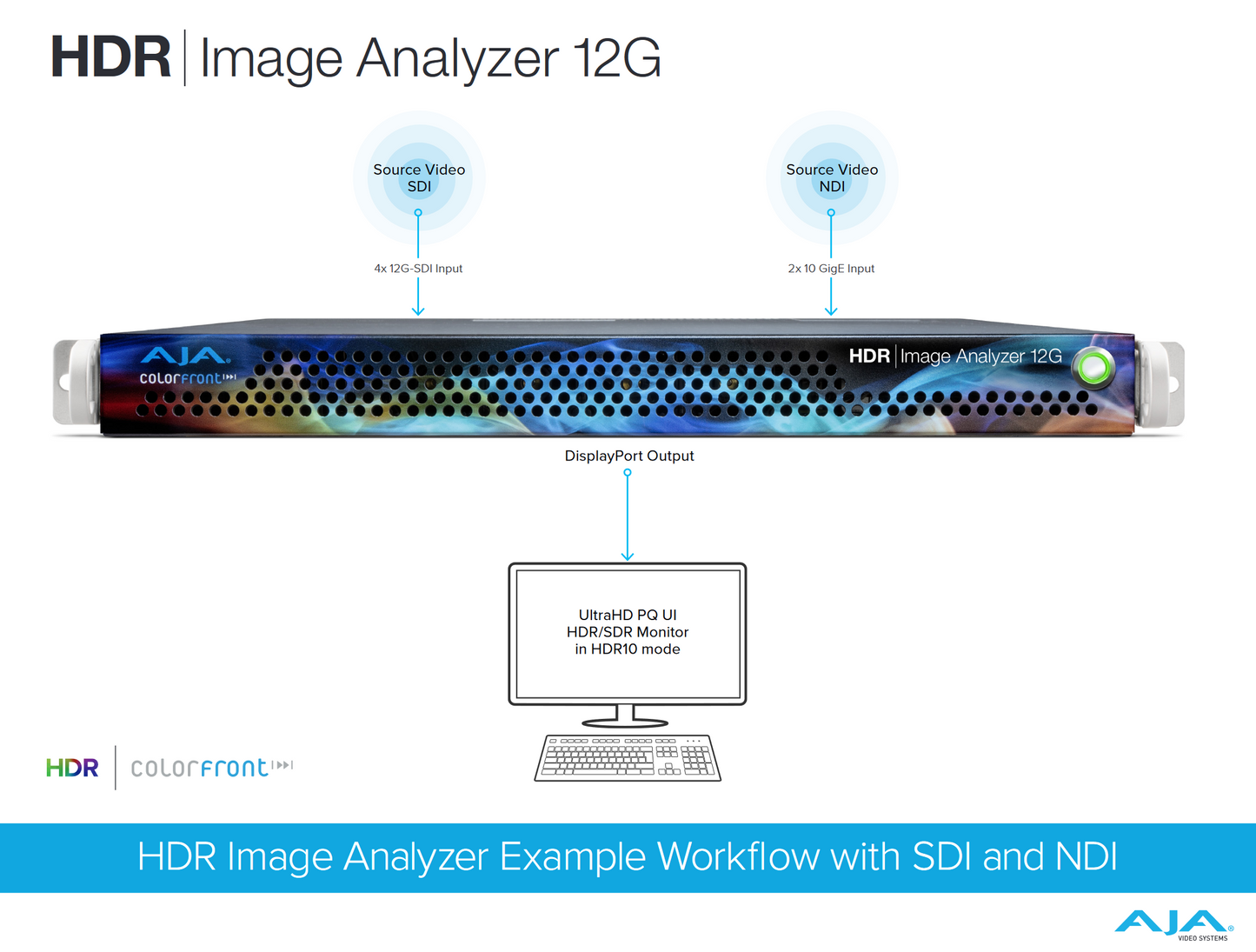

  4. Mix and match SDI and NDI signal monitoring and analysis
  5. High resolution UltraHD UI with PQ support for HDR capable displays via integrated DisplayPort

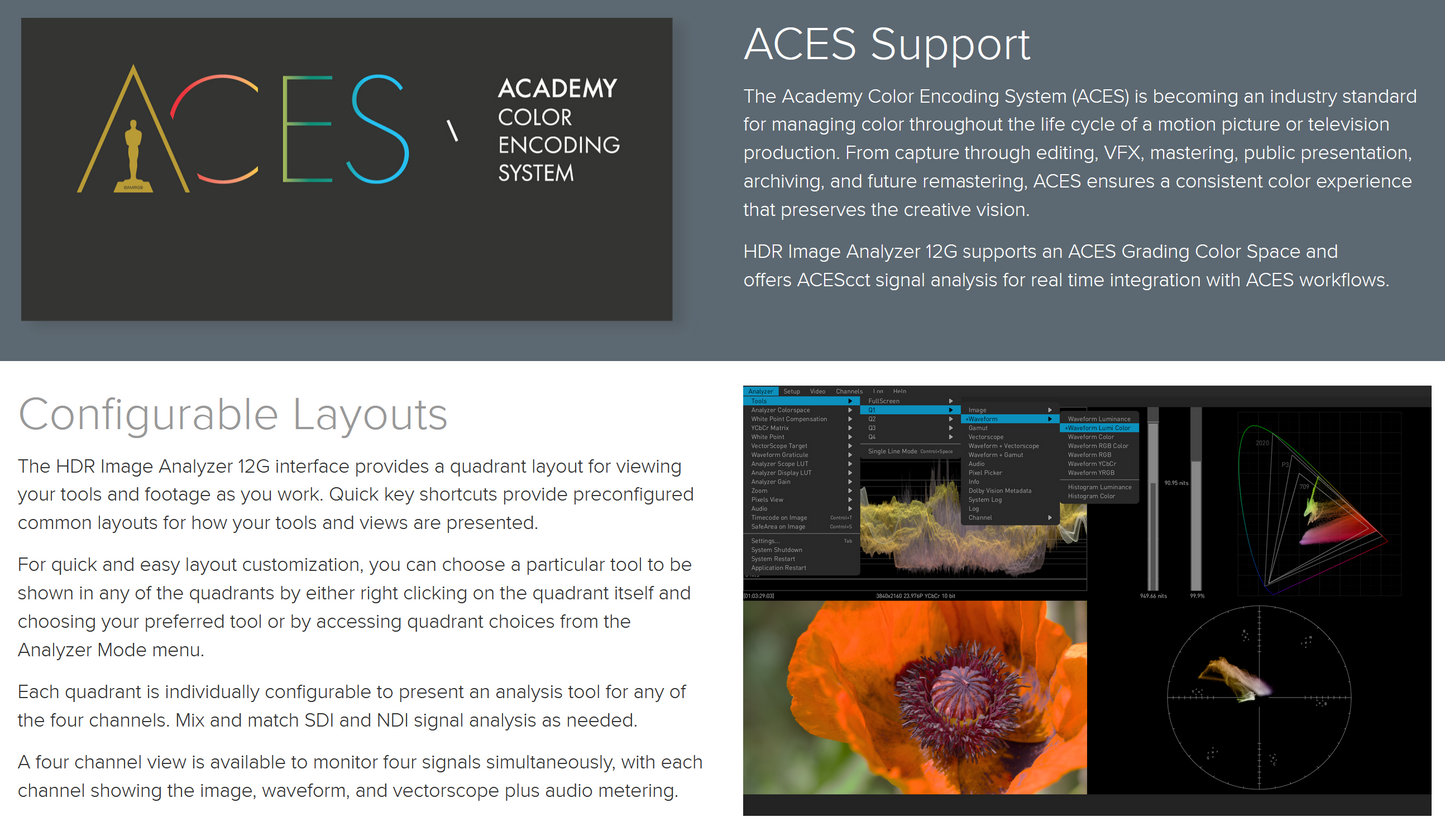

  6. Customizable layouts to arrange the necessary tools in the desired window
  7. Support for display referred SDR (Rec.709), HDR ST 2084/PQ, and HLG analysis

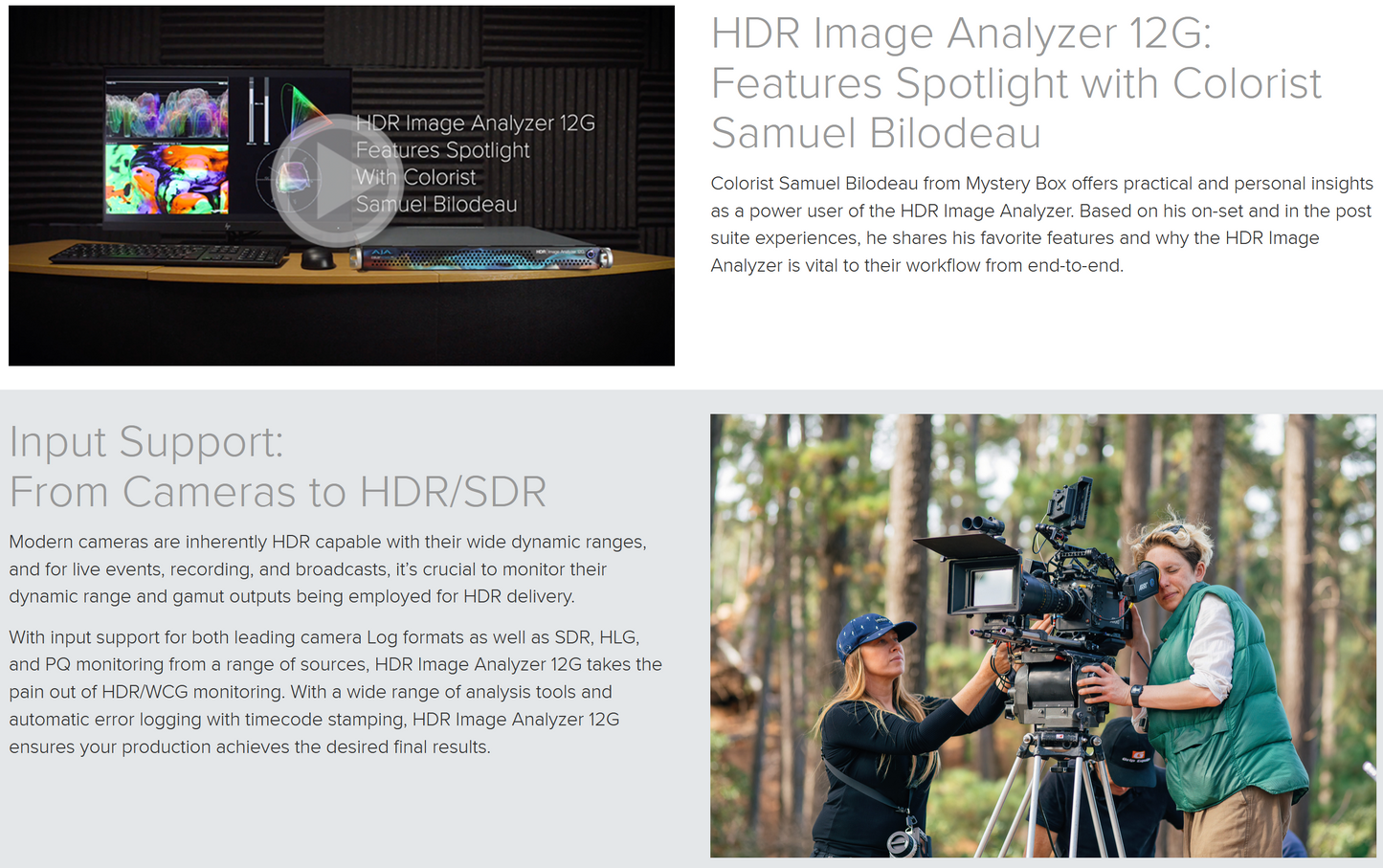

  8. Compatibility with scene referred ARRI, Canon, Panasonic, RED, and Sony camera color spaces
  9. Inspection and presentation of Dolby Vision dynamic metadata
  10. Precise CIE graph, vectorscope, waveform, and histogram support
  11. False color mode to easily identify out of gamut/out of brightness pixels
  12. NIT levels and audio phase metering
  13. Line mode to focus on a specific region of interest with a single horizontal or vertical line
  14. File-based error logging with timecode
  15. Scope LUT applies a 3D LUT to the analyzed signal
  16. Display LUT applies a 3D LUT to the monitoring display only
  17. Three-year warranty.





AJA HDR Image Analyzer 12G is a cutting-edge tool designed to analyze HDR images. This advanced device offers unparalleled accuracy and precision in evaluating high dynamic range content. With its 12G-SDI connectivity, it ensures seamless integration into any professional workflow. The AJA HDR Image Analyzer 12G is a must-have for professionals seeking to optimize their HDR content and ensure the highest quality output.



AJA HDR Image Analyzer 12G Specifications

SDR/HDR Image Analyzer Tool
HDR Waveform, Histogram and Vectorscope Monitoring
Video Format
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(Ultra HD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
Video Input Digital
4x 12G-SDI BNC
12G-SDI, SMPTE-259/292/296/424/425/2081/2082, 12-bit, 10-bit and 8-bit
SDI I/O
SDI connections are bidirectional:
2K/HD, input and loop out are simultaneous
4K/Ultra HD with 12G-SDI, input and loop out are simultaneous
4K/Ultra HD with 3G-SDI, all four connections must be used for input only
Audio Input Digital
16-channel 24-bit SDI embedded, 48 kHz synchronous
Audio Output Digital
16-channel 24-bit SDI embedded, 48 kHz synchronous
Computer Monitor Output
4x Display Port Outputs: Up to Ultra HD 60p
Reference Input
Signal: Analog video sync (Blackburst or Tri-Level)
Power
100-240 VAC 50/60 Hz (Dual, redundant power supplies)
190W typical, 245W Maximum
Environment
Safe Operating Temperature: 5 to 35 deg. C (41 to 95 deg. F)
Safe Storage Temperature (Power OFF): -40 to 60 deg. C (-40 to 140 deg. F)
Operating Relative Humidity: 8-90% noncondensing
Non Operating Relative Humidity: 5-95% noncondensing
Dimensions (WxDxH)
1RU form factor
17.2 x 16.9 x 1.7" (43.69 x 42.93 x 4.32cm)
Weight
Server Only: 18 lbs (8.16kg)
