AJA KUMO-6464-R0 KUMO 64x64 Compact SDI Router, with 1 Power Supply

Manufacturer: AJA
SKU: KUMO-6464-R0
$9,899.00 USD
$9,899.00 USD
Sale Sold out
Shipping calculated at checkout.

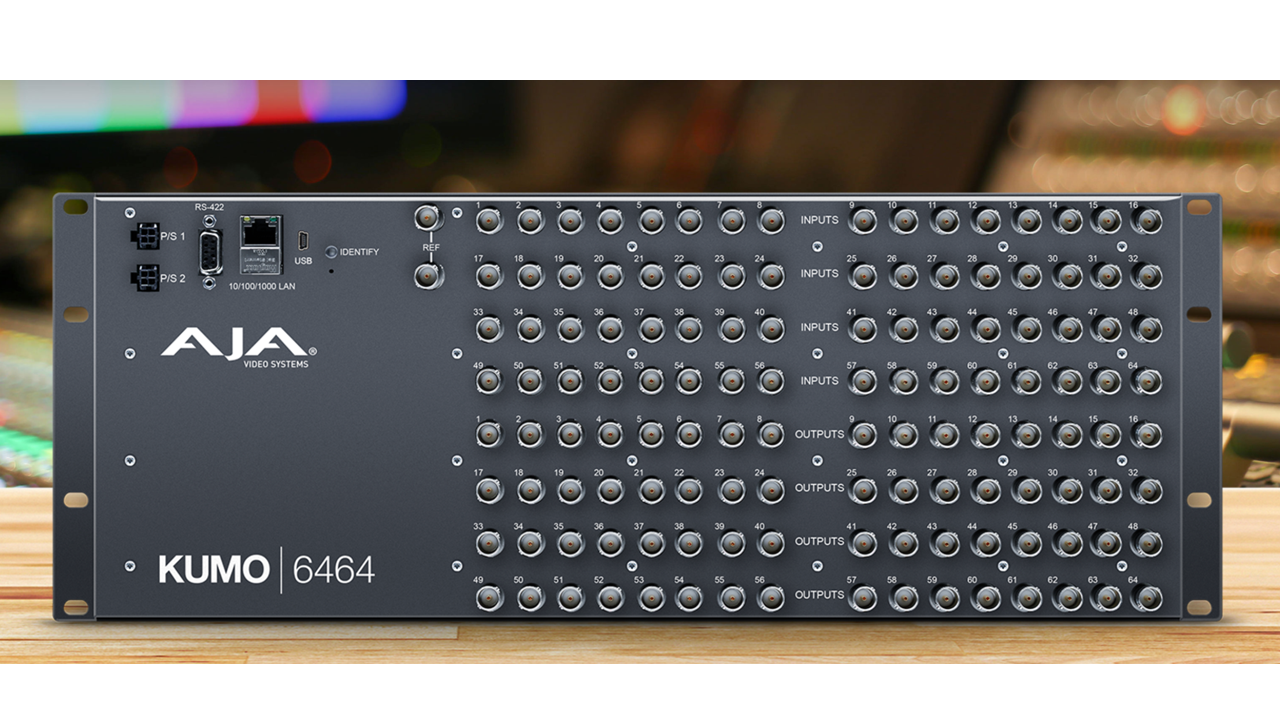

KUMO 6464 offers increased capacity for larger configurations while maintaining a compact 4RU profile with support for 3G-SDI/1.5G-SDI from 64x 3G-SDI inputs and 64x 3G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link and Quad Link 4K/UltraHD workflows.

KUMO 3G-SDI routers support single link 1080p/HD/SD, high frame rate (HFR) and deep color formats. The routers offer network-based and/or physical control using KUMO CP and CP2 and offer a USB port for configuring IP addresses via AJA’s eMini-Setup software.

Built to the same quality standards as all AJA KUMO products, KUMO 6464 is the ideal choice for any situation where a balance of size, performance, and capacity are critical such as post facilities and mobile trucks.

Features

  • 64x 3G-SDI inputs and outputs
  • Small, portable form factor
  • Supports ganged dual and quad port routing for resolutions up to 4K/UltraHD
  • Redundant power supply (option)
  • Eight salvos per router
  • Embedded web server for remote control
  • Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
  • Five year warranty

Powerful Signal Management

KUMO’s powerful crosspoint routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. Use KUMO as an affordable distribution amplifier by routing a single input to all outputs. Used in this way, a KUMO 6464 can take the place of multiple distribution amplifiers.

As 4K workflows continue to gain ground, KUMO routers can grow as you do. With a simple setting change, KUMO routers can be configured for ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for Dual Link, 4K and UltraHD workflows. This allows seamless routing of uncompressed or Raw 4K and UltraHD signals throughout a production or post facility. Then switch the router back to HD-SDI/SD-SDI operation as needed, giving you the flexibility to route virtually any format in your facility.

Broadcast Standard Reliability

Designed for critical broadcast, production and post environments, KUMO routers are built to AJA standards that exceed SMPTE specifications. The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.

Simple Installation and Configuration

Running Embedded Linux, KUMO routers are network ready and support powerful HTTP control and monitoring via a web browser - without the need for any additional software.

KUMO's USB port connection allows easy IP configuration using free AJA eMini-Setup software. KUMO's auto-detect Bonjour™/Zeroconf protocols mean that network configuration can also be automatic, just connect KUMO to your network or a computer and the system will self-configure, ready for use. Alternatively, standard network configuration allows access to each KUMO via its default IP address. Once connected to KUMO using a web browser, you can configure the full TCP/IP settings, select and name KUMO routers, name sources and destinations, and perform all operational functions including crosspoint selection and salvo execution.

KUMO routers are easily integrated with existing infrastructure utilizing the industry-standard Grass Valley Native Protocol over RS-422 or even Ethernet. Ethernet network connectivity also allows you to control all KUMO routers from any web browser on a network-connected device, ensuring you have the control you need from any location.



KUMO 6464 offers increased capacity for larger configurations while maintaining a compact 4RU profile with support for 3G-SDI/1.5G-SDI from 64x 3G-SDI inputs and 64x 3G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link and Quad Link 4K/UltraHD workflows.



Video Formats

  • 270 Mbps, 1.5 Gbps, 3 Gbps SDI
  • 270 Mbps DVB-ASI

Video Input Digital

  • 3G-SDI Inputs
  • 64x BNC, SMPTE-259/292/424

Video Output Digital

  • 3G-SDI Outputs
  • 64x BNC, SMPTE-259/292/424
  • Noninverting

Ancillary Data

  • Passes all SDI embedded ancillary data including audio

Salvo

  • Up to 8 Salvos can be configured and saved in each KUMO router

Cable Equalization

  • (Belden 1694A)
  • 3 Gbps, up to 140m
  • 5 Gbps, up to 200m
  • 270 Mbps, up to 390m
  • Automatic operation

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select

Switching Modes

  • Single/Normal, Dual, and Quad link modes
  • Switches in vertical blanking per SMPTE RP-168

Control Panel Compatibility

  • AJA KUMO CP (First 32 I/O in Normal, all I/O in Dual or Quad mode) – 1RU X-Y Ethernet control panel
  • AJA KUMO CP2 (Single/Normal, Dual or Quad mode) – 2RU X-Y Ethernet control panel

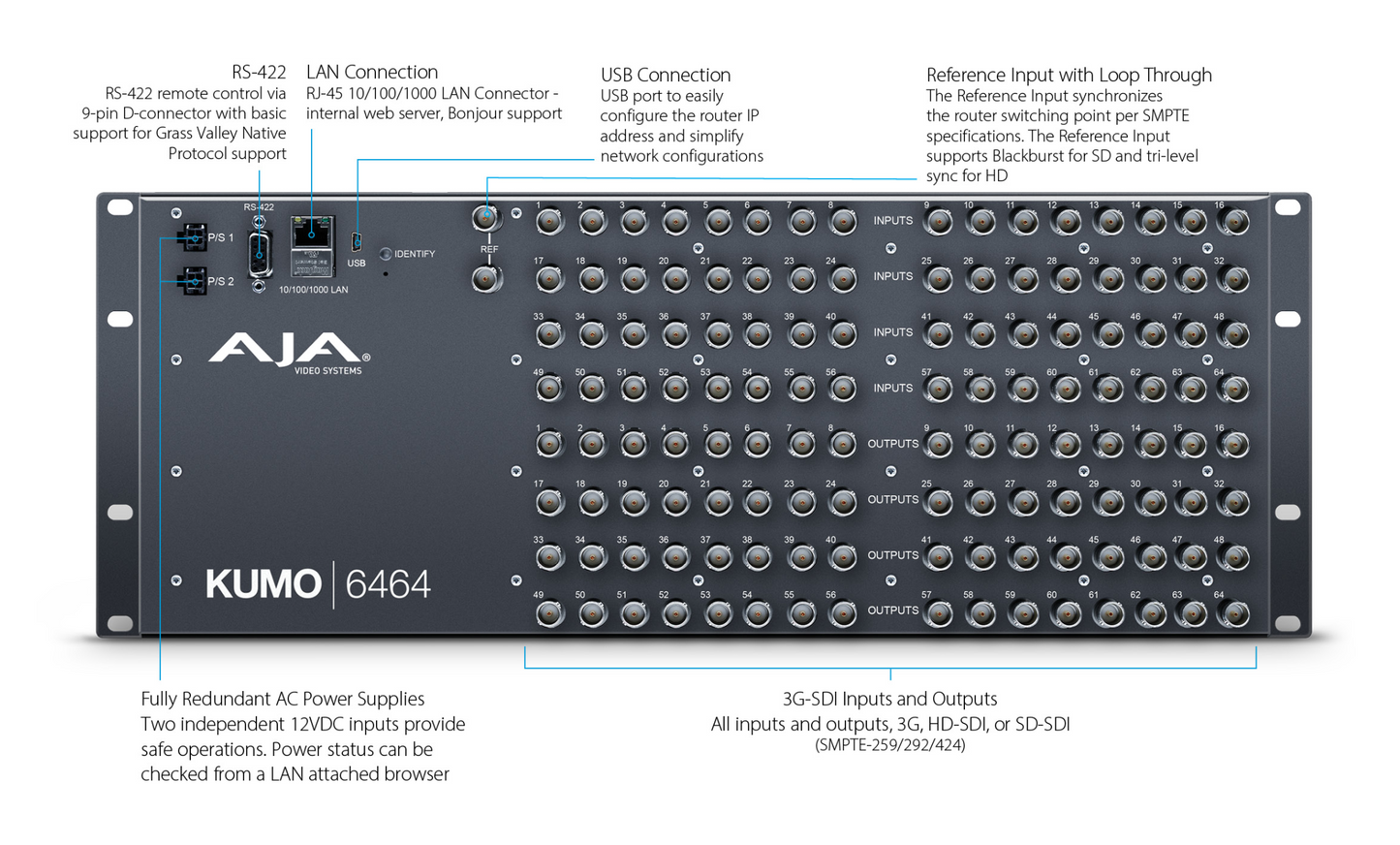

Reference Input

  • External, 2x BNC
  • Looping, nonterminating
  • Blackburst or tri-level sync

Network Interface

  • 1x RJ-45, 10/100/1000 Ethernet
  • Supports AJA KUMO Ethernet control panels, direct connect or
  • networked
  • Basic support for Grass Valley Native Protocol
  • Embedded web server for remote control

USB Interface

  • 1x Mini-USB for IP configuration using AJA eMini-Setup

Size (w x d x h)

  • 4RU - 17.4" x 1.54" x 7.00" (441.96 x 39.12 x 177.8 mm)

Weight

  • 2 lbs (4.2 kg)

Power

  • External power supply required
  • Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 32W
  • typical, 36W max.
  • AC adapter, included: 100-240VAC, 50/60 Hz, universal input, 60W
  • Optional redundant AC adapter sold separately, KUMO-PWR

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
