Canon CR-N300 4K NDI PTZ Camera with 20x Zoom

Manufacturer: Canon
SKU: 5157C002 (MPN: CR-N300 White)
$2,699.00 USD
$2,699.00 USD $2,699.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

A Well Rounded PTZ Camera & The Choice for Podcasters

Canon's CR-N300 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events, and the choice for Podcasters due to it's ease of use, feature set, and image quality for the value.

The CR-N300 PTZ produces incredible 4K and HD image quality with the combination of a 1/2.3" CMOS sensor and the DIGIC DV 6 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism.

The CR-N300 camera supports multiple professional interfaces, including single cable PoE+ connectivity, which allows you to use NDI®|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N300 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as VISCA Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.

1/2.3 Type CMOS Sensor
The CR-N300 features a Canon 1/2.3-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 30p up to 60fps in Full HD, making the PTZ camera a strong contender for professional production.

DIGIC DV 6 Image Processor
The CR-N300 PTZ camera incorporates Canon's DIGIC DV 6 Image Processor, which is essential in providing high image quality, advanced performance and convenient operability. This advanced core technology component provides the image-processing power and speed that enables features such as 4K UHD video acquisition and precise Hybrid AF.

Hybrid AF
The CR-N300 is equipped with "Hybrid AF". Hybrid AF is an auto focus system that combines high-precision contrast AF technology and the high-speed phase-difference AF technology to confirm auto focus from the camera.

Canon 4K UHD Lens
The CR-N300 features a 20x optical zoom lens and exhibits a wide viewing angle of 65.6 degrees (horizontal). At the wide end, the 29.3 mm lens is capable of capturing extensive scenes in tight shooting spaces such as indoor events for cinematic wide shots. The camera utilizes aspheric lens elements to achieve 4K image quality while minimizing various aberrations over the entire zoom range.

Key Features:

  • High Quality 4K 30P and FHD 60P Video Output
  • Smooth & Responsive Pan and Tilt Performance
  • Virtually Seamless Integration into Canon Imaging Workflow
  • Easy Integration into IP Streaming
  • Various Interfaces Supported for Multiple Environments
  • One Person Operation




Canon's CR-N300 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events, and the choice for Podcasters due to it's ease of use, feature set, and image quality for the value.



Specifications:

  • Camera
  • Zoom: Digital: 20x, Optical: 20x
  • Image Sensor: Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor, Total pixels: approx. 21.14 MP, Effective pixels: approx. 8.29 MP (3840X2160)
  • Lens: f=3.67 - 73.4 mm, F/1.8 - 2.8, 20x optical zoom, 8-bladed circular aperture, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) - 601 mm (T), [Full HD] approx. 30.5 (W) - 627 mm (T)
  • Lens Configuration: 12 elements in 10 groups
  • Minimum Focusing Distance: 0.39 in. at full wide angle, 2.0 ft. throughout the zoom range
  • Angle of View: [4K UHD] Horizontal: 65.6 (W) - 3.6° (T) Vertical: 39.8° (W) - 2.0° (T), [Full HD] Horizontal: 63.5 (W) - 3.4° (T) Vertical: 38.4° (W) - 1.9° (T)
  • Shutter Speed: 1/6 - 1/2000 sec
  • Iris: Manual/Automatic aperture
  • Gain: 0.0 dB - 36 dB
  • White Balance: AUTO (AWB), Set A, Set B, preset setting, color temperature setting (2,000 K - 15,000 K), Manual
  • Focus: Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
  • Gamma: Normal1 (Standard), Normal3 (BT.709)
  • Image Stabilizer: Optical-shift
  • Min. Subject Illumination: Approx. 1.5 lux
  • Pan and Tilt: Horizontal ±170°, Pan operation speed: 0.2° - 300°/sec., Tilt operation range: Vertical -30° - +100°, Tilt operation speed: 0.2° - 170°/sec

    Video Output Format
  • SDI: 1920x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit), 1280X720: 59.94P, 50.00P (4:2:2 10 bit)
  • HDMI: 3840X2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit), 1920 x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit), 1280X720: 59.94P, 50.00P (4:2:2 10 bit)
  • IP: 3840X2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), 1920 x1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), 1280X720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), 640X360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • Motion JPEG: 1920 x1080 - 59.94 Hz: 12.00 fps, 5.00 fps, 50.00 Hz: 12.50 fps, 5.00 fps, 1280X720 - 59.94 Hz: 12.00 fps, 5.00 fps, 50.00 Hz: 12.50 fps, 5.00 fps, 640X360 - 59.94 Hz: 12.00 fps, 5.00 fps, 50.00 Hz: 12.50 fps, 5.00 fps
  • Supported Video and Control Protocols: Protocol: XC Protocol, RTSP/RTP, NDIr|HX2, RTMP/RTMPS, Standard (VISCA) Communication (Serial), Standard (VISCA) Communication (IP), Number of Presets, Max. 100

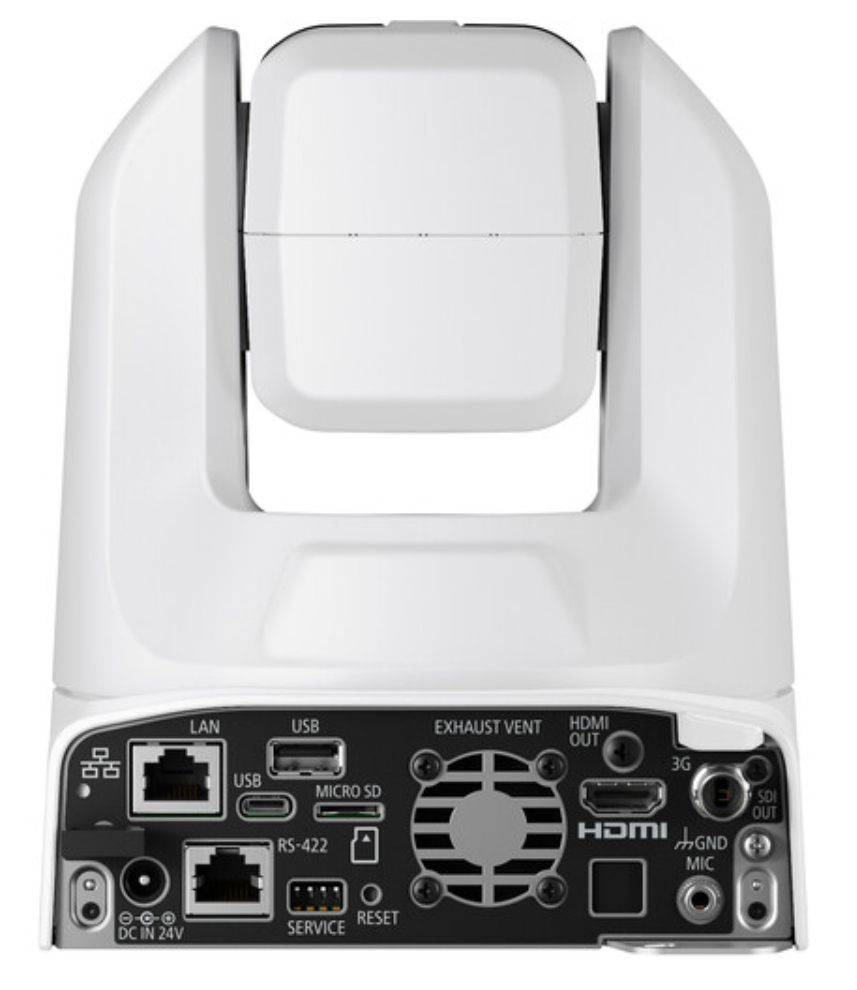

    Interface
  • Communication Control: LAN, Wi-Fi, Serial, IR
  • Network: LAN x1, RJ45, 1000Base-T
  • 3G-SDI Out: BNC jack (output only) x1, 0.8 Vp-p/75, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
  • HDMI Out: HDMI x1, output only
  • RS-422: RJ45 x1
  • Mic: 3.5 mm stereo mini jack, Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dB, Sensitivity (LINE): -10 dBV/1 k or more, Supply Voltage: 2.4 V DC
  • USB: Type-A (USB 2.0) x1, Type-C (USB 3.0) x1
  • Media Slot: microSD card slot x1

    Other
  • Operating Environment: +32°F - +104°F, Humidity: 10% - 90%
  • Storage Environment: +32°F - +104°F, Humidity: 10% - 90%
  • Power Supply: PoE: PoE+ power supply via LAN connector - PoE cannot be used, External power source: 24 V DC
  • Power Consumption: PoE+ Input: Approx. 16.2 W* max. (body only), DC Input: Approx. 15.0 W max. (body only) *Class 4 (25.5 W required) for power supply devices
  • Dimensions: 6.06 x 7.01 x 6.46 in.
  • Weight: 4.86 lb. (body only)
  • Supported Controllers: Hardware: RC-IP100, Software: Remote Camera Control Application

Item Includes:

  • 1x Camera Body (Titanium White)
  • 1x Mounting Plate with Screw
  • 1x Safety Wire
  • 1x Safety Wire with Screw
  • 1x AC Adapter
  • 1x AC Cable
  • 1x Infrared Remote Controller with Battery
  • 1x Installation Guide
  • 1x Warranty
