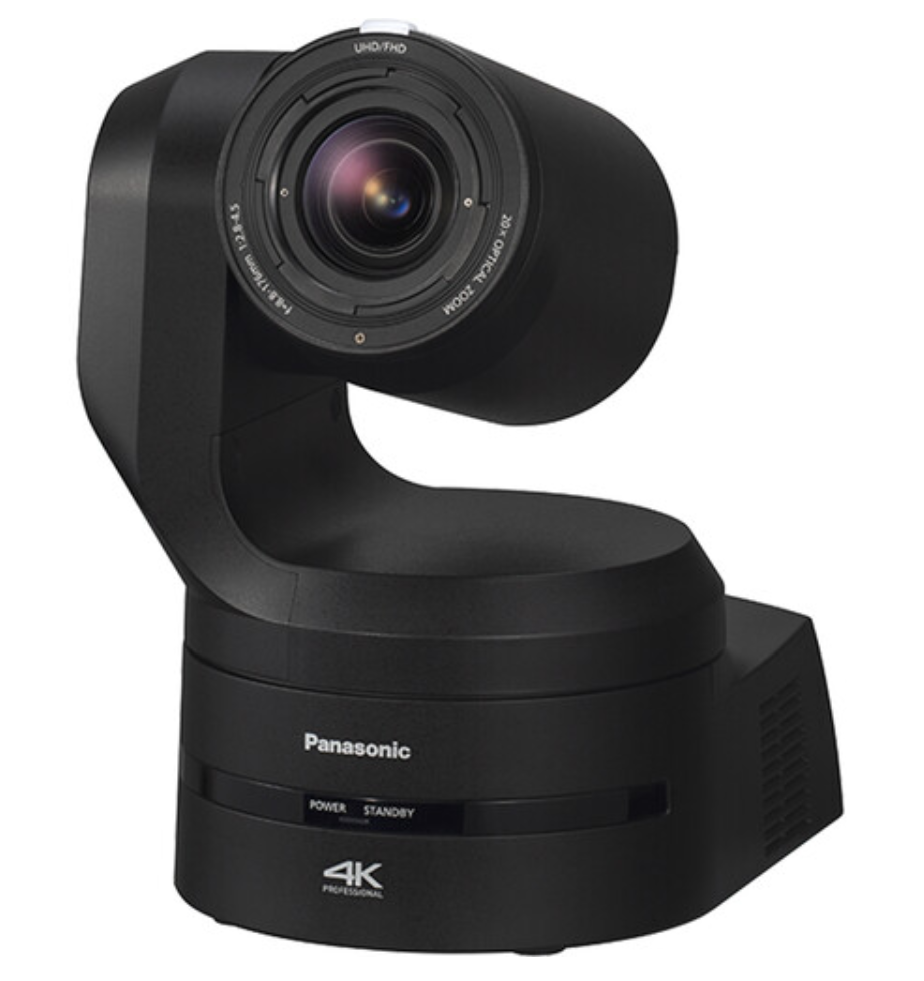

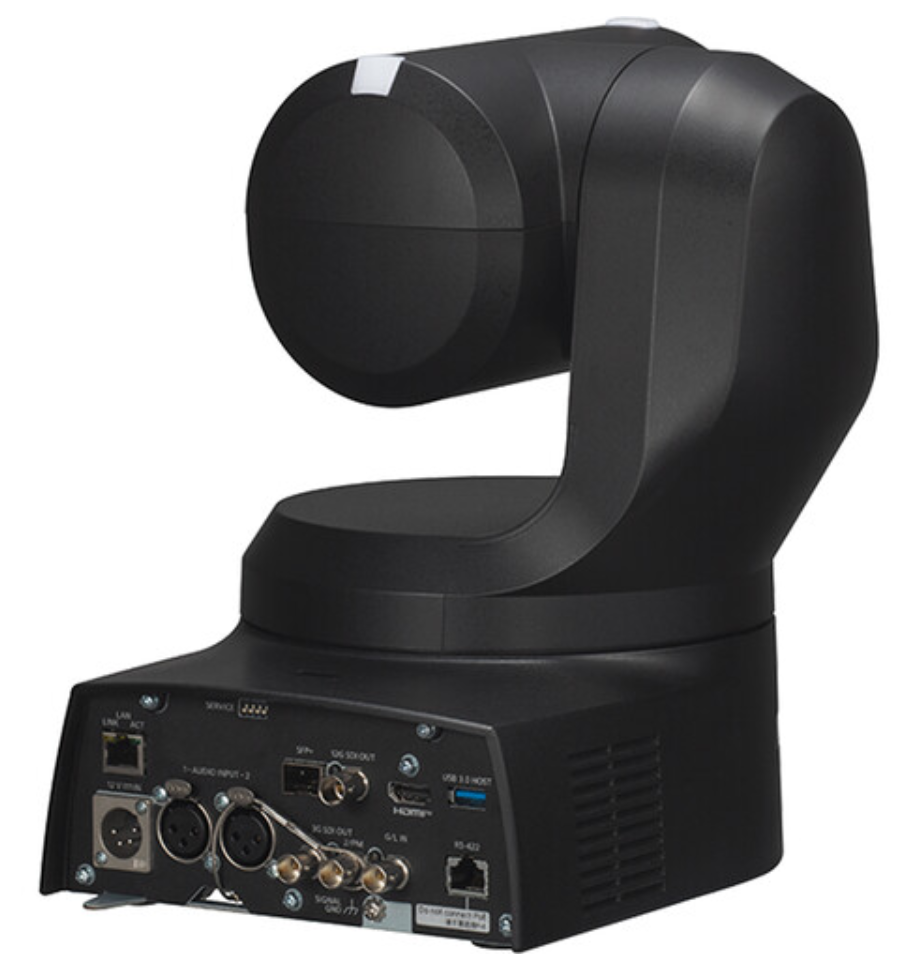

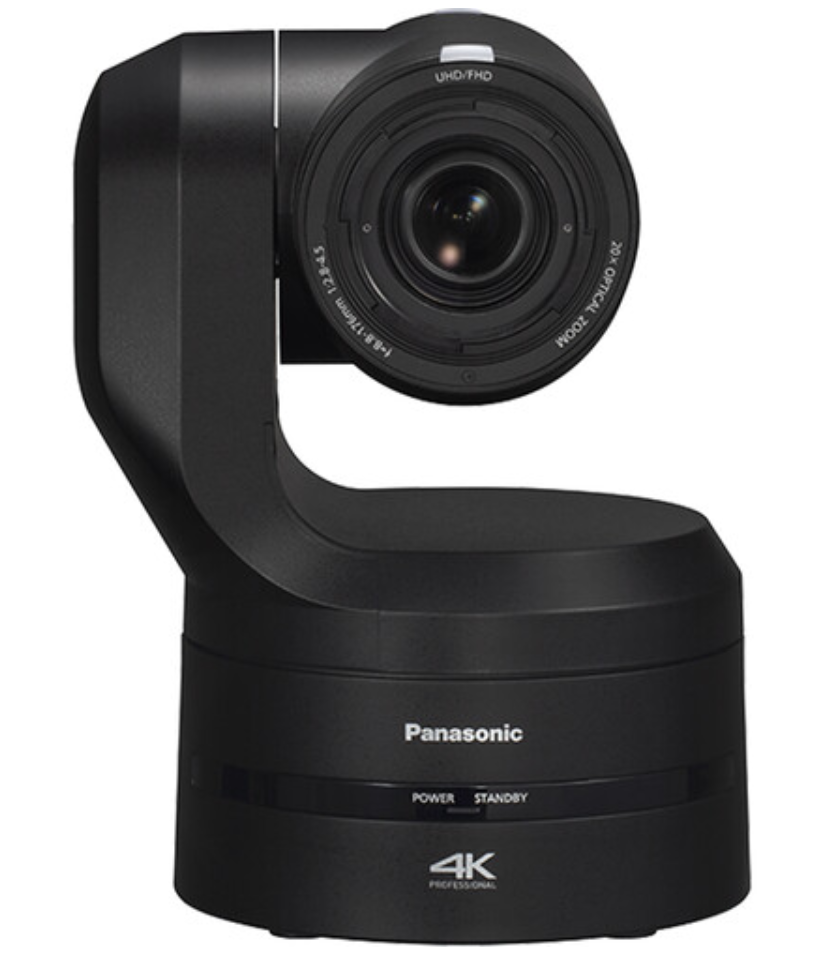

Panasonic AW-UE160 UHD 4K 20x PTZ Camera
Manufacturer: Panasonic BroadcastSKU: PAN-AWUE160KPJ QUICK QUOTE
Regular price
$14,995.00 USD
Regular price
Sale price
$14,995.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Ultimate in Professional Cinema Quality PTZ Cameras
Setting the bar, the AW-UE160 4K PTZ camera is equipped with a newly developed 4K 1” MOS sensor, providing the highest sensitivity among Panasonic’s PTZ lineup. This allows production teams to capture clear images even in challenging lighting conditions, making it ideal for shooting in concert venues or churches. Additionally, the UE160’s new optical low pass filter minimizes the moiré effect when shooting against an LED wall, ensuring clearer picture quality, which is particularly beneficial for rental and staging or worship environments. Furthermore, its high-speed frame rate enables sports broadcasters to capture HD slow motion shots for replays, while seamless integration with the robotic camera system delivers live broadcast-style movements to the PTZ, resulting in a dynamic and highly engaging video production.

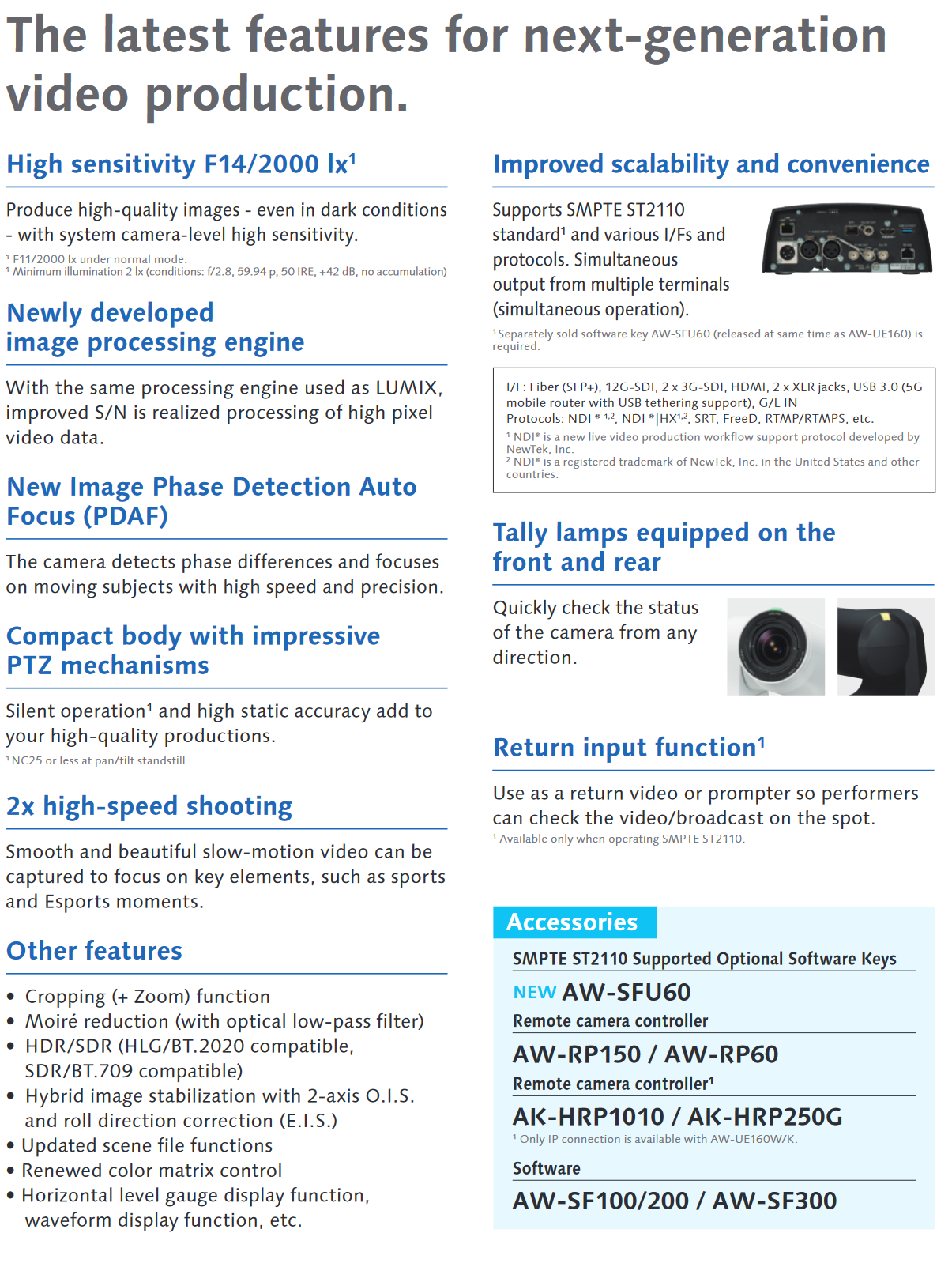

Key Features:
- Uncompromising shooting performance and operability
- Optical low-pass filter significantly reduces moiré
- Newly developed 4K Sensor offering superior sensitivity
- Significantly improved Autofocus with advanced technology
- SMPTE 2110 Support with purchase of additional software key
The 4K PTZ Camera is designed for a time of heightened creativity and the quest for visual representation.

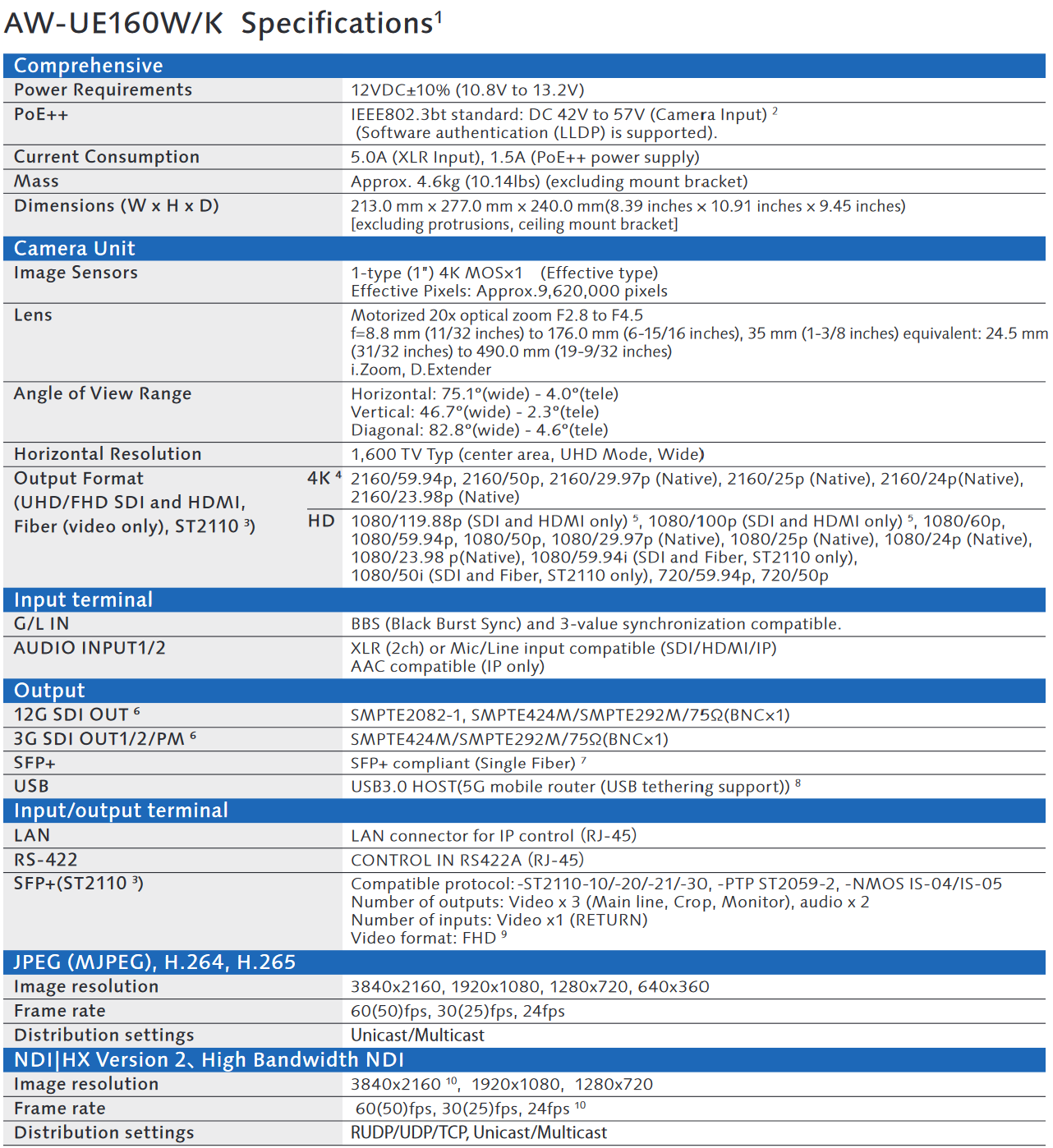

Featured Specs
| SKU | AW-UE160 |
|---|---|
| Current consumption | 5.0 A (XLR IN connector), 1.5A (PoE++ power supply) |
| Power Requirements | 12VDC±10%(10.8V to 13.2V) |
| Ambient Operating Temperature | 0 °C to +40 °C (32 °F to +104 °F) |
| PoE++ | IEEE802.3bt standard :DC 42 V to 57V (Camera Input)*Limited in function when PoE used.(Software authentication (LLDP) is supported)) |
| Storage Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Mass | Approx. 4.6kg (10.14lbs) (excluding mount bracket) |

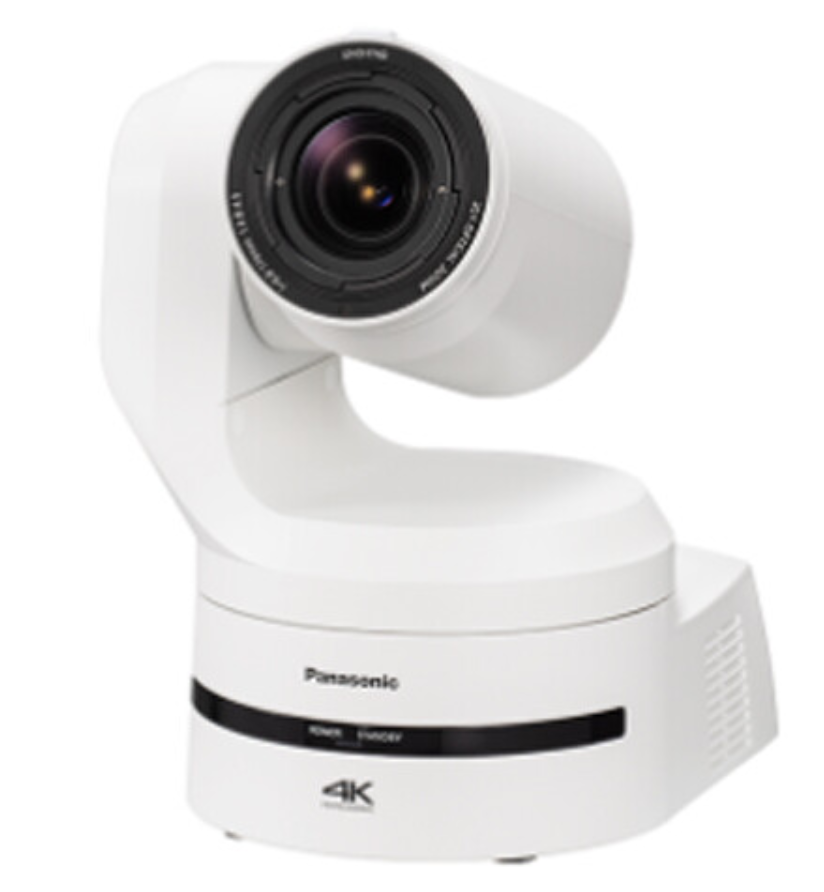

| Finish | AW-UE160W : Pearl White AW-UE160K : Black |
| Controller Supported | AW-RP150，AW-RP60，AK-HRP1010，AK-HRP1015，AK-HRP250 *Other ROP will be compatible in the future. |
| LENS | Motorized Optical 20xZoom F2.8 to F4.5(f=8.8 mm to 176.0 mm,35mm equivalent:24.5 mm to 490.0 mm)i.Zoom, D.Extender |
| Imaging Sensors | 1-type (1") 4K MOSx1 Effective Pixels: Approx. 9,620,000 pixels |
| Optical Filter | Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as "night mode") |
| Focus | Switching between auto and manual |
| Conversion Lens | Not Supported |
| Angle of View Range | Horizontal: 75.1°(wide) to 4.0°(tele) Vertical: 46.7°(wide) to 2.3°(tele) Diagonal: 82.8°(wide) to 4.6°(tele) |
| MINIMUM ILLUMINATION | 2lx(F2.8, 59.94p, 50IRE, +42dB, without accumulation) |
| Focus Distance | Entire zooming range: 1000 mm, Wide end: 100 mm |
| Standard Sensitivity | F11/2,000lux (Normal), F14/2,000lux |
| Color Separation Optical Systems | 1MOS |
| Horizontal Resolution | 1,600 TV Typ (center area, UHD Mode, Wide) |
| Gain Selection | Auto, 0dB to 36dB *1 dB step increments can be set. |
| Frame Mix | Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set. |
| Electronic Shutter Speed | 60p/59.94p/59.94i: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 29.97p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,000 23.98p/24p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p/50i: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 25p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,00 59.94p･120fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p･100fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 |
| Synchro scan | 60p/59.94p/59.94i:60.00Hz to 7,200Hz 29.97p:30.00Hz to 7,200Hz 23.98p:24.00Hz to 7,200Hz 50p/50i:50.00Hz to 7,200Hz 25p:25.00Hz to 7,200Hz 59.94p･120fps:120Hz to 7,200Hz 50p･100fps:100Hz to 7,200Hz |
| WHITE BALANCE | ATW､3200K, 5600K ATW Speed : Normal / Slow / Fast AWB-A､AWB-B VAR (selectable between 2000 K and 15000 K by designating a value) |
| Gamma | HD/NORMAL/CINEMA1/CINEMA2*HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75) |
| Scene File | Scene 1 to 8 |
| Chroma Amount Variability | OFF, -100% to 40% |
| Output Format (UHD/FHD SDI) | 4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p*1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.*No output from 12G/SDI. |
| Output Format (HDMI) | 4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p |
| Output Format (Fiber(Only Video)) | 4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Output Format (ST2110) | HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p |
| HDMI | HDMI 2.0 connector 4:2:2/10bit HDCP is not supported. Viera Link is not supported. |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |

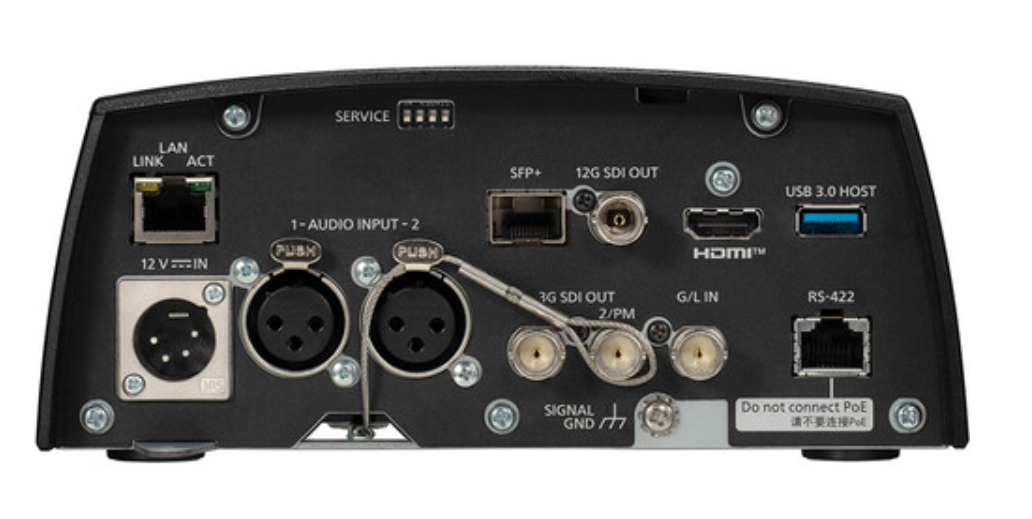

| INPUT | DC 12 V IN, G/L IN(BNC) |
| G/L IN | BBS (Black Burst Sync), tri-level sync supported) |
| OUTPUT | - |
| AUDIO INPUT 1/2 | XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)XLR3 female balanced input 2chDuring MIC inputInput level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz)Phantom power compatible､Supply voltage:47 V±2 VInput impedance:Approx. 10kΩDuring LINE inputInput level :0 dBu ( or +4dBu/-20dBu)Input impedance:Approx. 10kΩInput volume variable range: -40 dB ~0dB~+20 dB(1 dBstep)Embedded audio output level:-12 dBFS/-18dBFS/-20dBFS Sampling frequency:48 kHz Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP) |
| 12G SDI OUT | SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| 3G SDI OUT1 | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| 3G SDI OUT2/PM | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| SFP+ | SFP+ standard (Single Fiber) *This unit does not support input by optical signals |
| LAN | LAN connector for IP control (RJ-45) |
| USB | USB3.0 HOST(5G mobile router with USB tethering support) |
| RS-422 | CONTROL IN RS422A (RJ-45) |
| INPUT/OUTPUT | - |
| SFP+ (ST2110) | ST2110-10/-20/-21/-30 |
| IP connecting cable | if you have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable)Max100 m If you don't have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable)Max100 m *1 STP(Shielded Twisted Pair) is recommended *2 Category 6 or above is used for 4K video transmission. |
| SFP+(ST2110) | compatible protocol: -ST2110-10/-20/-21/-30 -PTP ST2059-2 -NMOS IS-04/IS-05 output number:video x3(Full, Crop, Monitor), Audio x2 Input number:video x1(RETURN) Video format:FHD *Same as system format |
| Pan-tilt Head Control | - |
| AW protocol connecting cable | LAN cable* (category 5e or above, straight cable) Max1000 m *STP (Shielded Twisted Pair) is recommended |
| Pan/Tilt Operation Speed | Speed range:0.08 °/s ~1800°/s( Normal mode) *3 speed modes installed Normal:~60°/s,Fast1:~90°/s,Fast2:~180°/s |
| Quietness | NC35 or less *When standing still, NC25 or less |
| Tilting Range | -30°~ 210 |
| Panning range | ±175° |
| Pan-tilt Head Unit | - |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging) |
| Windows | Windows®10 Microsoft Edge Google Chrome |
| Supported operating systems and web browsers | - |
| Image Resolution | 3840x2160, 1920x1080, 1280x720, 640x360 |
| Mac | macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome |
| Android | Android OS Google Chrome |
| IP Streaming | - |
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI|HX Ver2, High Bandwidth NDI |
| Image Transmission setting (JPEG) | Frame rate : Max 30fps *No bit rate specified *JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate Image quality(Fine/Normal) |
| Image Transmission Setting (H.264) |
Transmission Type : Unicast port (AUTO) |
| iPhone / iPad / iPod touch | iOS, Safari, iPadOS |
| Image Transmission Setting (H.265) |
Transmission Type : Unicast port (AUTO) |
| Supported protocol | Network Protocol: ICMP, ARP, GARP, MLD Transmission Protocol: TCP/IP, UDP/IP Application Protocol: IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1X IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI|HX version 2, High bandwidth NDI External Device Cooperation Protocol:FreeD, TSL5.0, SNMP |
| Audio Compression Type | AAC-LC, 48kHz/16bit/2ch |
| Output Format | Video Format(Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50pAudio Specification MIC1/2PCM/48khz/24bit/1ch x2 |
| NDI (High Bandwidth NDI,NDI|HX Ver.2) | - |
| Output Format (High bandwidth NDI) | 4K 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p､720/59.94p, 720/50p |
| Image Resolution (NDI|HX Ver.2) | 1920x1080, 1280x720 |
| Image Streaming Setting | High Bandwidth NDI Transmisiion Type : TCP /UDP Unicast/Multicast Bit Rate : Max 250Mbps NDI|HX version.2: Transmission Type : TCP/UDP Unicast/Multicast Frame Rate [60Hz] 5fps/15fps/30fps/60fps [50Hz] 5fps/12.5fps/25fps/50fps Max Bit Rate 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/ 4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/ 16384kbps/20480kbps/24576kbps |
| Audio Compression Type 2 | High Bandwidth NDI:AAC, 48kHz, 2ch NDI|HX Ver.2:AAC-LC, 48kHz/16bit/2ch |
| ST2110 | - |
| Number of Output (TX) | Video:3 line (Full x1, MONI x1.Crop x1) Audio:2 line Auxiliary data:No output |
| Number of Input (RX) | Video:1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu) Audio:No input Auxiliary data:No input |
| Optional Accessories | - |
| Cropping | Select from 3 types of images from 3G/SDI_OUTPUT2, Crop_Zoom available |
| Image Stabilization | OIS 2-axis + Hybrid method of roll direction correction MENU switching :select between OFF/OIS/Hybrid(Stable)/Hybrid(Pan/Tilt) |
| Power LED | ON/OFF control |
| Tripod Screw Penetration Measures | Yes |
| Privacy Mode | The lens surface faces downward when standing by (ON/OFF) |
| Input Format |
Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50p |
| New Feature | - |
| HDR/SDR | HLG/BT.2020 compatible, SDR/BT.709 compatible |
| F Number Display | Displayed on the AW-RP150 and AW-RP60 sides |
| NDI | AW-UE160:High Bandwidth NDI, NDI|HX Ver.2 included as standard |
| IP menu display | supported *Non-synchronous with SDI-OUT |
| VR (FreeD) (IP/RS422) | supported |
| Yellow Tally | supported |
| PTP | supported |
| 5G/WiFi 6 | Compatible with recommended products only |
| WFM display | Output with video superimposed from 3G/SDI_OUTPUT2 |
| Return Video Output | Output return video input from ST2110, NDI via SDI_OUT2 |
| Horizontal Level Gauge | ON/OFF control in OSD MENU |
| Wireless Remote Controller | AW-RM50AG（Size "AA" dry battery x 2, obtained separately） |
| Dimensions (W x H x D) | 213.0 mm x 277.0 mm x 240.0 mm(8.39inches x 10.91inches x 9.45inches) [excluding protrusions, cable cover, ceiling mount bracket] |
| Supported Format | ST2110:10/20/21/30 PTP:ST2059-2 NMOS:IS-04/IS-05 |
