Planar VM55LX-M2 Siganage Display

Manufacturer: Planar
SKU: PLA-998259600.G
Regular price $1,987.00 USD
Regular price $3,521.00 USD Sale price $1,987.00 USD
Sale Sold out
Shipping calculated at checkout.

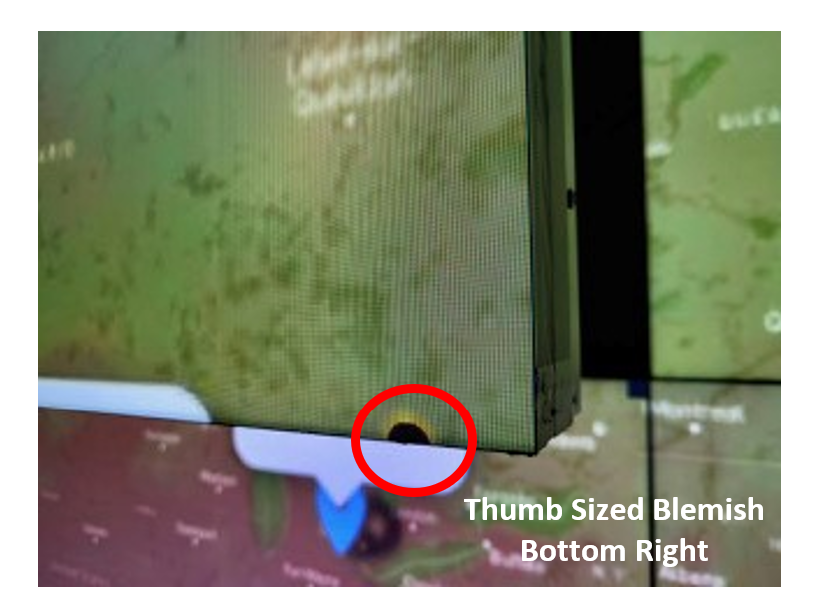

OPEN BOX WITH 90 DAY WARRANTY - PLEASE CONTACT US IF YOU HAVE QUESTIONS ABOUT FUNCTION AND YOUR FIT. ALL UNITS HAVE BEEN TESTED AND ARE FUNCTIONING. THANK YOU.

The Planar VM55LX-M2 is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 500- nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55LX- M2 has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55LX-M2 delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55LX-M2 is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums



The Planar VM55LX-M2 is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 500- nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55LX- M2 has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55LX-M2 delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55LX-M2 is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums



SPECIFICATION DETAILS

  • Product Name VM55LX-M2
  • Viewable Size 55" diagonal
  • Display Technology Commercial-grade IPS LCD
  • Backlight D-LED with Local Dimming
  • Brightness (Typical) 500 cd/m²
  • Bezel Width 0.44mm even
  • Tiled Bezel Width 0.88mm
  • Display Resolution 1920 x 1080, full HD
  • Aspect Ratio 16:9
  • Contrast Ratio (typ) 1100:1
  • Contrast Ratio - Dynamic 100,000:1
  • Response Time (typ) 8 ms
  • Viewing Angle (typ) 178°
  • Palette 1.073B colors (10 bit)
  • Color Gamut 72% NTSC
  • Pixel Pitch 0.630mm x 0.630mm
  • Haze 28%
  • External Connections DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), OPS x 1,
    OPS USB 2.0 x 2, OPS USB 3.0 X 1, VGA in x1
  • Display Control IR, RS232, LAN, HDMI-CEC, Keypad
  • Audio Input 3.5mm (stereo)
  • Audio Output 3.5mm (stereo), S/PDIF
  • Display Active Area 47.6" x 26.8" (1209.6mm x 680.3mm)
    Display Dimensions
    • w/Handles (W x H x D)
      47.7" x 26.8" x 4.0"(1210.5mm x 681.2mm x 101.8mm)
    • Display Dimensions w/o
      Handles (W x H X D)
      47.7" x 26.8" x 3.8"(1210.5mm x 681.2mm x 97.1mm)
  • Mount VESA 400mm x 400mm
  • Orientation Landscape/Portrait
  • Display Weight 52 lbs (23 kg)
  • Weight (Shipping) 76 lbs (35 kg)
  • Features OPS slot, on/off scheduling, up to 10x10 video wall scaling, carrying handles
  • Speakers 10W x 2 built-in
  • Enclosure Metal
  • Fanless Yes
  • Line Voltage 100-240V; 49/61Hz
  • Power Consumption (typ) 130W
  • Operating Temperature 0-40°C (32 -104°F)
  • Operating Relative Humidity 20-85%
  • Recommended Usage Up to 24x7 operation
  • Product Approvals FCC Class A, cTUVus, CE, RoHS
  • ENERGY STAR Certified No
