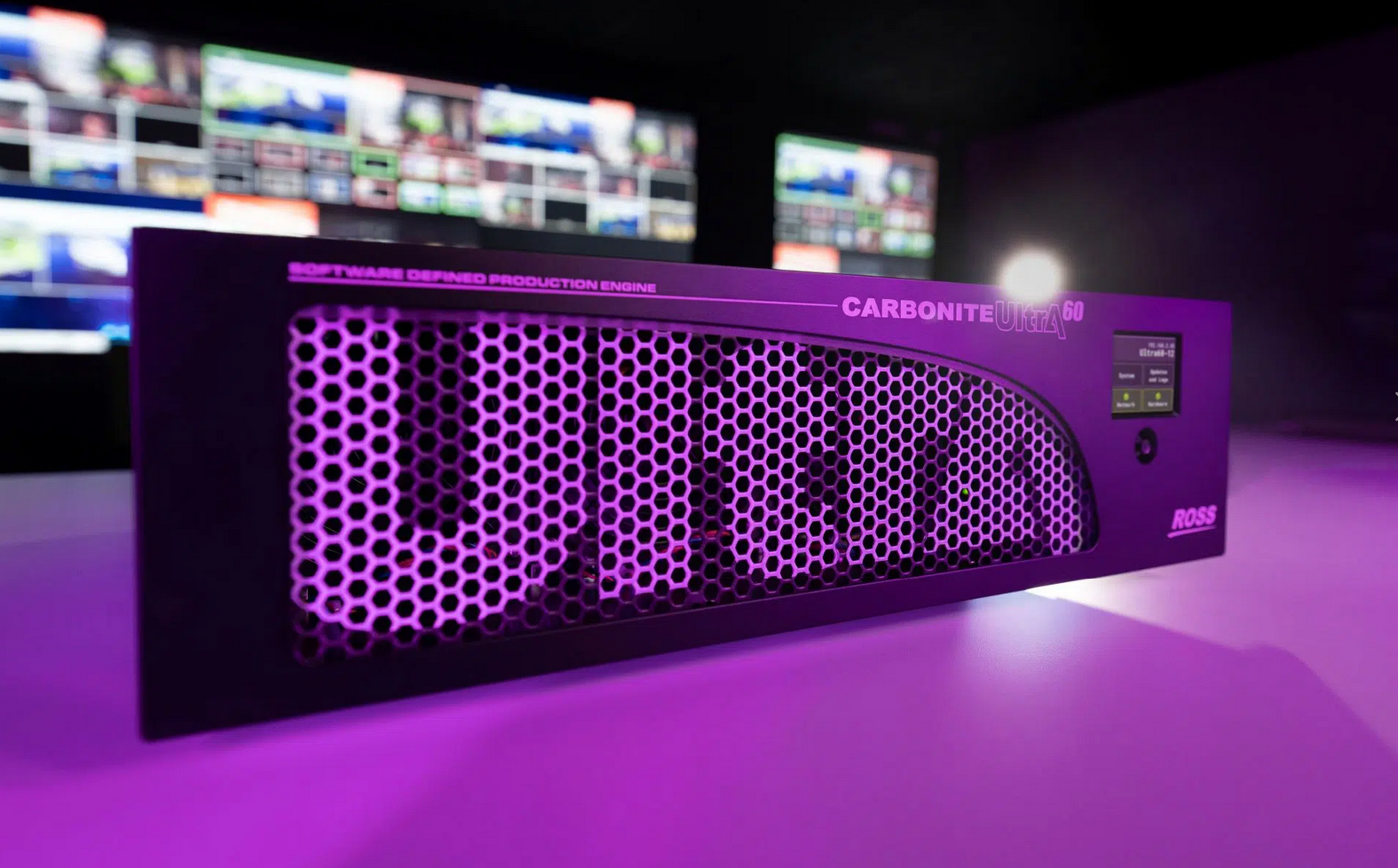

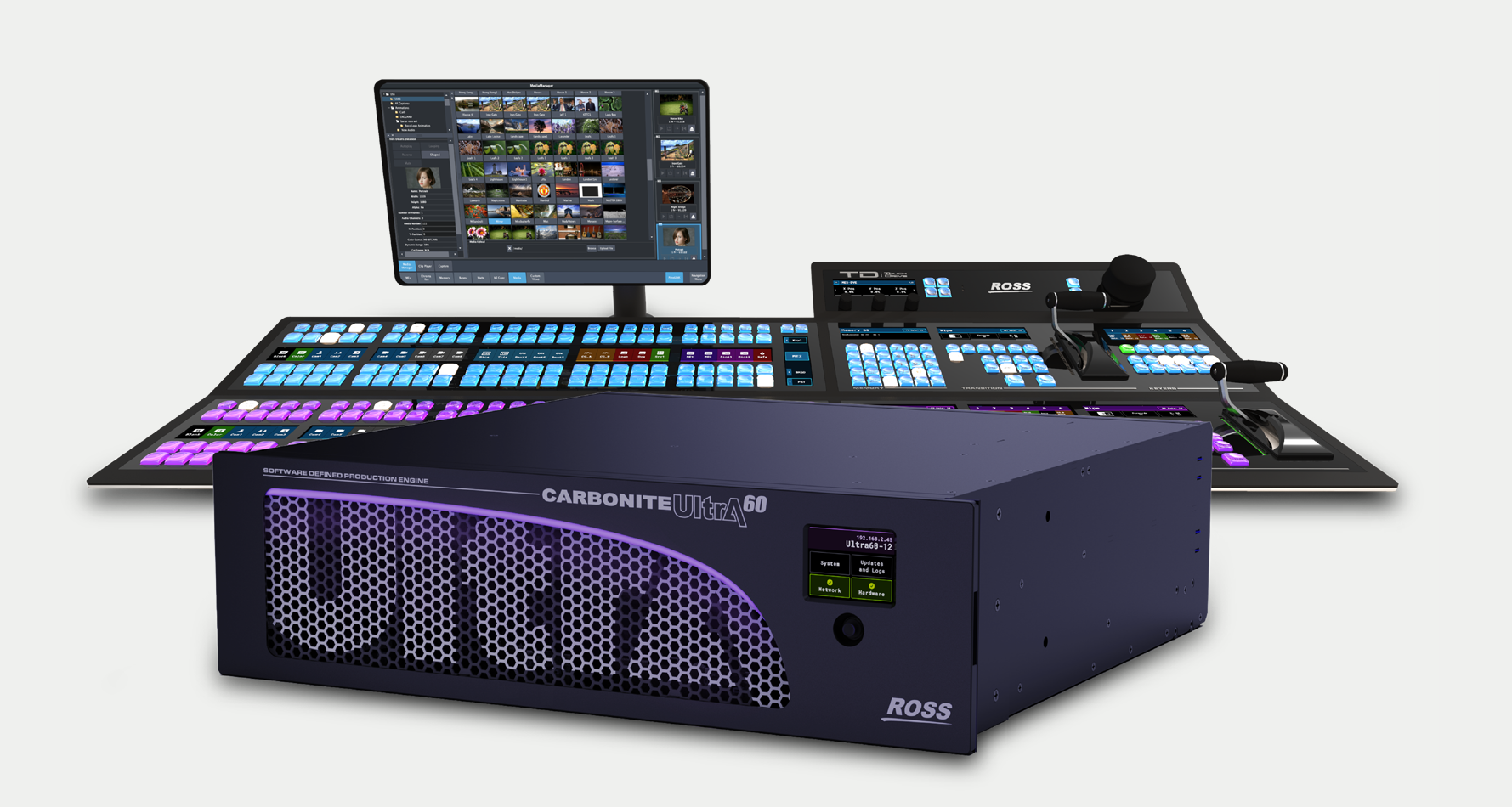

Ross Video CUF3-112 Carbonite Ultra 60 Base Engine
Manufacturer: Ross VideoSKU: RSS-CUF3112 QUICK QUOTE
Couldn't load pickup availability
Experience the next level of production switchers with enhanced capabilities and delivering unmatched size, speed, and power.

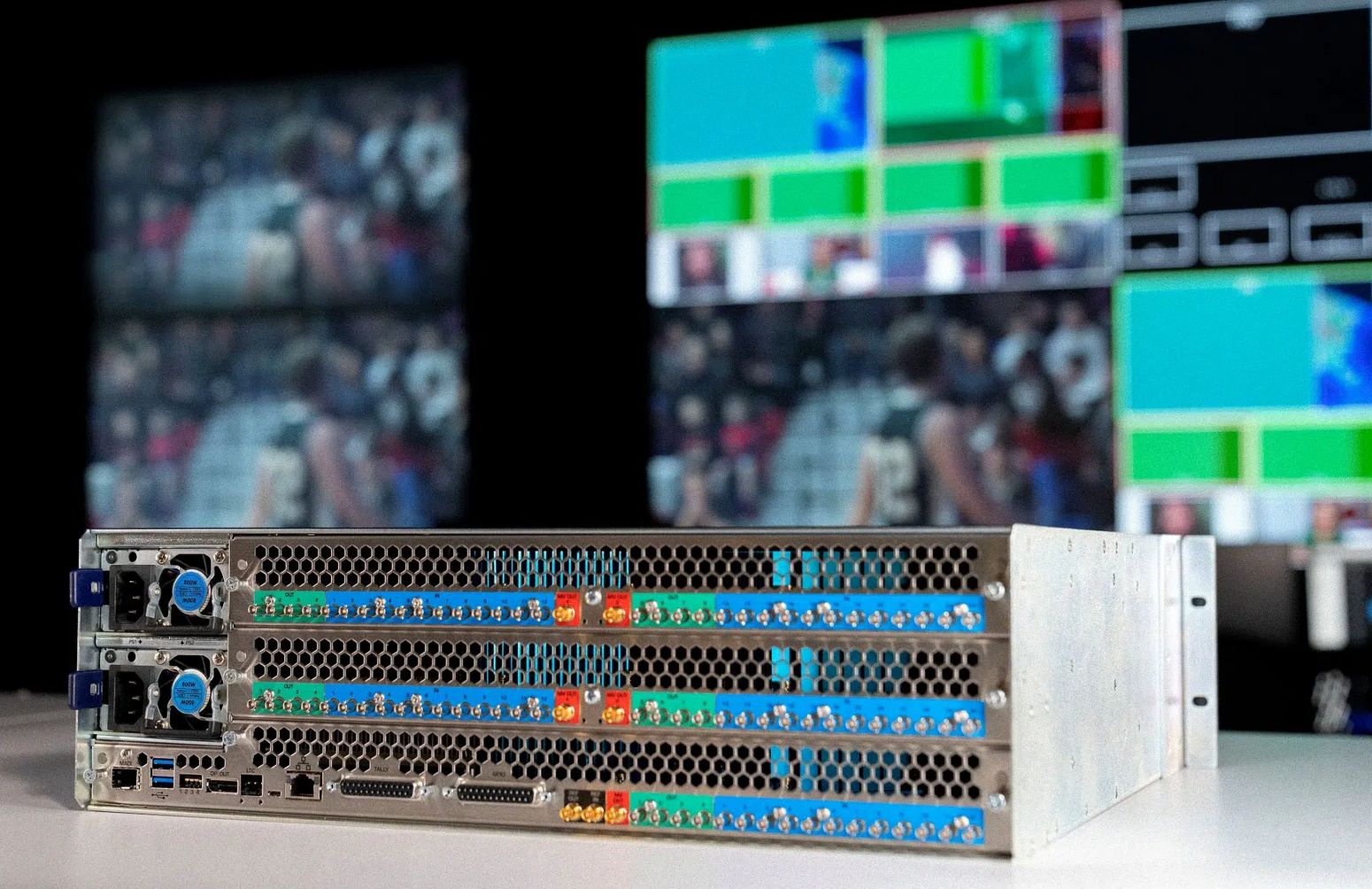

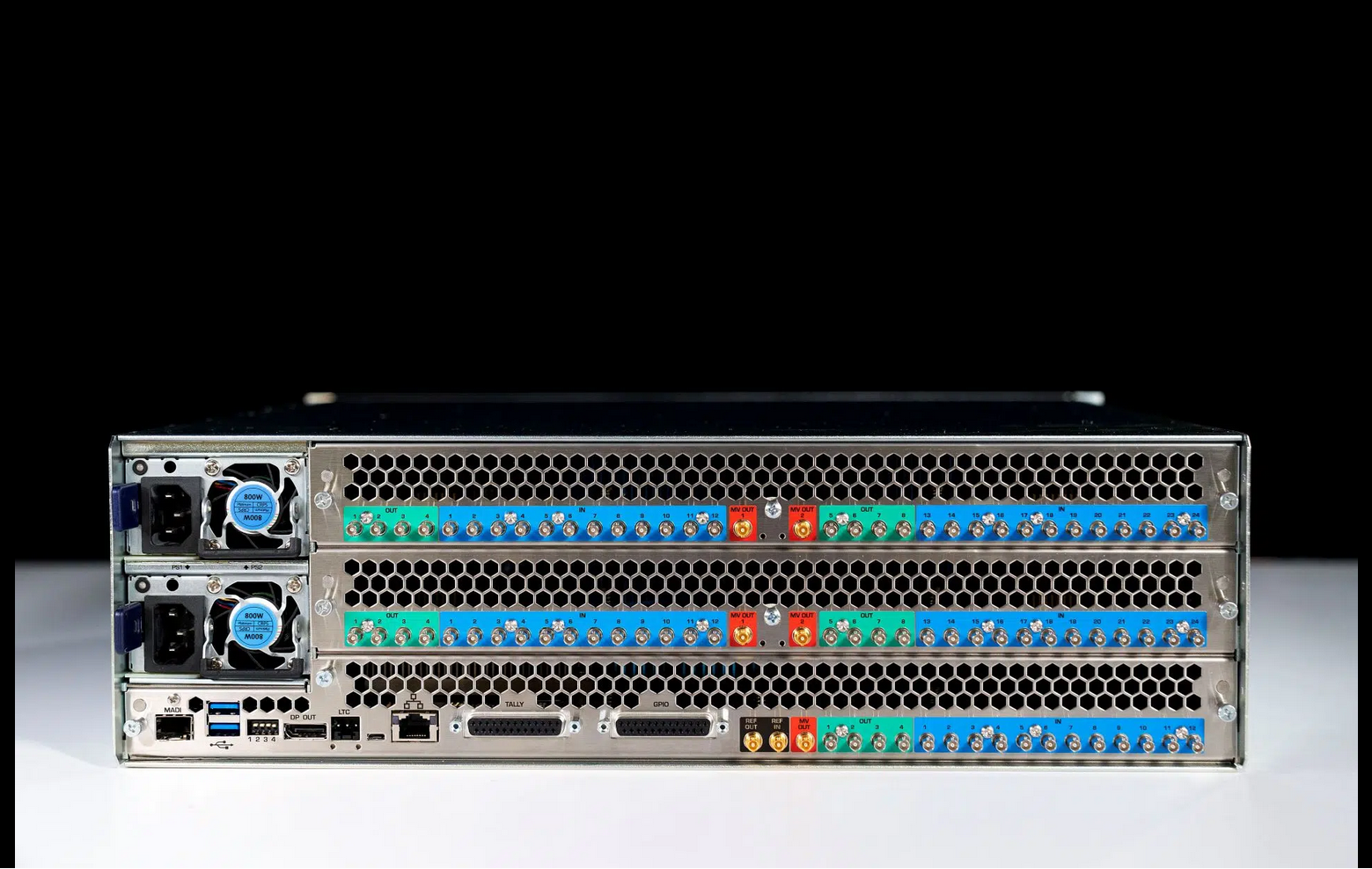

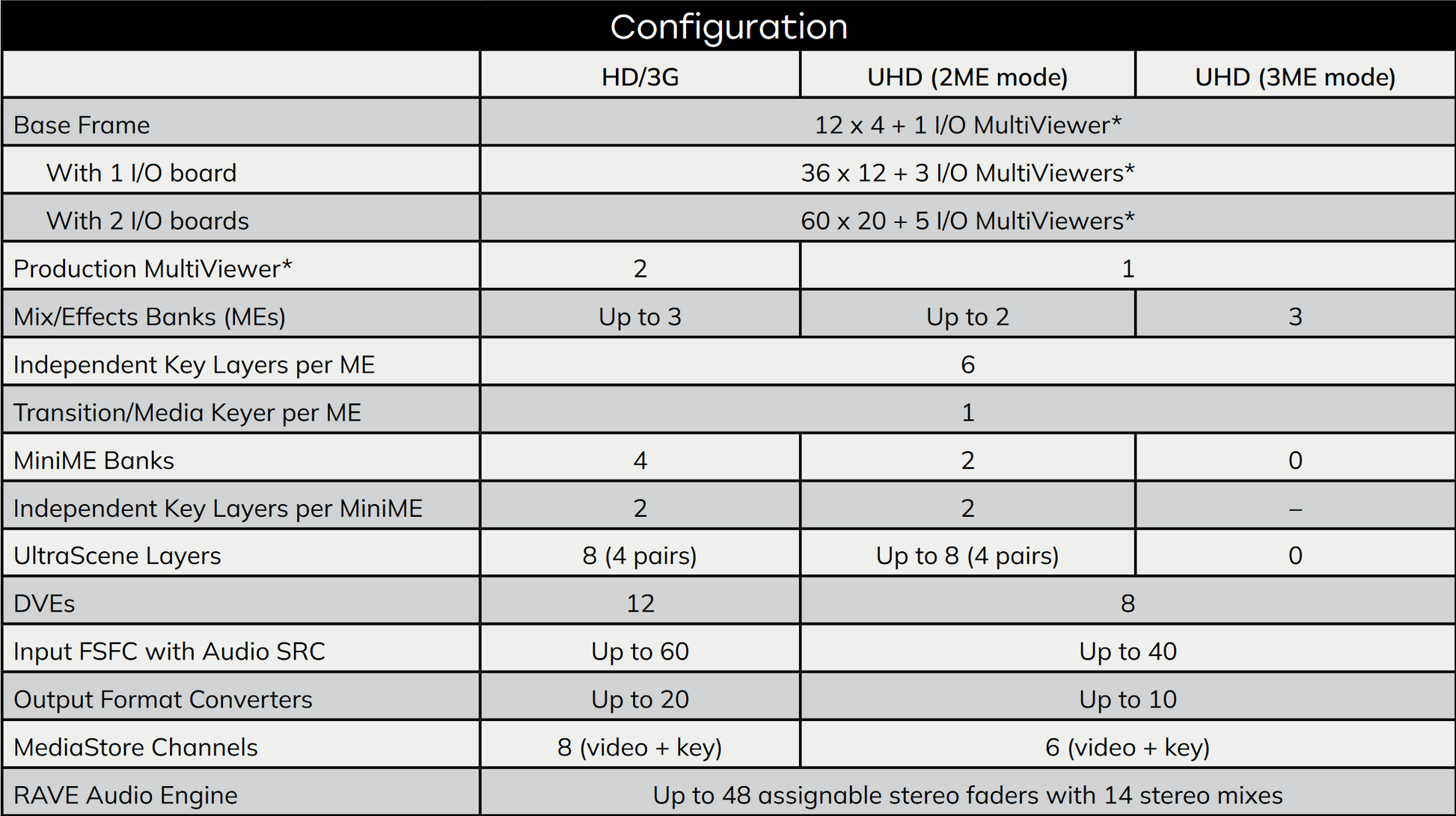

Carbonite Ultra 60 offers big switcher performance in a single cost-effective hardware platform. With modular I/O boards that provide up to 60 Inputs and 25 Outputs and three full MEs in HD or UHD, this new class of production switcher will meet your production needs now and in the future. Pricing shown is for the base model and not intended to represent all configurations and features.

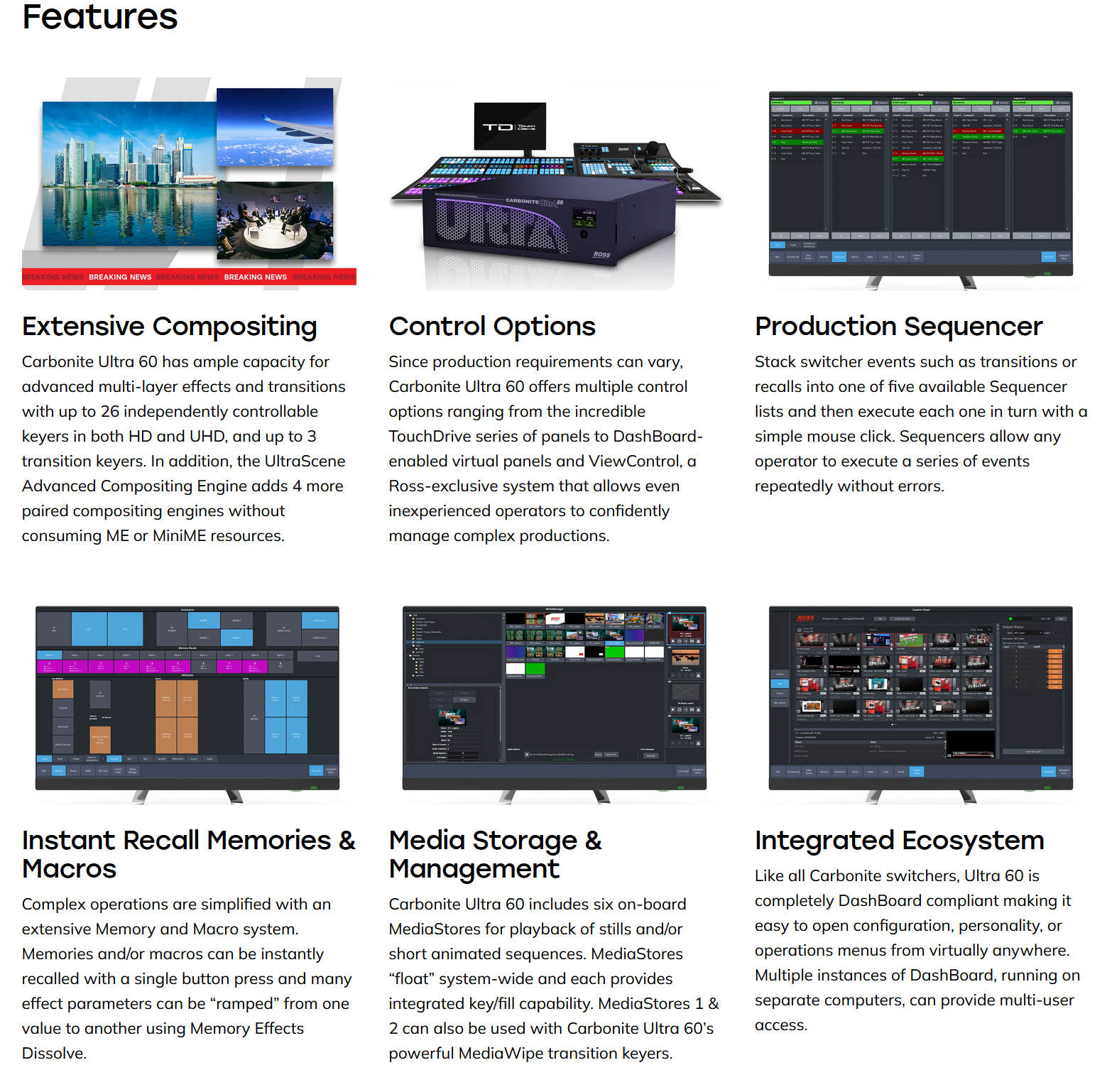

Carbonite Ultra 60 has ample capacity for advanced multi-layer effects and transitions with up to 26 independently controllable keyers in both HD and UHD, and up to 3 transition keyers. In addition, the UltraScene Advanced Compositing Engine adds 4 more paired compositing engines without consuming ME or MiniME resources.
Carbonite Ultra 60 includes six on-board MediaStores for playback of stills and/or short animated sequences. MediaStores “float” system-wide and each provides integrated key/fill capability. MediaStores 1 & 2 can also be used with Carbonite Ultra 60’s powerful MediaWipe transition keyers.
Ever since its inception, Carbonite Ultra has established itself as the standard for both efficiency and user-friendliness in mid-sized production switchers. But how can we enhance an already exceptional product? By expanding its capabilities! Allow us to introduce Carbonite Ultra 60, a revolutionary production switcher by Ross that builds upon the success of Carbonite Ultra – a globally acclaimed product that has captured the admiration and loyalty of operators worldwide.
| Feature | Specification |
|---|---|
| Video Inputs | - 16 SDI inputs (up to 1080p) |
| - 2 HDMI inputs (up to 1080p) | |
| Video Outputs | - 8 SDI Program outputs (up to 1080p) |
| - 2 HDMI MultiViewer outputs (up to 1080p) | |
| Audio Inputs | - 16 Embedded audio inputs |
| Audio Outputs | - 16 Embedded audio outputs |
| Keyers | - 4 Full Mix/Effects keyers |
| - 2 Media Stores keyers | |
| Downstream Keyers | - 2 DSK channels |
| MultiViewer Outputs | - 2 independent MultiViewers |
| - Support for up to 16 sources | |
| Frame Sync | - Frame synchronization on all inputs |
| Transition Effects | - Cut, Dissolve, Wipe, DVE, and more |
| Control | - Touchscreen control surface |
| - DashBoard control software support | |
| Auxiliary Outputs | - 8 Auxiliary outputs |
| Tally Outputs | - 16 Tally outputs |
| Formats Supported | - SD, HD, and 3G-SDI formats |
| Frame Rates Supported | - 29.97, 25, 24, 23.98, and more |
| Dimensions | - 3RU rack-mountable chassis |
| Weight | - Approximately xx lbs (varies) |
| Power | - Dual redundant power supplies |
| Network Connectivity | - Ethernet control and monitoring |
| External Control | - GPI, RS-232, and RS-422 control |
| Software Updates | - Regular firmware and software updates |
