Real Switcher. Real Graphics. Real Audio. Graphite is an all-inclusive system that combines superb big switcher performance with visually stunning 3D graphics, instant access clip servers and pristine audio clarity – all with the reliability of separate system components.

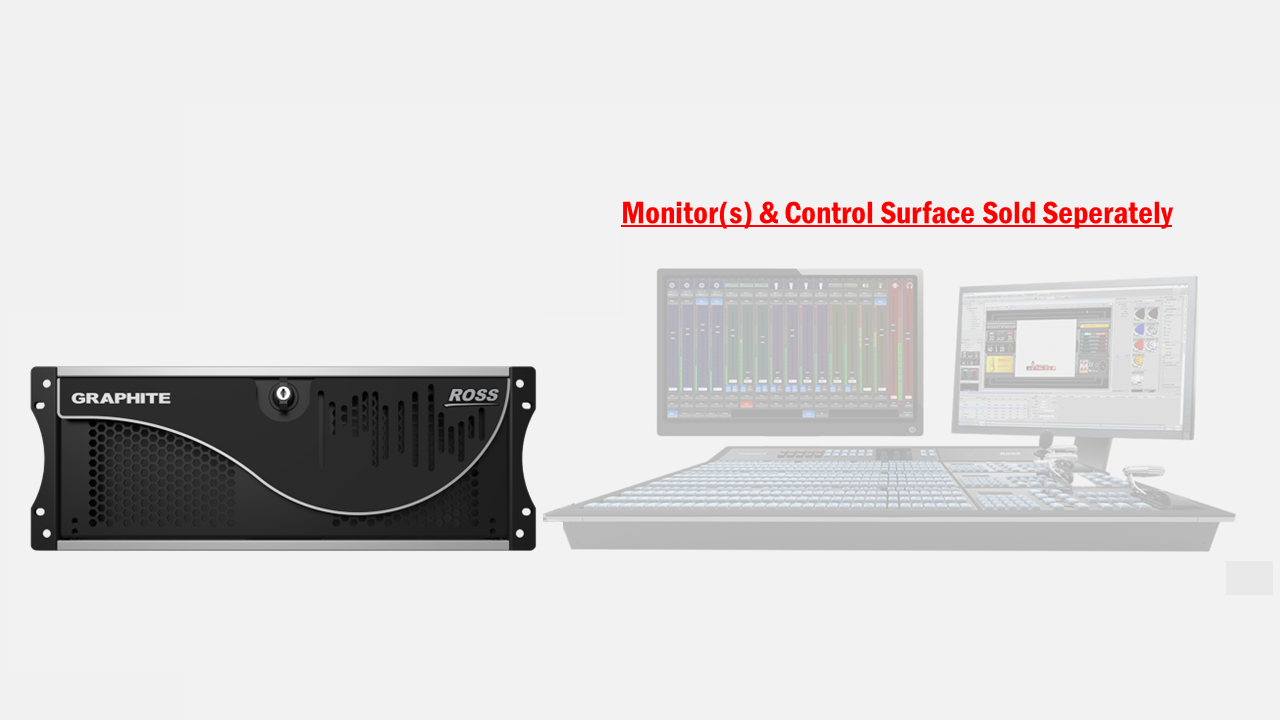

[ Monitor(s) and Control Surface Sold Separately ]

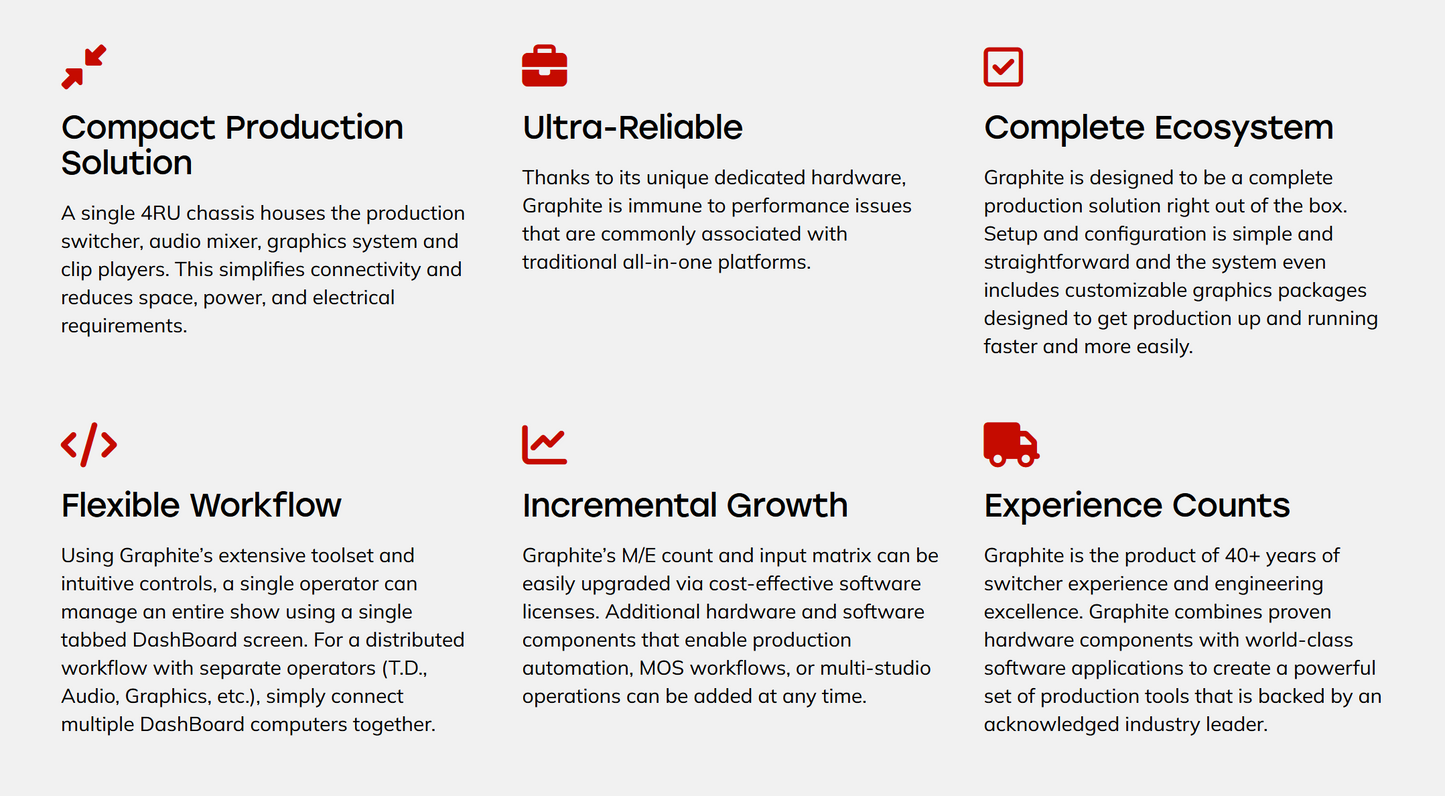

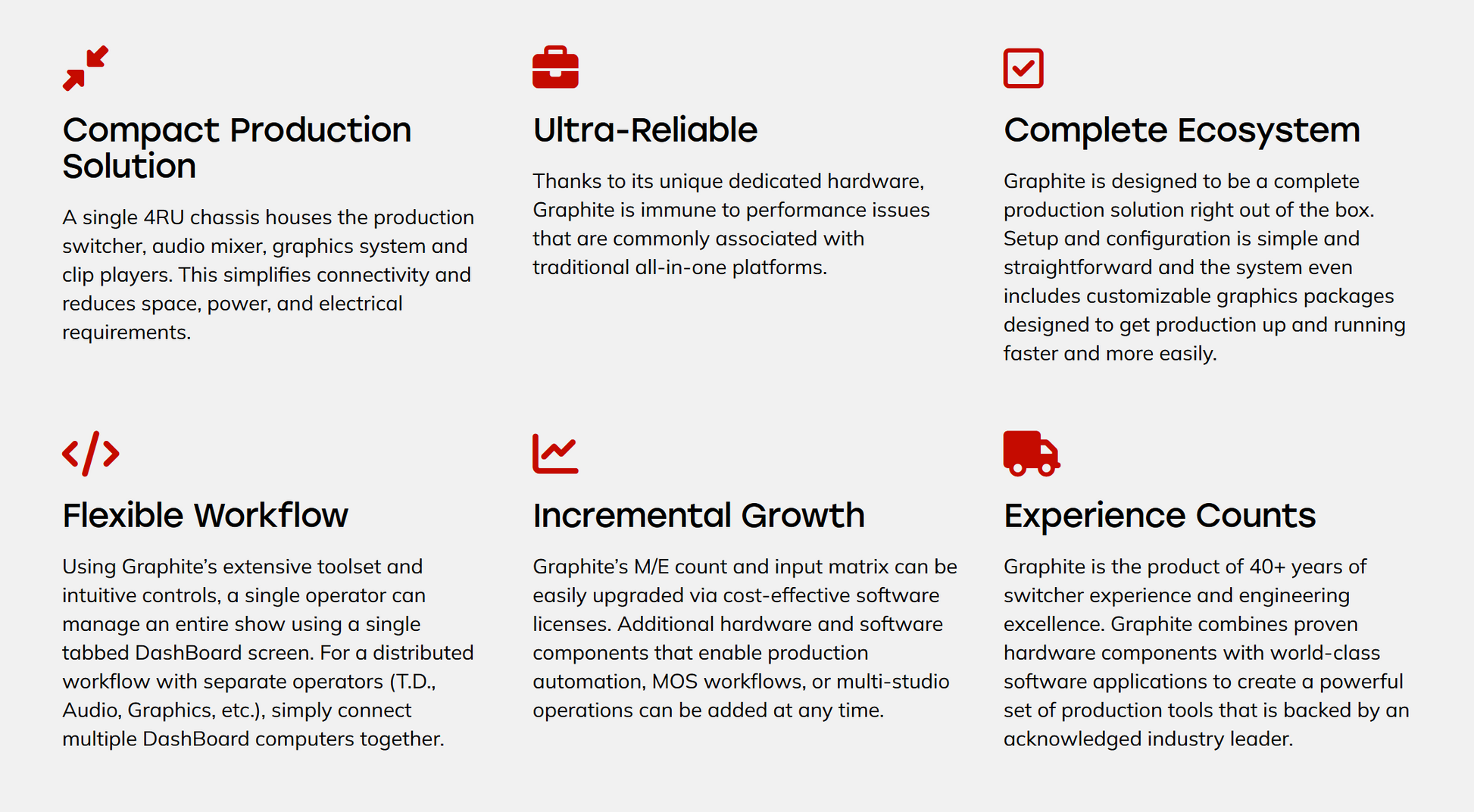

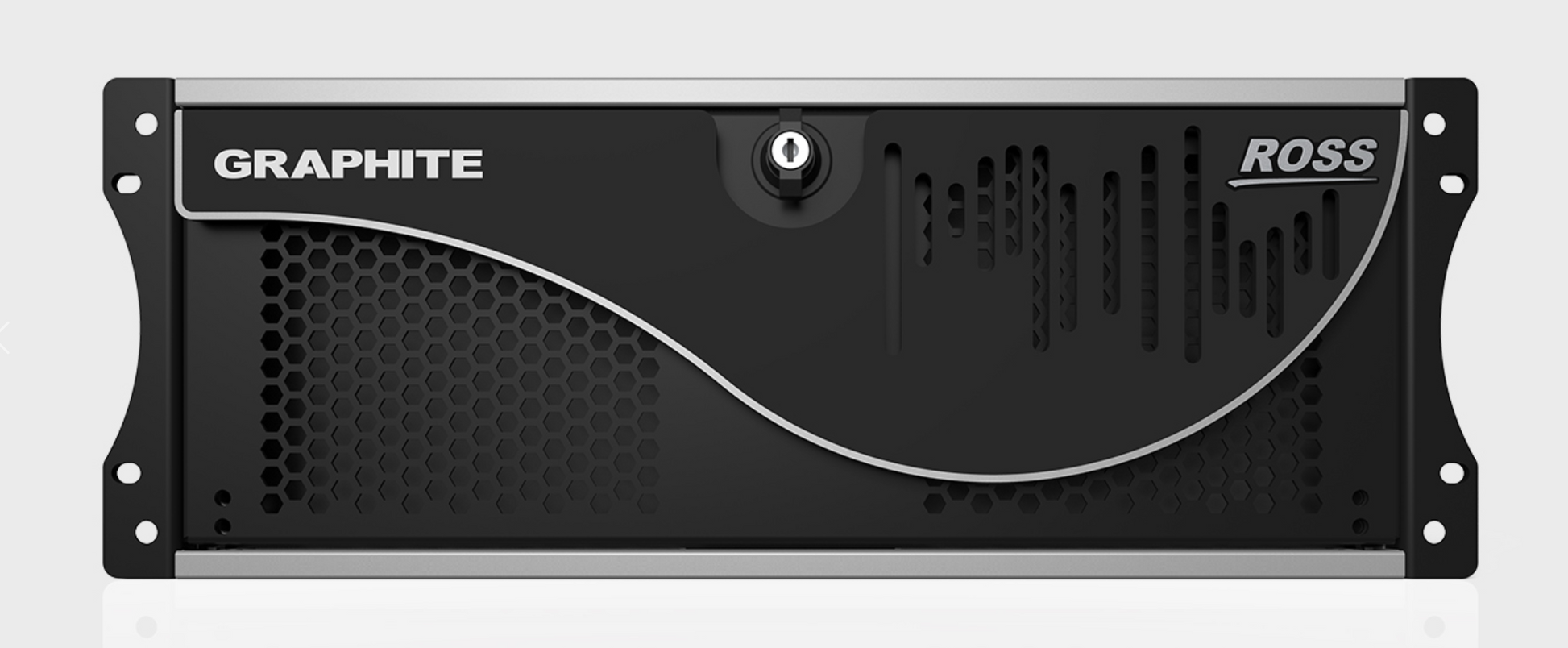

A single 4RU chassis houses the production switcher, audio mixer, graphics system and clip players. This simplifies connectivity and reduces space, power, and electrical requirements.

Graphite’s M/E count and input matrix can be easily upgraded via cost-effective software licenses. Additional hardware and software components that enable production automation, MOS workflows, or multi-studio operations can be added at any time.

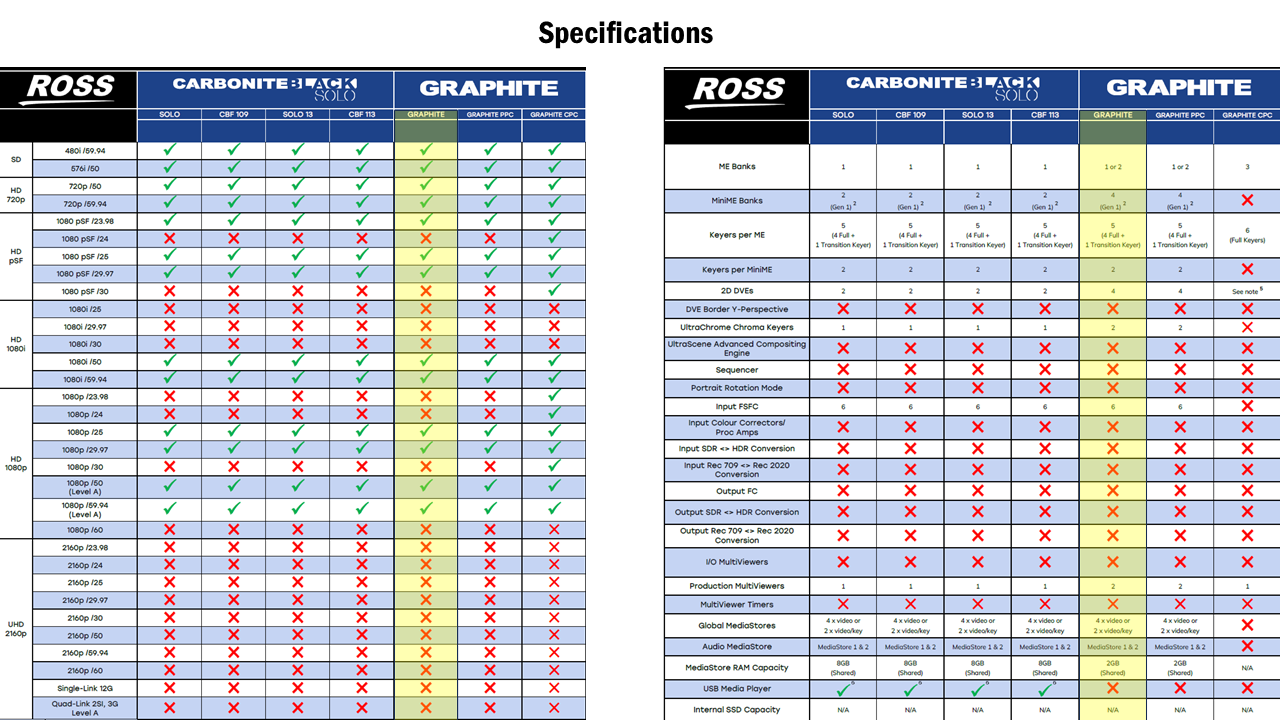

Graphite 4RU Live Production M8 Base Engine Includes:

• Carbonite Production Switcher:
• 1 ME with 4 Keyers Plus MediaWipe Keyer
• 4 MiniME with 2 Keyers each
• 4 2D DVE
• 2 UltraChrome Chroma Keys
• 2 MultiViewers with up to 16 Windows each
• 4 Channels of MediaStore with Audio (dedicated USB port for Media)
• 6 Frame Sync and Format Converters
• 5 Inputs (4 SDI and 1 HDMI) and 8 Outputs (6 SDI and 2 HDMI, 2 Configurable 6 Fixed)
• 256 Custom Controls per Show File
• 100 Event Memory System per ME and MiniME
• Dedicated Network Port for Communication and Control

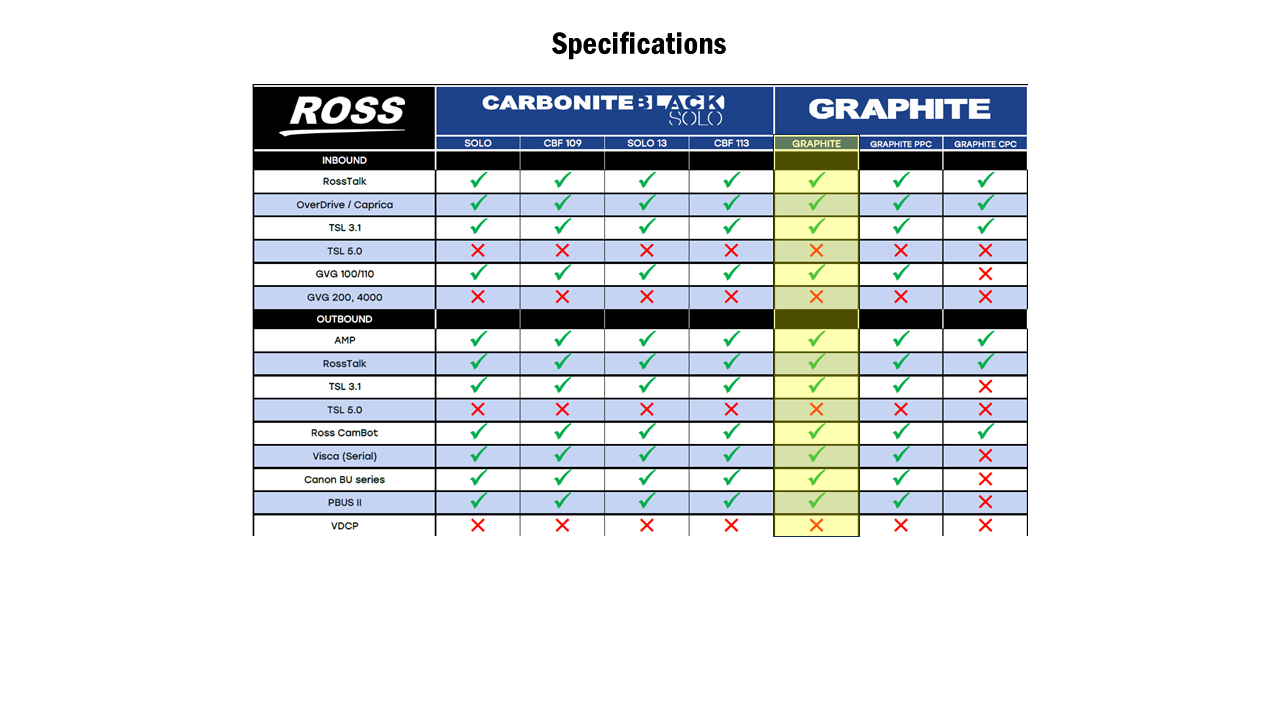

• AMP Device Protocol, RossTalk Device Protocol, Yamaha 01V96 and DM1000 Device Protocol,
• PBUS Device Protocol, TSL UMD Tally Protocol, VISCA Camera Protocol, CANON BU Series Protocol
