Ross Video Carbonite Black Plus 2 M/E Live Production Switcher
Manufacturer: Ross VideoSKU: CBF236PLUS QUICK QUOTE
Regular price
$31,441.00 USD
Regular price
Sale price
$31,441.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Carbonite Black Plus 2 M/E Live Production Switche
Carbonite Black Plus 2 M/E Live Production Switcher with 36 Input and 25 Output Chassis. Creating a Carbonite that fits your production is easy, this switcher has a variety of chassis models with different ME configurations, inputs & outputs, and video processing resources. In addition, this switcher features the widest choice of panels in the industry.
Image and configuration may vary with your specifications Contact an EAR product specialist for complete details and pricing
The following specifications includes accessories and options that may not be reflected in the price shown. Please contact an EAR product specialist for a configuration that best accommodates your workflow and production needs.

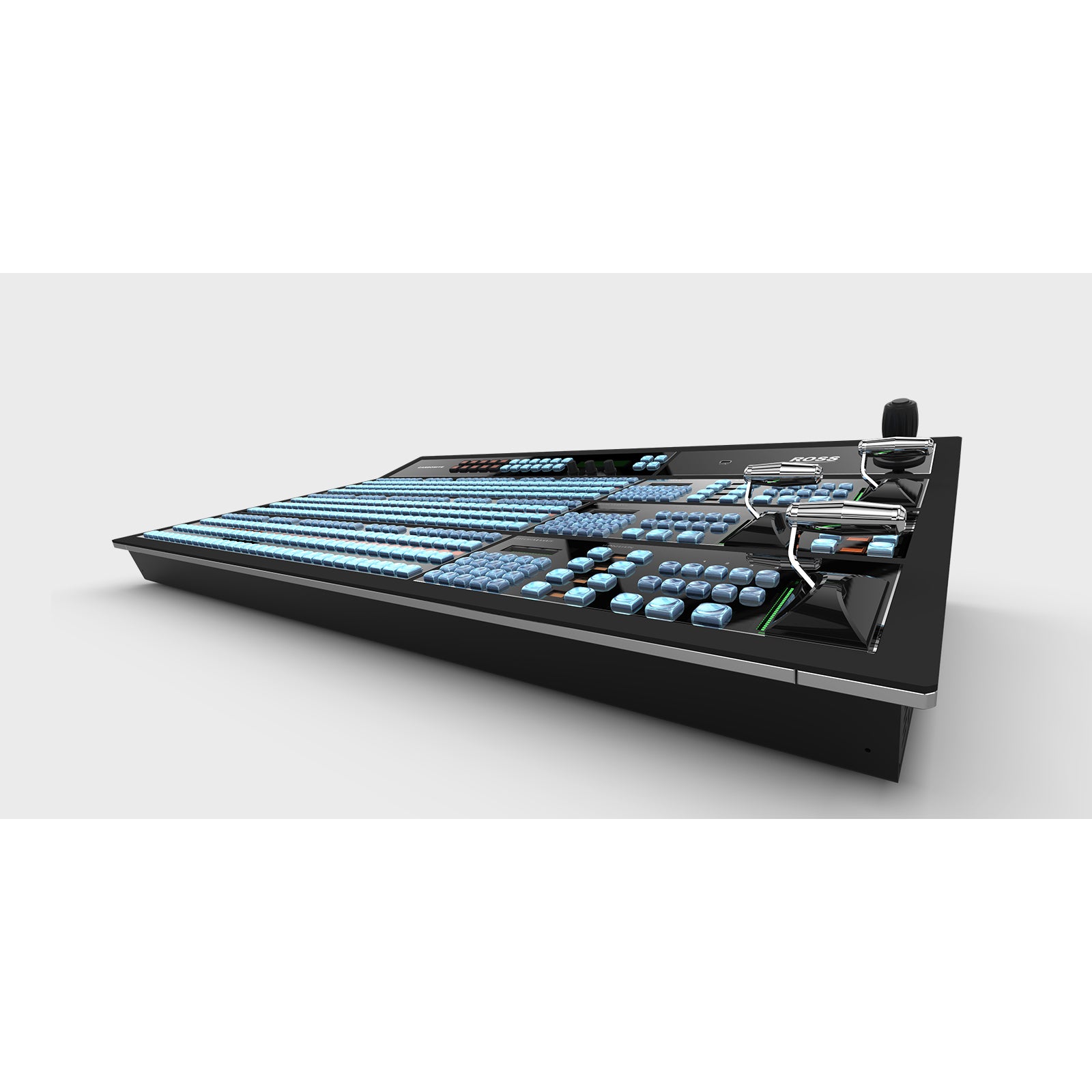

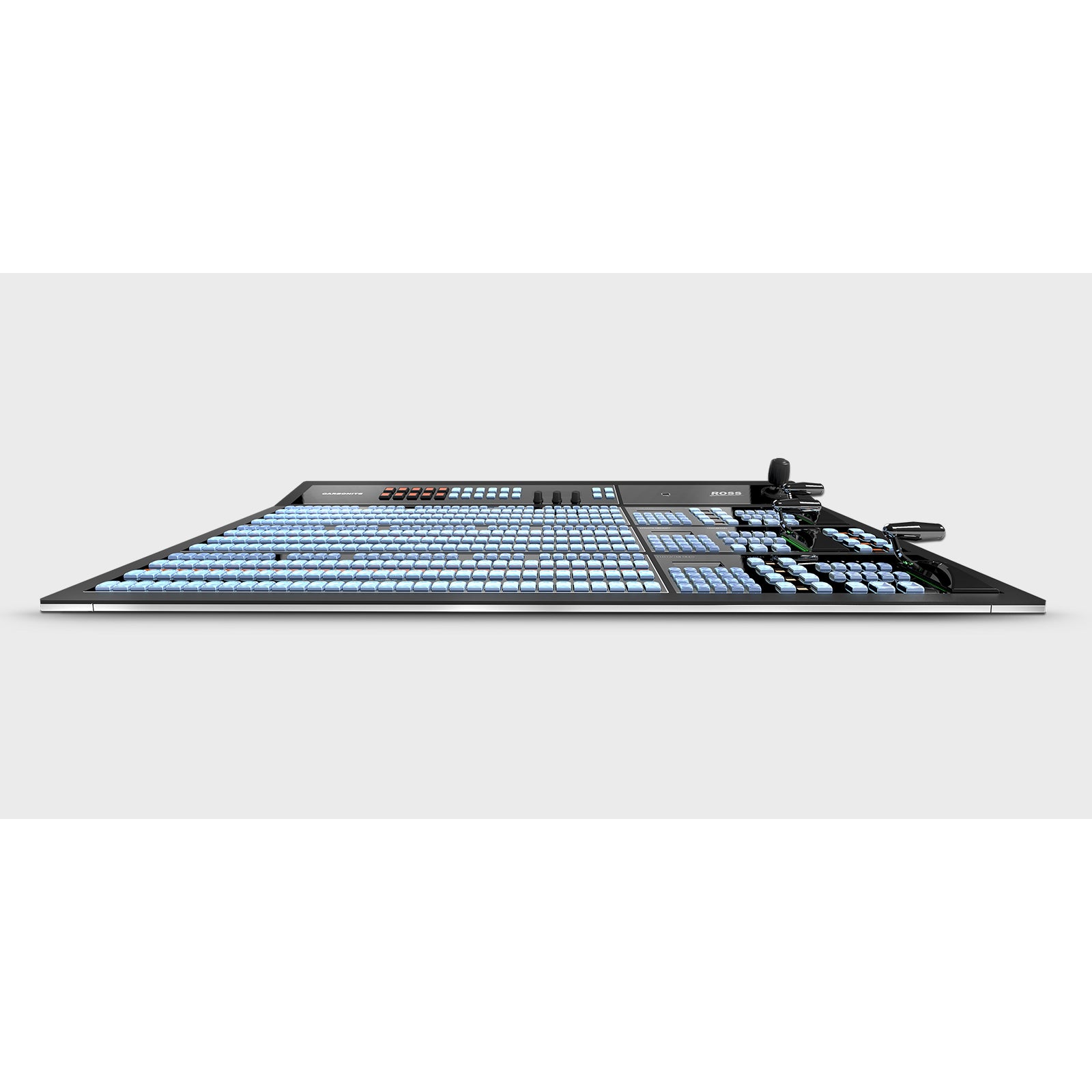

Optional Control Panels
| PHYSICAL FEATURES | CARBONITE BLACK 1 / 1s | CARBONITE BLACK 2 / 2s | CARBONITE BLACK 3s / 3x |
|---|---|---|---|
| Direct Access Crosspoint Buttons | 16 / 24 | 16 / 24 | 24 / 32 |
| Number of ME Rows | 1 | 2 | 3 |
| ME Effects Memory Keypad | CB1 – Global Only CB1s – Yes |
CB2 – Global Only CB2s – Yes |
Yes |
| Theme-Able Panel Glow RGB Buttons | |||
| 8 Character Input and Key Source Color Mnemonics | |||
|
Custom Control Macro Buttons with Split Row Mnemonics/td> |
64 / 96 | 64 / 96 | 96 / 256 |
–
Features & Interfaces
| FEATURES | |
|---|---|
| Number of Keys per ME | 5 (4 + 1 Transition Key) |
| Number of Keys per MiniME | 2 per MiniME |
| Number of Keys on Half ME | 2 DSK + Media Wipe |
|
Total Keyers in MiniME Mode/td> |
1 ME = 13 2 ME = 18 3 ME = 23 |
| Total Keyers in 2.5 ME Mode | 13 |
| UltraChrome Keyers (Floating) | 2 |
| Number of Media-Stores™ (Capacity 8GB) | 4 |
| Supported Media File Types | Stills: .BMP. Stills & Animations: .JPG .JPEG (no Alpha), TGA & PNG (with Alpha) & 48k WAV audio files |
| Browser-based Graphics Management | |
| Pattern Generators | 2 per ME |
| Effects Memory with MemoryAI™ | 100 per ME |
| Animated MediaWipes™ | |
| Direct Media Store Render Via Ethernet | |
| LiveEDL™ (Generates an Edit Decision List For Use In Post Production) |
| INTERFACES |
|---|
| DashBoard LiveAssist |
| ViewControl – Visual Production Control |
| Robotic Camera Control |
–

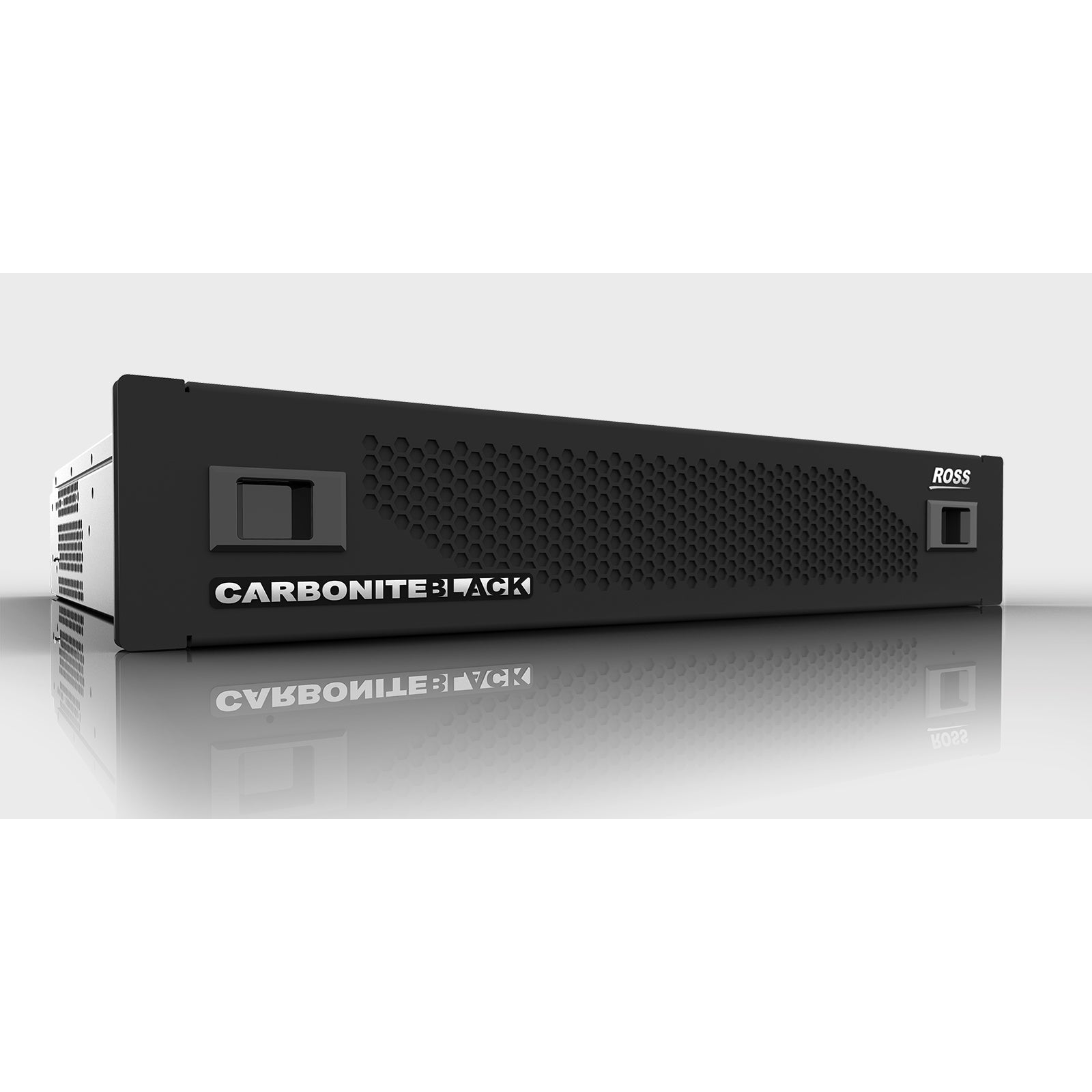

Frame (Processing Engine)
| KEY FEATURES | CARBONITE BLACK / BLACK PLUS |
|---|---|
| Multi-Definition Inputs | 36 |
| Multi-Definition Outputs | 22 / 25*** |
| Number of MEs | 2 or 3 |
| Number of MiniMEs | 4 |
| Number of Multiviewers™ with Tally and Source Names | 2 x 16 window / 5 x 16 window |
| Internal Format Converters / Frame Synchronizer | 6* / 36 |
| Number of Floating DVE’s | 8 or 4* / 8 |
| Input Proc Amps | No / Yes |
| Input Color Correctors | No / Yes |
| Output Color Correctors / Proc Amps / Format Conversion | 12 (Plus Frame Only) |
| Selectable SDI / HDMI / Analog inputs | No / No |
| HQ Format Converters (I to P & Computer Resolutions) | No / No |
| Number of GPI/O | 34 |
| Number of Tallies | 34 |
| Removable Storage Media | USB |
| Time Code Input | Yes (LTC) |
| Ethernet Ports | 2 |
| Reference Input | Black or Tri-Level |
| Internal Reference Generator | |
| Independently Configurable Reference Outputs | 2 |
| Editor Port | 1 (RS-422) |
* User selectable 6 FCFS or 8 DVE’s. (0 FCFS and 4 DVE’s in 3G mode).
** In 3G mode, the 24 input system has 12 format converters / frame synchronizer, and the 18 input system has 9.
*** Three additional outputs are MultiViewer only.
The Carbonite 1 and Carbonite 1S panels are able to address two ME’s – the operator can swap between ME 1 and ME 2 control.
–
Signal Processing Standards
| SIGNAL PROCESSING STANDARDS | CARBONITE BLACK / BLACK PLUS / BLACK PLUS 12G |
|---|---|
| Standard Definition | 480i/59.94, 576i/50 |
| High Definition | 720p & 1080i 50/59.94 |
| 1080PSF | 1080p 23.98/25 |
| 1080P | 1080p 29.97 (1.5Gb) & 50/59.94 (3Gb) |
| UHD* | 3840 x 2140, 50 or 59.94 |
* Operational features in 12G/UHD Operation Mode listed below.
–
12G/UHD Operation Mode
| INPUTS & OUTPUTS | CARBONITE BLACK / BLACK PLUS | CARBONITE BLACK PLUS 12G |
|---|---|---|
| UHD Inputs | 9 UHD inputs via quad-link 2SI 3G 1080p Level A. | 9 UHD inputs via 12G single-link or quad-link 2SI 3G 1080P Level A. |
| UHD Outputs | 5 UHD outputs via quad-link 2SI 3G 1080p Level A. 2 outputs (copies) of the System MultiViewer in 1080p Level A. |
5 UHD outputs via 12G single-link or quad-link 2SI 3G 1080P Level A. 2 outputs (copies) of the System MultiViewer in 1080p Level A. |
| SIGNAL PROCESSING | CARBONITE BLACK | CARBONITE BLACK PLUS / BLACK PLUS 12G |
|---|---|---|
| Input Processing | N/A | 9 processing inputs with frame syncs, format converters, colour correctors and proc amps |
| Output Processing | N/A | 3 processing outputs with format conversion, colour correctors and proc amps |
| MONITORING | CARBONITE BLACK | CARBONITE BLACK PLUS / BLACK PLUS 12G |
|---|---|---|
| MultiViewers | 1 System MultiViewer (1080p) with up to 16 windows. | 1 System MultiViewer (1080p) with up to 16 windows. 3 additional I/O MultiViewers supporting 3 inputs & 1 output each. Each I/O MultiViewer has a dedicated 1080P Level A output. |
| OPERATIONAL FEATURES | CARBONITE BLACK / BLACK PLUS / BLACK PLUS 12G |
|---|---|
| Mix/Effect Buses (ME) | 1 Full ME, with 4 keyers and a dedicated 5th transition keyer |
| MiniMEs | 2 MiniMEs, each with 2 Keyers and Full Preview |
