Vizrt (Newtek) VPTZ3UHD - PTZ3 UHD PLUS - NDI Camera with 30x Optical Zoom

Manufacturer: Vizrt
SKU: VIZ-FG003301R001 (MPN: VPTZ3UHDW)
Regular price $4,695.00 USD
Regular price Sale price $4,695.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

New Vizrt PTZ Camera with AI Presenter Tracking - Built for BroadcastAV

The PTZ3 UHD PLUS camera offers top-notch UHD picture quality, 30x optical zoom, excellent low-light performance, and phantom-powered audio. It combines premium hardware with intelligent features that enhance production, such as AI presenter tracking and the innovative FreeD tracking data embedded via NDI|HX. All of this is packed into a sleek, discreet body that seamlessly fits into any environment.

No matter if you are live streaming, hosting a corporate town hall, covering live events, or any other scenario that requires high-quality audio and video, the PTZ3 UHD PLUS camera is the perfect solution. With NDI connectivity, setting up the camera on your network is a breeze, and integrating augmented reality/virtual reality solutions like Viz Virtual Studio Go is now simpler than ever thanks to FreeD tracking data embedded in each frame over NDI|HX. You'll be creating professional broadcast-quality productions in no time

Perfect for Multiple Use Cases (Examples):



Visual Radio Perfect for visual radio broadcasting, with high quality visuals, professional audio inputs, and great low light performance

Broadcast For on-demand live productions and use by social media and marketing teams

Corporate Turn any office or meeting room into a remote studio for executive communications, video conferencing, or online training

Education Streamline virtual classroom production, lecture capture, and distance learning for live and on-demand teaching

Entertainment Expand event coverage in-venue and behind the scenes for live streaming, recording, and social video

Gaming Capture the action, emotion, and intensity of competitive gaming and e-sports from every angle

Government Inform and involve citizens with real-time access to live meetings and community programming

Professional A/V Explore virtually endless video applications, from medical and security installations to house of worship productions, weddings, and graduations

Sports Enhance the fan experience with unique camera angles or outfit facilities for covering practices and club activities



AI presenter tracking

Workflows

With NDI® at its core, the PTZ3 PLUS camera range guarantees the tightest integration with any TriCaster live production system, CaptureCast, Viz Virtual Studio systems, Viz Connect Tetra, and any NDI® workflow – offering professional audio, pristine 1080p60 to 4Kp60, and infinite production possibilities.

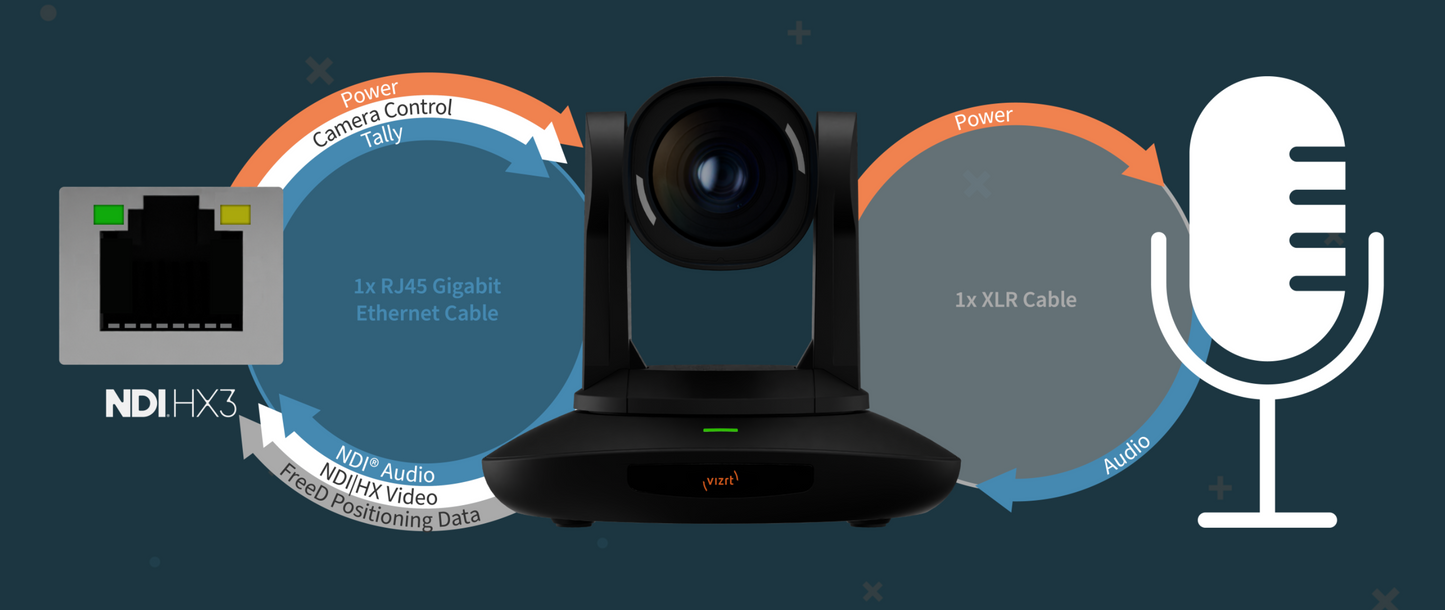

All the connections you could possibly need

Simplify your setup and cabling by sending power, control, audio, video, tally, and FreeD camera tracking data through a single ethernet cable. NDI|HX makes it easy to bring in any video source, while professional line in and XLR audio connectivity with phantom power open up a wide selection of audio input options. Output to 3G-SDI and HDMI and use RS232 for control if required.

What’s in the box?
Everything you need to get started, right there in the box, including:
✓ PTZ3 PLUS/UHD PLUS Camera
✓ Reversible L wall mount bracket mount
✓ Fixed plate ceiling/shelf mount
✓ Mount fixings
✓ Remote control (to control up to four cameras)

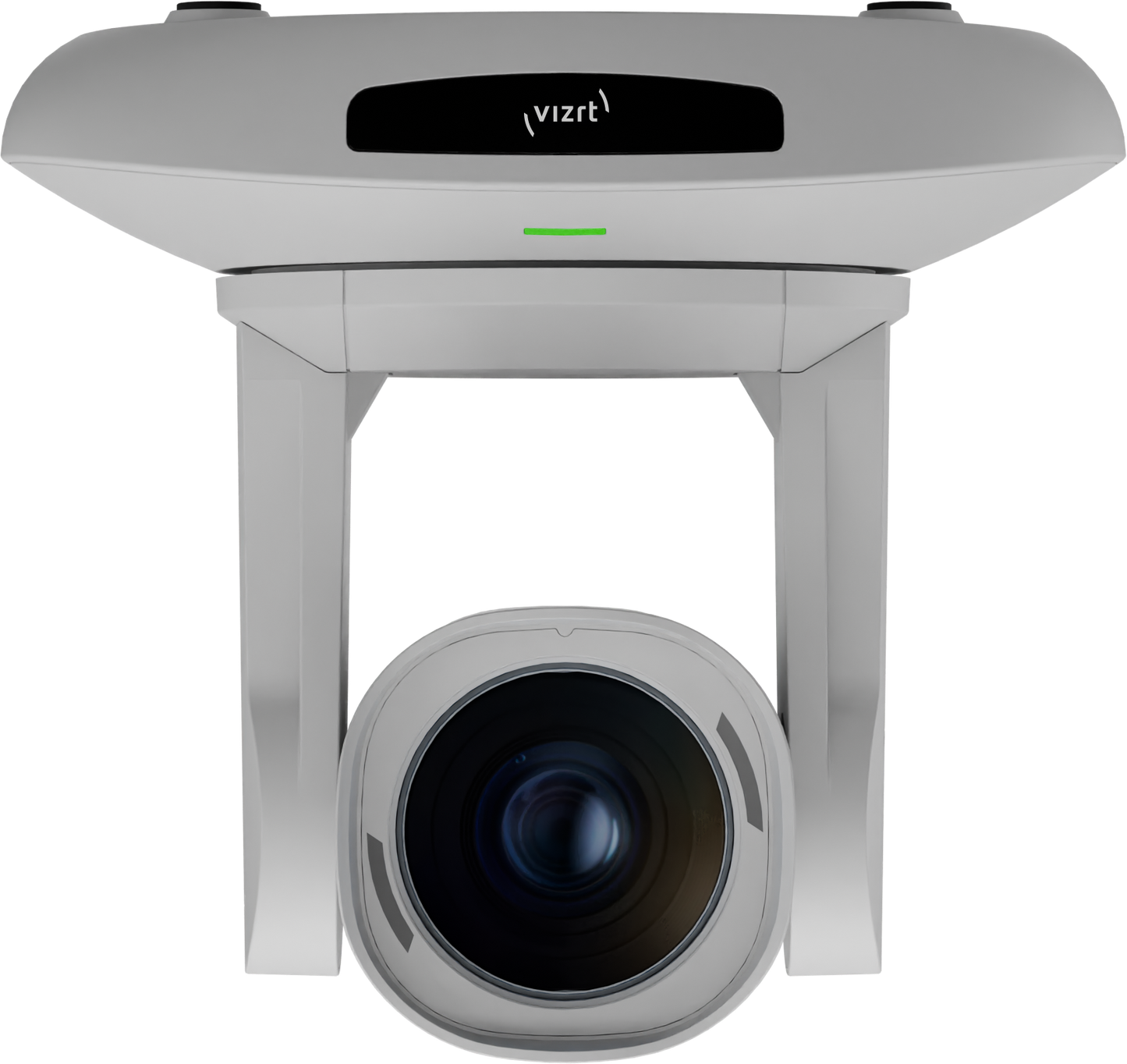

✓ Secondary reversed faceplate for upside-down mounting
✓ Mini XLR to XLR Adapter cable
✓ Power supply with UK, US, EU, and ASIA Power cables
✓ USB C cable and USB to serial cable for firmware updates and recovery
✓ Welcome card with QR code for software updates and user guide



Vizrt PTZ Camera with AI Presenter Tracking - Built for BroadcastAV

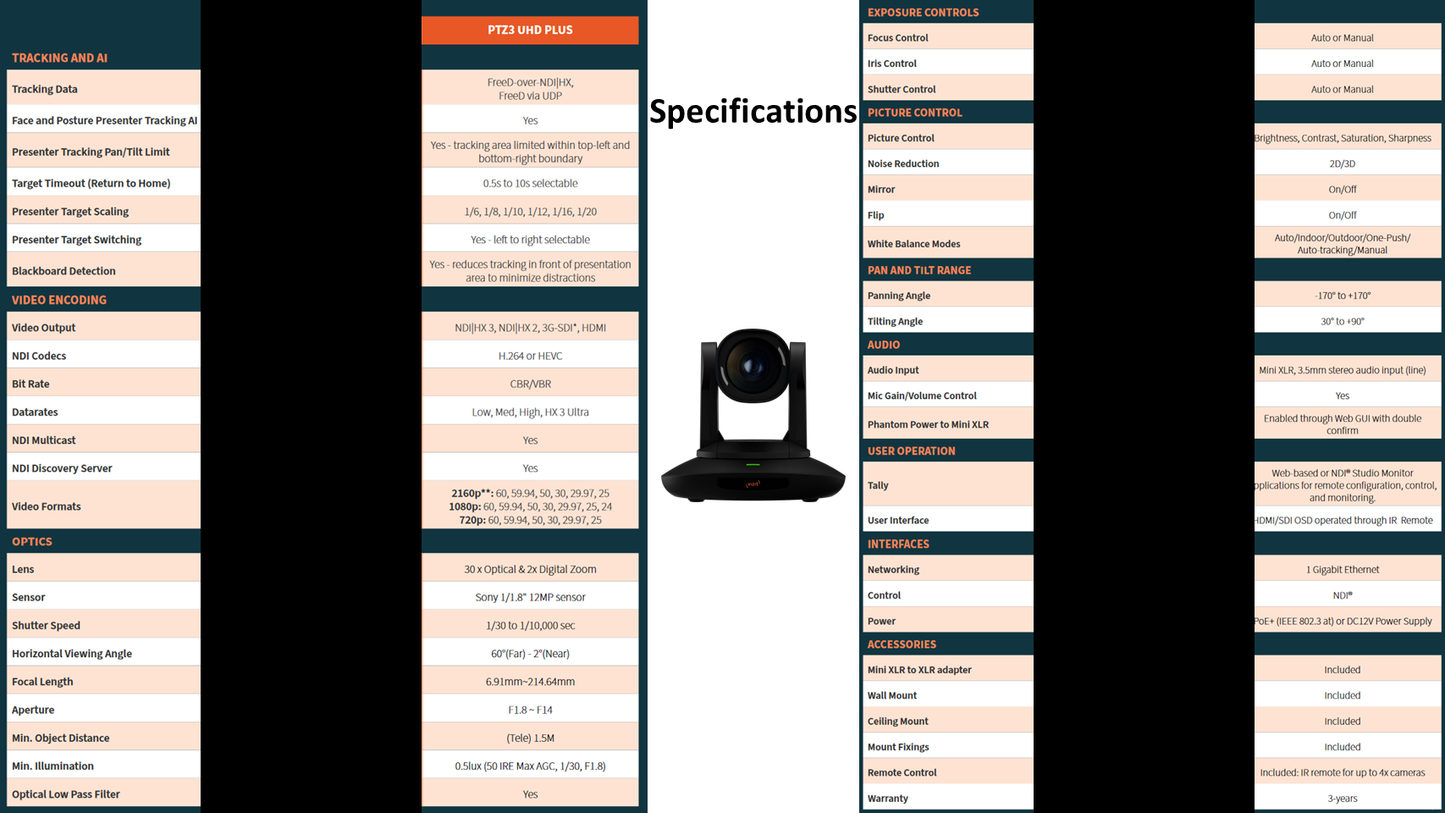

Key Specifications:
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 12 Megapixel (3840 x 2160)
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1/30 Second
Optical Zoom Ratio
30x
Max Digital Zoom
2x
External Recording Modes
SDI/BNC / HDMI / RJ45
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 24.00/25/29.97/50/59.94 fps
1280 x 720 at 24.00/25/29.97/50/59.94 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, NDI|HX3
1280 x 720 to 3740 x 2160 at 25p, 30p, 50p, 60p
Supported Control Protocols
NDI
RS-232
PoE Support
PoE+ 802.3at
Imaging
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
Effective: 12 Megapixel (3840 x 2160)
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1/30 Second
Minimum Illumination
0.5 Lux at 1/30 Shutter Speed
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length
6.91 to 214.64mm
Optical Zoom Ratio
30x
Max Digital Zoom
2x
Field of View
Horizontal: 60 to 2°
Maximum Aperture
f/1.8 to 14
Minimum Focus Distance
Telephoto: 59.1" / 1.5 m
Video Capture
External Recording Modes
SDI/BNC / HDMI / RJ45
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 24.00/25/29.97/50/59.94 fps
1280 x 720 at 24.00/25/29.97/50/59.94 fps
Embedded Audio
HDMI/LAN (RJ45)/NDI/SDI
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, NDI|HX3
1280 x 720 to 3740 x 2160 at 25p, 30p, 50p, 60p
Control
Movement Range
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Tally Light
Yes
Supported Control Protocols
NDI
RS-232
Interface

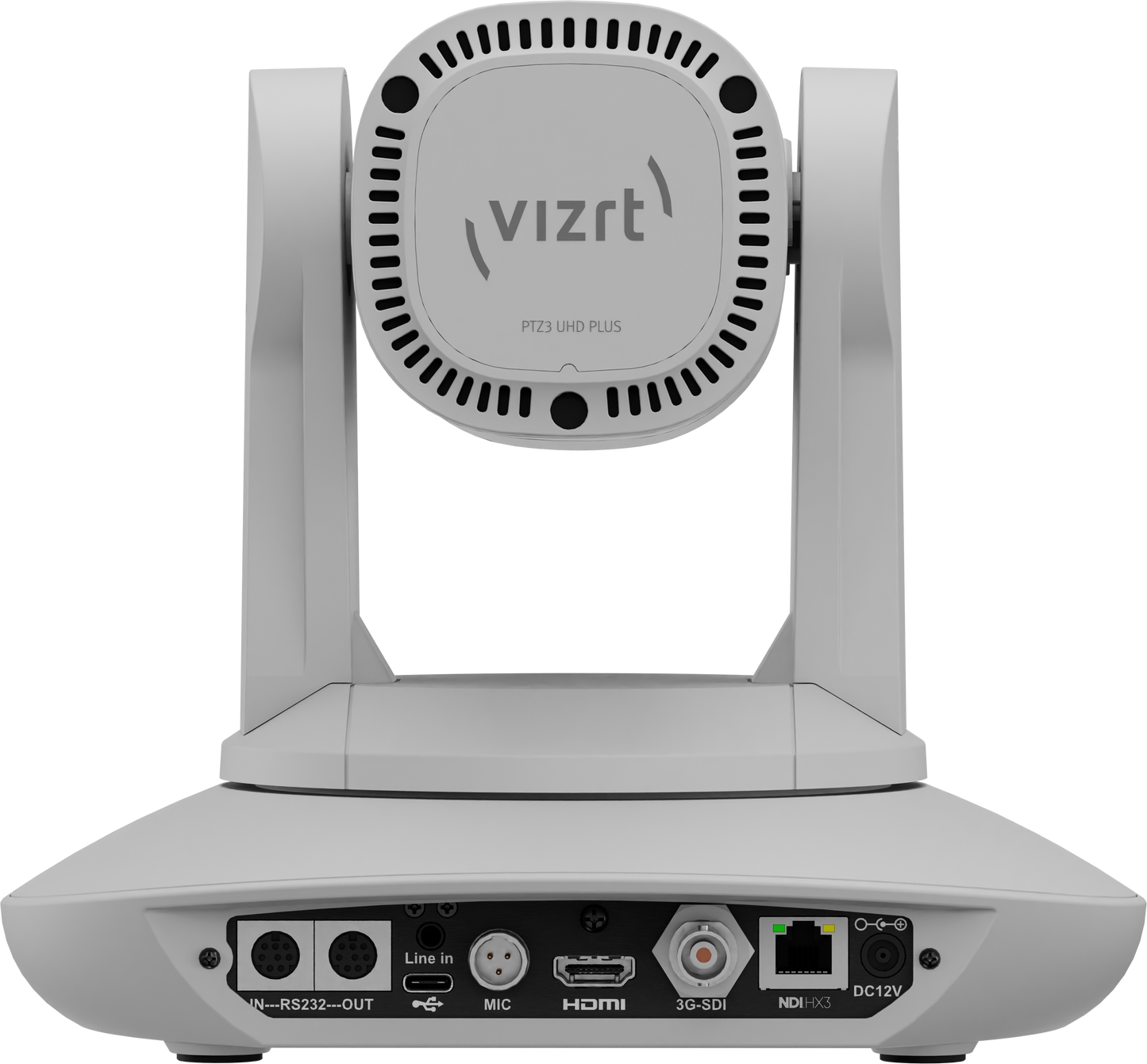

Video I/O
1x HDMI (Unspecified Signal) Output
1x BNC (3G-SDI) Output
1x RJ45 (NDI) Output
Audio I/O
1x Mini XLR Microphone Input
Other I/O
1x Mini-DIN 9-Pin (RS-232) Input
1x Mini-DIN 9-Pin (RS-232) Output
1x RJ45 (NDI) Input/Output
1x USB-C
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (12VDC) Input
