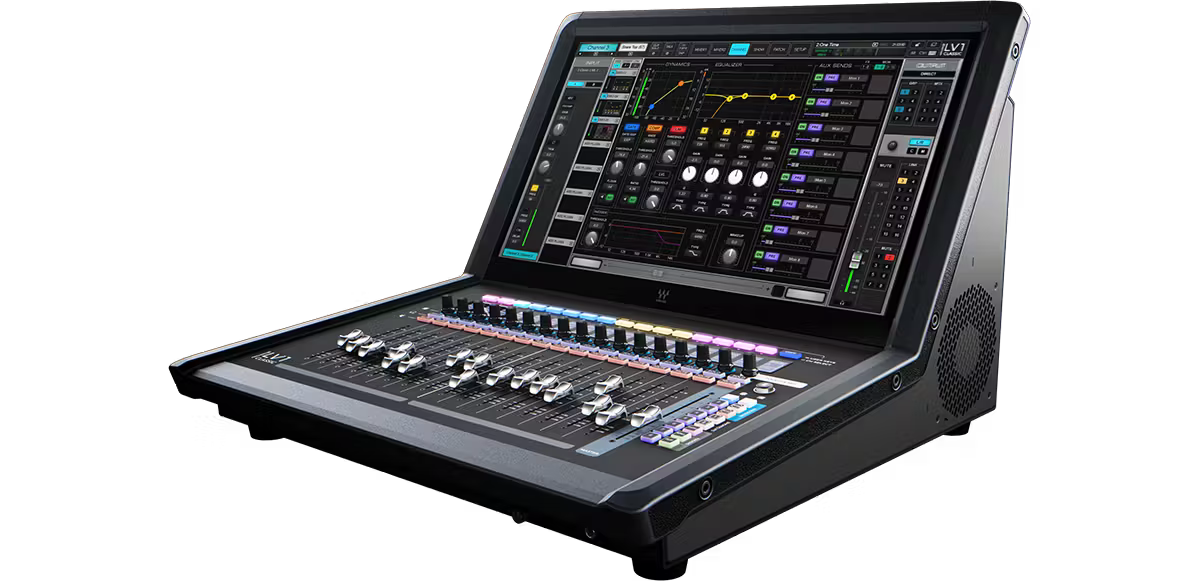

Waves eMotion LV1 Classic 64-channel Digital Mixer

Manufacturer: store.ear.net
SKU:
$8,000.00 USD
$8,000.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

eMotion LV1 Classic consoles feature industry-leading sound, intuitive UI, the industry’s deepest processing, and easy scalability, all packed into a compact, lightweight form factor.



  • 64 mono/stereo input channels
  • 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
  • Double Precision 32-bit floating point mix engine (44.1–96 kHz)
  • Latency as low as 0.8 ms
  • 21.5” multi-touch screen with 1000 Nit brightness
  • 16+1 motorized 100 mm Alps faders
  • 16+1 precision encoders, with mini-displays including per-channel LCD metering
  • Select/Mute/Solo keys per channel
  • 16 layers with utility keys and tempo pad
  • 16+2 user-customizable shortcut keys
  • 16 Waves Signature Preamps with mic/line inputs
  • 12 line outputs, 2 AES3 outputs, AES3 SRC input
  • Internal ultra-low-latency Waves SoundGrid DSP engine handles processing
  • Add more I/O: Up to 14 SoundGrid-compatible devices, including Dante and MADI convertors
  • Add up to 3 processing servers and 4 backup servers
  • 4 SoundGrid switch ports: 2 Ethercon + 2 RJ45
  • 8-slot rack hosts 8 plugins per input channel + all mix channels

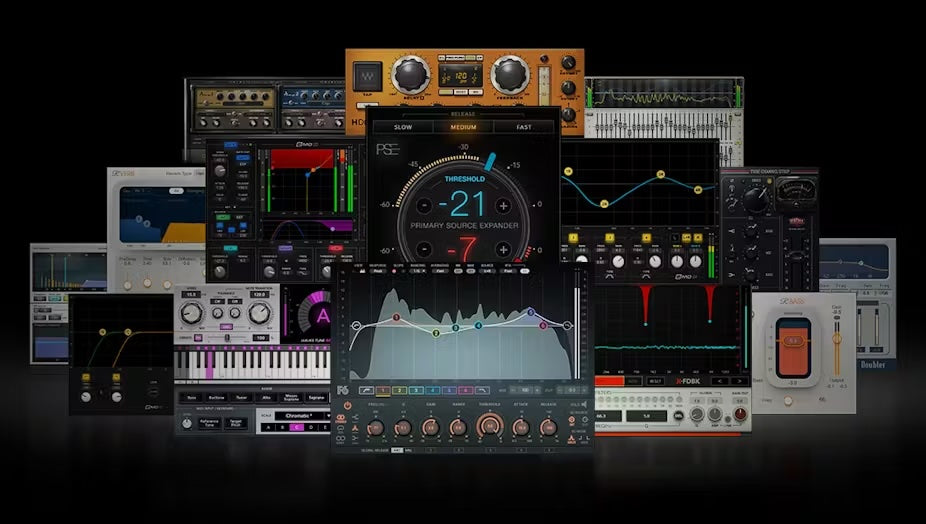

  • Plugins included with the console:
    • F6 Dynamic EQ
    • Waves Tune-Real Time
    • eMo Q4 EQ
    • eMo D5 Dynamics
    • eMo F4 Filter
    • GEQ 30-band EQ
    • X-FDBK Feedback Eliminator
    • PSE (Primary Source Expander) Mic Bleed Reduction
    • Renaissance Compressor
    • Renaissance Bass
    • Doubler
    • H-Delay
    • Renaissance Reverb
    • TrueVerb
    • Magma Tube Channel Strip
    • GTR3
  • 160 additional award-winning Waves plugins available as upgrades
  • Immersive in-ear mixing available as software upgrade (eMo IEM)
  • Dugan auto-mixing available as software upgrade
  • Custom options for mixing layout
  • Intuitive control over each channel’s parameters
  • Patch system-wide connections
  • Custom colors per channel



  • Unicode multi-language support
  • Up to 1000 scenes with Recall Safe and Scope Filters
  • 8 Mute groups and 16 Link DCAs with Spill function
  • Digital preamp control with local V-Gain tracking for sharing
  • Multiple outputs per channel with delay alignment controls
  • Record 16 tracks locally to USB / 128 tracks to remote computers
  • Stereo playback from USB
  • Remote control apps for mobile & tablet, for both FOH and stage
  • Size: 22” (560 mm) x 15.8” (402 mm) x 22.1” (561 mm)
  • Weight: 38 lbs. (17.2 kg)
